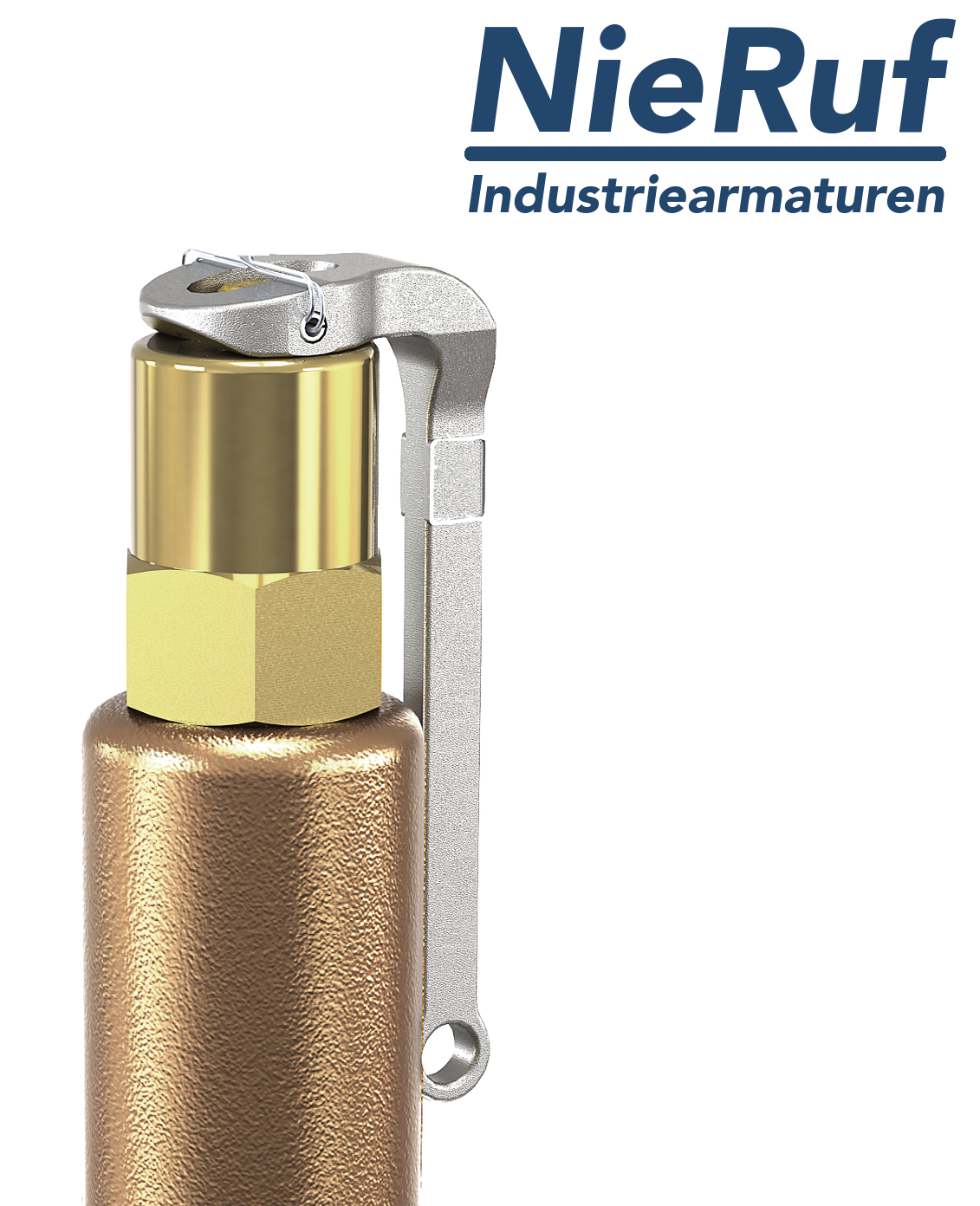

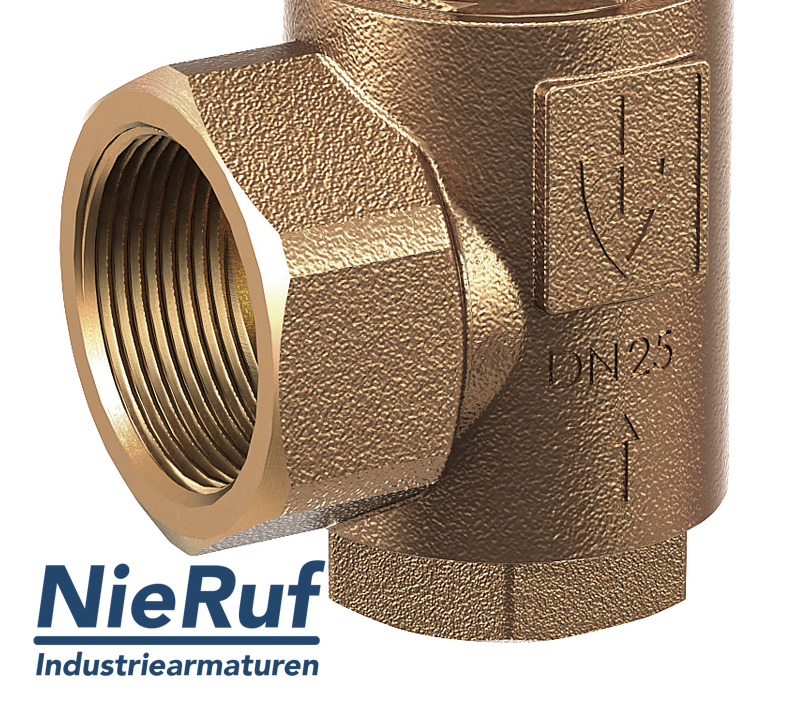

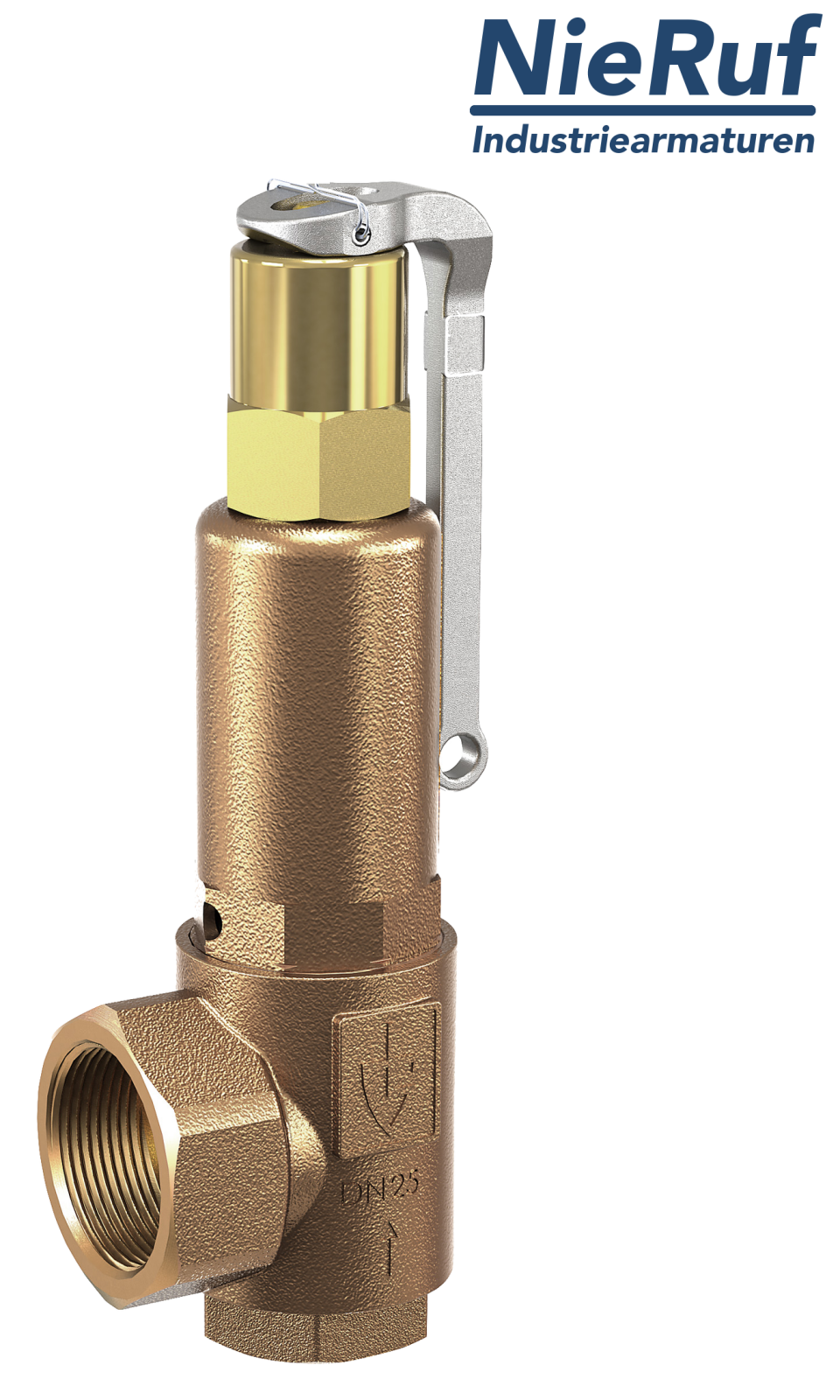

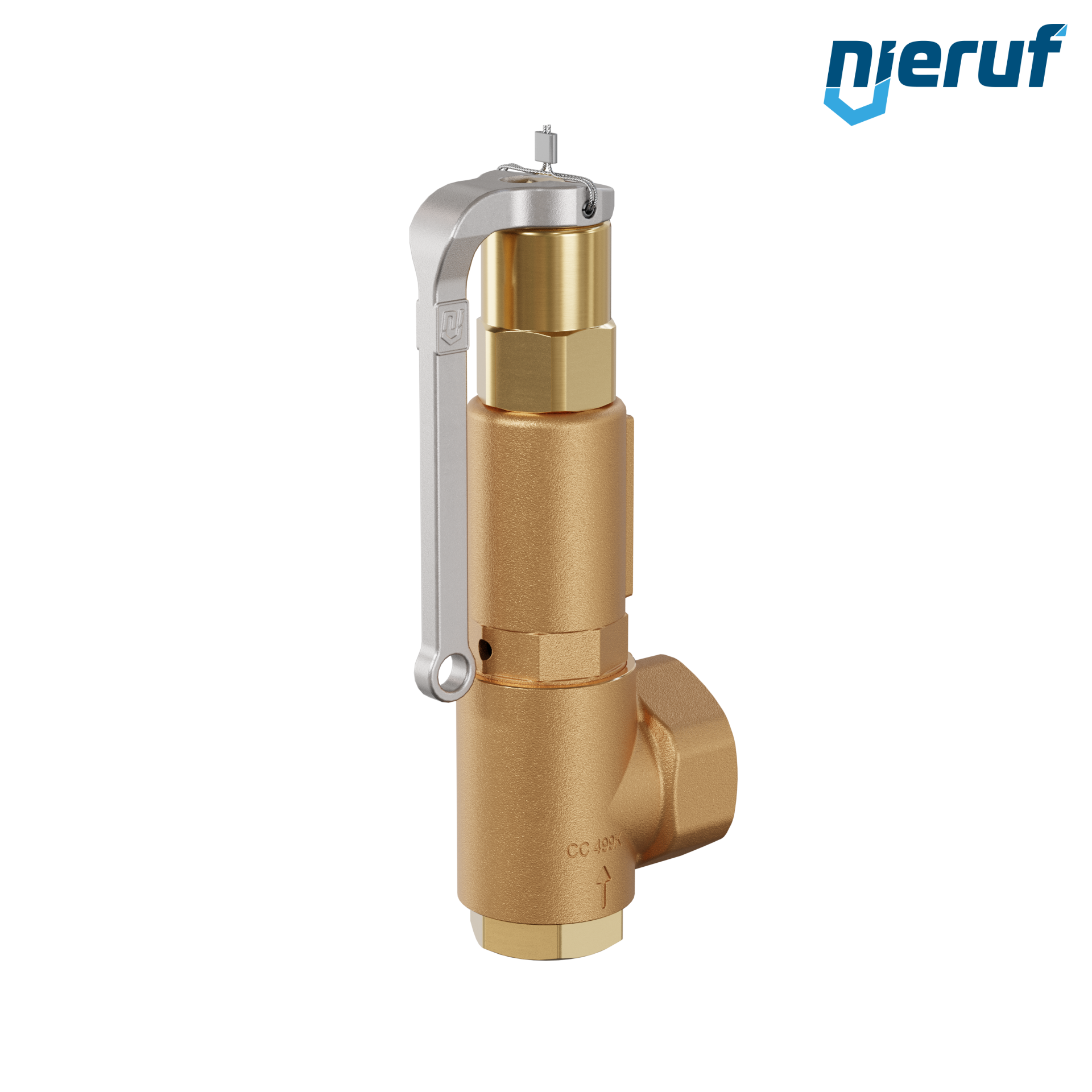

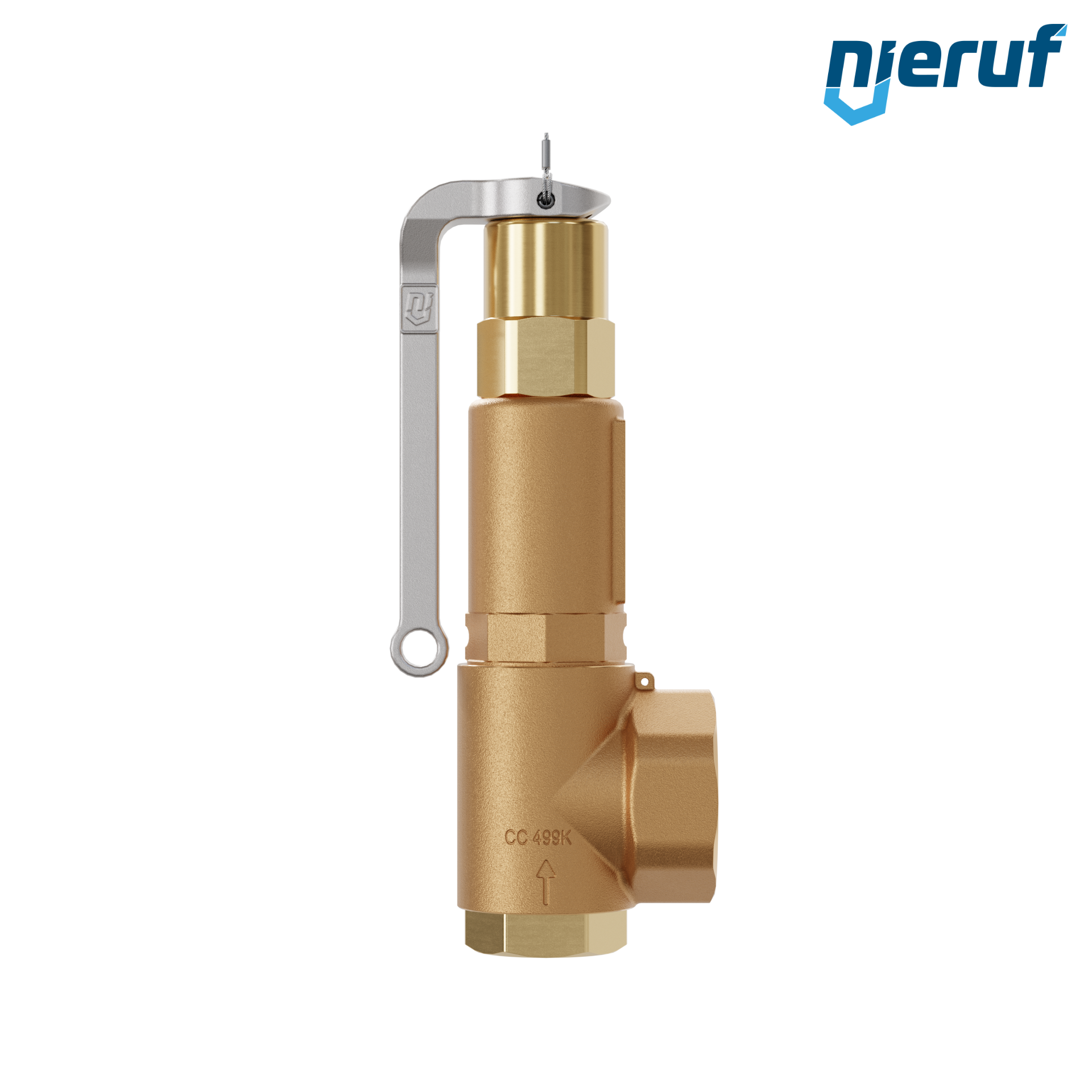

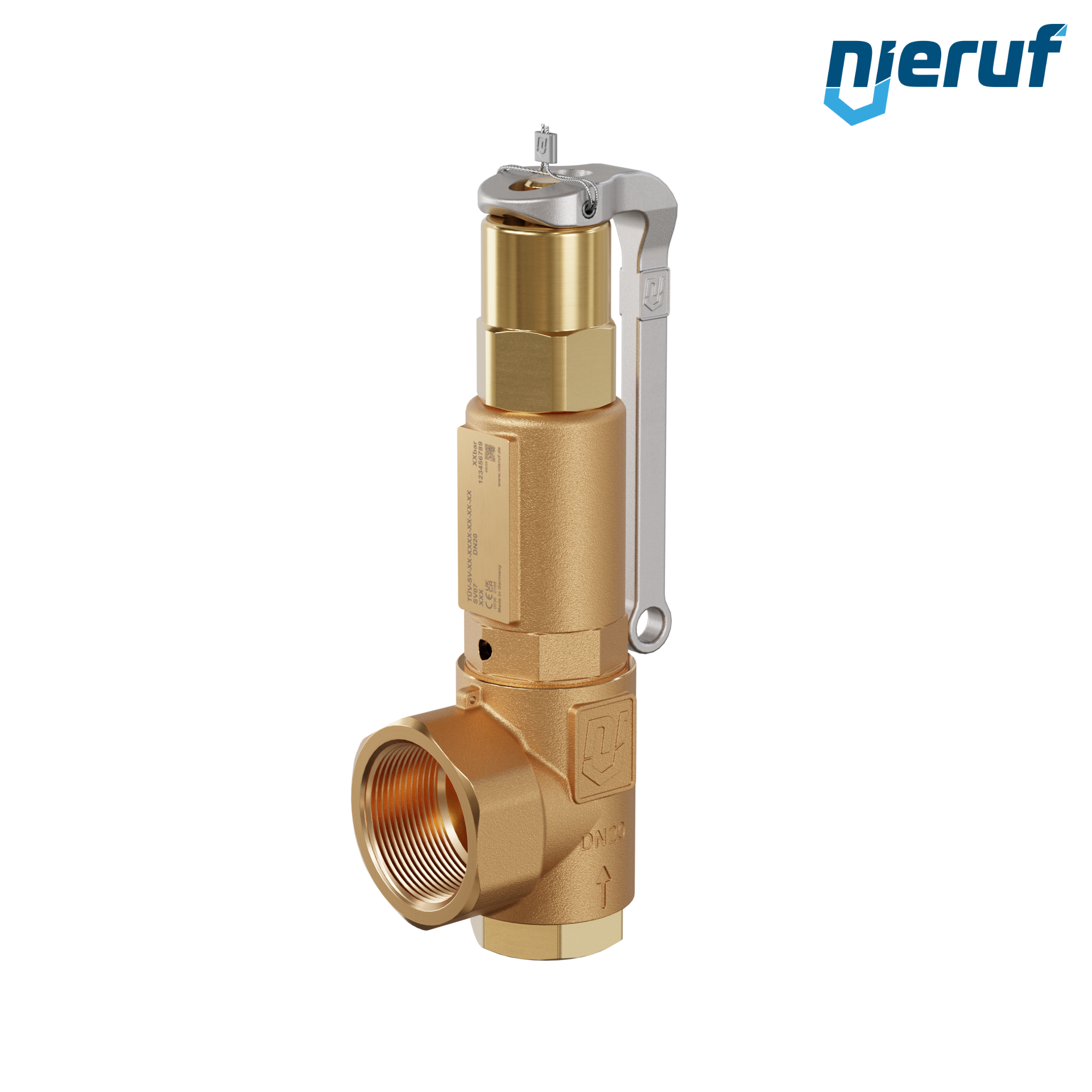

safety valve 3/4" x 1 1/4" fm mit with lever SV07 for neutral gaseous media made of gunmetal seal NBR set pressure 0,5 - 25,0 bar- higher pressures possible in PTFE version
| product | safety valve |
|---|---|
| type | SV07 |
| manufacturer | NieRuf |
| diameter | 3/4" x 1 1/4" fm |
| d0 | 18,0 mm |
| connection | Female screw threaded BSP-P |
| seal | NBR |
| media | neutral gaseous media |
| temperature | -30°C to +130°C |
| set pressure | 0,5 - 25,0 bar- higher pressures possible in PTFE version |
| design | angle-type |
| material | gunmetal |
| lifting | with lever |
| type test approval | TUV = D/G | EG = S/G |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level | SIL 3 |
| product feature 1 | without bellows |
| product feature 2 | for neutral media without counter pressure. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 3/4" x 1 1/4" fm SV07 neutral gaseous media, gunmetal NBR, with lever
Article no.
: SV07100404
product:
safety valve
type:
SV07
manufacturer:
NieRuf
diameter:
3/4" x 1 1/4" fm
d0:
18,0 mm
connection:
Female screw threaded BSP-P
seal:
NBR
media:
neutral gaseous media
temperature:
-30°C to +130°C
set pressure:
0,5 - 25,0 bar- higher pressures possible in PTFE version
design:
angle-type
material:
gunmetal
lifting:
with lever
type test approval:
TUV = D/G | EG = S/G
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3
product feature 1:
without bellows
product feature 2:
for neutral media without counter pressure.
