SV08110308
safety valve 2" m x 2" fm SV08 gaseous media, gunmetal PTFE, with lever
- Lead time
- 3 - 5 working days
Equipment
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

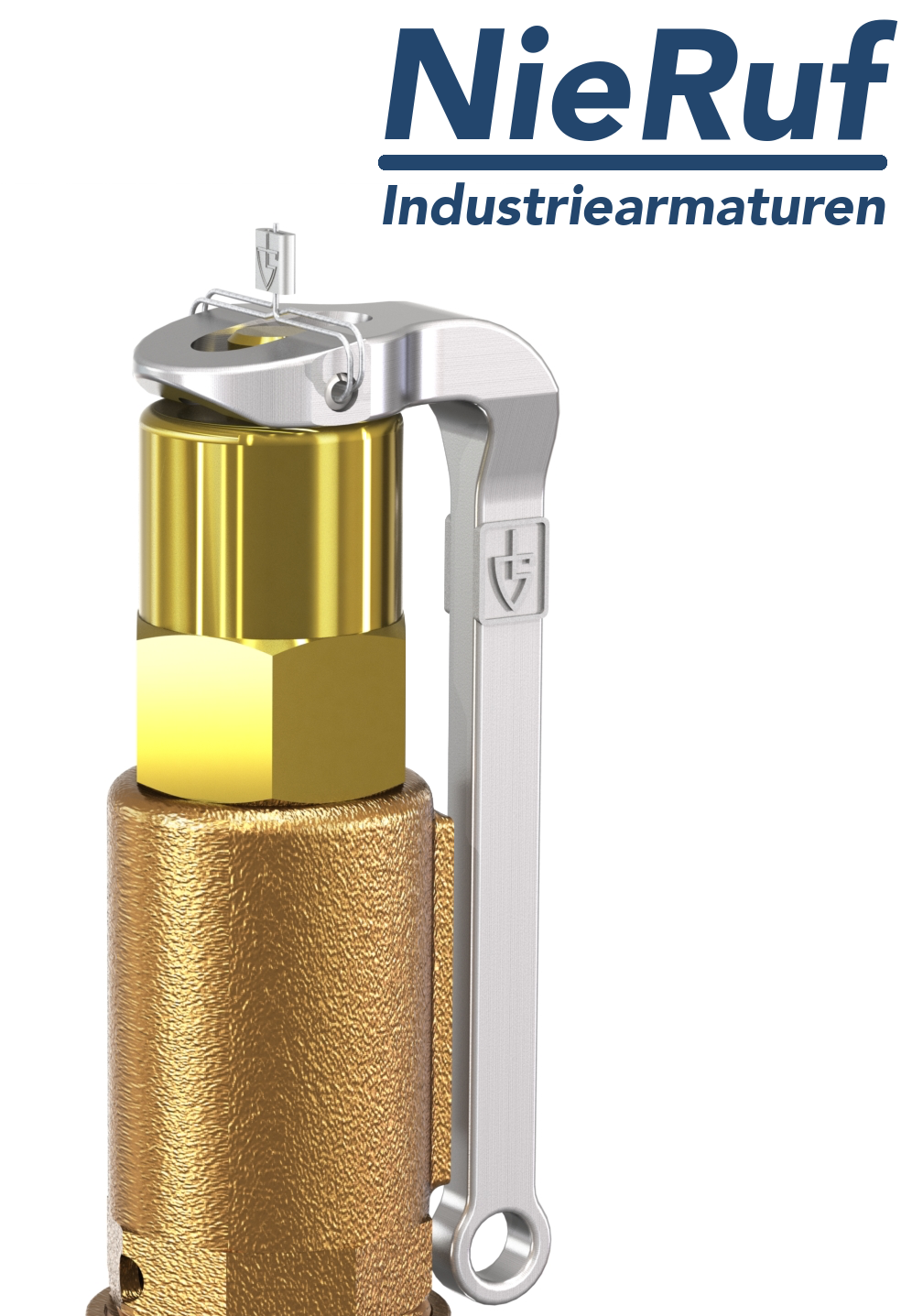

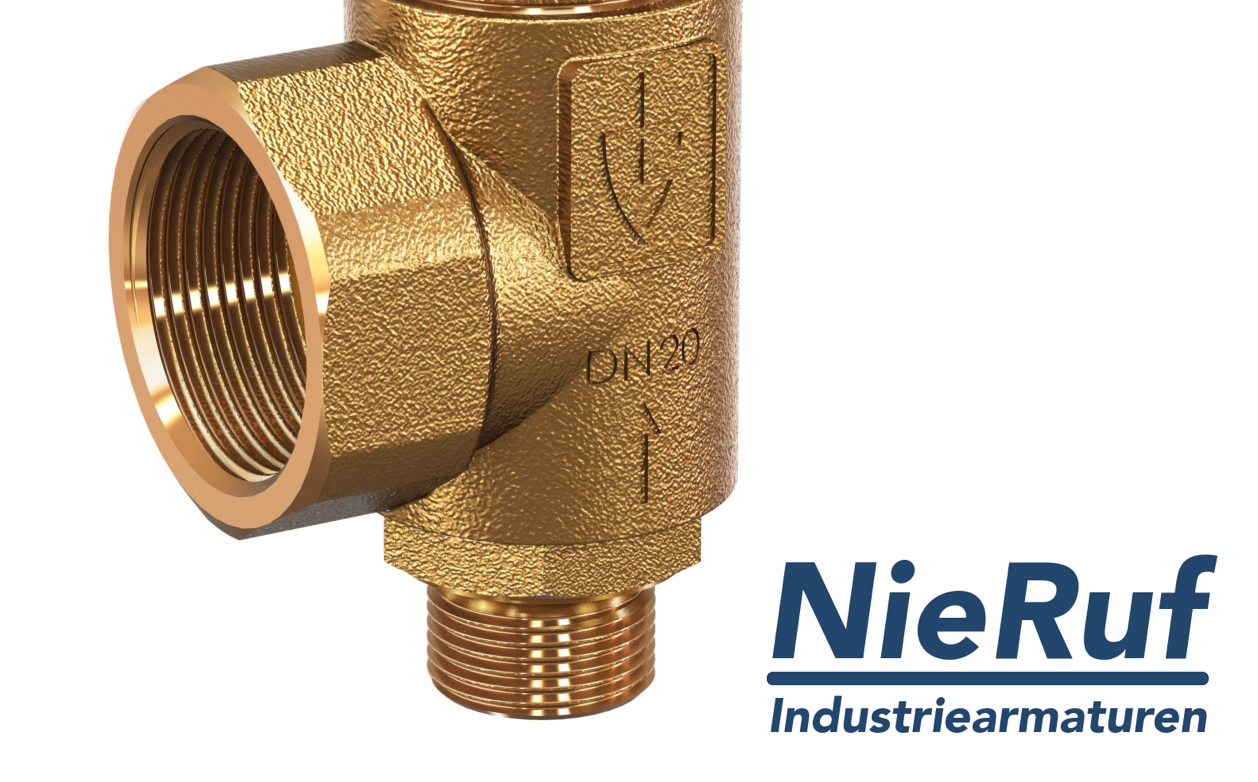

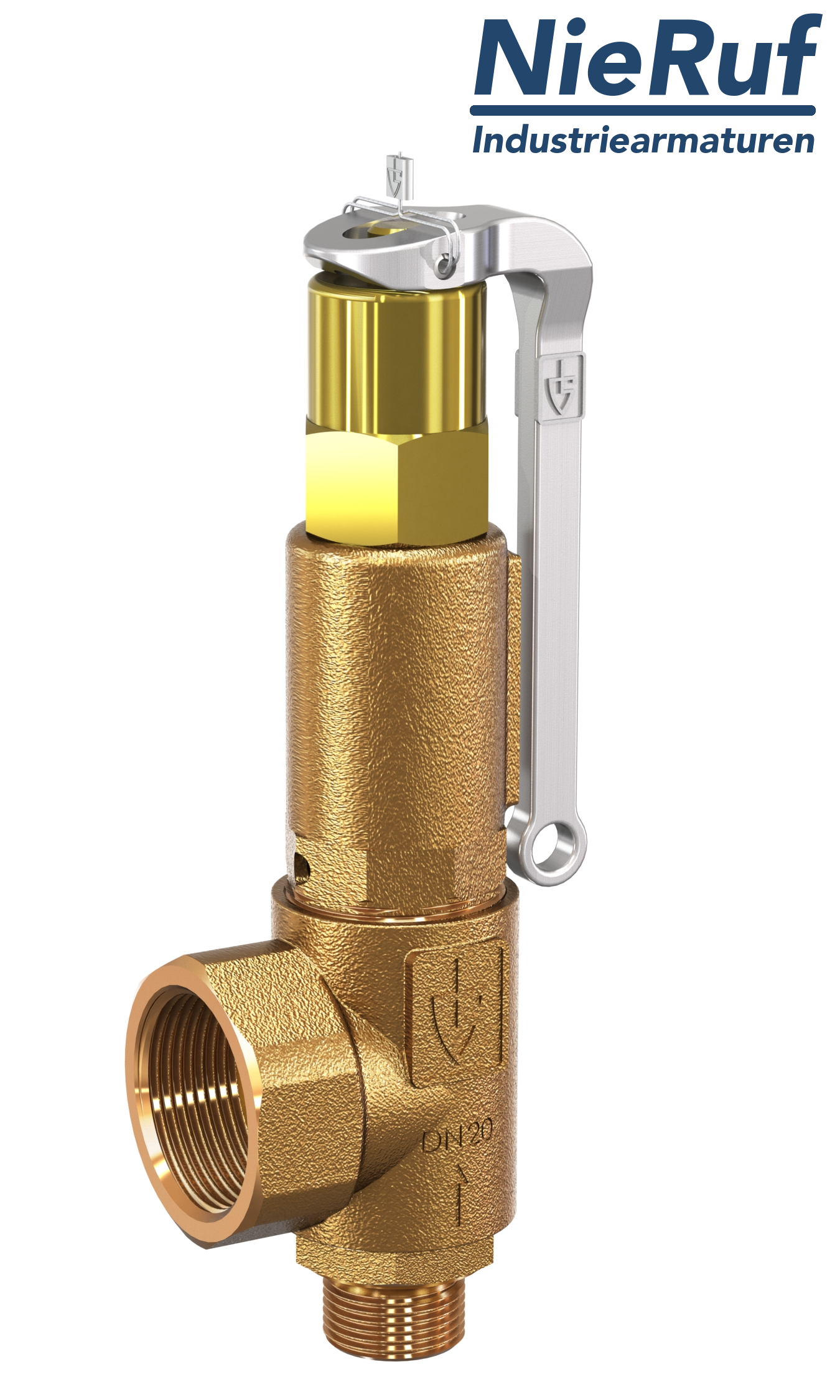

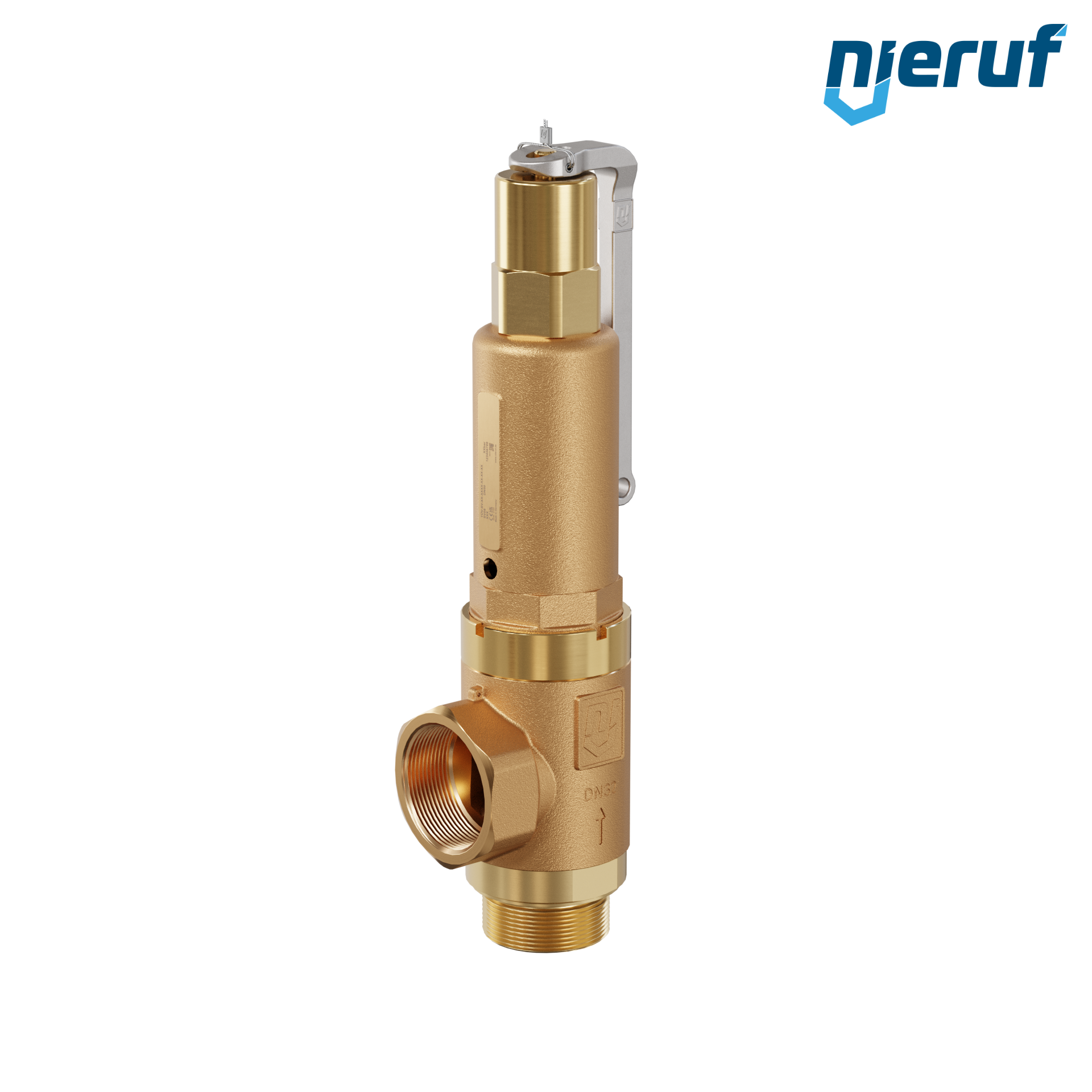

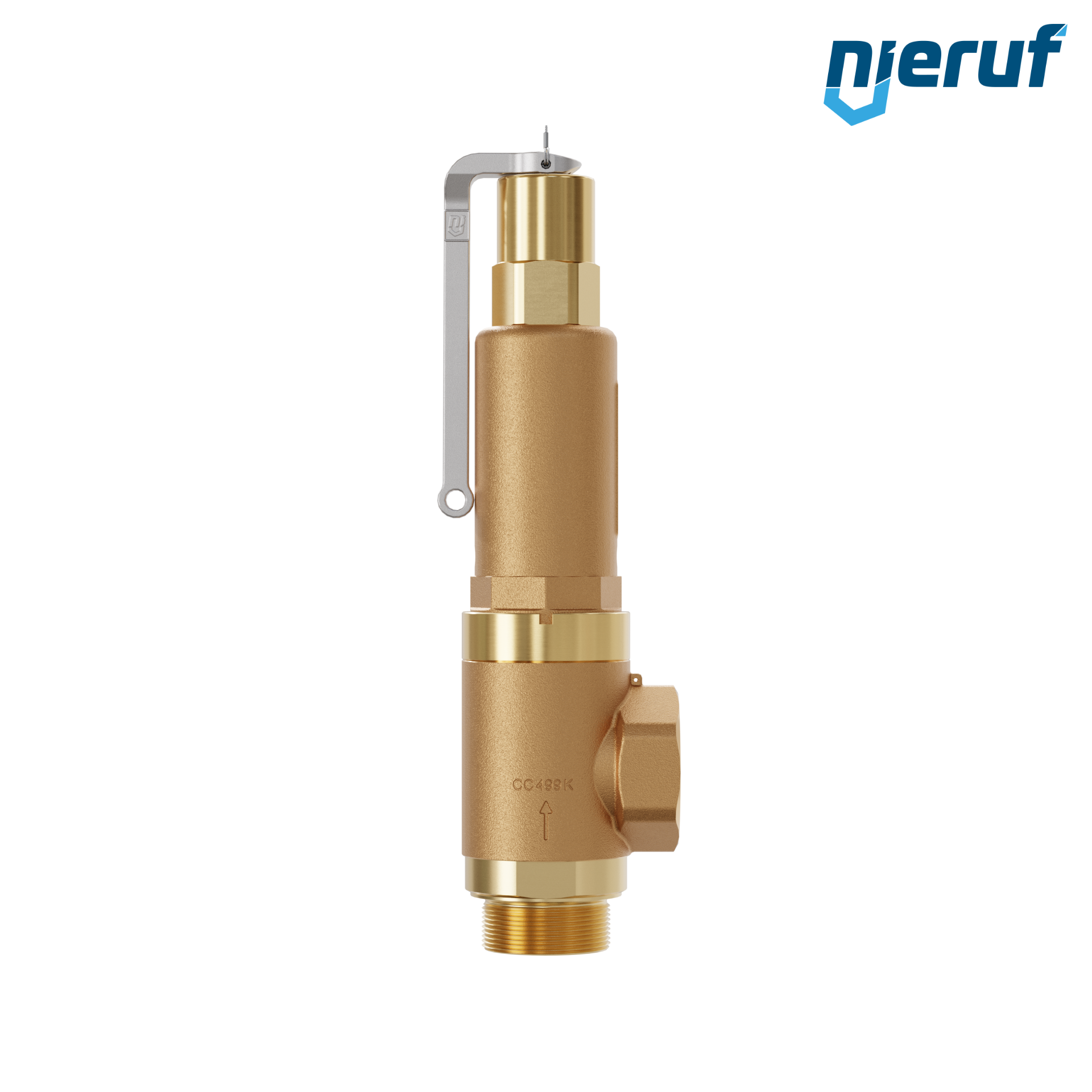

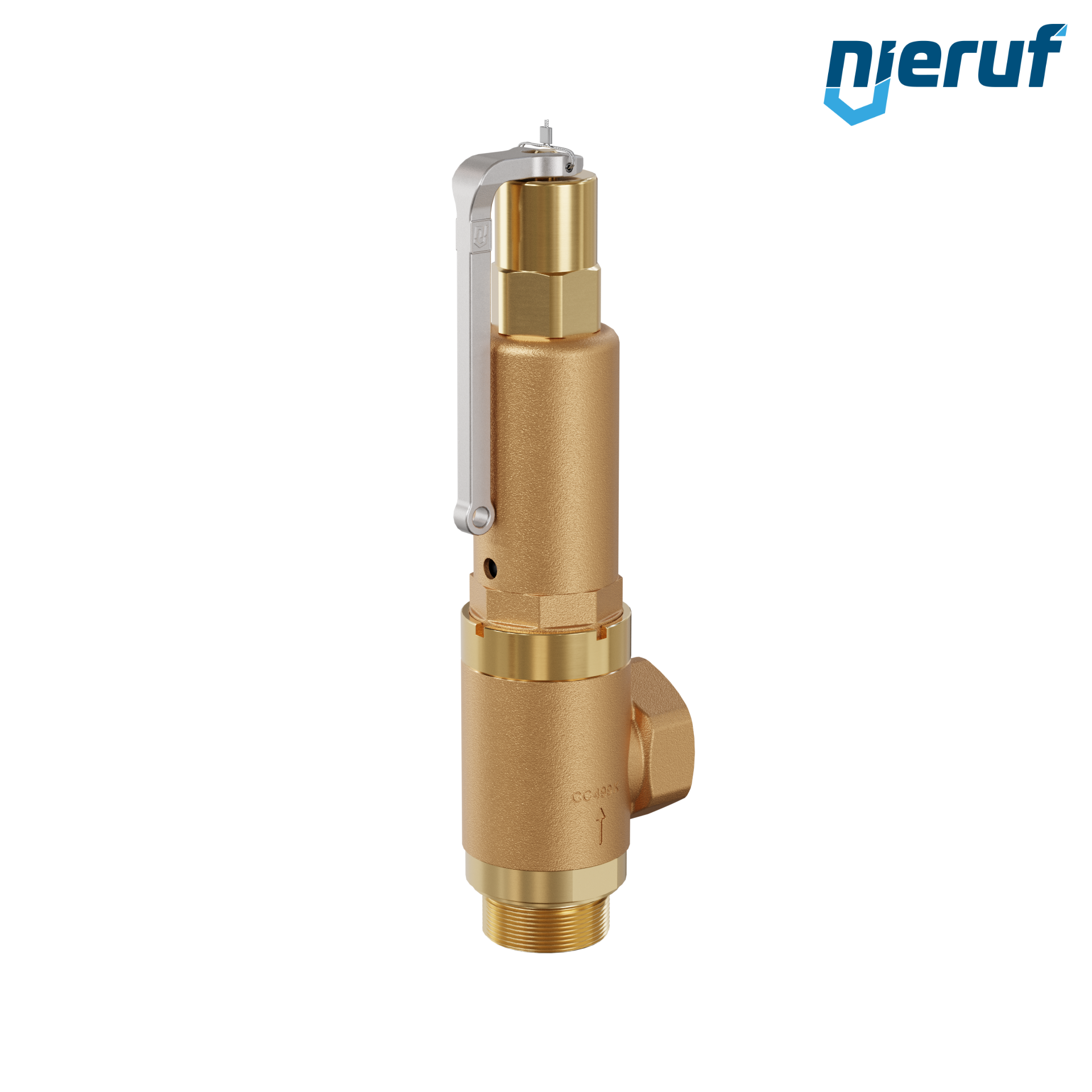

safety valve 2" m x 2" fm SV08 gaseous media, gunmetal PTFE, with lever
safety valve 2" m x 2" fm male screw threaded BSP-P SV08 for gaseous media made of gunmetal seal PTFE set pressure 0,5 - 50,0 bar with lever
| product | safety valve |
|---|---|
| type | SV08 |
| manufacturer | NieRuf |
| diameter | 2" m x 2" fm |
| d0 | 30,3 mm |
| connection | male screw threaded BSP-P |
| seal | PTFE |
| media | gaseous media |
| temperature | -60°C up to +225°C |
| set pressure | 0,5 - 50,0 bar |
| design | angle-type |
| material | gunmetal CC499K |
| lifting | with lever |
| type test approval | TUV = D/G | EG = S/G |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | with bellows |
| product feature 2 | for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 2" m x 2" fm SV08 gaseous media, gunmetal PTFE, with lever
Article no.
: SV08110308
product:
safety valve
type:
SV08
manufacturer:
NieRuf
diameter:
2" m x 2" fm
d0:
30,3 mm
connection:
male screw threaded BSP-P
seal:
PTFE
media:
gaseous media
temperature:
-60°C up to +225°C
set pressure:
0,5 - 50,0 bar
design:
angle-type
material:
gunmetal CC499K
lifting:
with lever
type test approval:
TUV = D/G | EG = S/G
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
with bellows
product feature 2:
for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium.
