SV08110105

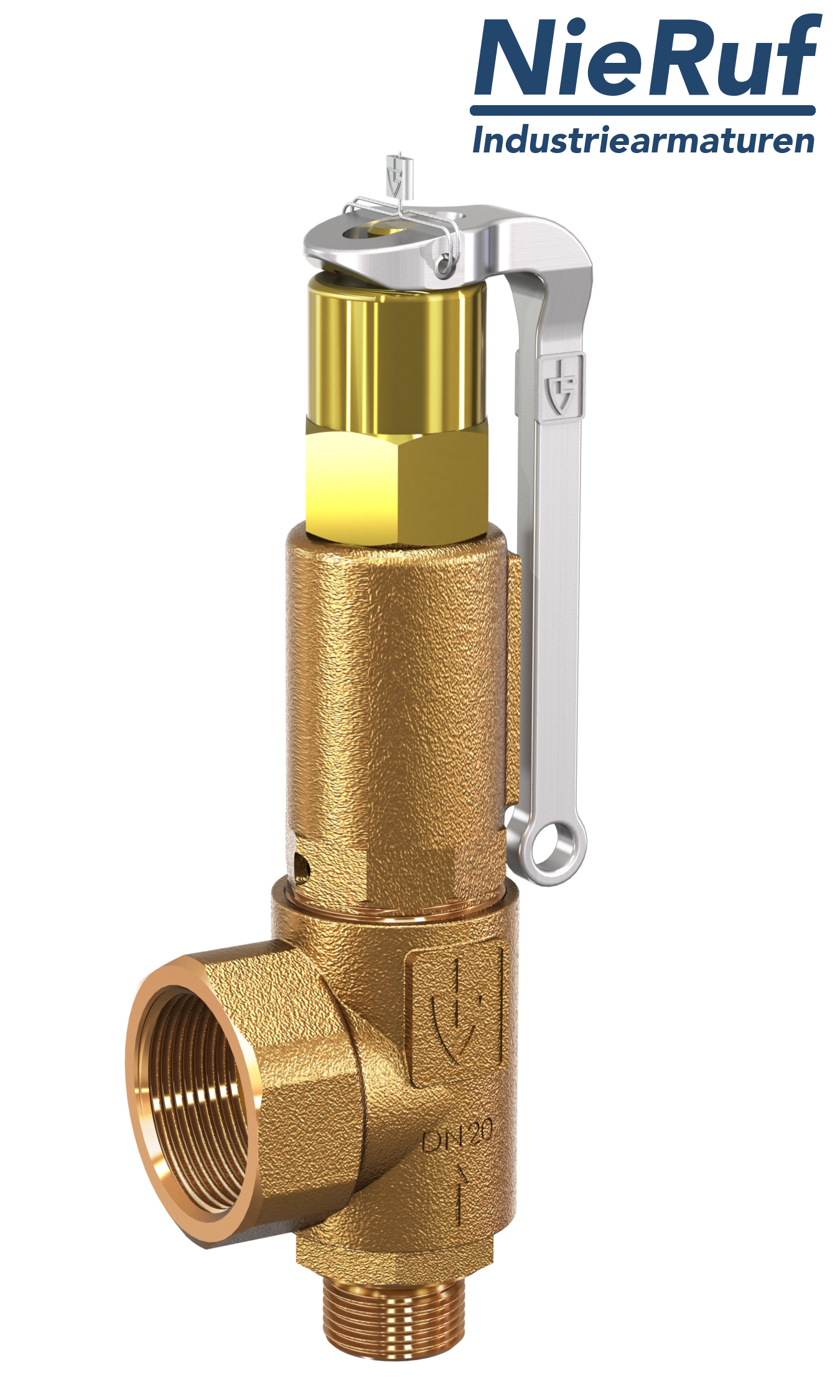

safety valve 1" m x 1 1/2" fm SV08 gaseous media, gunmetal EPDM, with lever
- Lead time
- 3 - 5 working days
Equipment
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you
safety valve 1" m x 1 1/2" fm SV08 gaseous media, gunmetal EPDM, with lever
safety valve 1" m x 1 1/2" fm male screw threaded BSP-P SV08 for gaseous media made of gunmetal seal EPDM set pressure 0,5 - 25,0 bar- higher pressures possible in PTFE version with lever
| product | safety valve |
|---|---|
| type | SV08 |
| manufacturer | NieRuf |
| diameter | 1" m x 1 1/2" fm |
| d0 | 23,0 mm |

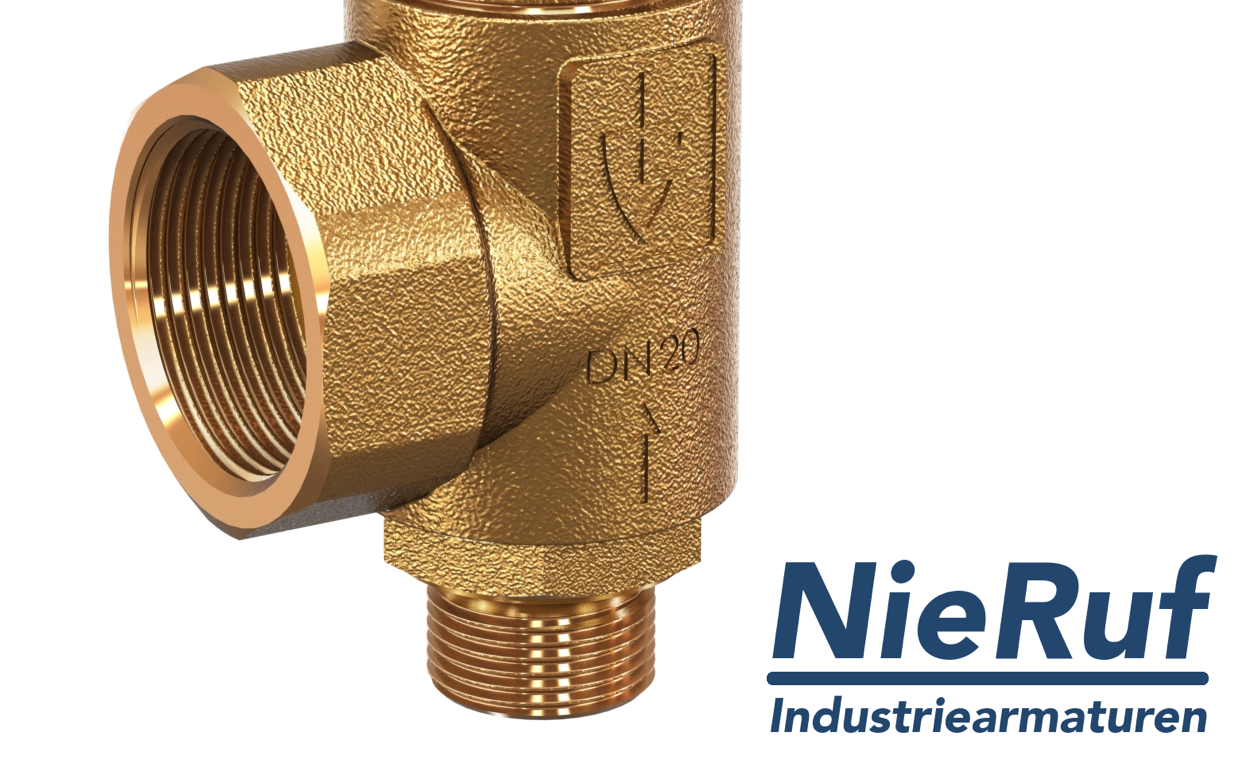

| connection | male screw threaded BSP-P |
| seal | EPDM |
| media | gaseous media |
| temperature | -40°C to +170°C |
| set pressure | 0,5 - 25,0 bar- higher pressures possible in PTFE version |
| design | angle-type |
| material | gunmetal CC499K |

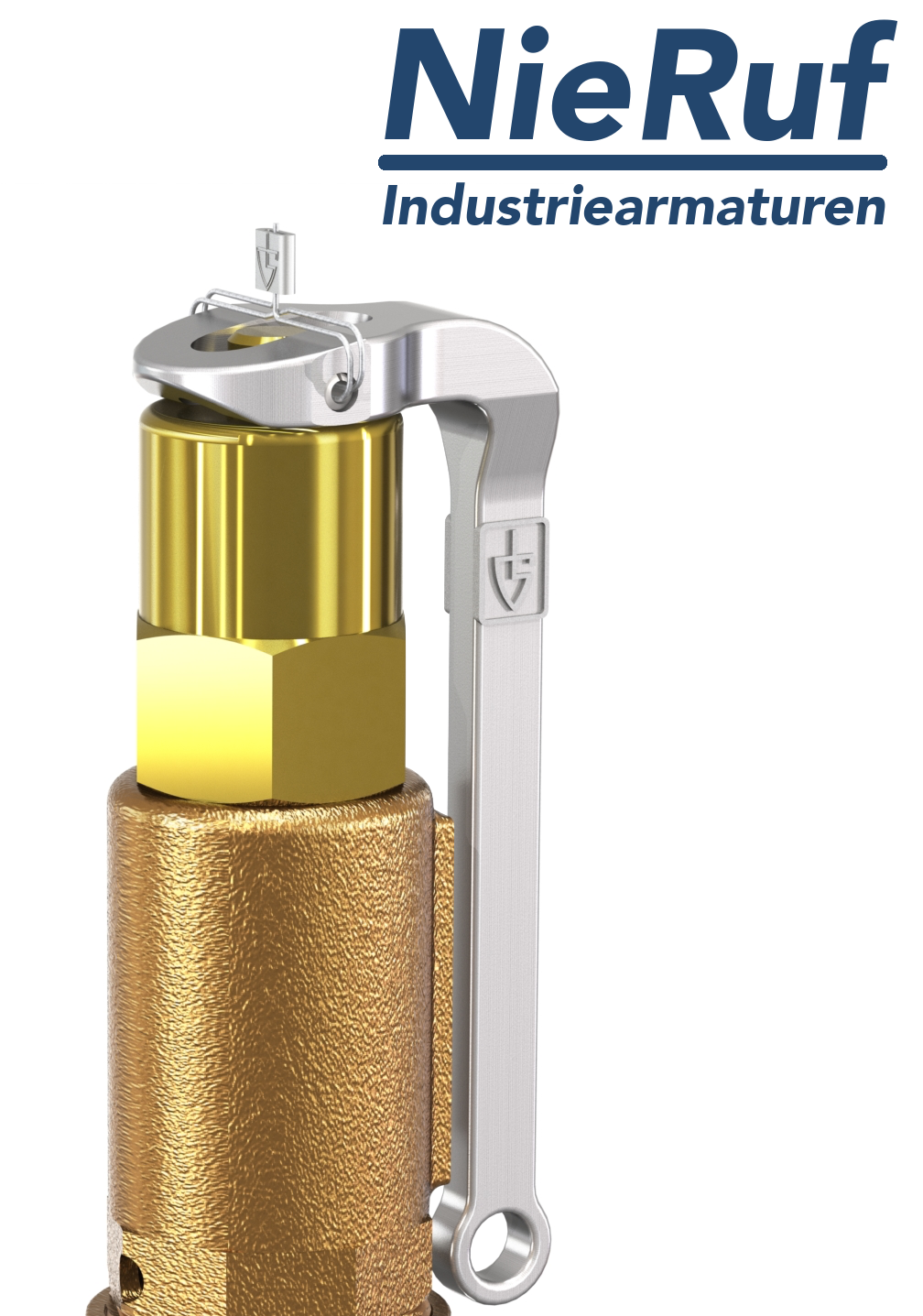

| lifting | with lever |
| type test approval | TUV = D/G | EG = S/G |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | with bellows |
| product feature 2 | for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 1" m x 1 1/2" fm SV08 gaseous media, gunmetal EPDM, with lever
Article no.
: SV08110105
product:
safety valve
type:
SV08
manufacturer:
NieRuf
diameter:
1" m x 1 1/2" fm
d0:
23,0 mm
connection:
male screw threaded BSP-P
seal:
EPDM
media:
gaseous media
temperature:
-40°C to +170°C
set pressure:
0,5 - 25,0 bar- higher pressures possible in PTFE version
design:
angle-type
material:
gunmetal CC499K
lifting:
with lever
type test approval:
TUV = D/G | EG = S/G
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
with bellows
product feature 2:
for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium.
