SV06110403
safety valve 1/2" m x 1" fm SV06 liquid media, stainless steel NBR, with lever
- Lead time
- 3 - 5 working days
Equipment
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

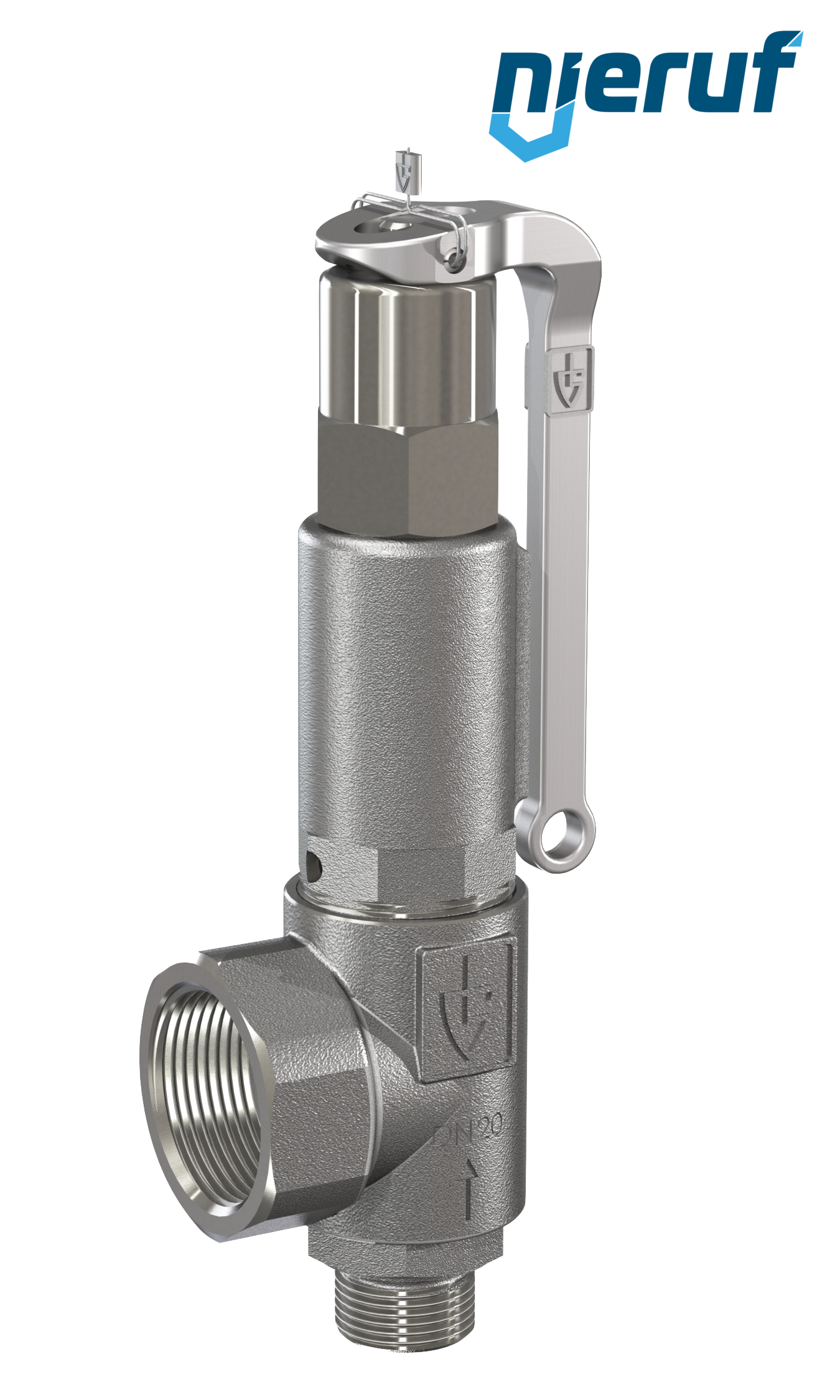

safety valve 1/2" m x 1" fm SV06 liquid media, stainless steel NBR, with lever
safety valve with with bellows 1/2" m x 1" fm stainless steel Typ SV06 with male screw threaded BSP-P NBR-seal for liquid media with with lever
| product | safety valve |
|---|---|
| type | SV06 |
| manufacturer | NieRuf |
| diameter | 1/2" m x 1" fm |
| d0 | 15,8 mm |
| connection | male screw threaded BSP-P |
| seal | NBR |
| media | liquid media |
| temperature | -30°C to +130°C |
| set pressure | 1,0 - 25,0 bar- higher pressures possible in PTFE version |
| design | angle-type |
| material | stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M |
| lifting | with lever |
| type test approval | TUV = F / EG = L |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | with bellows |
| product feature 2 | for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 1/2" m x 1" fm SV06 liquid media, stainless steel NBR, with lever
Article no.
: SV06110403
product:
safety valve
type:
SV06
manufacturer:
NieRuf
diameter:
1/2" m x 1" fm
d0:
15,8 mm
connection:
male screw threaded BSP-P
seal:
NBR
media:
liquid media
temperature:
-30°C to +130°C
set pressure:
1,0 - 25,0 bar- higher pressures possible in PTFE version
design:
angle-type
material:
stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M
lifting:
with lever
type test approval:
TUV = F / EG = L
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
with bellows
product feature 2:
for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium.
