SV07110303

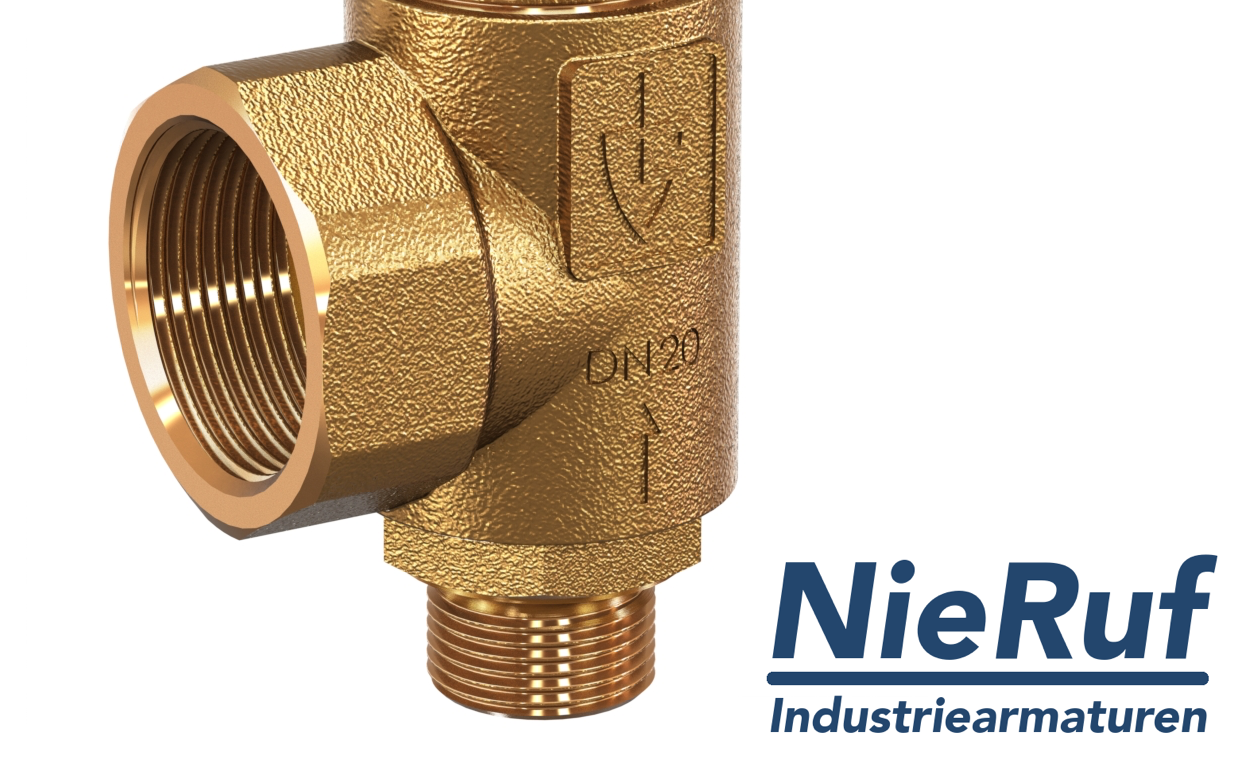

safety valve 1/2" m x 1" fm SV07 neutral gaseous media, gunmetal PTFE, with lever
- Lead time
- 3 - 5 working days
Equipment
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you
safety valve 1/2" m x 1" fm SV07 neutral gaseous media, gunmetal PTFE, with lever
safety valve 1/2" m x 1" fm made ofsengewinde SV07 for neutral gaseous media made of gunmetal seal PTFE set pressure 0,5 - 50,0 bar
| product | safety valve |
|---|---|
| type | SV07 |
| manufacturer | NieRuf |
| diameter | 1/2" m x 1" fm |
| d0 | 15,8 mm |
| connection | male screw threaded BSP-P |
| seal | PTFE |
| media | neutral gaseous media |
| temperature | -60°C up to +225°C |
| set pressure | 0,5 - 50,0 bar |
| design | angle-type |
| material | gunmetal CC499K |
| lifting | with lever |
| type test approval | TUV = D/G | EG = S/G |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | without bellows |
| product feature 2 | for neutral media without counter pressure. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 1/2" m x 1" fm SV07 neutral gaseous media, gunmetal PTFE, with lever
Article no.
: SV07110303
product:
safety valve
type:
SV07
manufacturer:
NieRuf
diameter:
1/2" m x 1" fm
d0:
15,8 mm
connection:
male screw threaded BSP-P
seal:
PTFE
media:
neutral gaseous media
temperature:
-60°C up to +225°C
set pressure:
0,5 - 50,0 bar
design:
angle-type
material:
gunmetal CC499K
lifting:
with lever
type test approval:
TUV = D/G | EG = S/G
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
without bellows
product feature 2:
for neutral media without counter pressure.
Equipment
pipe bend (welded) 90° 21,3 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 26,9 x 2,0 to 21,3 x 2,0 stainless steel 1.4571
Lead time: 3 - 5 working days
