SV07100303

safety valve 1/2" x 1" fm SV07 neutral gaseous media, gunmetal PTFE, with lever

€188.30*

€224.08 VAT included.


Operating data


Delivery time: 3 - 5 working days

Delivery information

Equipment

GF01300005

hexagon nipple 1" inch male stainless steel 316

€3.90*

€4.64 VAT included.


GF01100103

tee 1/2" inch stainless steel 316 90° angle FM

€3.30*

€3.93 VAT included.


GF01300003

hexagon nipple 1/2" inch male stainless steel 316

€2.00*

€2.38 VAT included.


Certificates

ZEU31APZ00

Certificate of conformity EN 10204-3.1

€54.00*

€64.26 VAT included.


ZEU32APZ00

Certificate of conformity EN 10204-3.2

€70.00*

€83.30 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: SV07100303

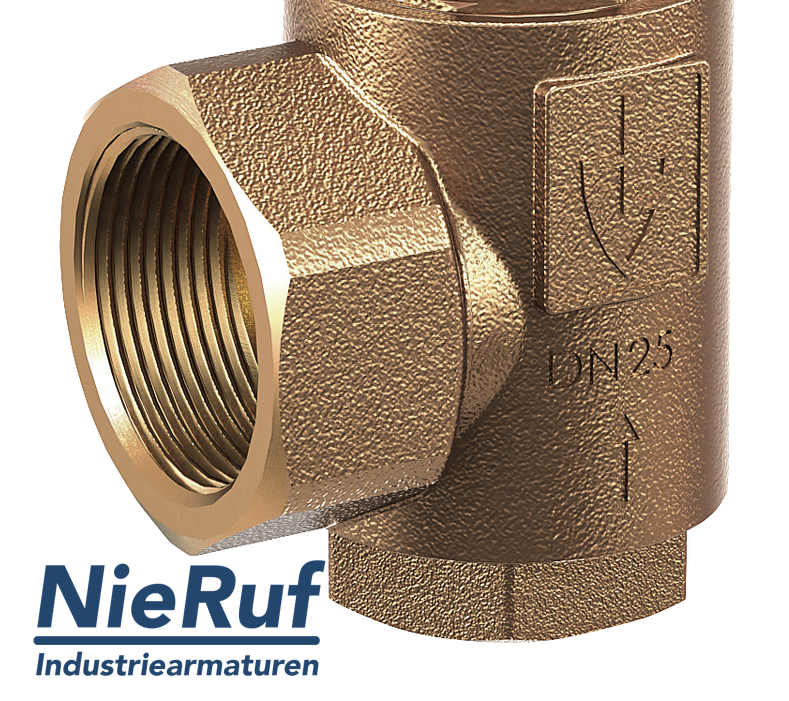

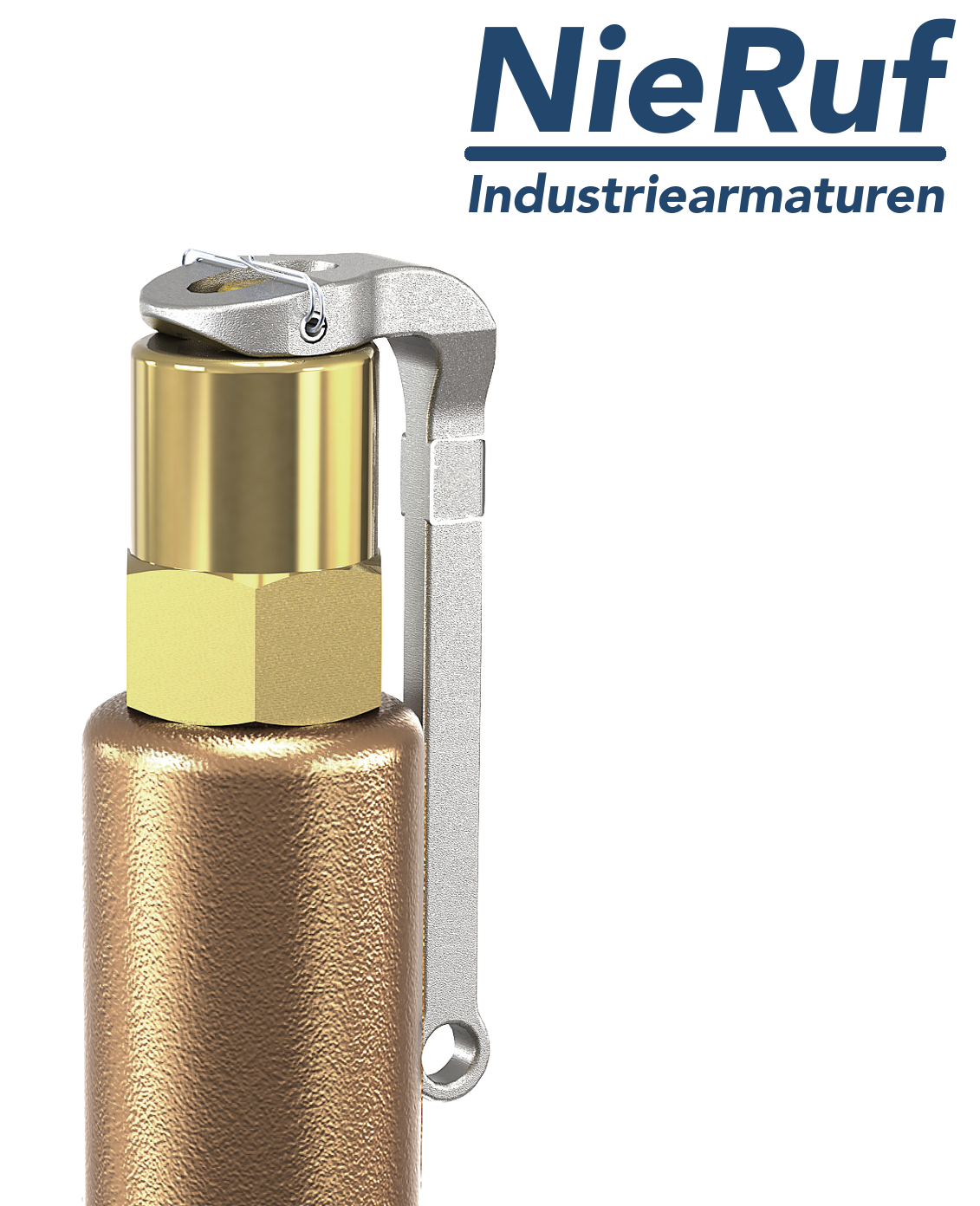

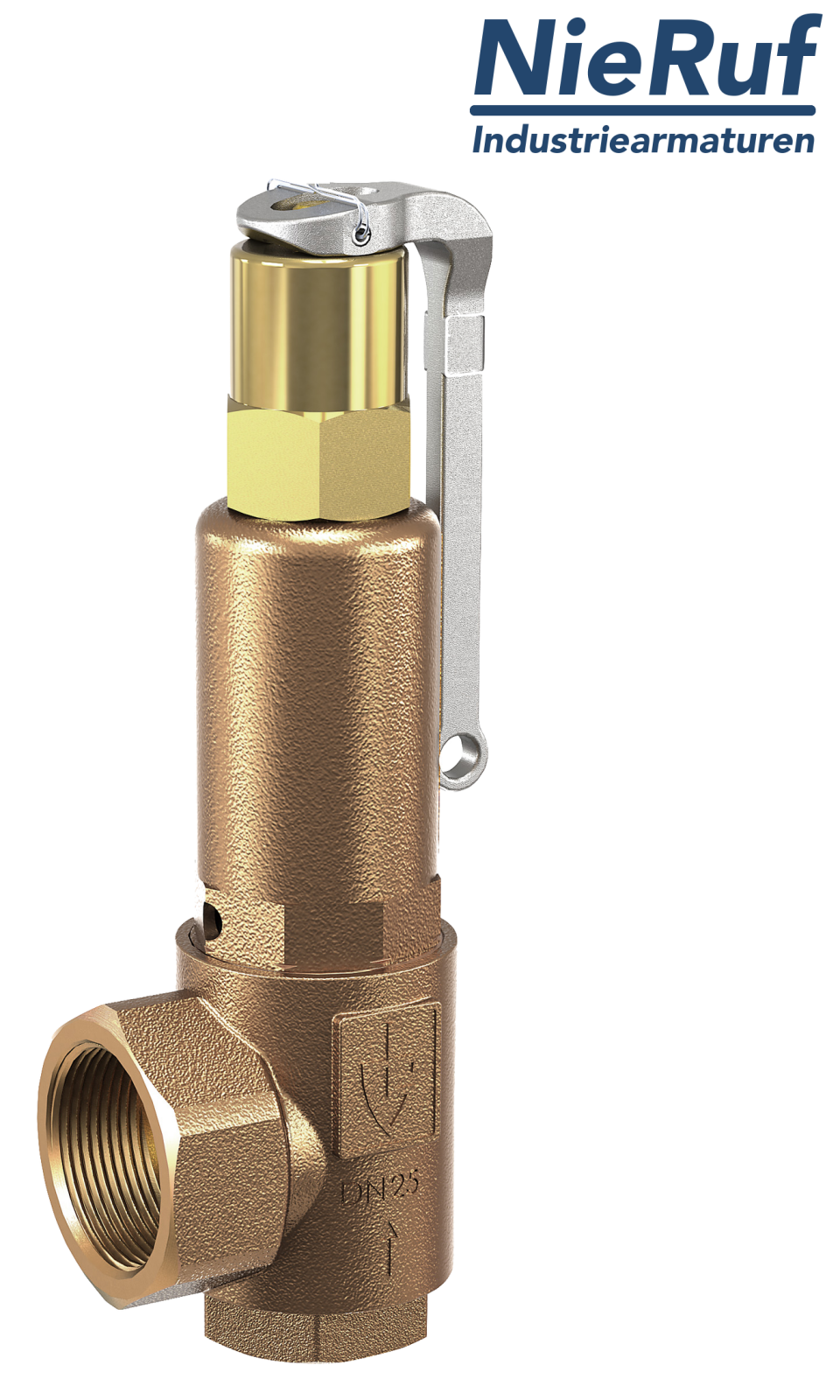

safety valve 1/2" x 1" fm SV07 neutral gaseous media, gunmetal PTFE, with lever

safety valve 1/2" x 1" fm mit with lever SV07 for neutral gaseous media made of gunmetal seal PTFE set pressure 0,5 - 50,0 bar

product: safety valve
type: SV07
manufacturer: NieRuf
diameter: 1/2" x 1" fm
d0: 15,8 mm
connection: Female screw threaded BSP-P
seal: PTFE
media: neutral gaseous media
temperature: -60°C up to +225°C
set pressure: 0,5 - 50,0 bar
design: angle-type
material: gunmetal
lifting: with lever
type test approval: TUV = D/G | EG = S/G
requirements: acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position: Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level: SIL 3
product feature 1: without bellows
product feature 2: for neutral media without counter pressure.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

safety valve 1/2" x 1" fm SV07 neutral gaseous media, gunmetal PTFE, with lever

Article no. : SV07100303
product: safety valve
type: SV07
manufacturer: NieRuf
diameter: 1/2" x 1" fm
d0: 15,8 mm
connection: Female screw threaded BSP-P
seal: PTFE
media: neutral gaseous media
temperature: -60°C up to +225°C
set pressure: 0,5 - 50,0 bar
design: angle-type
material: gunmetal
lifting: with lever
type test approval: TUV = D/G | EG = S/G
requirements: acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position: Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level: SIL 3
product feature 1: without bellows
product feature 2: for neutral media without counter pressure.
