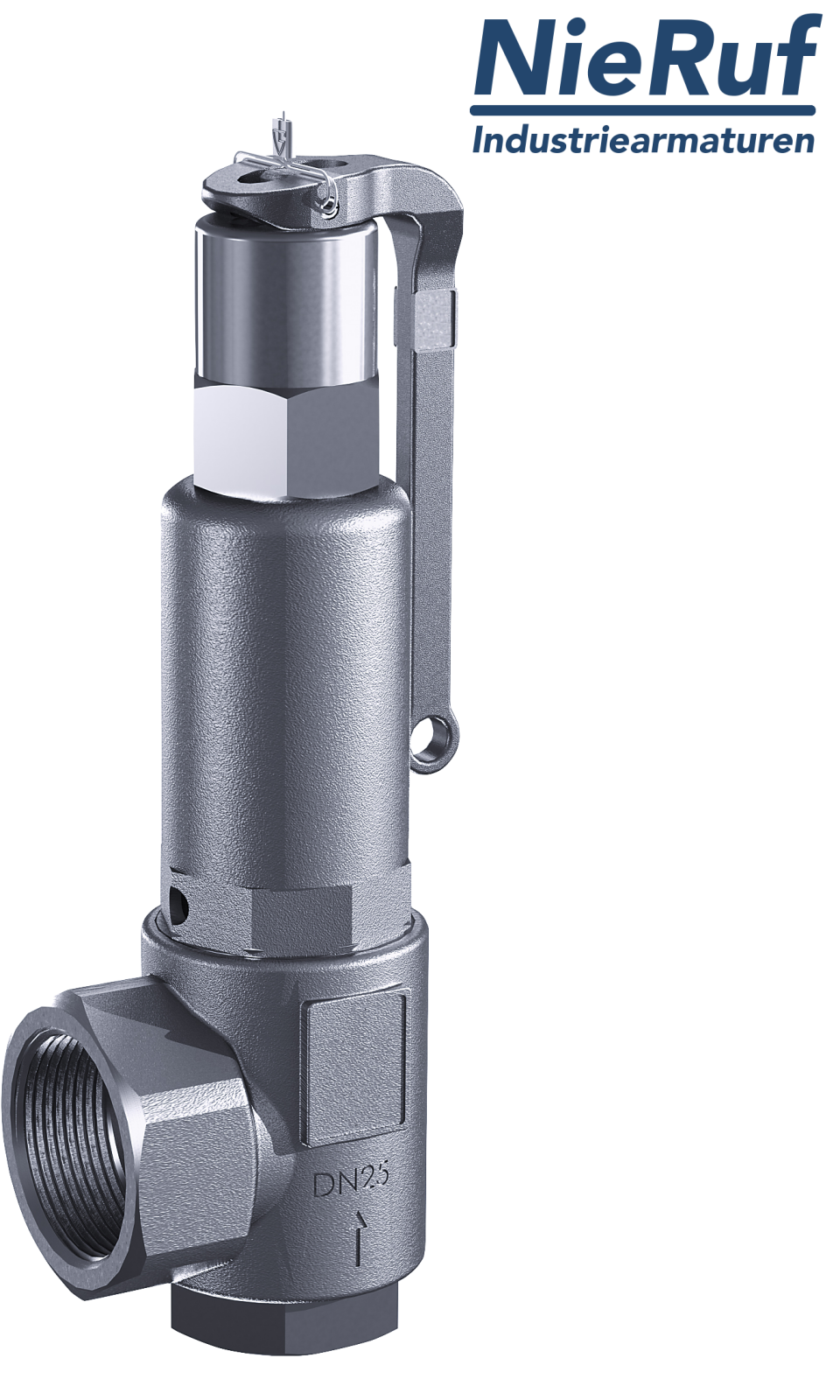

safety valve 1 1/4" x 2" fm SV06 liquid media, stainless steel PTFE, with lever

SV06100306
quantity (pcs.):
1,071.00€ * 1,274.49€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3-5 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
safety valve 1 1/4" x 2" fm SV06 liquid media, stainless steel PTFE, with lever

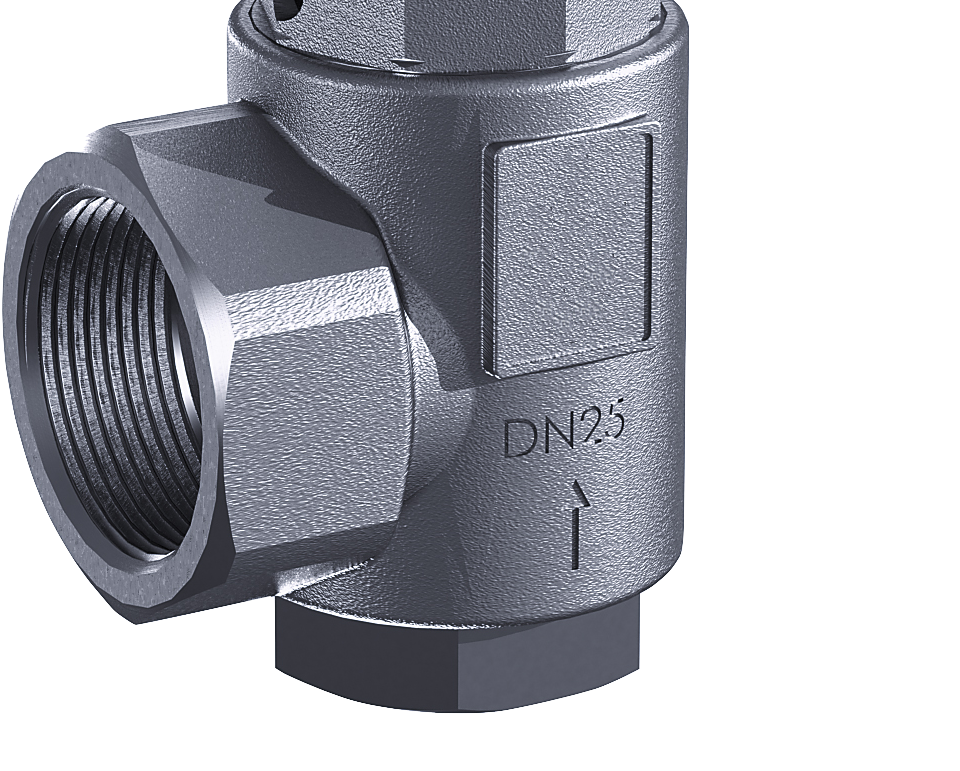

angle-type-safety valve PTFE 1 1/4" x 2" fm stainless steel Typ SV06 with Female screw threaded BSP-P for liquid media with with lever and with bellows
diameter: 1 1/4" x 2" fm
d0: 30,3 mm
connection: Female screw threaded BSP-P
seal: PTFE
media: liquid media
temperature: -60°C up to +225°C
set pressure: 0,5 - 70,0 bar
design: angle-type
material: stainless steel

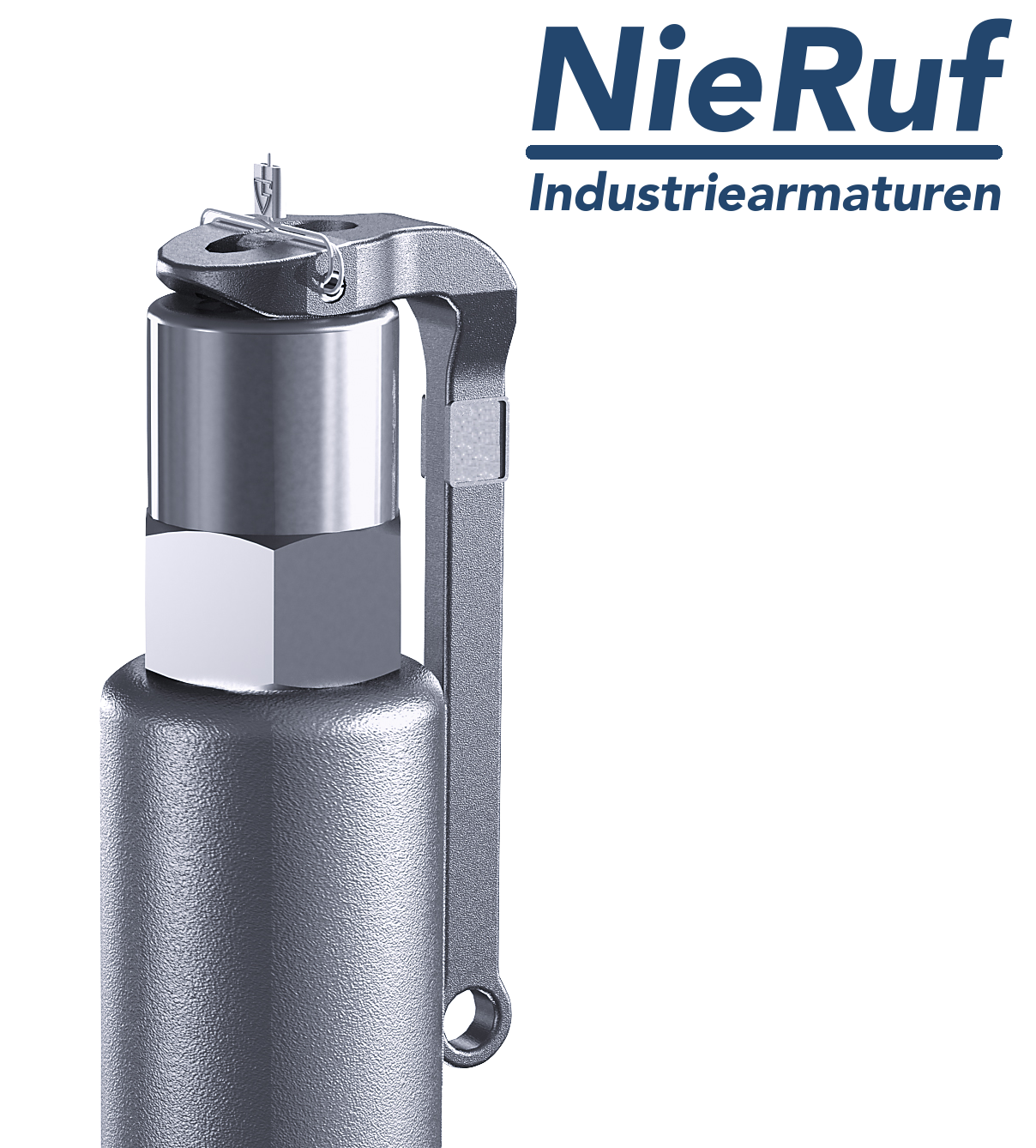

lifting: with lever
type test approval: TUV = F / EG = L
requirements: acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position: Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level: SIL 3
product feature 1: with bellows
product feature 2: for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium.
safety valve 1 1/4" x 2" fm SV06 liquid media, stainless steel PTFE, with lever

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

safety valve 1 1/4" x 2" fm SV06 liquid media, stainless steel PTFE, with lever
