SV07010106
safety valve 1 1/4" m x 2" fm SV07 neutral gaseous media, gunmetal EPDM
- Lead time
- 3 - 5 working days
Equipment
tee 1 1/4" inch stainless steel 316 90° angle FM
€14.40 VAT included.
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

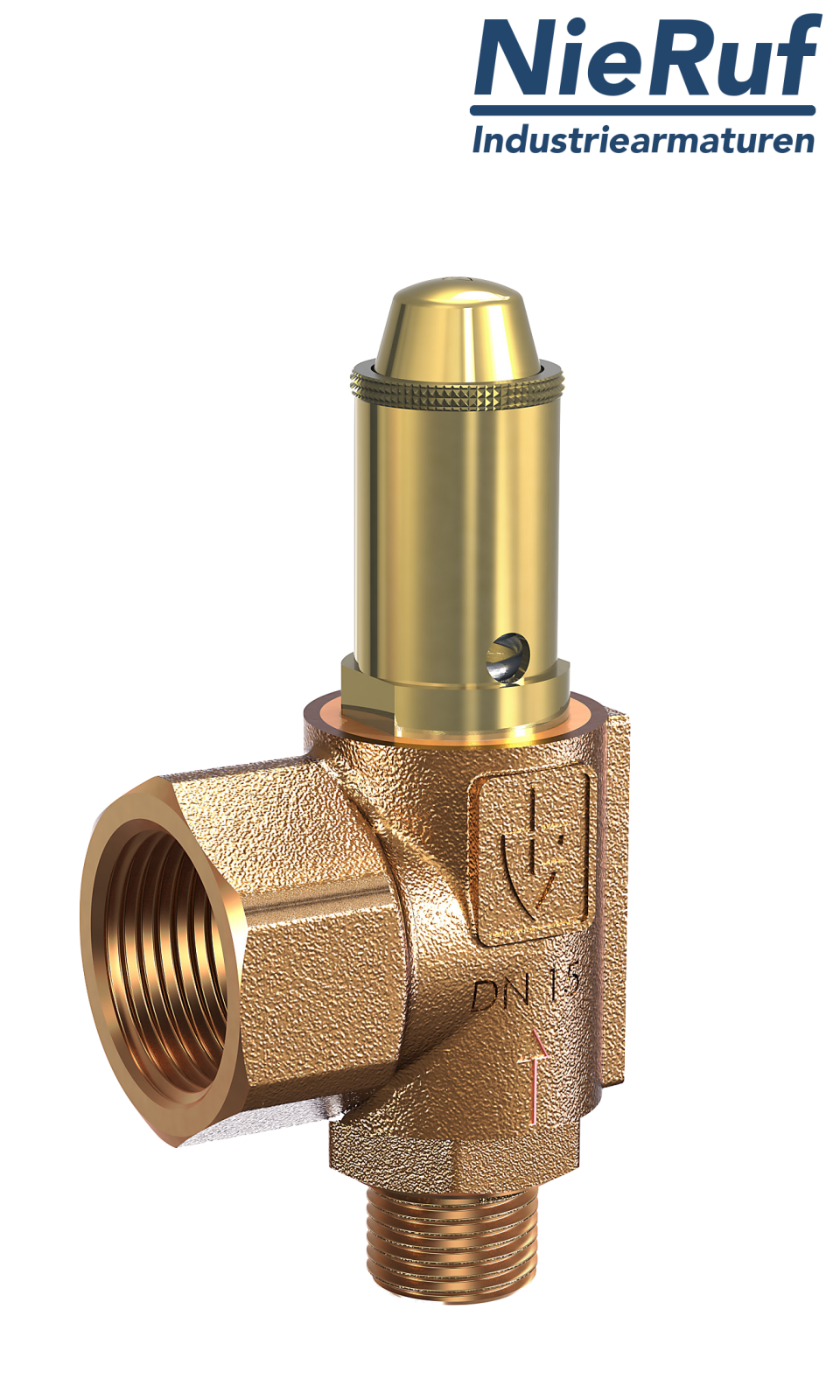

safety valve 1 1/4" m x 2" fm SV07 neutral gaseous media, gunmetal EPDM
safety valve 1 1/4" male screw threaded BSP-P SV07 for neutral gaseous media made of gunmetal seal EPDM set pressure 0,5 - 25,0 bar- higher pressures possible in PTFE version
| product | safety valve |
|---|---|
| type | SV07 |
| manufacturer | NieRuf |
| diameter | 1 1/4" m x 2" fm |
| d0 | 30,3 mm |

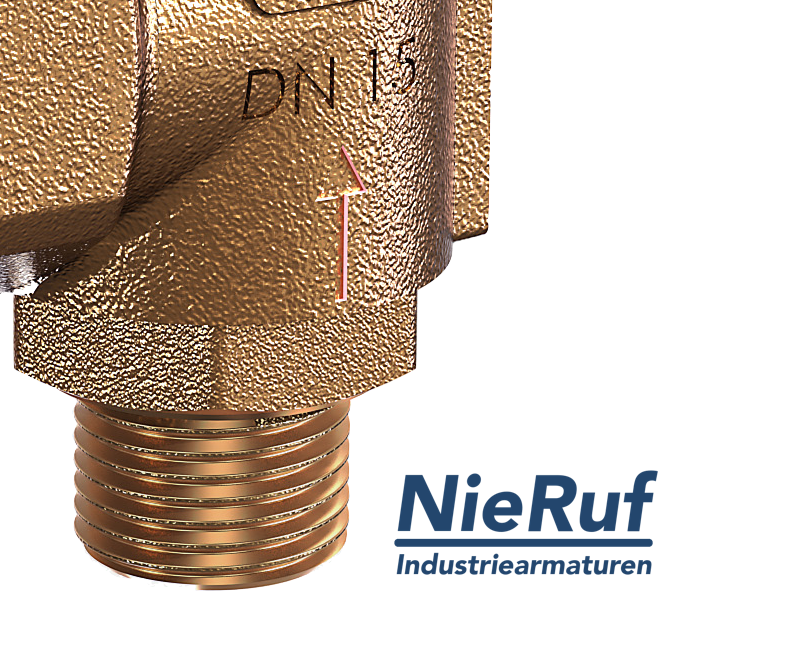

| connection | male screw threaded BSP-P |
| seal | EPDM |
| media | neutral gaseous media |
| temperature | -40°C to +170°C |
| set pressure | 0,5 - 25,0 bar- higher pressures possible in PTFE version |
| design | angle-type |
| material | gunmetal CC499K |

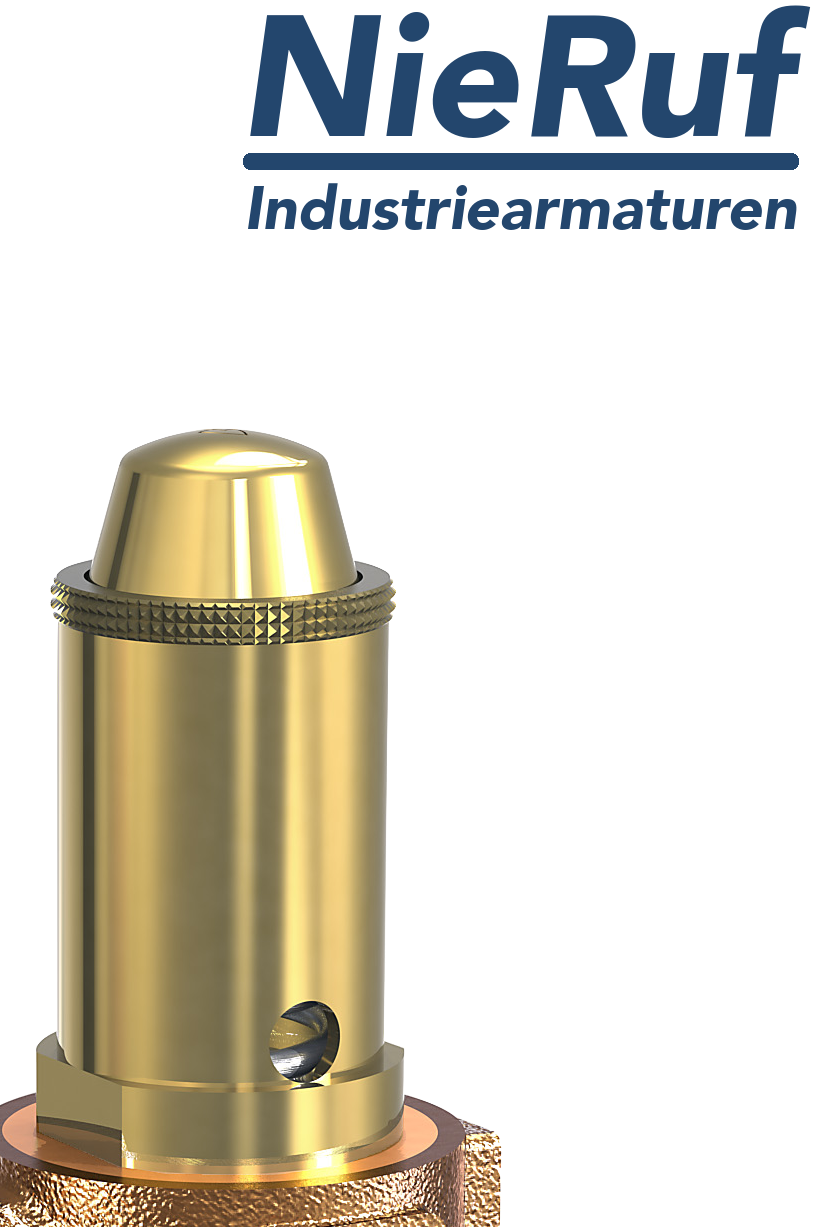

| lifting | twist-type lifting mechanism |
| type test approval | TUV = D/G | EG = S/G |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | without bellows |
| product feature 2 | for neutral media without counter pressure. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 1 1/4" m x 2" fm SV07 neutral gaseous media, gunmetal EPDM
Article no.
: SV07010106
product:
safety valve
type:
SV07
manufacturer:
NieRuf
diameter:
1 1/4" m x 2" fm
d0:
30,3 mm
connection:
male screw threaded BSP-P
seal:
EPDM
media:
neutral gaseous media
temperature:
-40°C to +170°C
set pressure:
0,5 - 25,0 bar- higher pressures possible in PTFE version
design:
angle-type
material:
gunmetal CC499K
lifting:
twist-type lifting mechanism
type test approval:
TUV = D/G | EG = S/G
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
without bellows
product feature 2:
for neutral media without counter pressure.
