SV06100307

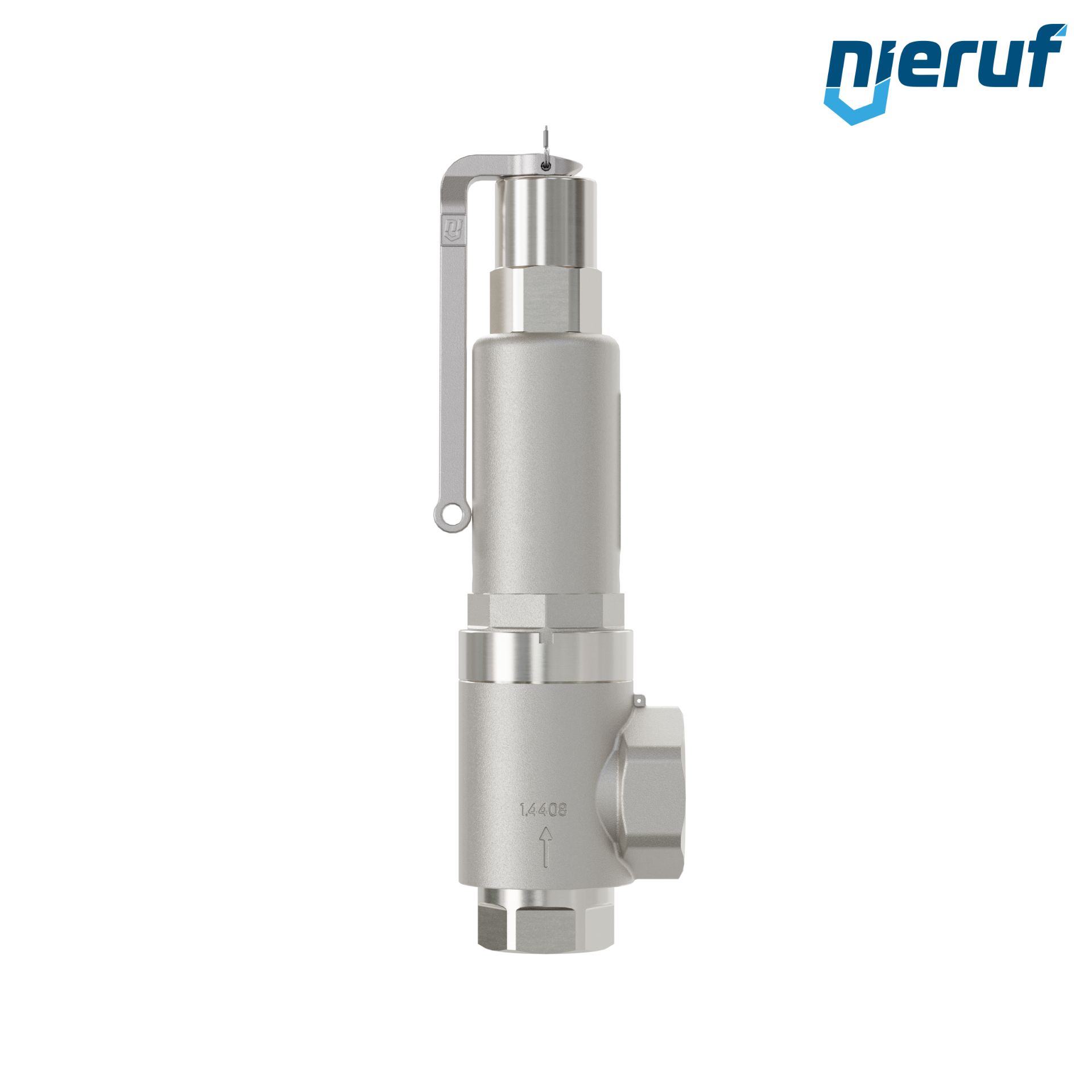

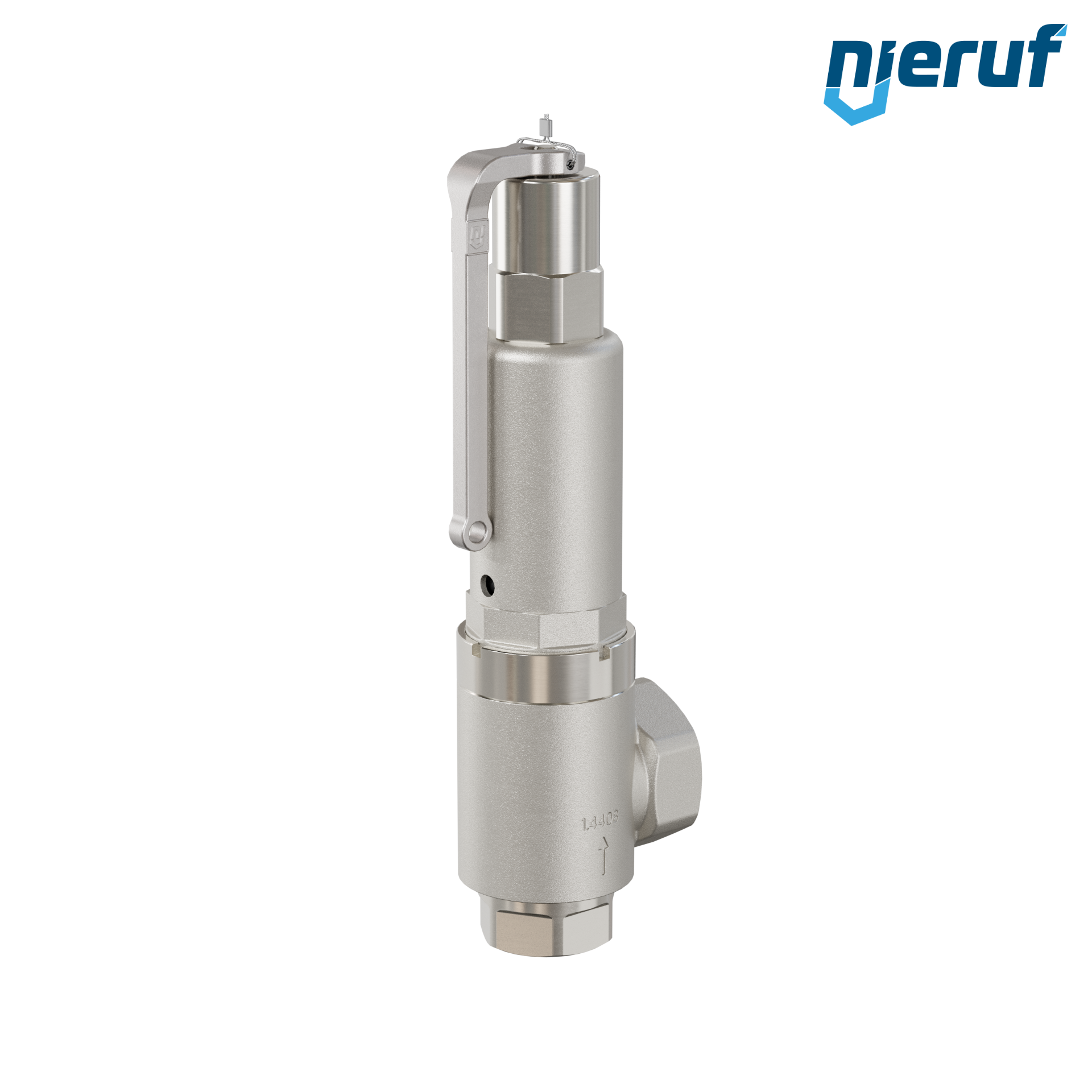

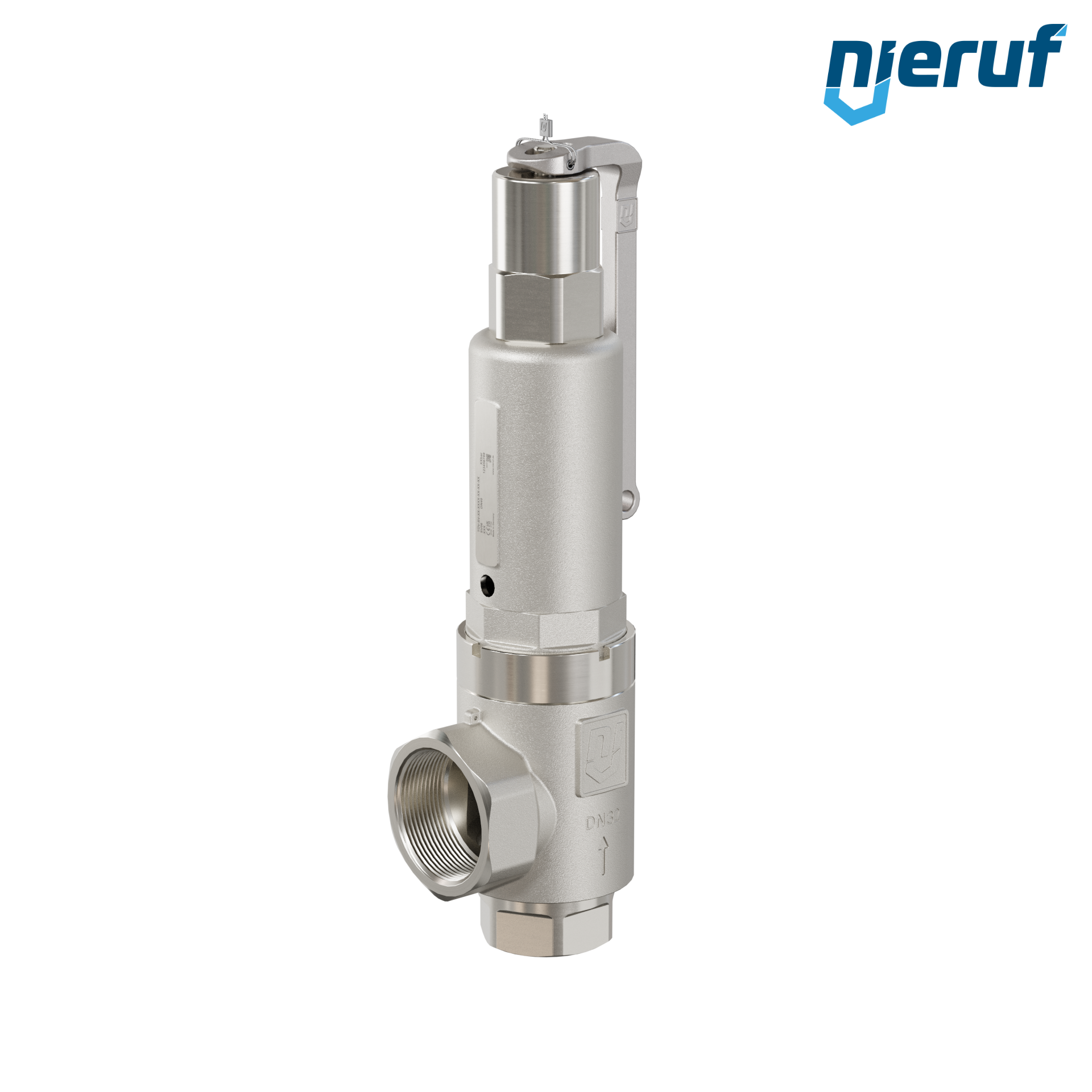

safety valve 1 1/2" x 2" fm SV06 liquid media, stainless steel PTFE, with lever
- Lead time
- 3 - 5 working days
Equipment
tee 1 1/2" inch stainless steel 316 90° angle FM
€18.80 VAT included.
hexagon nipple 1 1/2" inch male stainless steel 316
€9.04 VAT included.
hexagon nipple 2" inch male stainless steel 316
€14.64 VAT included.
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you
safety valve 1 1/2" x 2" fm SV06 liquid media, stainless steel PTFE, with lever
safety valve for liquid media PTFE 1 1/2" x 2" fm stainless steel Typ SV06 with Female screw threaded BSP-P with lever and with bellows
| product | safety valve |
|---|---|
| type | SV06 |
| manufacturer | NieRuf |
| diameter | 1 1/2" x 2" fm |
| d0 | 30,3 mm |
| connection | Female screw threaded BSP-P |
| seal | PTFE |
| media | liquid media |
| temperature | -60°C up to +225°C |
| set pressure | 0,5 - 70,0 bar |
| design | angle-type |
| material | stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M |
| lifting | with lever |
| type test approval | TUV = F / EG = L |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | with bellows |
| product feature 2 | for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 1 1/2" x 2" fm SV06 liquid media, stainless steel PTFE, with lever
Article no.
: SV06100307
product:
safety valve
type:
SV06
manufacturer:
NieRuf
diameter:
1 1/2" x 2" fm
d0:
30,3 mm
connection:
Female screw threaded BSP-P
seal:
PTFE
media:
liquid media
temperature:
-60°C up to +225°C
set pressure:
0,5 - 70,0 bar
design:
angle-type
material:
stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M
lifting:
with lever
type test approval:
TUV = F / EG = L
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
with bellows
product feature 2:
for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium.
