SV06000307
safety valve 1 1/2" x 2" fm SV06 liquid media, stainless steel PTFE
- Lead time
- 3 - 5 working days
Equipment
tee 1 1/2" inch stainless steel 316 90° angle FM
€18.80 VAT included.
hexagon nipple 1 1/2" inch male stainless steel 316
€9.04 VAT included.
hexagon nipple 2" inch male stainless steel 316
€14.64 VAT included.
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

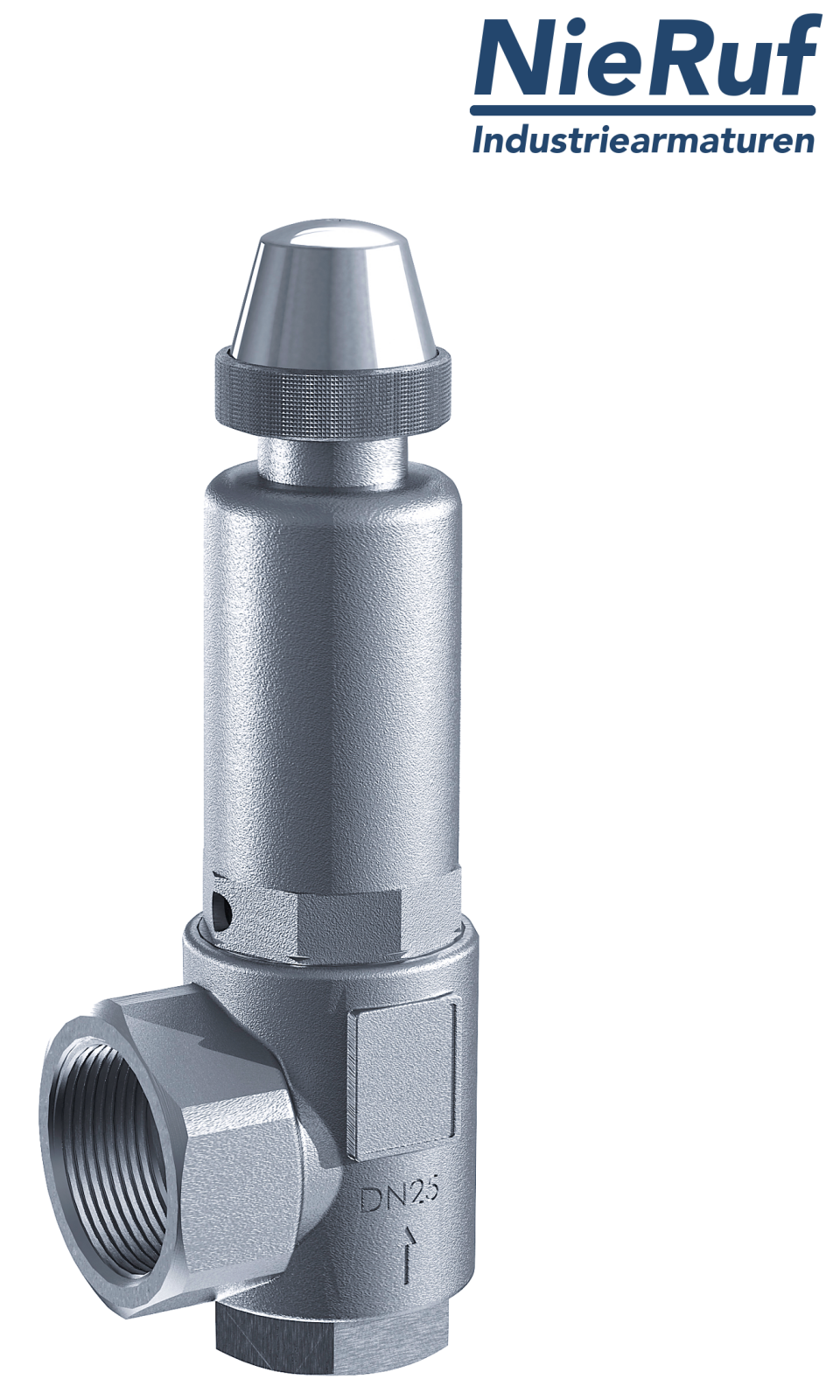

safety valve 1 1/2" x 2" fm SV06 liquid media, stainless steel PTFE
angle-type-safety-valve stainless steel 1 1/2" x 2" fm with with bellows Typ SV06 with Female screw threaded BSP-P PTFE-seal for liquid media with twist-type lifting mechanism
| product | safety valve |
|---|---|
| type | SV06 |
| manufacturer | NieRuf |
| diameter | 1 1/2" x 2" fm |
| d0 | 30,3 mm |
| connection | Female screw threaded BSP-P |
| seal | PTFE |
| media | liquid media |
| temperature | -60°C up to +225°C |
| set pressure | 0,5 - 70,0 bar |
| design | angle-type |
| material | stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M |
| lifting | twist-type lifting mechanism |
| type test approval | TUV = F / EG = L |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | with bellows |
| product feature 2 | for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 1 1/2" x 2" fm SV06 liquid media, stainless steel PTFE
Article no.
: SV06000307
product:
safety valve
type:
SV06
manufacturer:
NieRuf
diameter:
1 1/2" x 2" fm
d0:
30,3 mm
connection:
Female screw threaded BSP-P
seal:
PTFE
media:
liquid media
temperature:
-60°C up to +225°C
set pressure:
0,5 - 70,0 bar
design:
angle-type
material:
stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M
lifting:
twist-type lifting mechanism
type test approval:
TUV = F / EG = L
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
with bellows
product feature 2:
for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium.
