SV06010207
safety valve 1 1/2" m x 2" fm SV06 liquid media, stainless steel FKM
- Lead time
- 3 - 5 working days
Equipment
tee 1 1/2" inch stainless steel 316 90° angle FM
€18.80 VAT included.
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

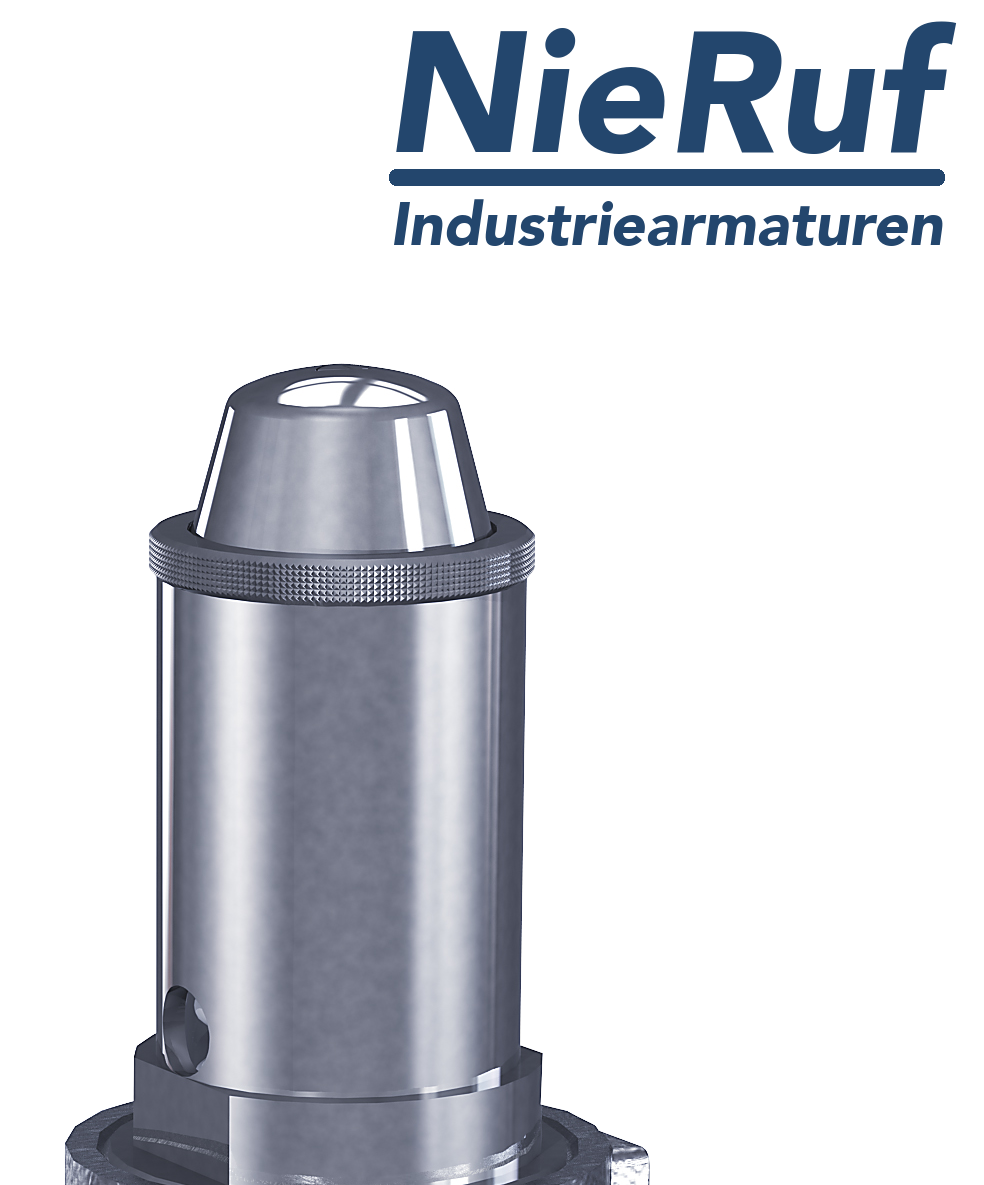

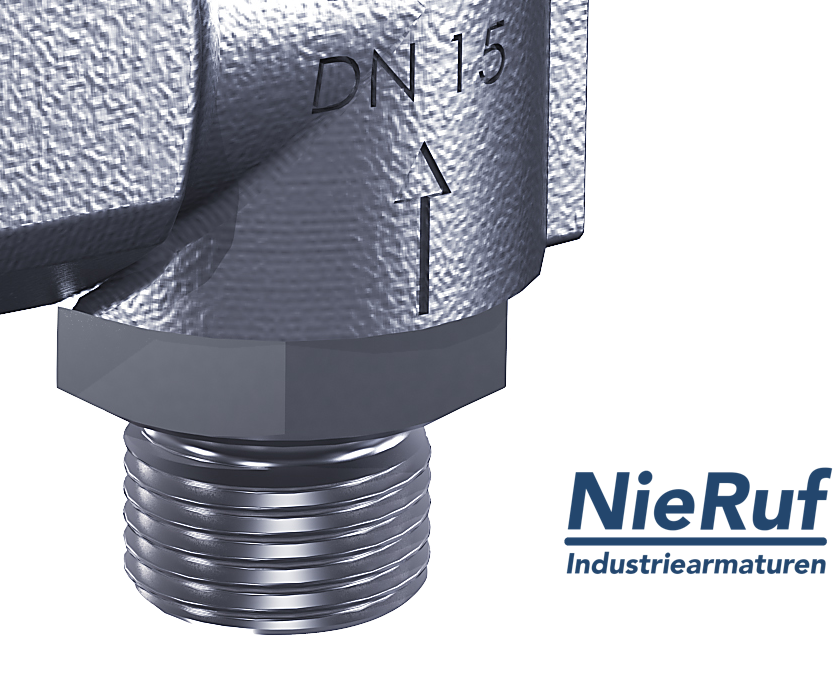

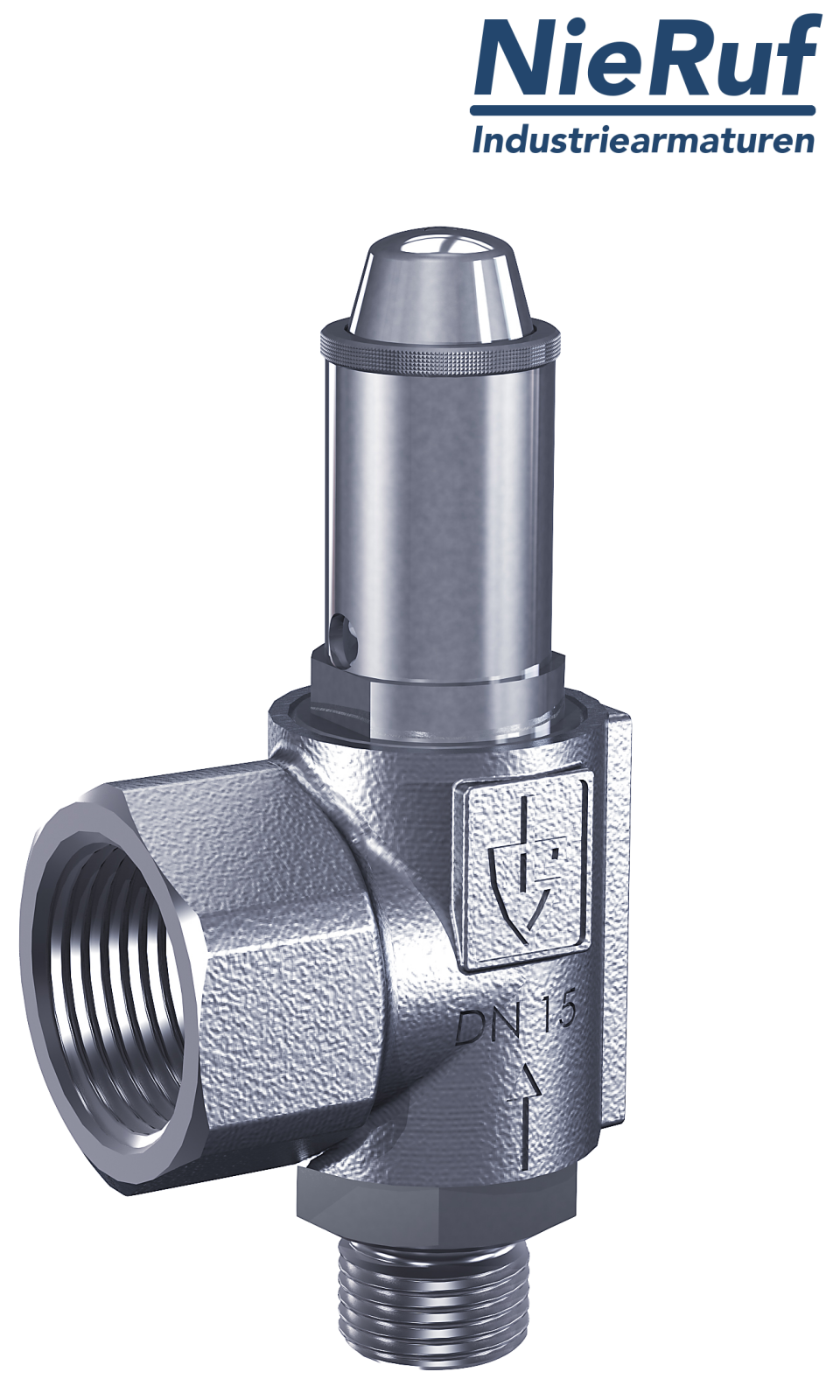

safety valve 1 1/2" m x 2" fm SV06 liquid media, stainless steel FKM
stainless steel-safety valve with with bellows FKM 1 1/2" m x 2" fm Typ SV06 with male screw threaded BSP-P for liquid media and twist-type lifting mechanism
| product | safety valve |
|---|---|
| type | SV06 |
| manufacturer | NieRuf |
| diameter | 1 1/2" m x 2" fm |
| d0 | 30,3 mm |
| connection | male screw threaded BSP-P |
| seal | FKM |
| media | liquid media |
| temperature | -20°C up to +200°C |
| set pressure | 0,5 - 25,0 bar- higher pressures possible in PTFE version |
| design | angle-type |
| material | stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M |
| lifting | twist-type lifting mechanism |
| type test approval | TUV = F / EG = L |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | with bellows |
| product feature 2 | for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 1 1/2" m x 2" fm SV06 liquid media, stainless steel FKM
Article no.
: SV06010207
product:
safety valve
type:
SV06
manufacturer:
NieRuf
diameter:
1 1/2" m x 2" fm
d0:
30,3 mm
connection:
male screw threaded BSP-P
seal:
FKM
media:
liquid media
temperature:
-20°C up to +200°C
set pressure:
0,5 - 25,0 bar- higher pressures possible in PTFE version
design:
angle-type
material:
stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M
lifting:
twist-type lifting mechanism
type test approval:
TUV = F / EG = L
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
with bellows
product feature 2:
for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium.
