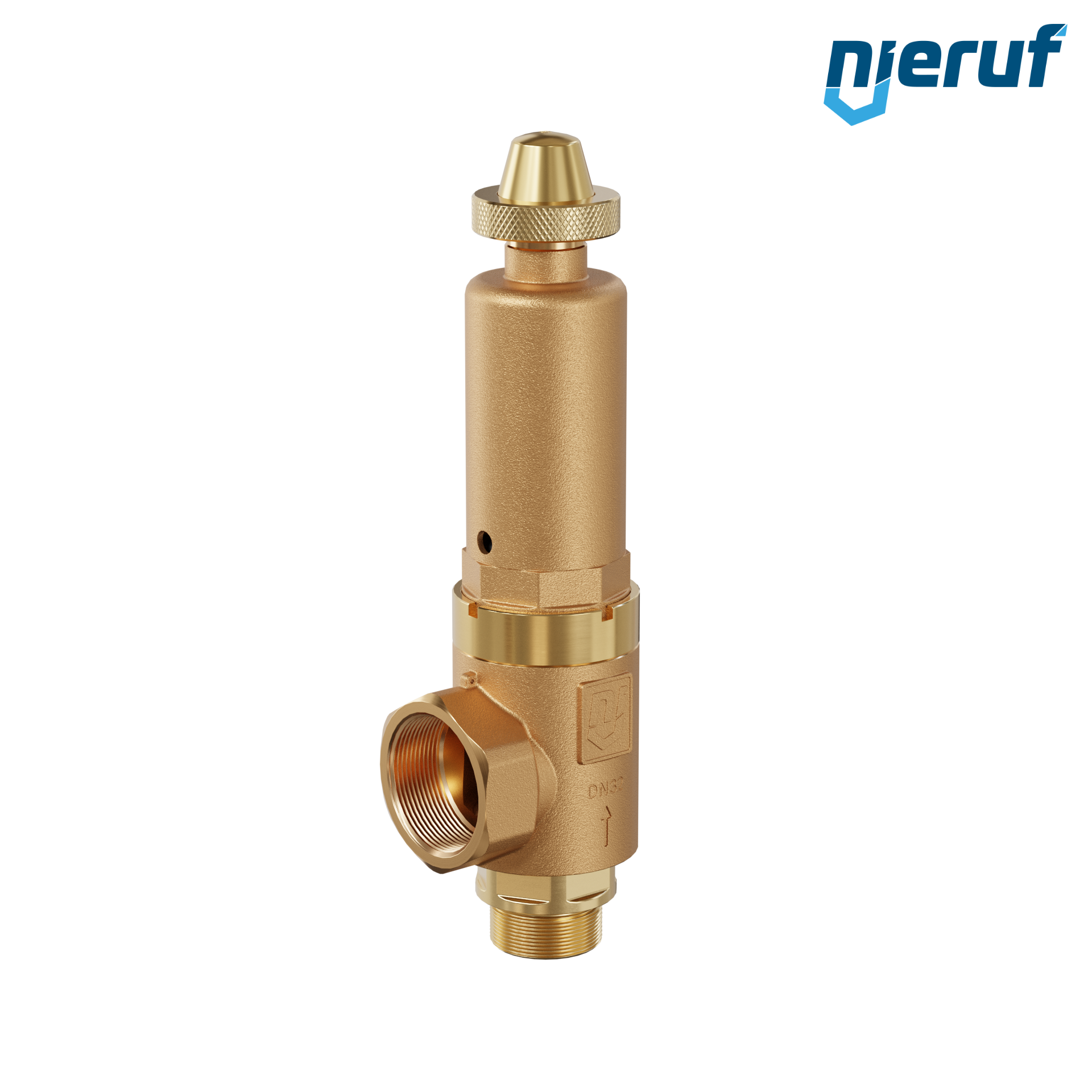

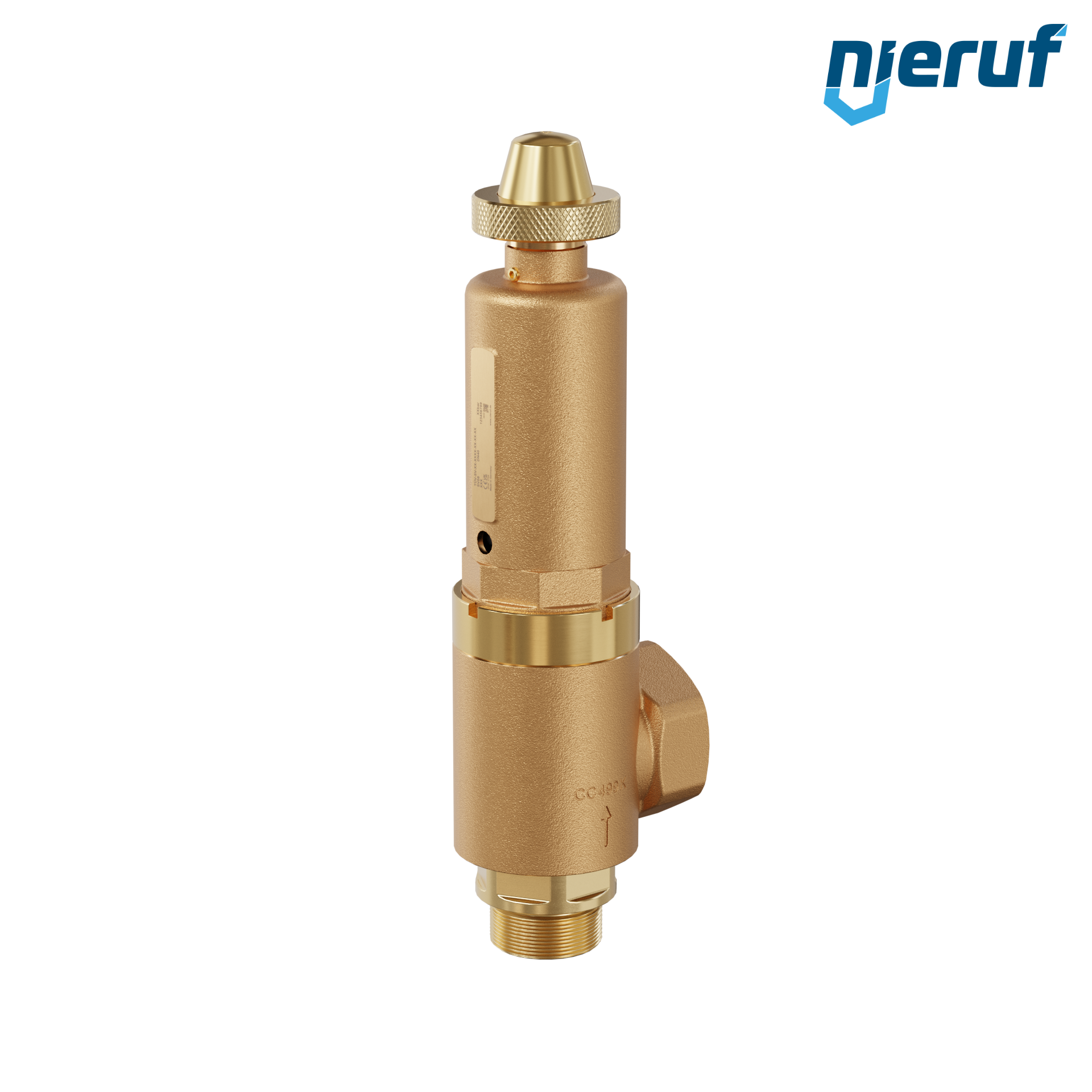

safety valve 1 1/2" m x 2" fm SV08 gaseous media, gunmetal EPDM

SV08010107
quantity (pcs.):
485.70€ * 577.98€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3-5 working days

datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
safety valve 1 1/2" m x 2" fm SV08 gaseous media, gunmetal EPDM
safety valve mit einem with bellows 1 1/2" m x 2" fm SV08 for gaseous media made of gunmetal seal EPDM set pressure 0,5 - 25,0 bar- higher pressures possible in PTFE version
diameter: 1 1/2" m x 2" fm
d0: 30,3 mm
connection: male screw threaded BSP-P
seal: EPDM
media: gaseous media
temperature: -40°C to +170°C
set pressure: 0,5 - 25,0 bar- higher pressures possible in PTFE version
design: angle-type
material: gunmetal

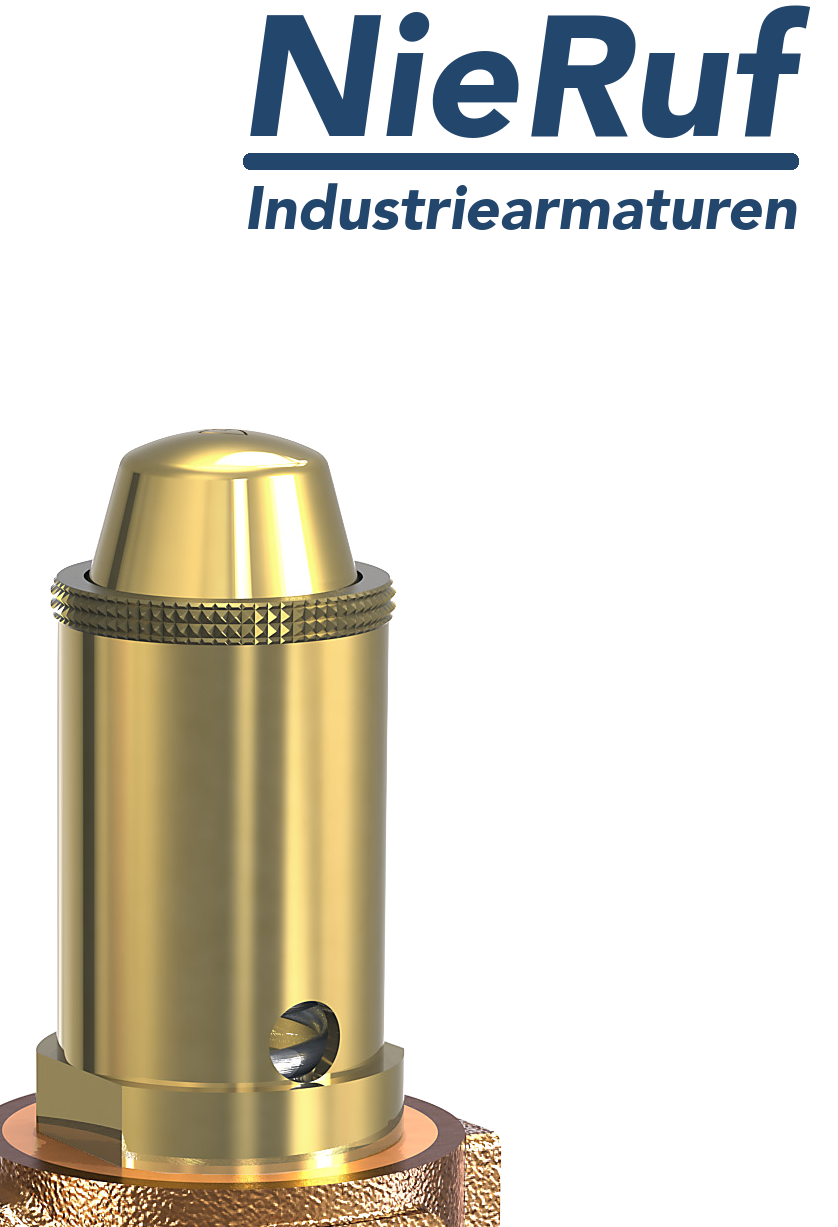

lifting: twist-type lifting mechanism
type test approval: TUV = D/G | EG = S/G
requirements: acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position: Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level: SIL 3
product feature 1: with bellows
product feature 2: for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium.
safety valve 1 1/2" m x 2" fm SV08 gaseous media, gunmetal EPDM

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

safety valve 1 1/2" m x 2" fm SV08 gaseous media, gunmetal EPDM
