EF07110112

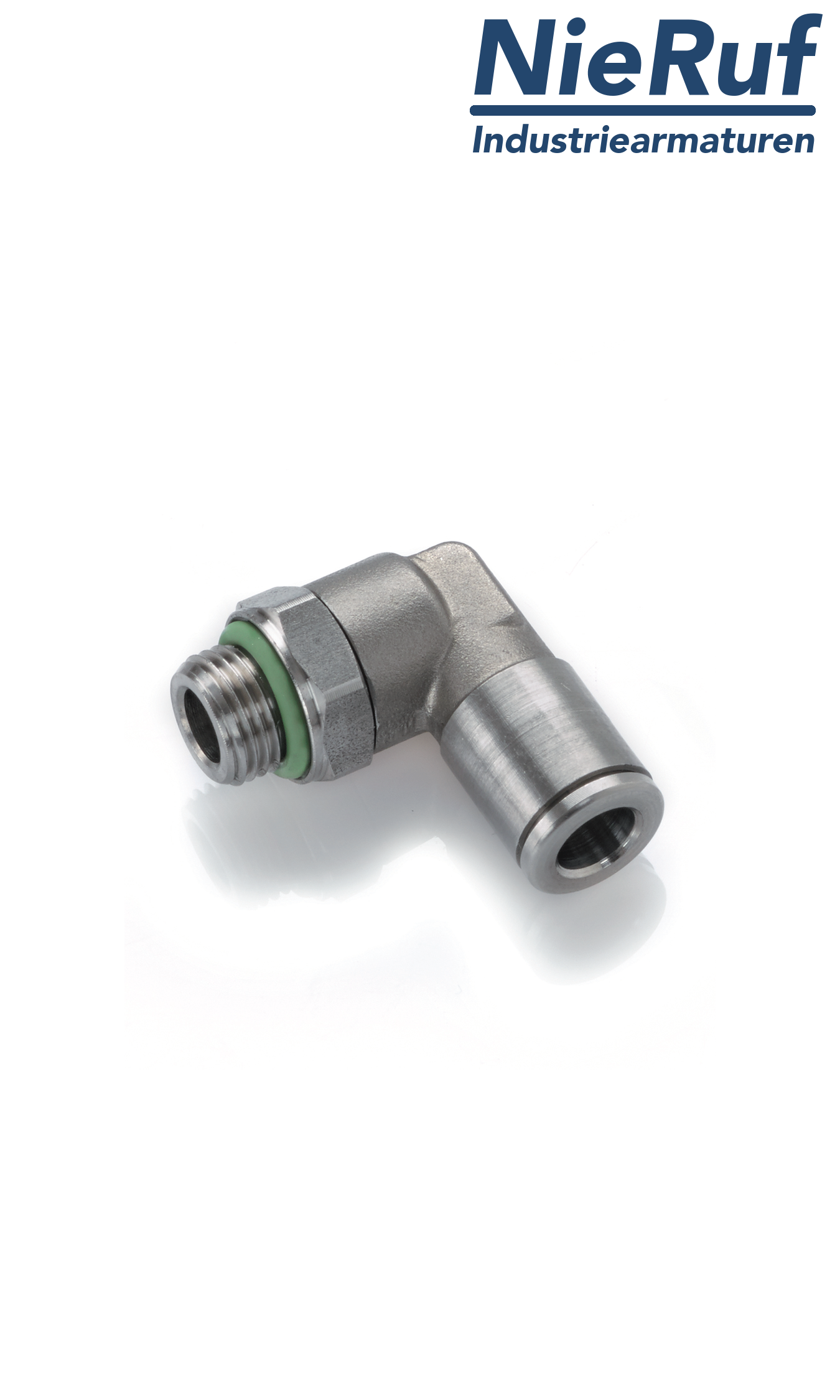

rotary elbow male adaptor parallel EF07 stainless steel FKM G1/4" D12mm
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
rotary elbow male adaptor parallel EF07 stainless steel FKM G1/4" D12mm
port connection rotary elbow male adaptor parallel made of stainless steel with FKM-seal G1/4" D12mm for lubricated & non-lubricated compressed air up to 16 bar
| product | port connection |
|---|---|
| type | EF07 |
| manufacturer | NieRuf |
| design | rotary elbow male adaptor parallel |
| thread connection | G1/4" |
| tube connection 1 | D12mm |
| body material | stainless steel 1.4404 |
| seal | FKM |
| collet | stainless steel 1.4401 |
| pressure ring | stainless steel 1.4404 |
| thread | cylindrical |
| media | lubricated & non-lubricated compressed air |
| max. working pressure | up to 16 bar |
| product feature | rotary elbow male adaptor parallel to connect or to plug pipes in pneumatic- or pressure air applications. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
rotary elbow male adaptor parallel EF07 stainless steel FKM G1/4" D12mm
Article no.
: EF07110112
product:
port connection
type:
EF07
manufacturer:
NieRuf
design:
rotary elbow male adaptor parallel
thread connection:
G1/4"
tube connection 1:
D12mm
body material:
stainless steel 1.4404
seal:
FKM
collet:
stainless steel 1.4401
pressure ring:
stainless steel 1.4404
thread:
cylindrical
media:
lubricated & non-lubricated compressed air
max. working pressure:
up to 16 bar
product feature:
rotary elbow male adaptor parallel to connect or to plug pipes in pneumatic- or pressure air applications.
