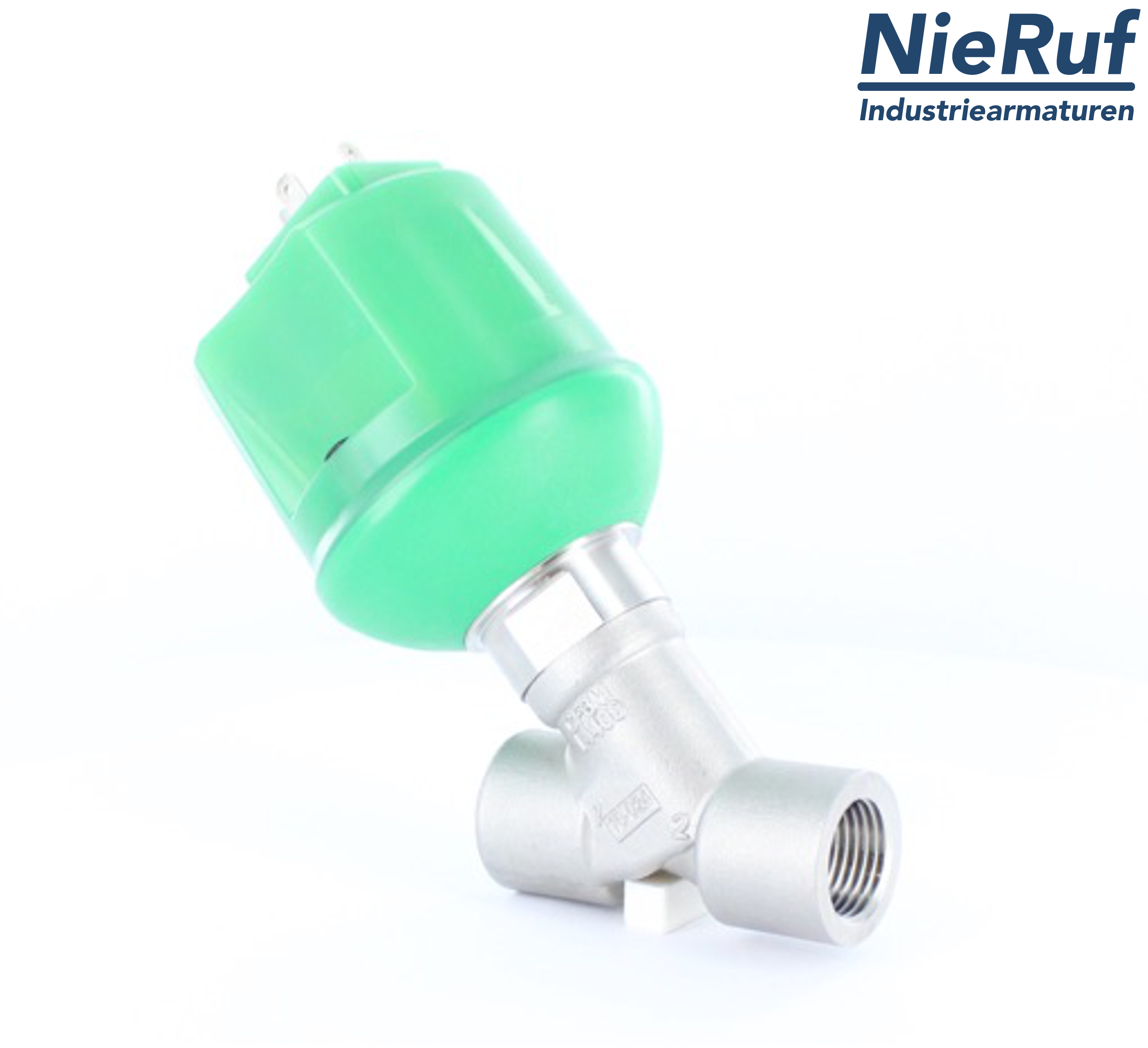

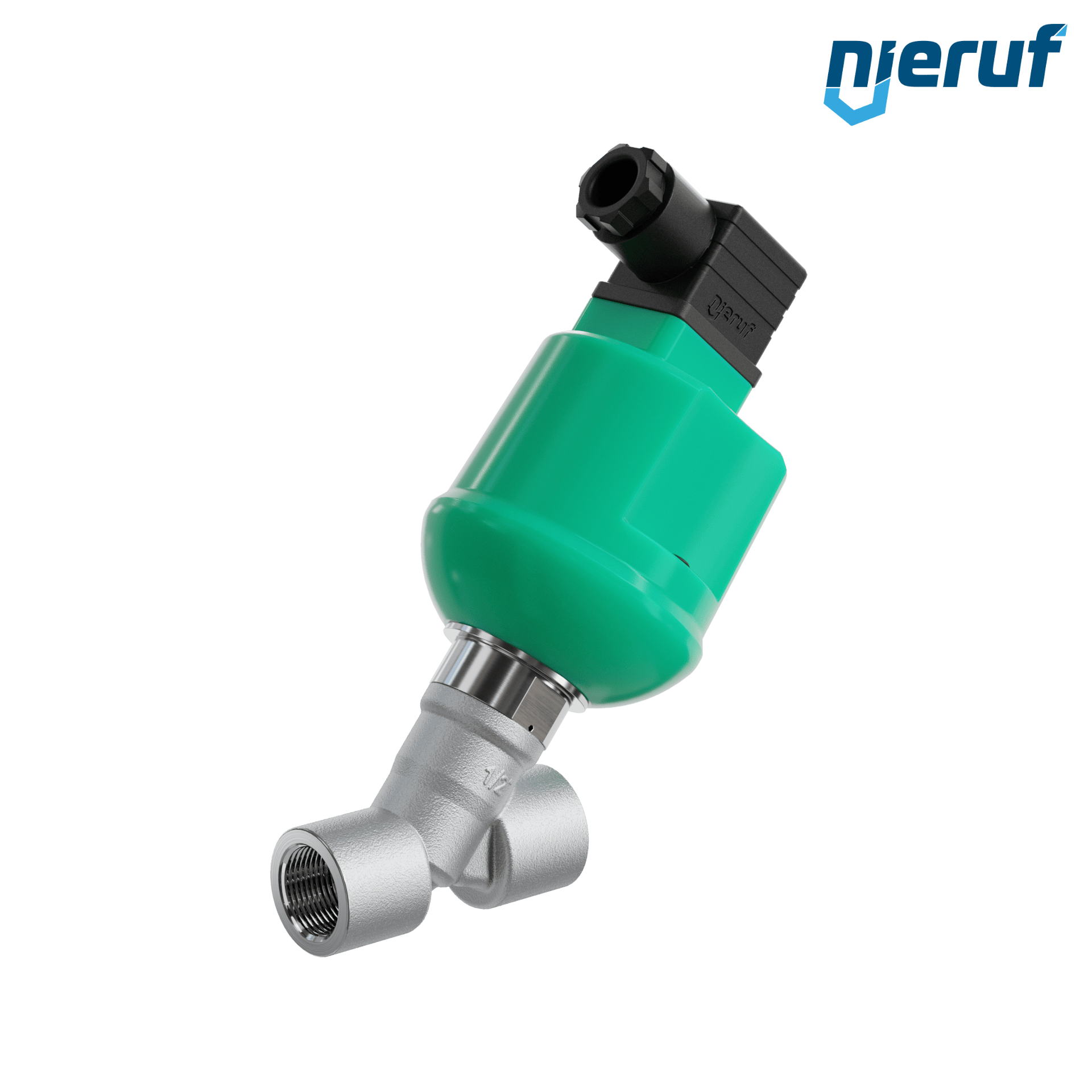

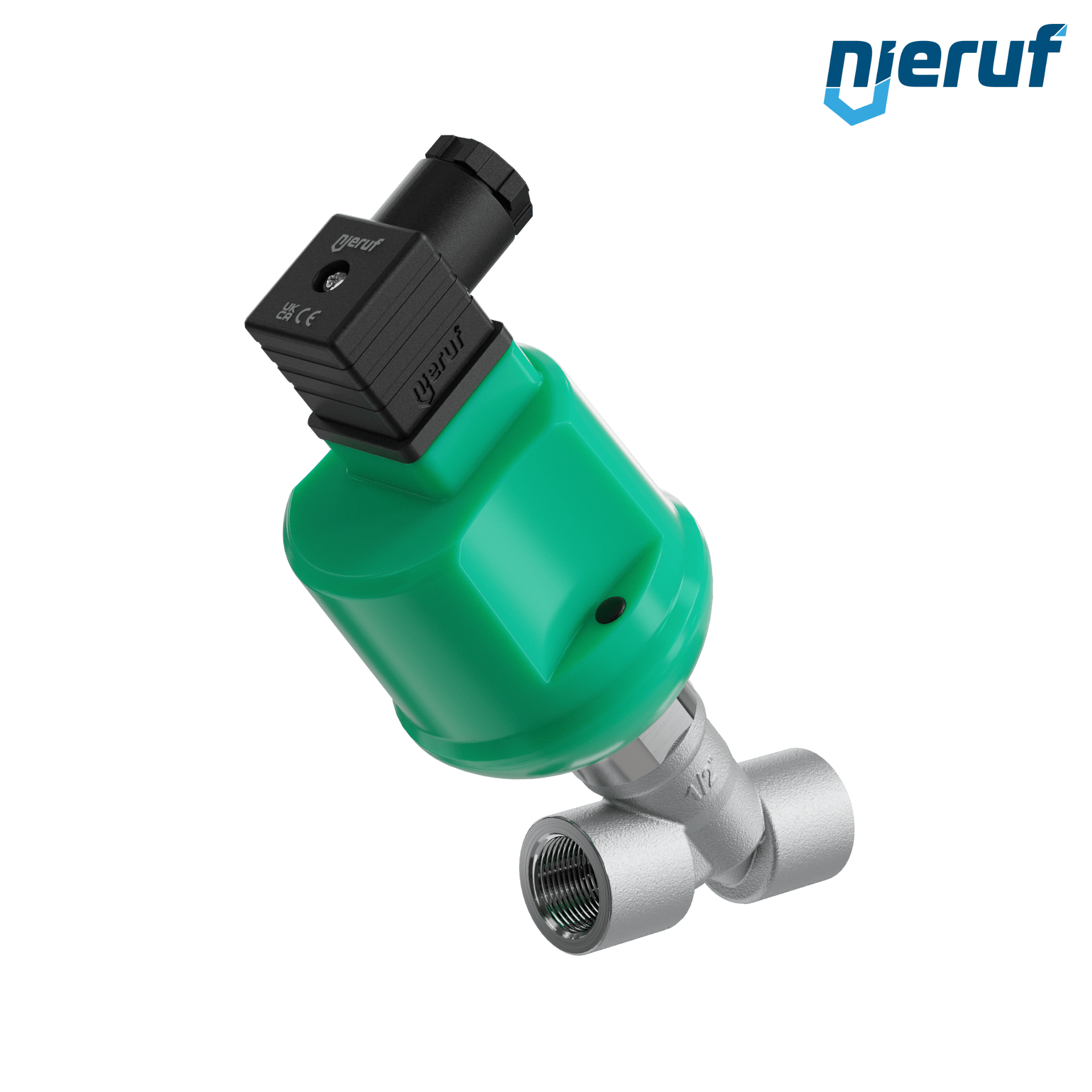

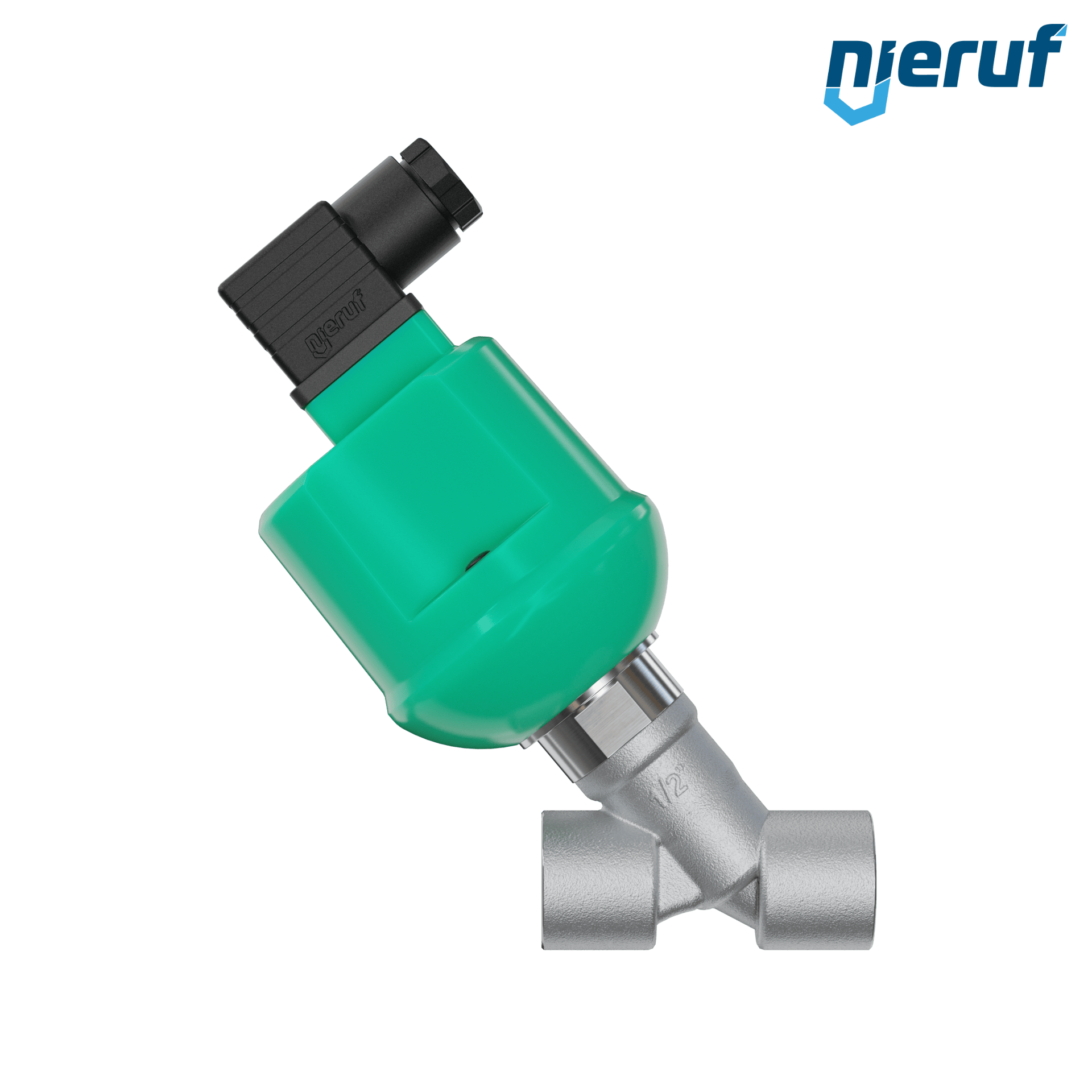

proportional motorised valve ED01 1/2" inch stainless steel 1.4404 FKM/FPM 0 - 10 volt

ED01000003
quantity (pcs.):
348.90€ * 404.72€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3 - 4 Weeks

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
proportional motorised valve ED01 1/2" inch stainless steel 1.4404 FKM/FPM 0 - 10 volt
proportional motorised valve 1/2" inch made of stainless steel to control the flow in the system up to 3800 l/h with an setpoint of 0 - 10 volt FKM/FPM
design: electric actuation
diameter: 1/2" inch
connection: female thread BSP-P
body material: stainless steel 1.4404
media: liquid & gaseous
temperature media: -10°C up to +90°C (with steam up to +145°C)
ambient temperature: -10°C up to +50°C (with 145°C steam up to +40°C)
pressure range: 0 - 10 bar
seal: FKM/FPM
enclosure protection: IP65
setpoint: 0 - 10 volt
KVS: 3800 l/h
voltage: 24V DC (+/- 10%)
Voltaggio: 24V DC (+/- 10%)
actuating time: <1,3 s full opening & closing
display: LED open: green | closed: orange)
mounting position: any
proportional motorised valve ED01 1/2" inch stainless steel 1.4404 FKM/FPM 0 - 10 volt

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

proportional motorised valve ED01 1/2" inch stainless steel 1.4404 FKM/FPM 0 - 10 volt
