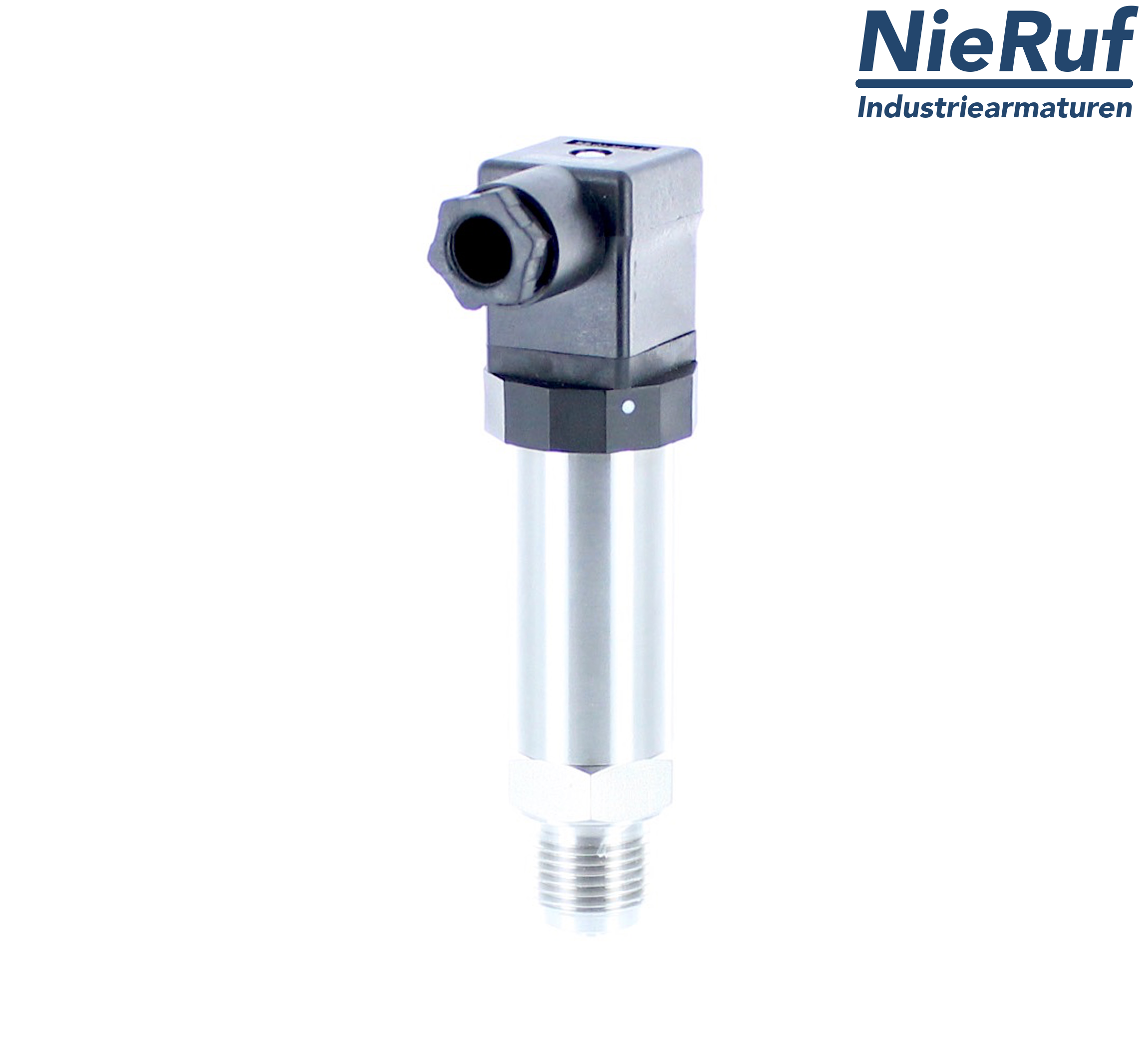

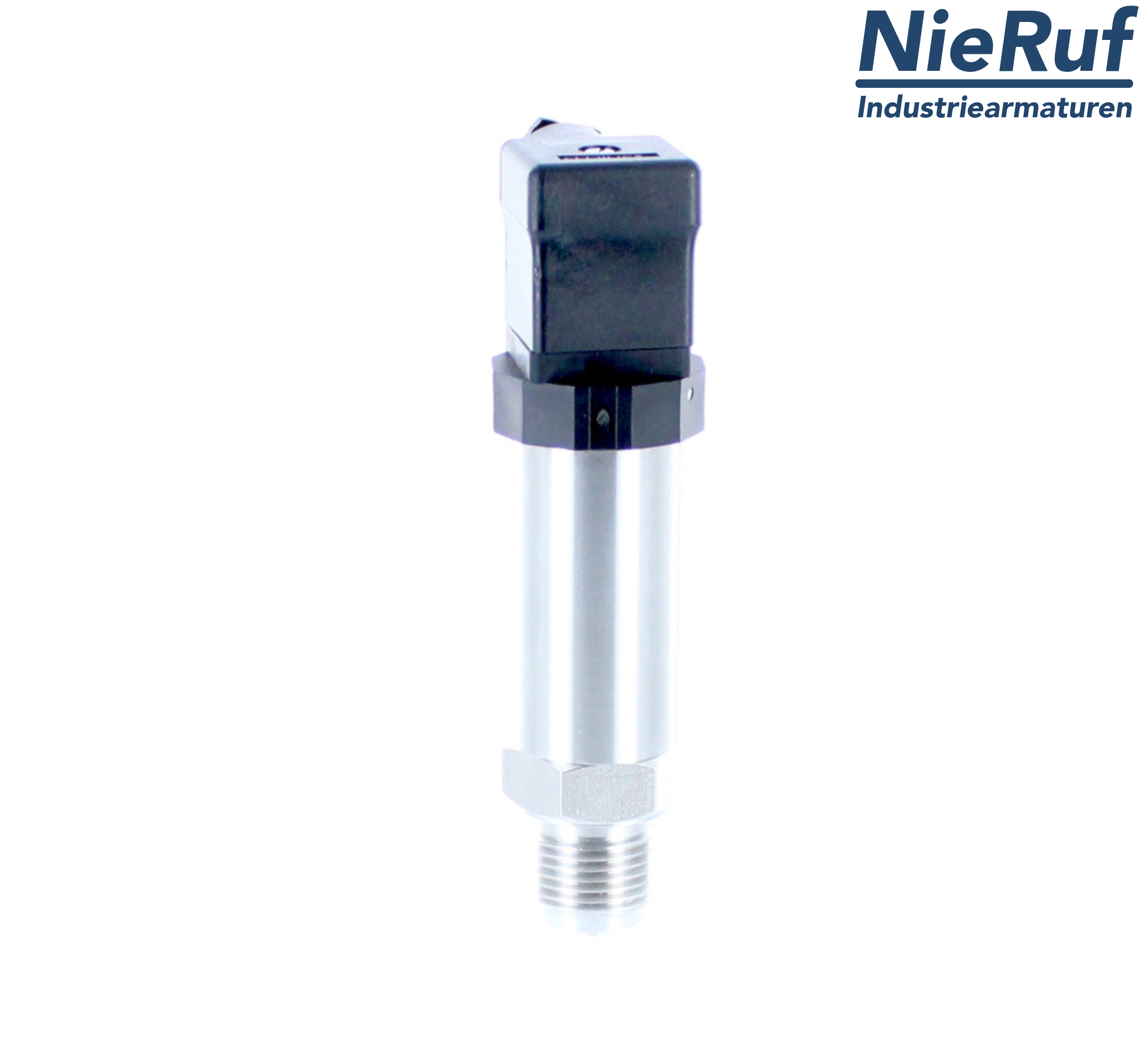

pressure sensor G 1/4" B pressure range 0,0 - 160,0 bar made of stainless steel 3-wire: 0-10V seal FPM for liquid and gaseous media male thread
|diameter:||G 1/4" B|
|material connection:||stainless steel|
|media:||liquid and gaseous media|
|temperature:||-40°C up to +100°C|
|temperature ambiente:||-40°C up to +85°C|
|range of measurement:||0,0 - 160,0 bar|
|pressure version:||relative pressure|
|plug:||EN 175-301-803-A PA Polyamid body|
|product feature:||High-quality pressure sensor with internal ceramic membrane.|
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
pressure sensor G 1/4" B DS01 stainless steel 3-wire: 0-10V FPM 0,0 - 160,0 bar
product: pressure sensor
diameter: G 1/4" B
connection: male thread
material connection: stainless steel
material: chromium-nickel steel
media: liquid and gaseous media
temperature: -40°C up to +100°C
temperature ambiente: -40°C up to +85°C
range of measurement: 0,0 - 160,0 bar
pressure version: relative pressure
accuracy: ≤ 0,5%
output: 3-wire: 0-10V
plug: EN 175-301-803-A PA Polyamid body
product feature: High-quality pressure sensor with internal ceramic membrane.
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
