DS01080101
pressure sensor G 1/4" A DS01 chromium-nickel-steel 3-wire: 0-10V FPM 0,0 - 10,0 bar
- Lead time
- 2 - 3 weeks
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE

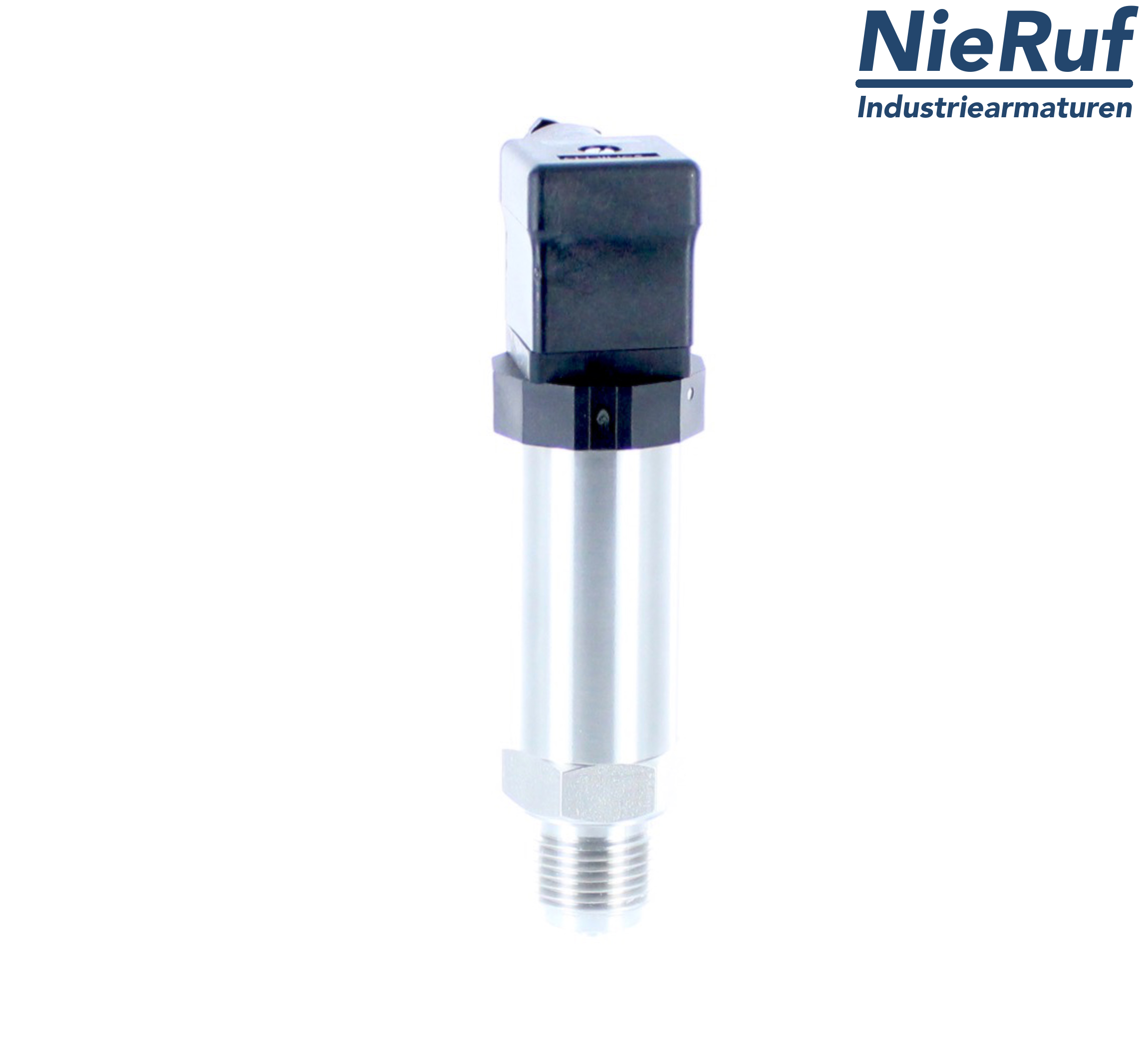

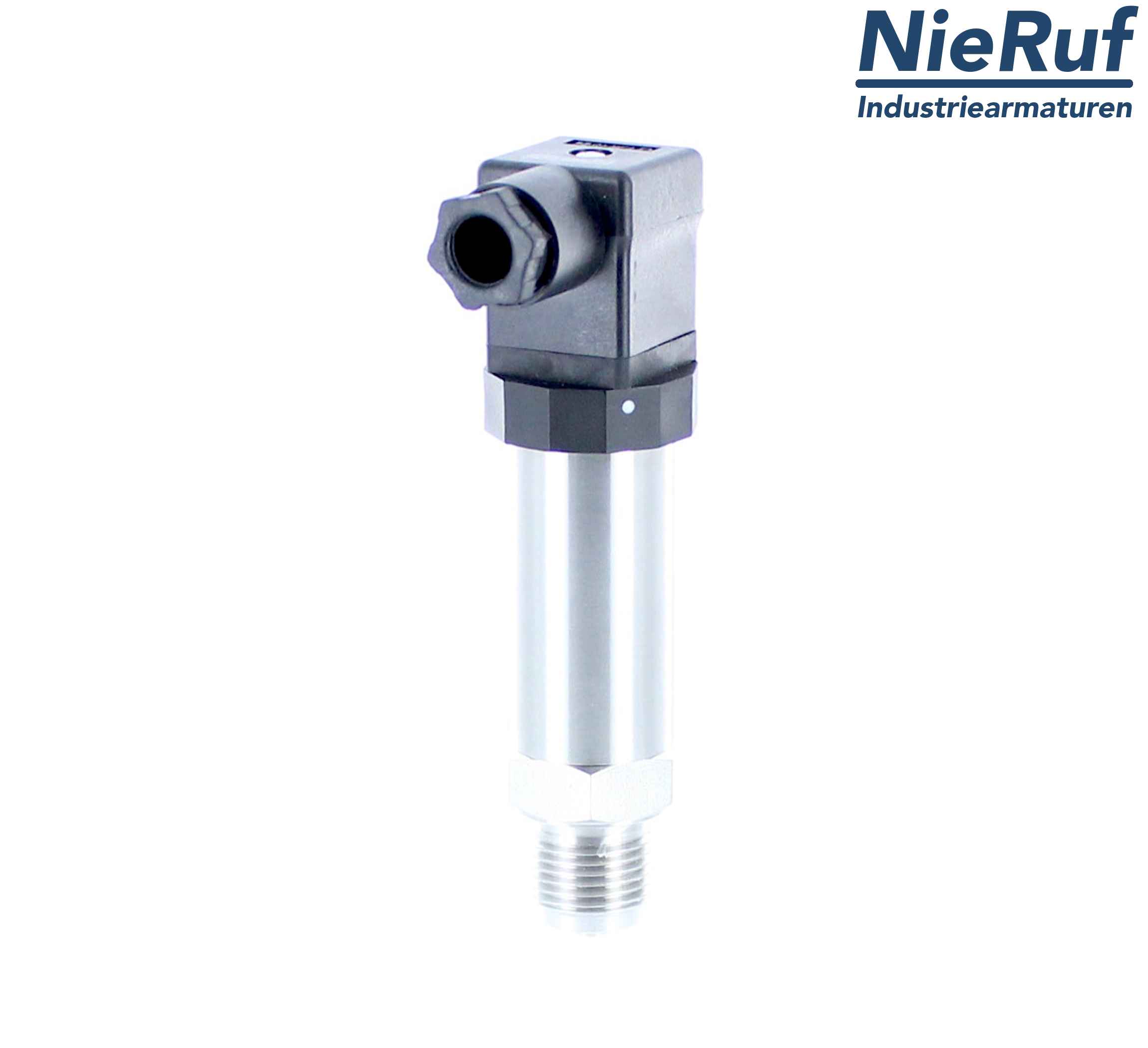

pressure sensor G 1/4" A DS01 chromium-nickel-steel 3-wire: 0-10V FPM 0,0 - 10,0 bar
pressure sensor G 1/4" A pressure range 0,0 - 10,0 bar made of chromium-nickel steel 3-wire: 0-10V seal FPM for liquid and gaseous media male thread
| product | pressure sensor |
|---|---|
| type | DS01 |
| manufacturer | NieRuf |
| diameter | G 1/4" A |
| connection | male thread |
| material connection | chromium-nickel steel |
| material | chromium-nickel steel |
| seal | FPM |
| media | liquid and gaseous media |
| temperature | -40°C up to +100°C |
| temperature ambiente | -40°C up to +100°C |
| membrane | ceramic |
| range of measurement | 0,0 - 10,0 bar |
| pressure version | relative pressure |
| accuracy | ≤ 0,5% |
| output | 3-wire: 0-10V |
| plug | EN 175-301-803-A |
| product feature | High-quality pressure sensor with internal ceramic membrane. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
pressure sensor G 1/4" A DS01 chromium-nickel-steel 3-wire: 0-10V FPM 0,0 - 10,0 bar
Article no.
: DS01080101
product:
pressure sensor
type:
DS01
manufacturer:
NieRuf
diameter:
G 1/4" A
connection:
male thread
material connection:
chromium-nickel steel
material:
chromium-nickel steel
seal:
FPM
media:
liquid and gaseous media
temperature:
-40°C up to +100°C
temperature ambiente:
-40°C up to +100°C
membrane:
ceramic
range of measurement:
0,0 - 10,0 bar
pressure version:
relative pressure
accuracy:
≤ 0,5%
output:
3-wire: 0-10V
plug:
EN 175-301-803-A
product feature:
High-quality pressure sensor with internal ceramic membrane.
