pressure sensor G 1/2" B IB DS01 stainless steel 3-wire: 0-10V EPDM 0,0 - 320,0 bar

DS01161103.1
quantity (pcs.):
215.40€ * 256.33€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3 - 4 Weeks

datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

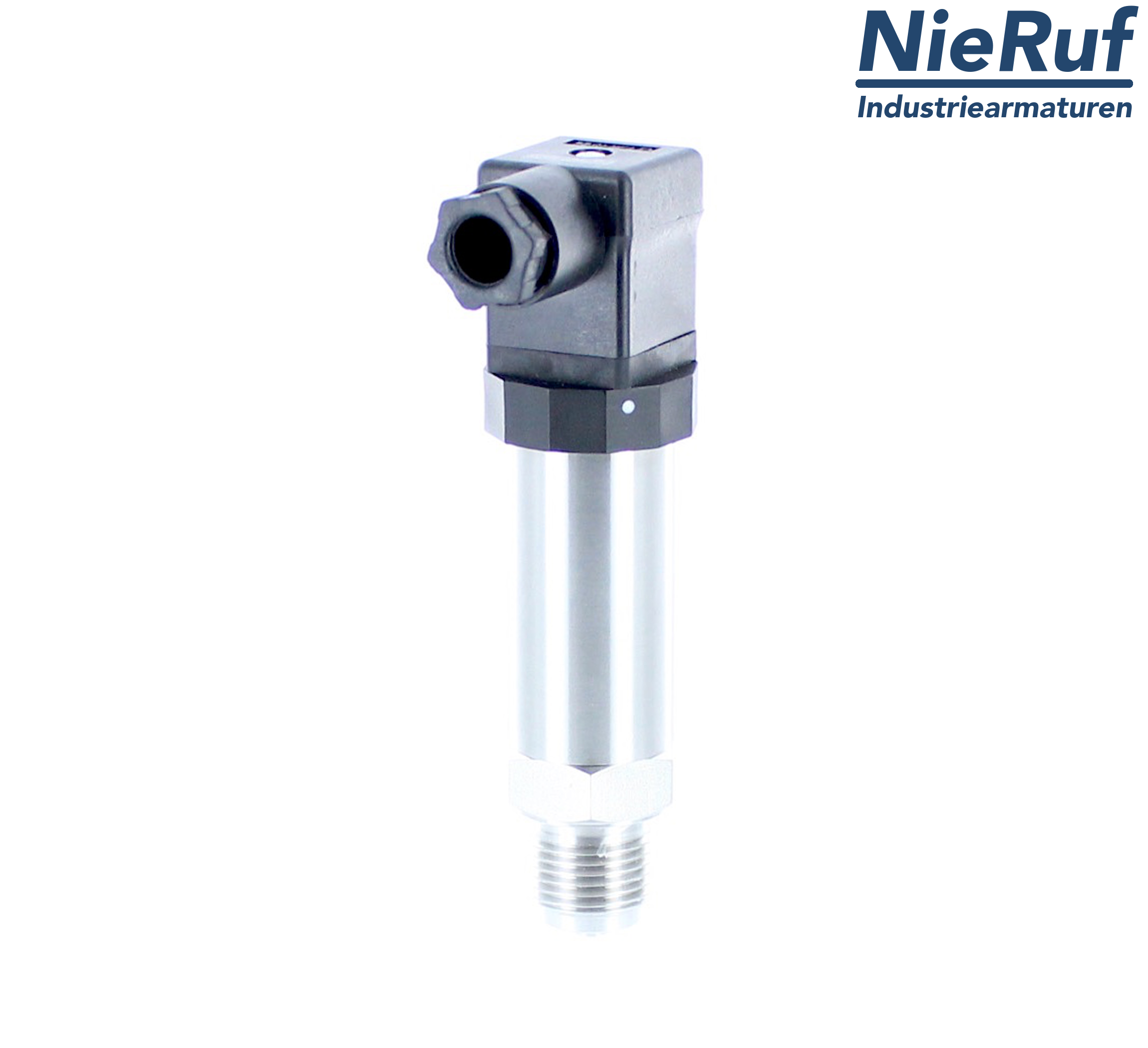

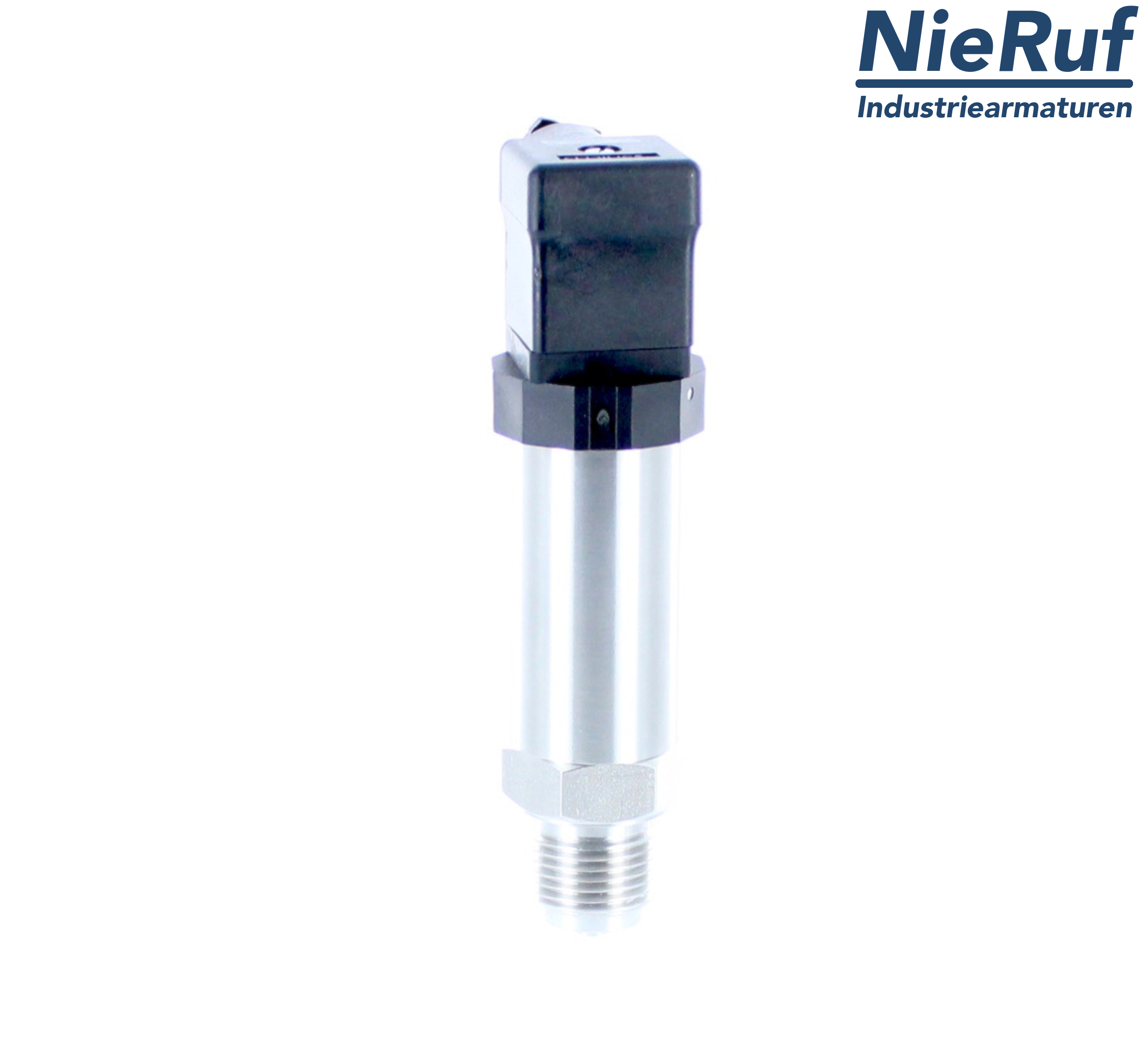

pressure sensor G 1/2" B IB DS01 stainless steel 3-wire: 0-10V EPDM 0,0 - 320,0 bar
pressure sensor G 1/2" B IB pressure range 0,0 - 320,0 bar made of stainless steel 3-wire: 0-10V seal EPDM male thread with internal drill
diameter: G 1/2" B IB
connection: male thread with internal drill
material connection: stainless steel
material: chromium-nickel steel
seal: EPDM
media: liquid and gaseous media
temperature: -40°C up to +100°C
temperature ambiente: -40°C up to +85°C
membrane: ceramic
range of measurement: 0,0 - 320,0 bar
pressure version: relative pressure
accuracy: ≤ 0,5%
output: 3-wire: 0-10V
plug: EN 175-301-803-A PA Polyamid body
product feature: High-quality pressure sensor with internal ceramic membrane.
pressure sensor G 1/2" B IB DS01 stainless steel 3-wire: 0-10V EPDM 0,0 - 320,0 bar

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

pressure sensor G 1/2" B IB DS01 stainless steel 3-wire: 0-10V EPDM 0,0 - 320,0 bar
