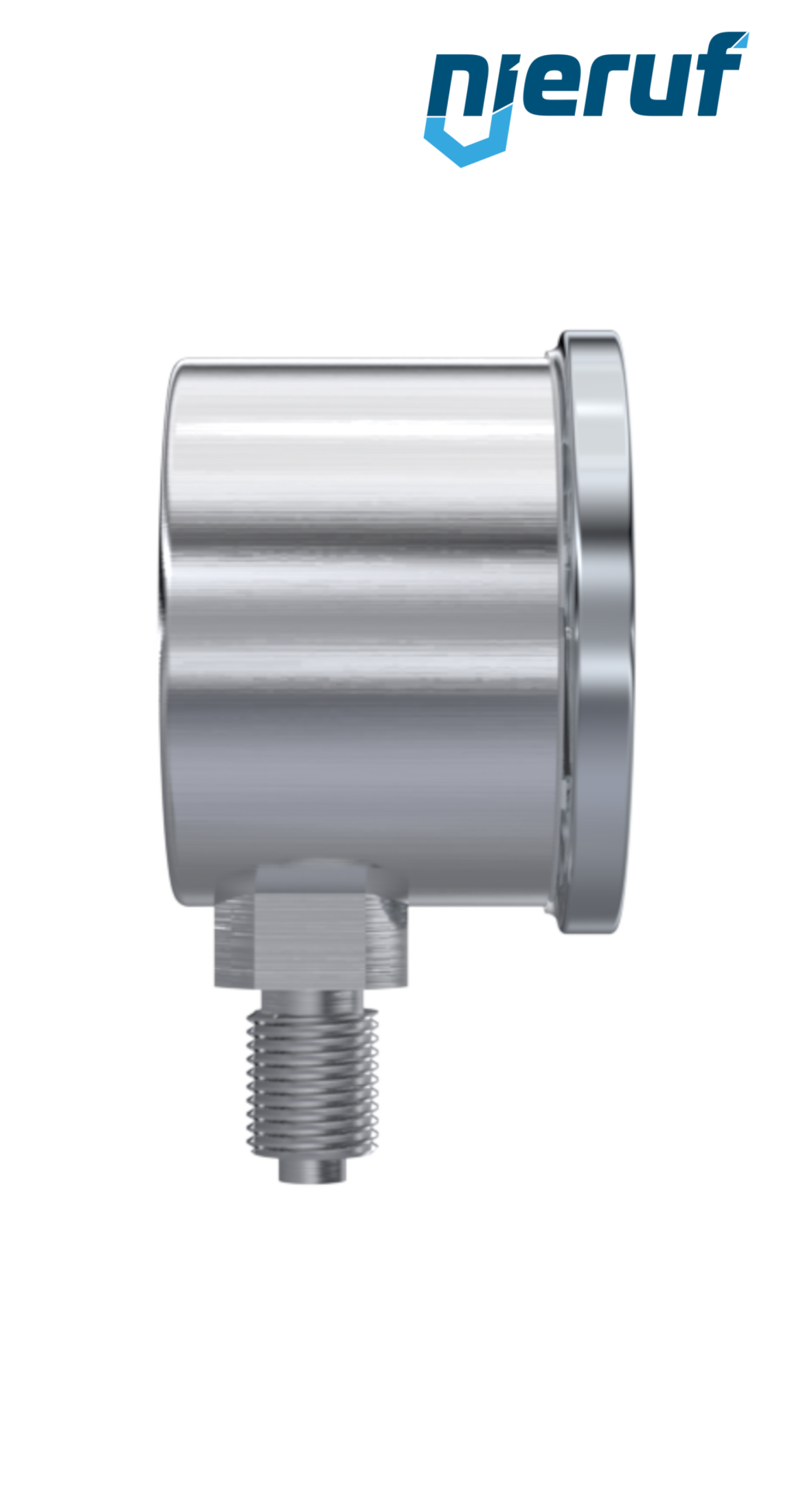

pressure gauge G 1/4" radial 50 mm stainless steel MM05 0 - 25,0 bar
pressure gauge 0 - 25,0 bar G 1/4" diameter: 50 mm stainless steel thread: external thread on downside made of stainless steel
| product | pressure gauge |
|---|---|
| type | MM05 |
| manufacturer | NieRuf |
| diameter | G 1/4" |
| connection | external thread on downside |
| design | radial |
| media | gaseous, liquid, not highly viscous and crystallising media |
| temperature | Max. 150°C |
| Measuring range | 0 - 25,0 bar |
| Measuring range in | bar |
| accuracy | 1,6% |
| diameter viewing window | 50 mm |
| filling | without filling, dry |
| body material | stainless steel |
| viewing window | polycarbonate |
| material connection | stainless steel |
| product feature | Pressure gauge with pipe-spring measuring element made of stainless steel. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
pressure gauge G 1/4" radial 50 mm stainless steel MM05 0 - 25,0 bar
Article no.
: MM05000901
product:
pressure gauge
type:
MM05
manufacturer:
NieRuf
diameter:
G 1/4"
connection:
external thread on downside
design:
radial
media:
gaseous, liquid, not highly viscous and crystallising media
temperature:
Max. 150°C
Measuring range:
0 - 25,0 bar
Measuring range in:
bar
accuracy:
1,6%
diameter viewing window:
50 mm
filling:
without filling, dry
body material:
stainless steel
viewing window:
polycarbonate
material connection:
stainless steel
product feature:
Pressure gauge with pipe-spring measuring element made of stainless steel.
