MD03000004

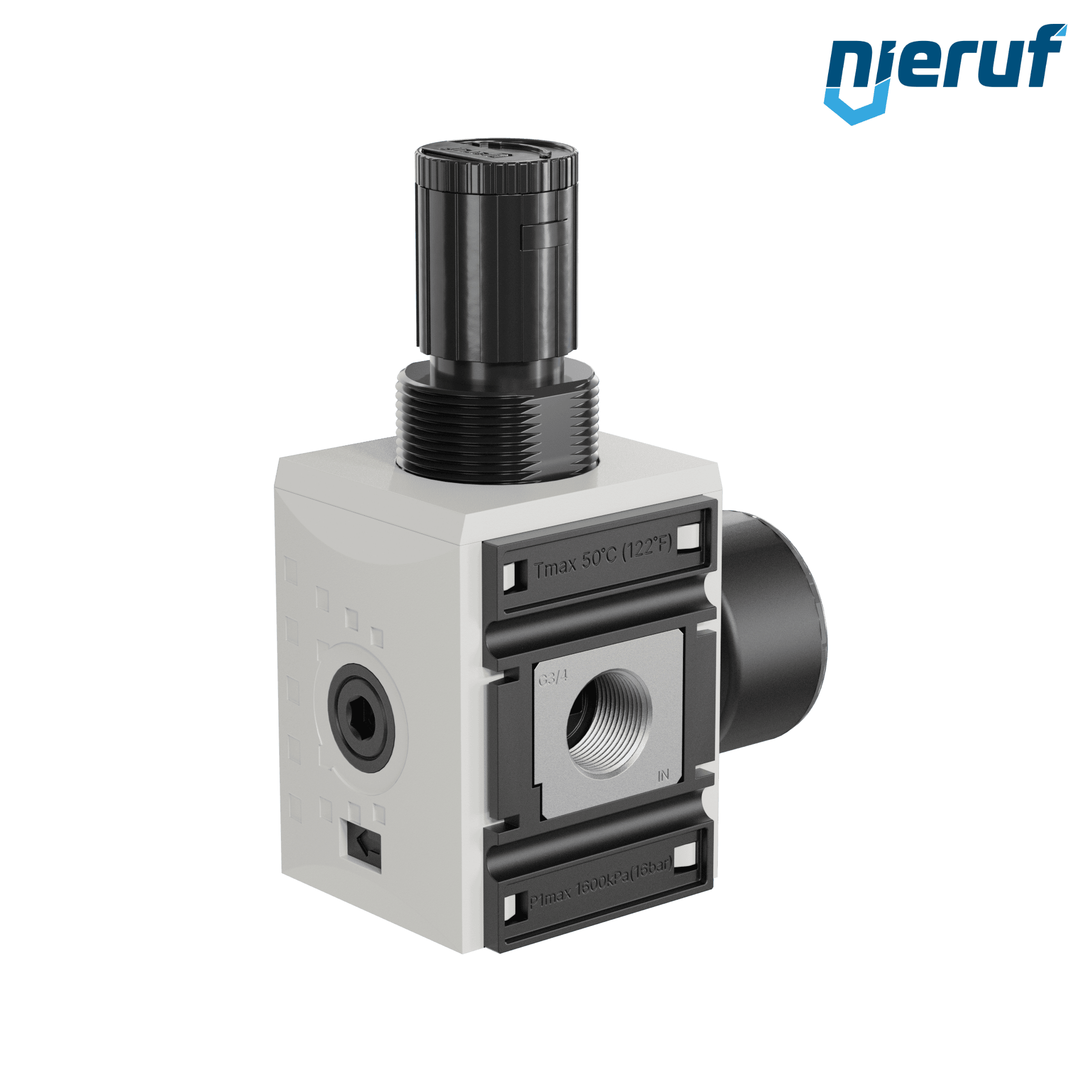

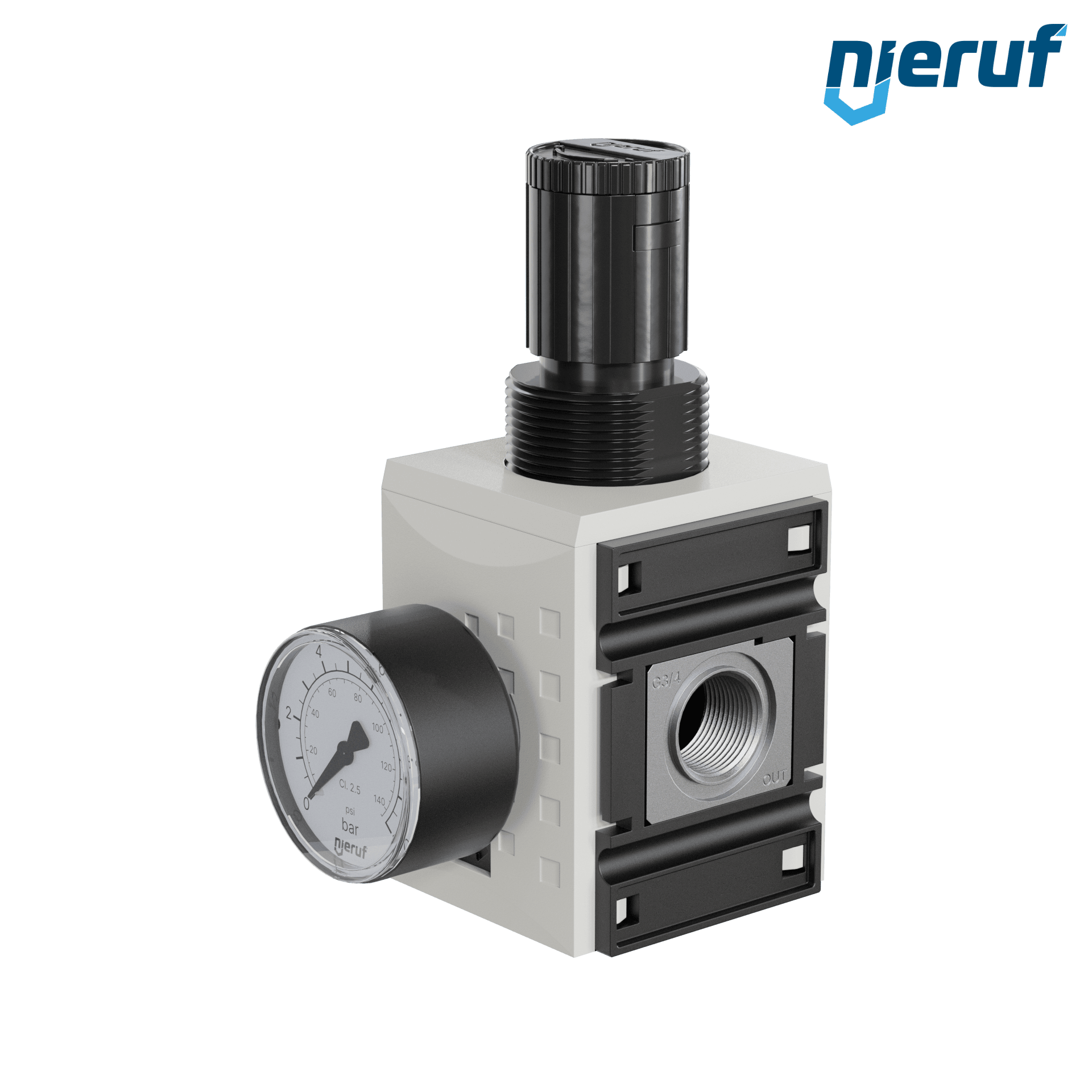

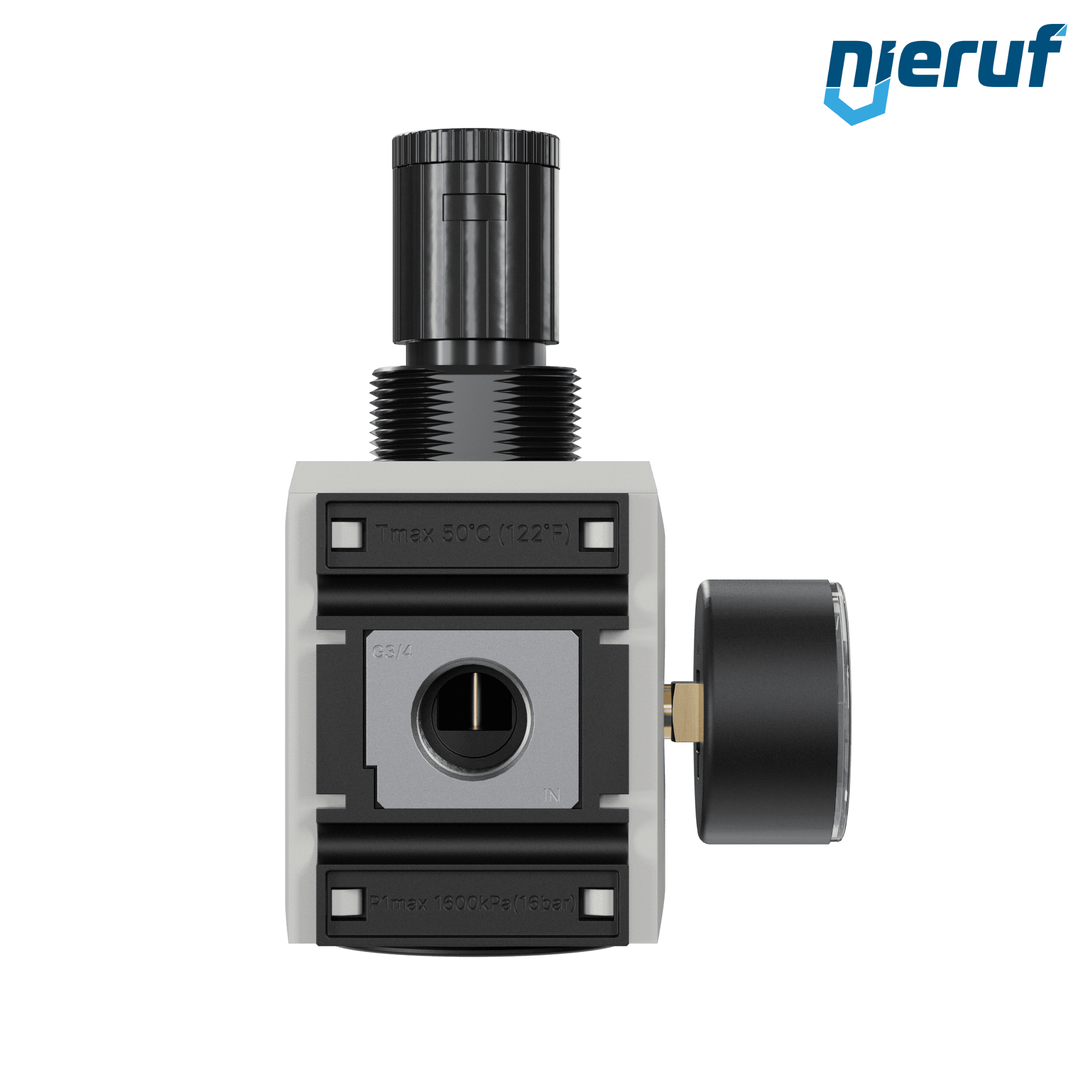

pressure-control-valve 3/4" Inch MD03 female thread plastic polyamid NBR 0.5 - 8.0 bar
- Lead time
- 2 - 3 weeks
Questions about the article?
Our employee Richie Rost
will be happy to help you
pressure-control-valve 3/4" Inch MD03 female thread plastic polyamid NBR 0.5 - 8.0 bar
pressure-control-valve 3/4" Inch made of plastic polyamid female thread seal NBR for air, set pressure 0.5 - 8.0 bar
| product | pressure-control-valve |
|---|---|
| type | MD03 |
| manufacturer | NieRuf |
| diameter | 3/4" Inch |
| connection | female thread |
| material | plastic polyamid |
| seal | NBR |
| media | air |
| temperature | 0°C up to +50°C |
| range of adjustment | 0.5 - 8.0 bar |
| max. inlet pressure | 16 bar |
| design | straightway form |
| product feature | Pressure-control-valve for pressure air and neutral gaseous mediat to control pressure supply in a pipeline system with secondary ventilation. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
pressure-control-valve 3/4" Inch MD03 female thread plastic polyamid NBR 0.5 - 8.0 bar
Article no.
: MD03000004
product:
pressure-control-valve
type:
MD03
manufacturer:
NieRuf
diameter:
3/4" Inch
connection:
female thread
material:
plastic polyamid
seal:
NBR
media:
air
temperature:
0°C up to +50°C
range of adjustment:
0.5 - 8.0 bar
max. inlet pressure:
16 bar
design:
straightway form
product feature:
Pressure-control-valve for pressure air and neutral gaseous mediat to control pressure supply in a pipeline system with secondary ventilation.
