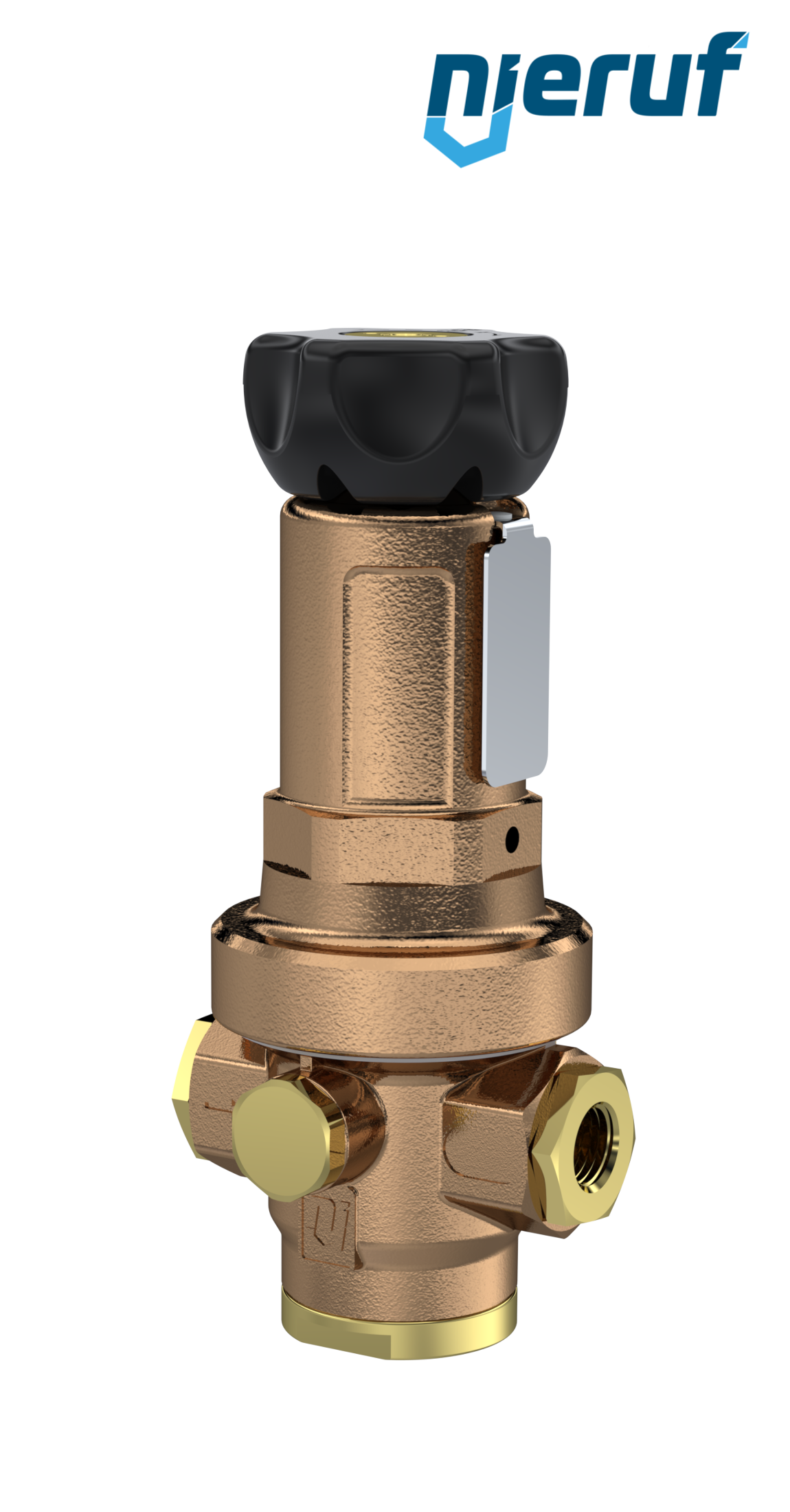

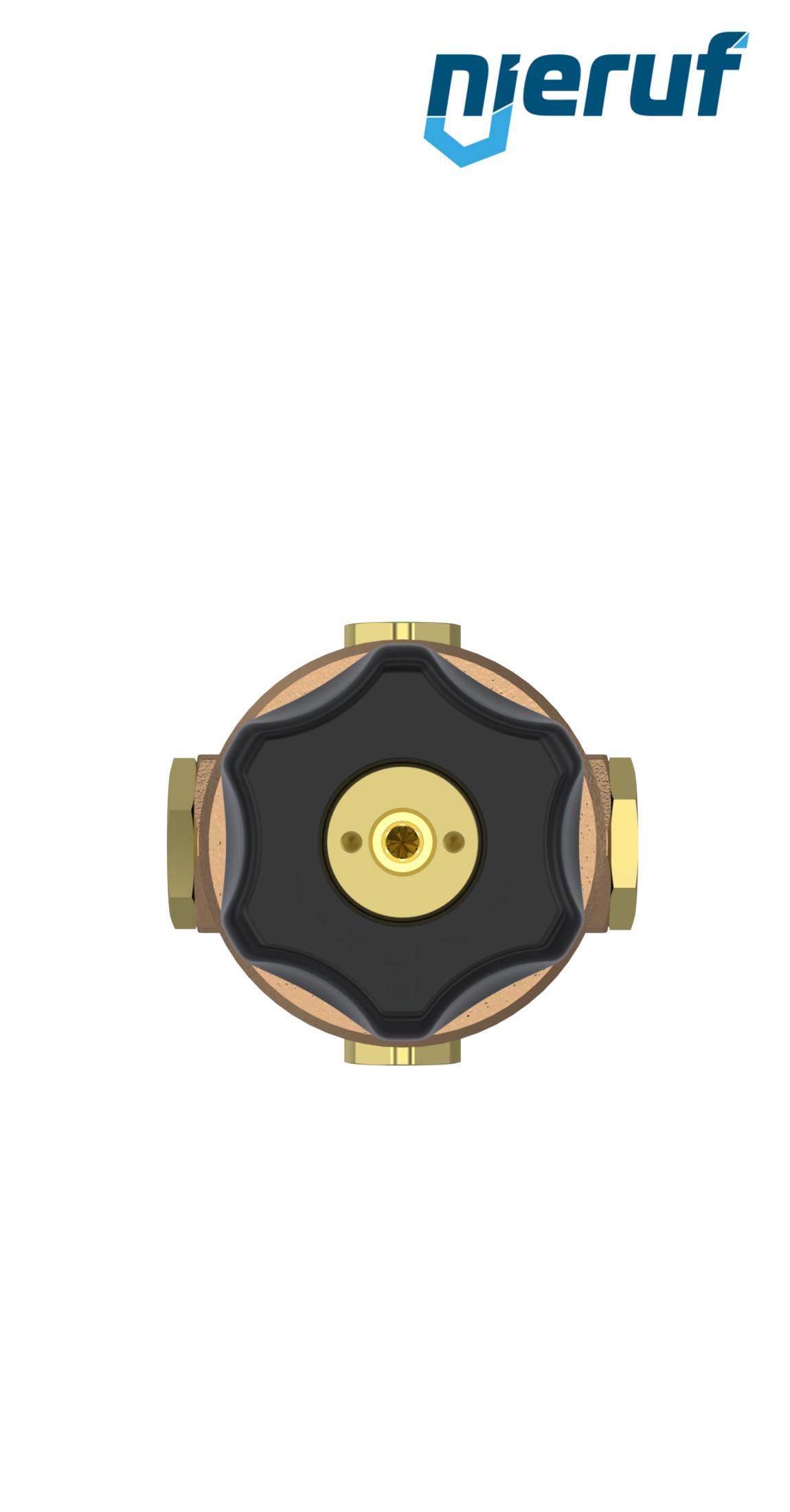

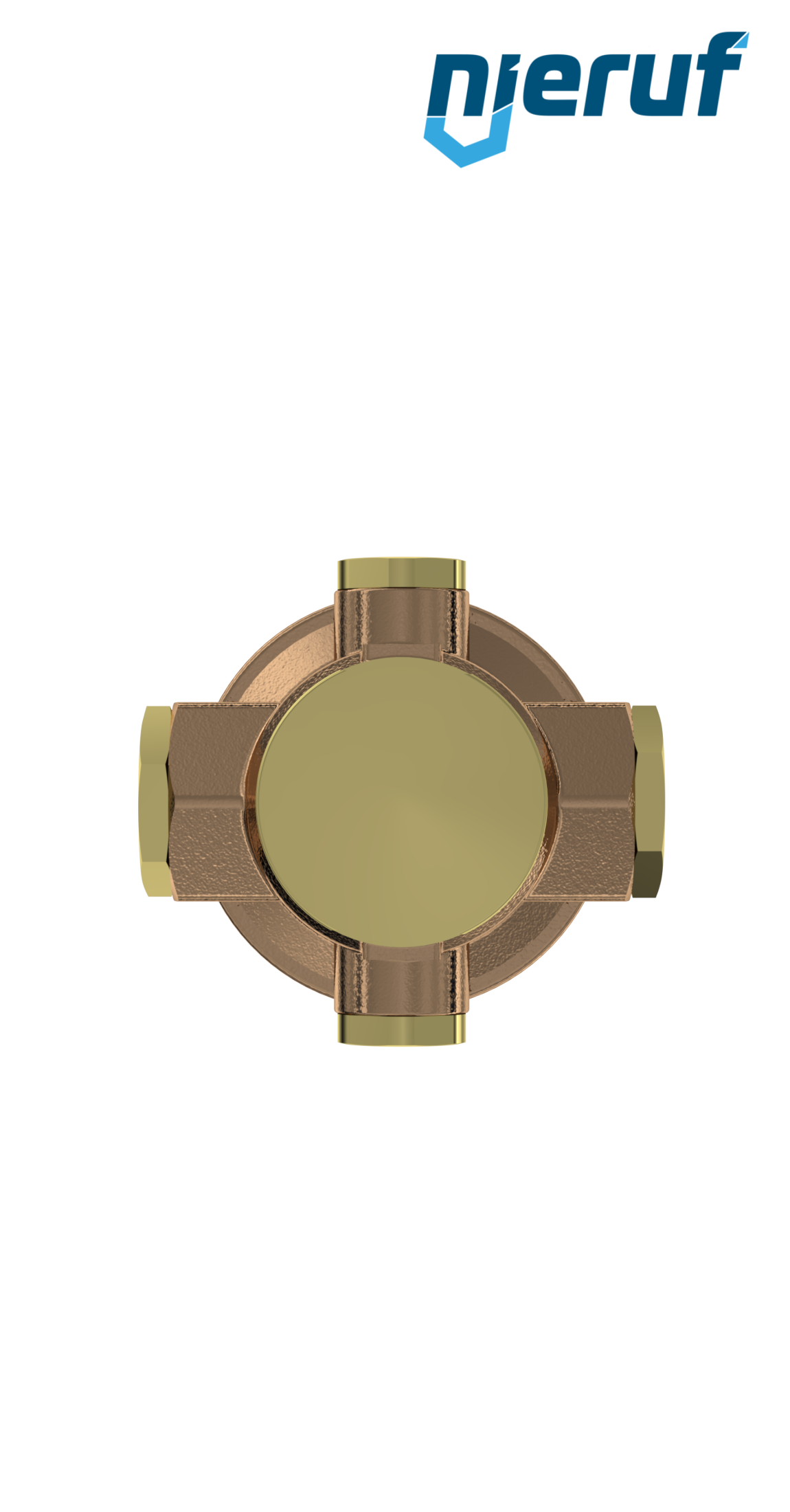

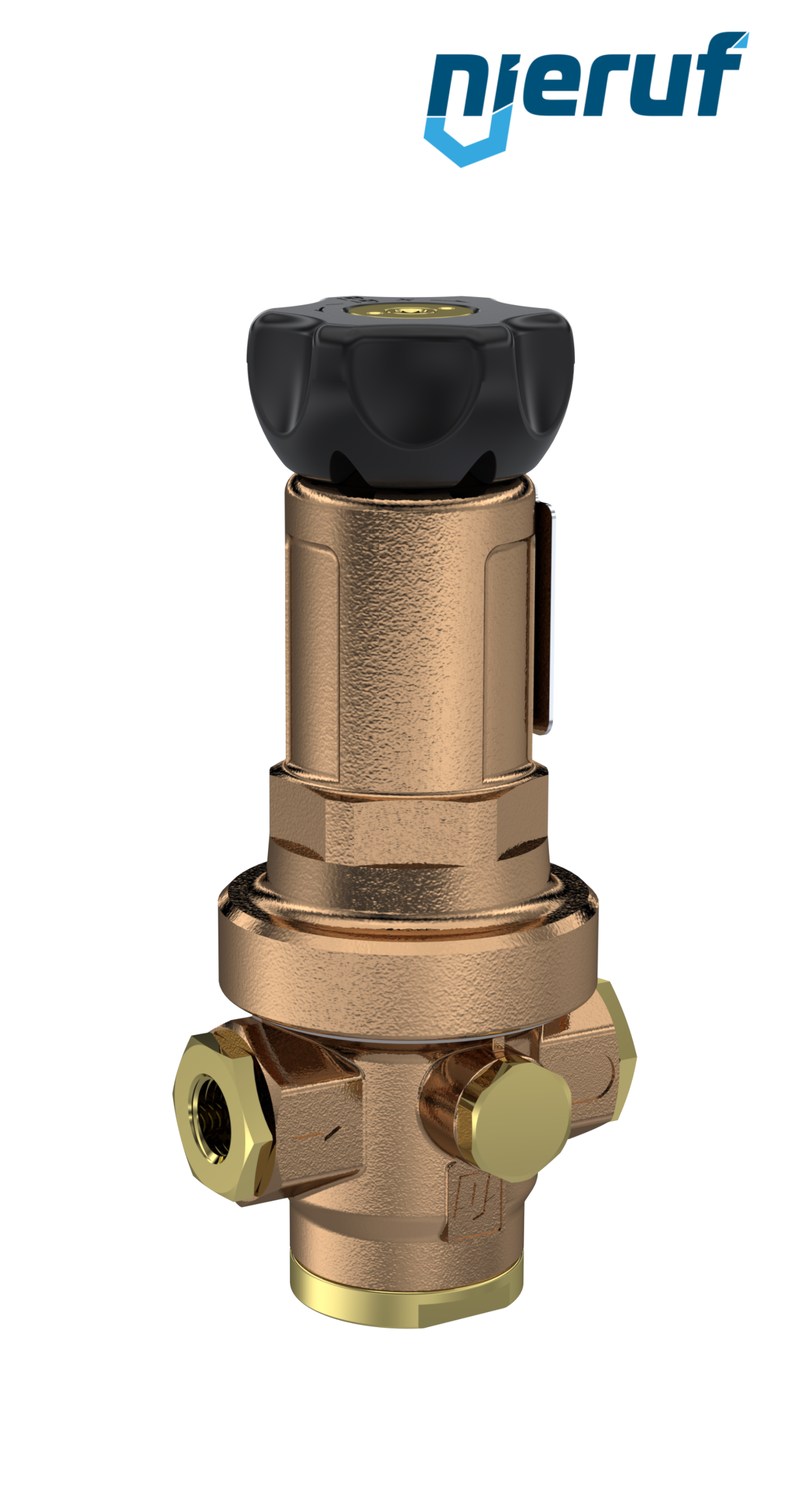

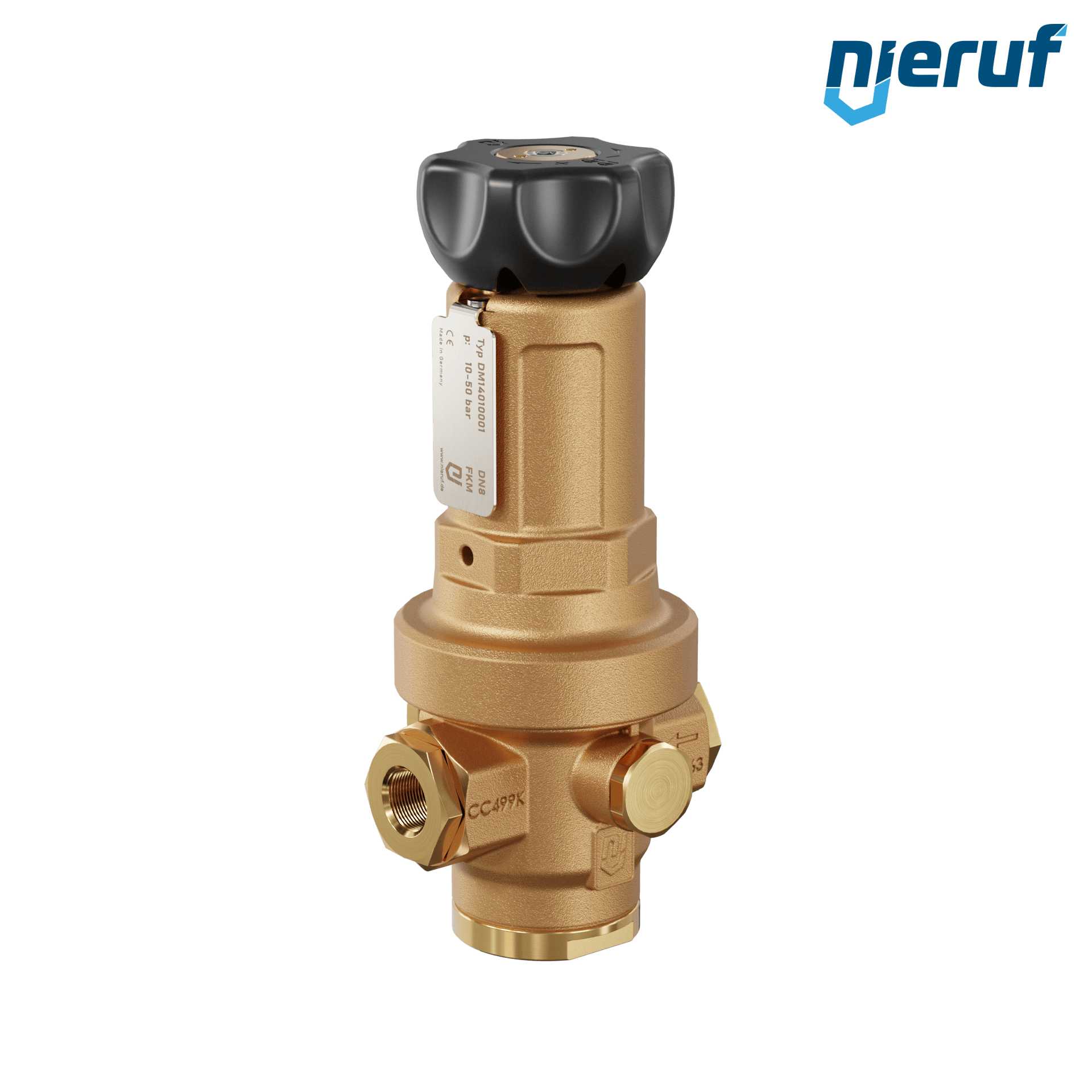

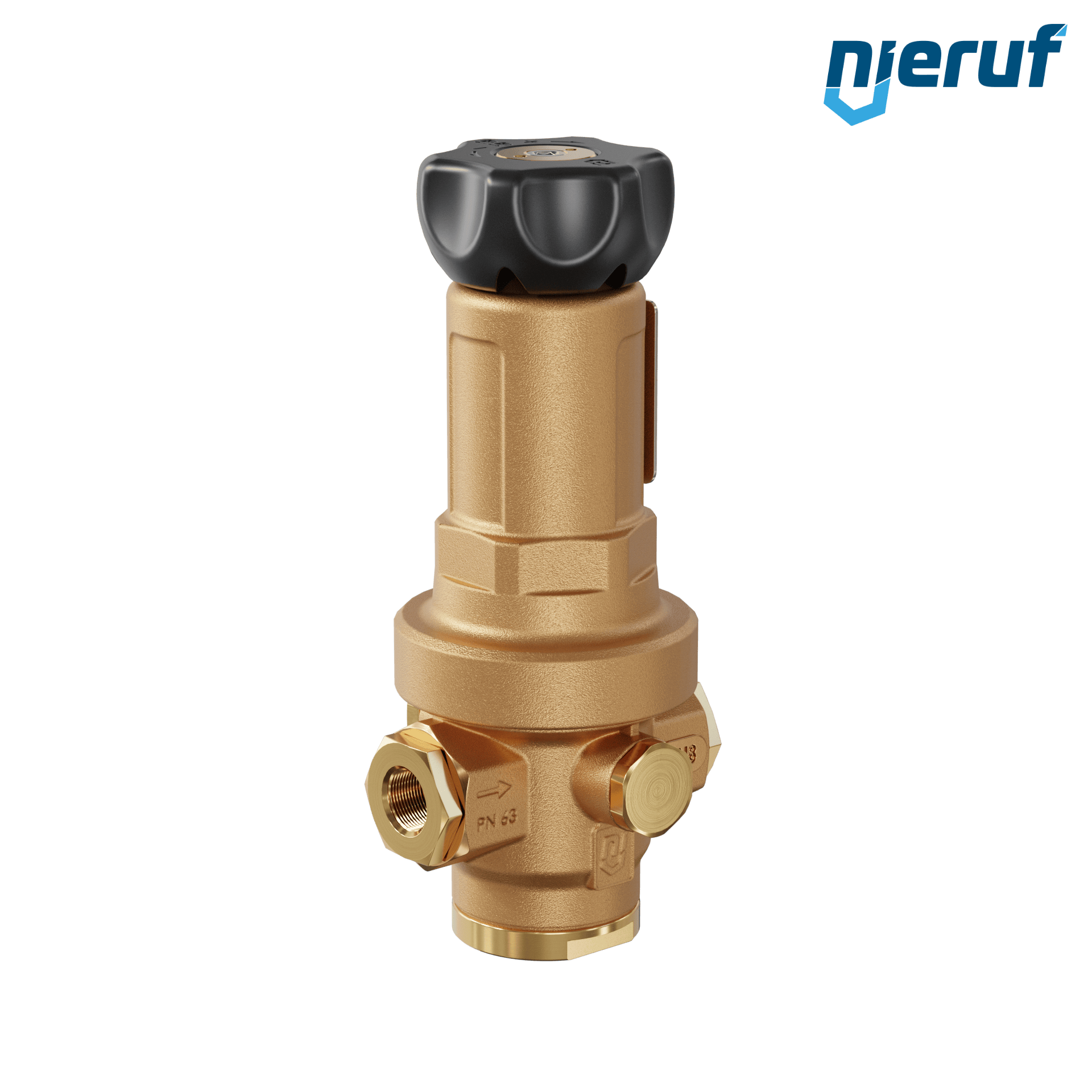

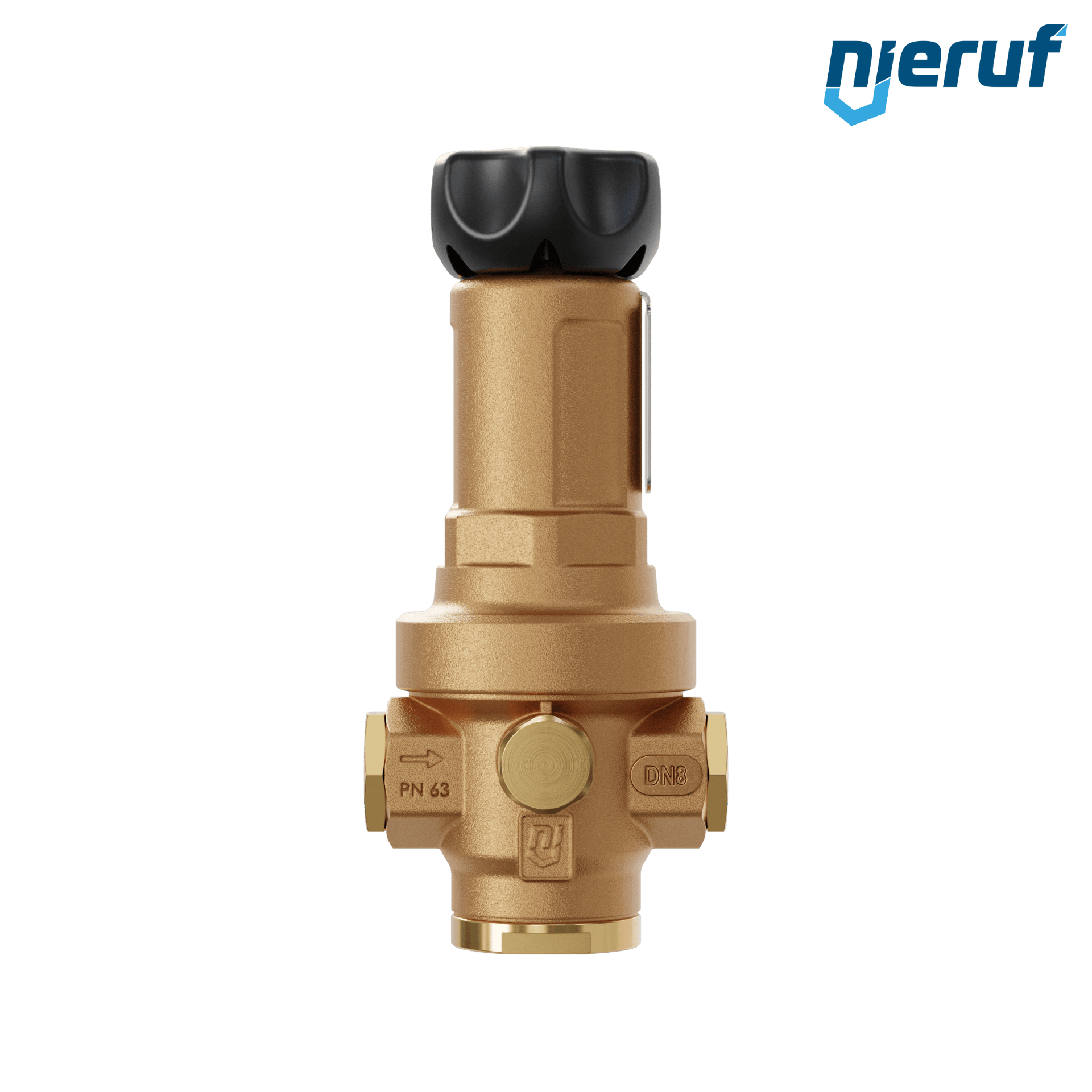

precision-pressure reducing valve 1/4" inch female thread made of gunmetal seal FKM for liquid and gaseous media, set pressure 10.0 - 50.0 bar
| product | precision-pressure reducing valve |
|---|---|
| type | DM14 |
| manufacturer | NieRuf |
| diameter | 1/4" inch |
| connection | female thread |
| material | gunmetal |
| seal | FKM |
| media | liquid and gaseous media |
| temperature | -10°C up to +120°C |
| range of adjustment | 10.0 - 50.0 bar |
| max. inlet pressure | 60 bar |
| design | straightway form |
| installation position | any position |
| SIL - safety integrity level | SIL 2 |
| product feature | high quality piston-pressure reducing valve with supporting ring. Pressure adjustment about not rising spindle and manometer connection 1/4" |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
precision-pressure reducing valve 1/4" inch DM14 gunmetal FKM 10.0 - 50.0 bar
Article no.
: DM14010001
product:
precision-pressure reducing valve
type:
DM14
manufacturer:
NieRuf
diameter:
1/4" inch
connection:
female thread
material:
gunmetal
seal:
FKM
media:
liquid and gaseous media
temperature:
-10°C up to +120°C
range of adjustment:
10.0 - 50.0 bar
max. inlet pressure:
60 bar
design:
straightway form
installation position:
any position
SIL - safety integrity level:
SIL 2
product feature:
high quality piston-pressure reducing valve with supporting ring. Pressure adjustment about not rising spindle and manometer connection 1/4"
pressure gauge 0 - 60,0 bar G 1/4" axial 50 mm stainless steel MM05
Delivery time: in stock
Wall mount WH01 for pressure reducing valve DM14 and DM15 DN8 / DN10 / DN15
Delivery time: 3 - 5 working days
