pipe nipple 4" inch m stainless steel 1.4571 length 80 mm

GF01500011.0
Solenoid valve DN6,0 PVC KV02 EPDM 24V DC 1
quantity (pcs.):
27.80€ * 33.08€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1-2 working days

datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

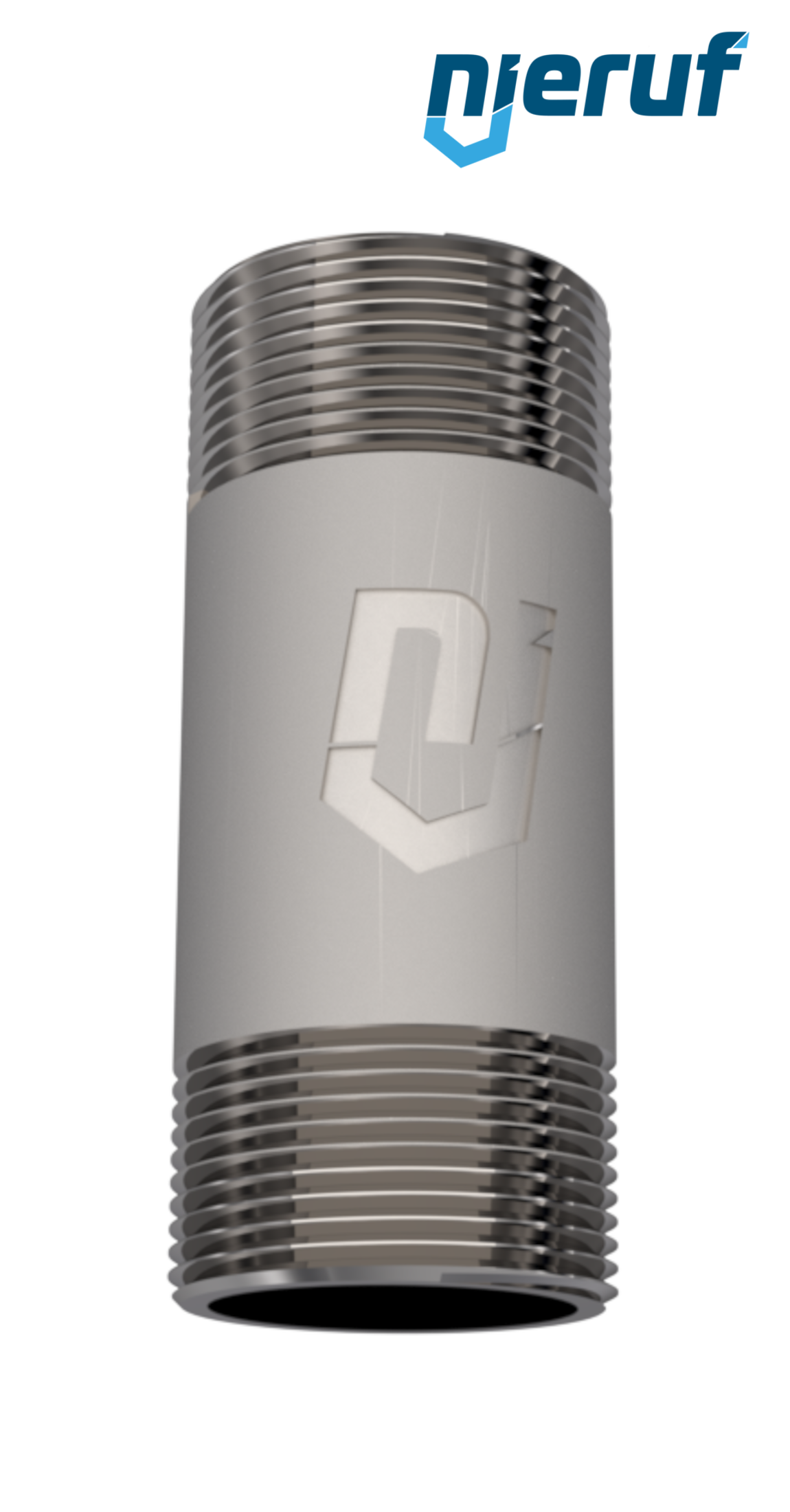

pipe nipple 4" inch m stainless steel 1.4571 length 80 mm
pipe nipple GF03-5 with male thread 4" inch made of stainless steel 1.4571 with a length 80 mm
design: length 80 mm
diameter: 4" inch
connection: male thread
thread: acc. to DIN EN 10226-1
max. working pressure: 20 bar at +20°C
material: stainless steel 1.4571
product feature: These fittings are ideal to connect pipelines or to integrate mountings or valves in pipeline systems.
pipe nipple 4" inch m stainless steel 1.4571 length 80 mm

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

pipe nipple 4" inch m stainless steel 1.4571 length 80 mm
