MA01060203
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 steel 1.0460 400 bar
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE

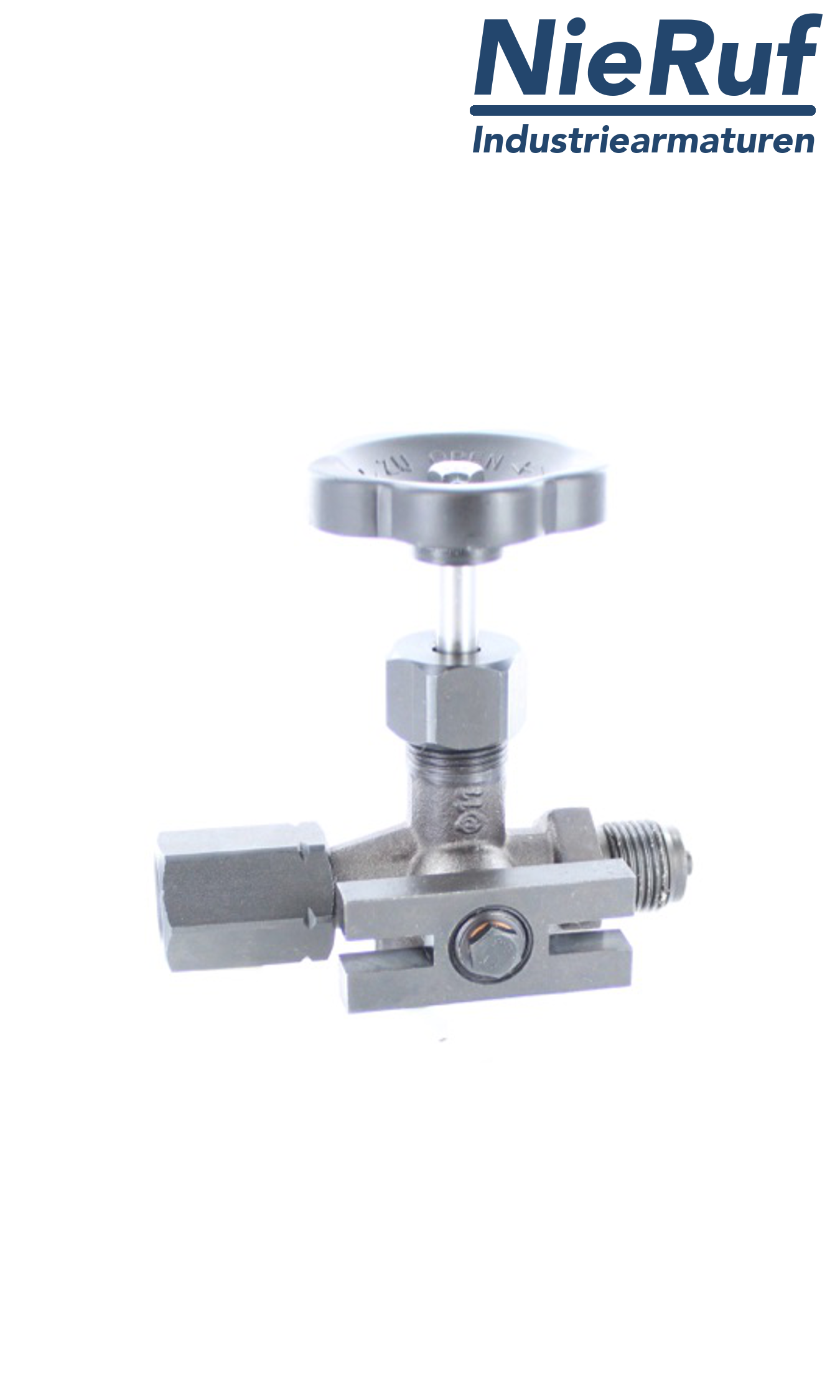

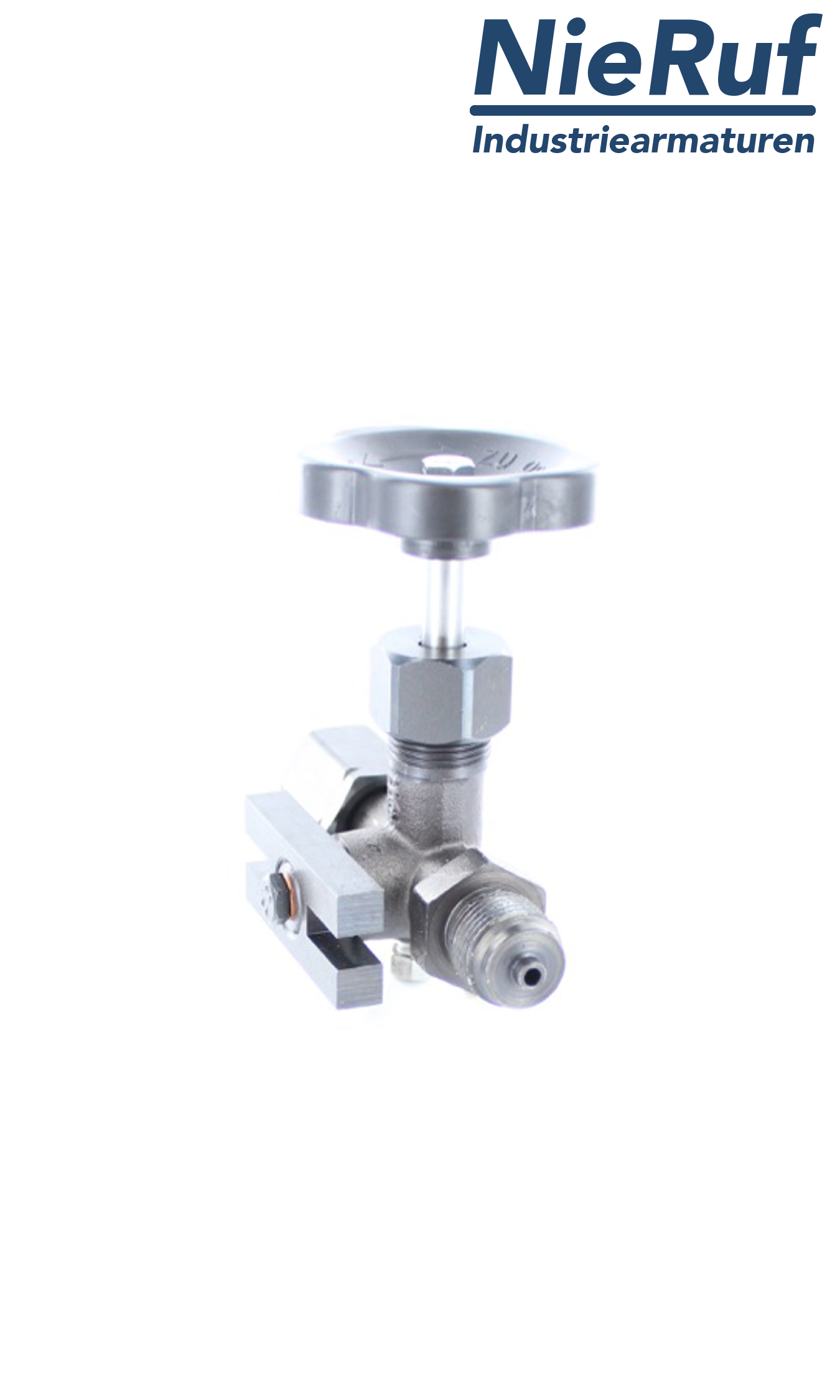

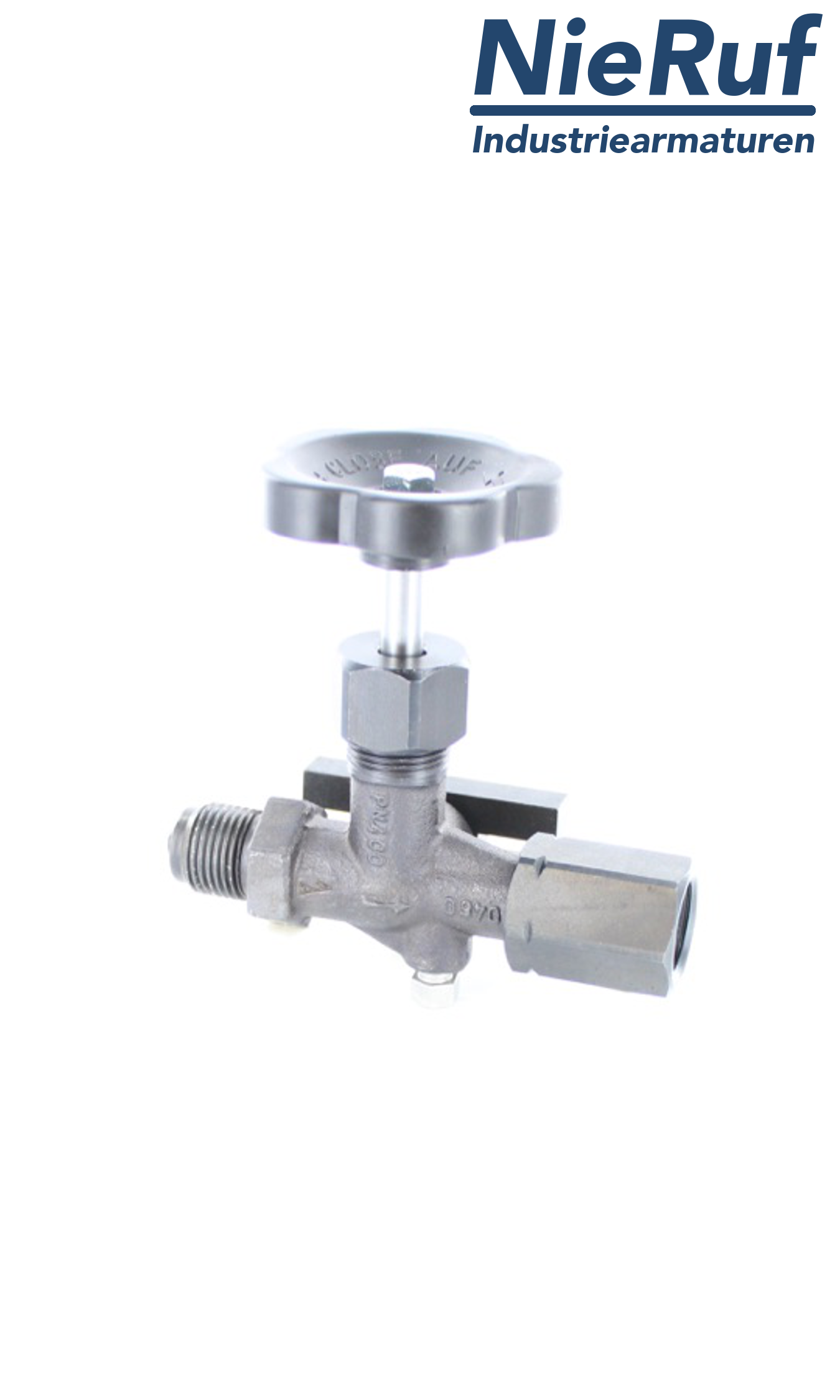

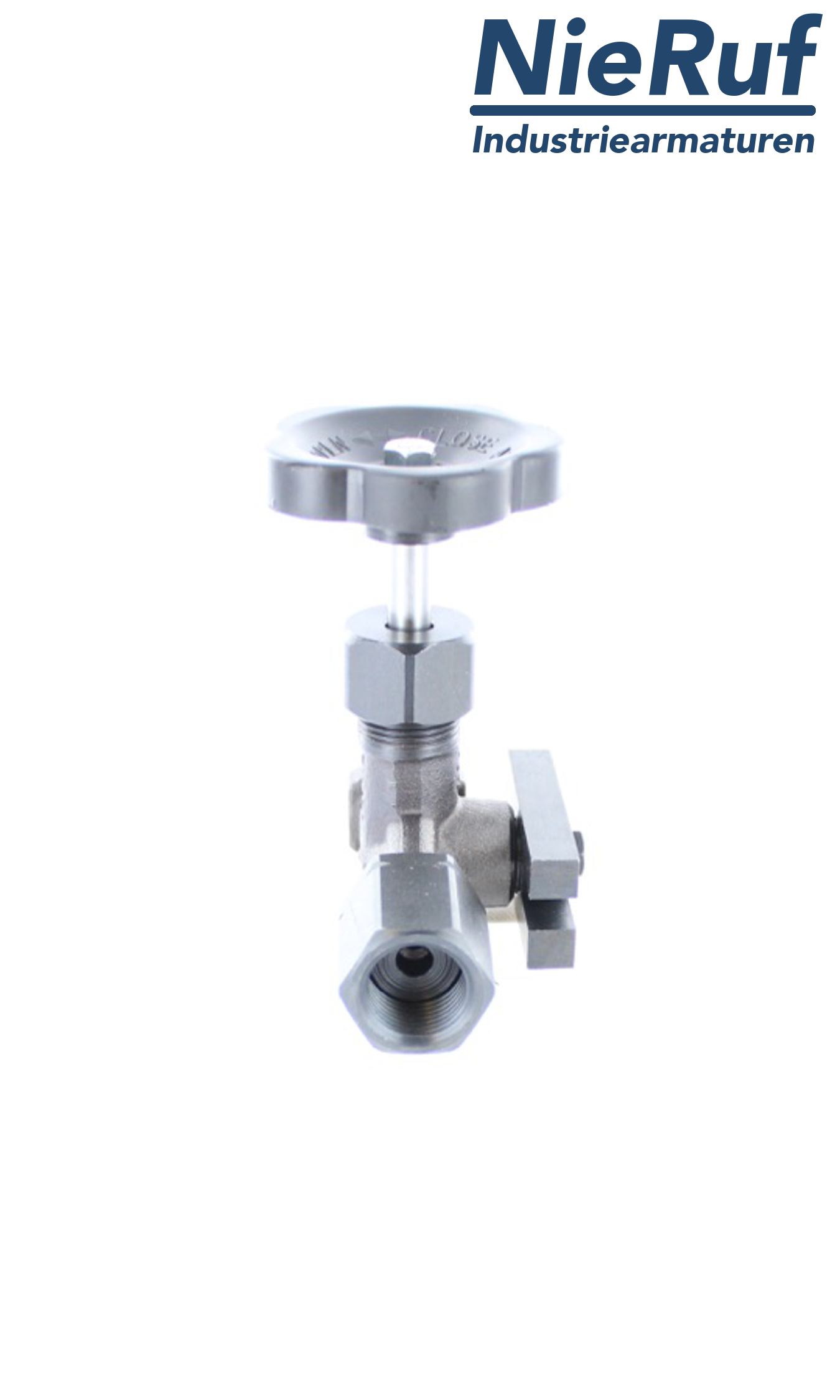

manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 steel 1.0460 400 bar
manometer gauge valve male thread x sleeve x test flange 60x25 mm with 1/2" connection acc. to DIN 16271 made ofsteel 1.0460 400 bar
| product | manometer gauge valves |
|---|---|
| type | MA01 |
| manufacturer | NieRuf |
| diameter | 1/2" |
| connection | male thread x sleeve x test flange 60x25 mm |
| media | liquids, gas and steams |
| temperature | 120°C |
| pressure range | 400 bar |
| handwheel | bakelite |
| seal | graphite |
| requirements | DIN 16271 |
| material | steel 1.0460 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 steel 1.0460 400 bar
Article no.
: MA01060203
product:
manometer gauge valves
type:
MA01
manufacturer:
NieRuf
diameter:
1/2"
connection:
male thread x sleeve x test flange 60x25 mm
media:
liquids, gas and steams
temperature:
120°C
pressure range:
400 bar
handwheel:
bakelite
seal:
graphite
requirements:
DIN 16271
material:
steel 1.0460
