GK06010008
ball valve made of carbon steel DN50 - 2" inch GK06
- Lead time
- 3 - 5 working days
Equipment

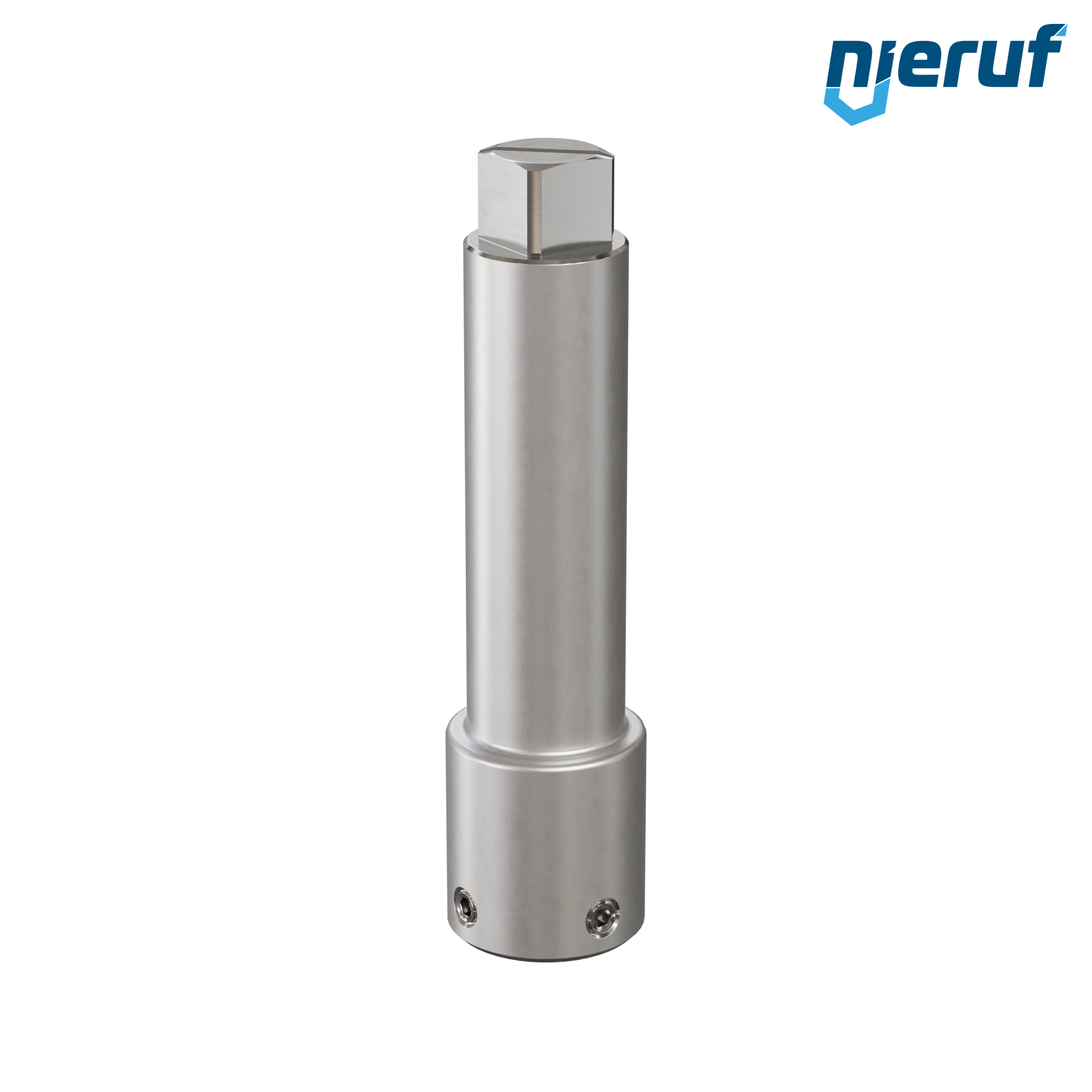

stem extension hub length 100 mm square 14mm AD02 stainless steel
€37.37 VAT included.
hose nozzle 2" 50.8 mm stainless steel 1.4408 ST01
€22.61 VAT included.
hexagon nipple 2" inch male stainless steel 316
€14.64 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
ball valve made of carbon steel DN50 - 2" inch GK06
ball valve made of carbon steel DN50 - 2" inch full port design seal made of PTFE for liquid and gaseous media
| product | ball valve made of carbon steel |
|---|---|
| type | GK06 |
| manufacturer | NieRuf |
| diameter | DN50 - 2" inch |
| connection | female thread |
| Seal steam | PTFE |
| ball seal | PTFE |
| media | liquid media, gases media and steam |
| temperature | -20°C up to +215°C - depending on working pressure and media |
| max. pressure | PN100 |
| design | full port design |
| body material | carbon steel 1.0619 zinc plated |
| ball material | stainless steel 1.4408 / CF8M |
| length | 140mm |
| actuator | lever handle made of steel 1.0619 zinc plated |
| installation position | any position |
| authorized for | TA Luft |
| product description | This two-piece ball valve "screwed design" is made of carbon steel with mounting flange (DIN ISO 5211) with floating ball is suitable for direct actuator mounting |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
ball valve made of carbon steel DN50 - 2" inch GK06
Article no.
: GK06010008
product:
ball valve made of carbon steel
type:
GK06
manufacturer:
NieRuf
diameter:
DN50 - 2" inch
connection:
female thread
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid media, gases media and steam
temperature:
-20°C up to +215°C - depending on working pressure and media
max. pressure:
PN100
design:
full port design
body material:
carbon steel 1.0619 zinc plated
ball material:
stainless steel 1.4408 / CF8M
length:
140mm
actuator:
lever handle made of steel 1.0619 zinc plated
installation position:
any position
authorized for:
TA Luft
product description:
This two-piece ball valve "screwed design" is made of carbon steel with mounting flange (DIN ISO 5211) with floating ball is suitable for direct actuator mounting
Equipment
stem extension hub length 100 mm square 14mm AD02 stainless steel
Lead time: 3 - 5 working days
