GK06000005
High pressure ball valve DN25 - 1" inch GK06
- Lead time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Wednesday, 07. October
Guaranteed delivery until Thursday, 08. October, 12 o'clock
Equipment
lever with spring return F04-F05 11x11 shaft torque value max. 30Nm
€161.25 VAT included.
stem extension hub length 100 mm square 11mm AD02 stainless steel
€32.73 VAT included.
hose nozzle 1" 25.4 mm stainless steel 1.4408 ST01
€6.90 VAT included.
hexagon nipple 1" inch male stainless steel 316
€5.36 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
High pressure ball valve DN25 - 1" inch GK06

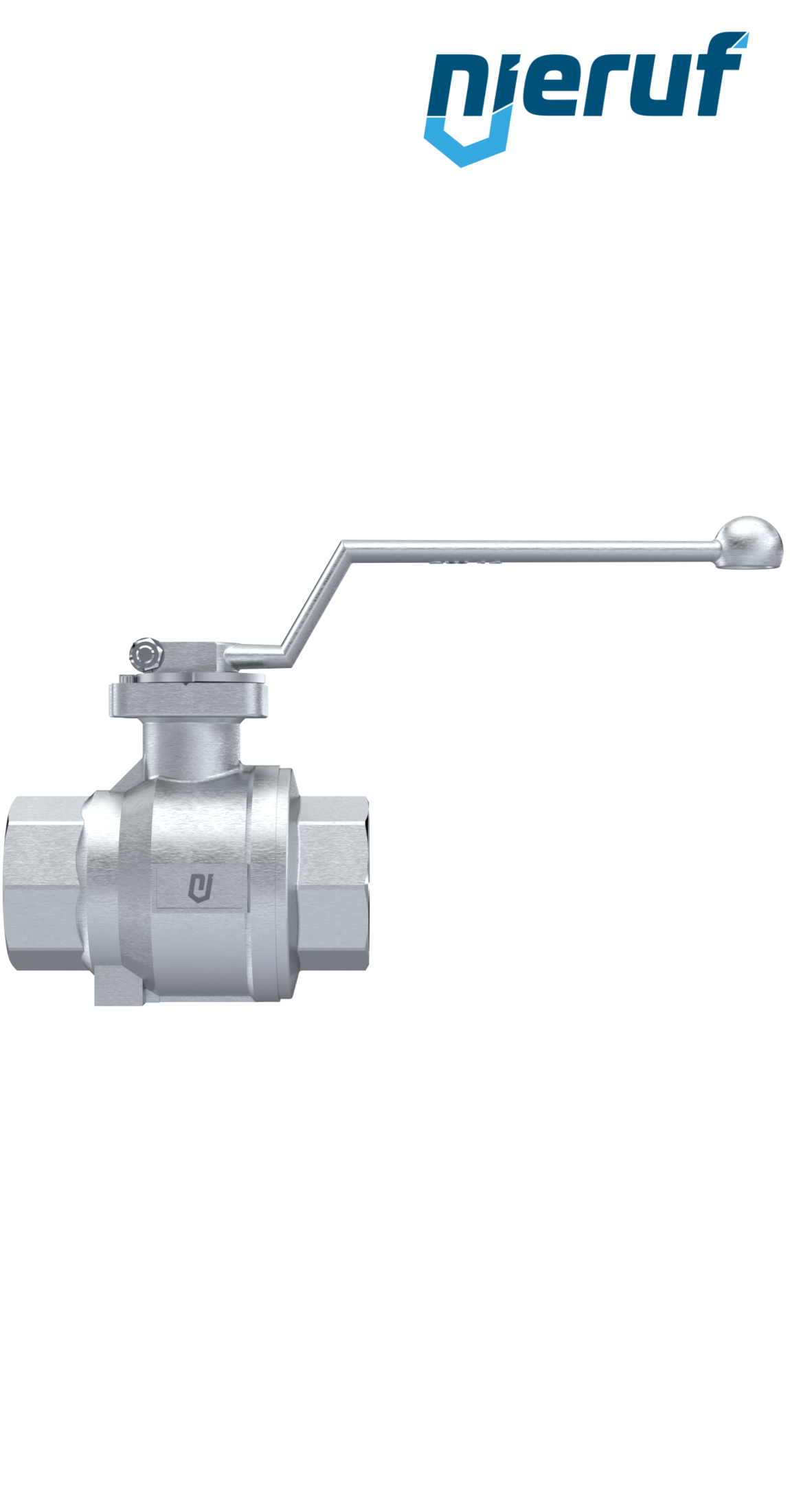

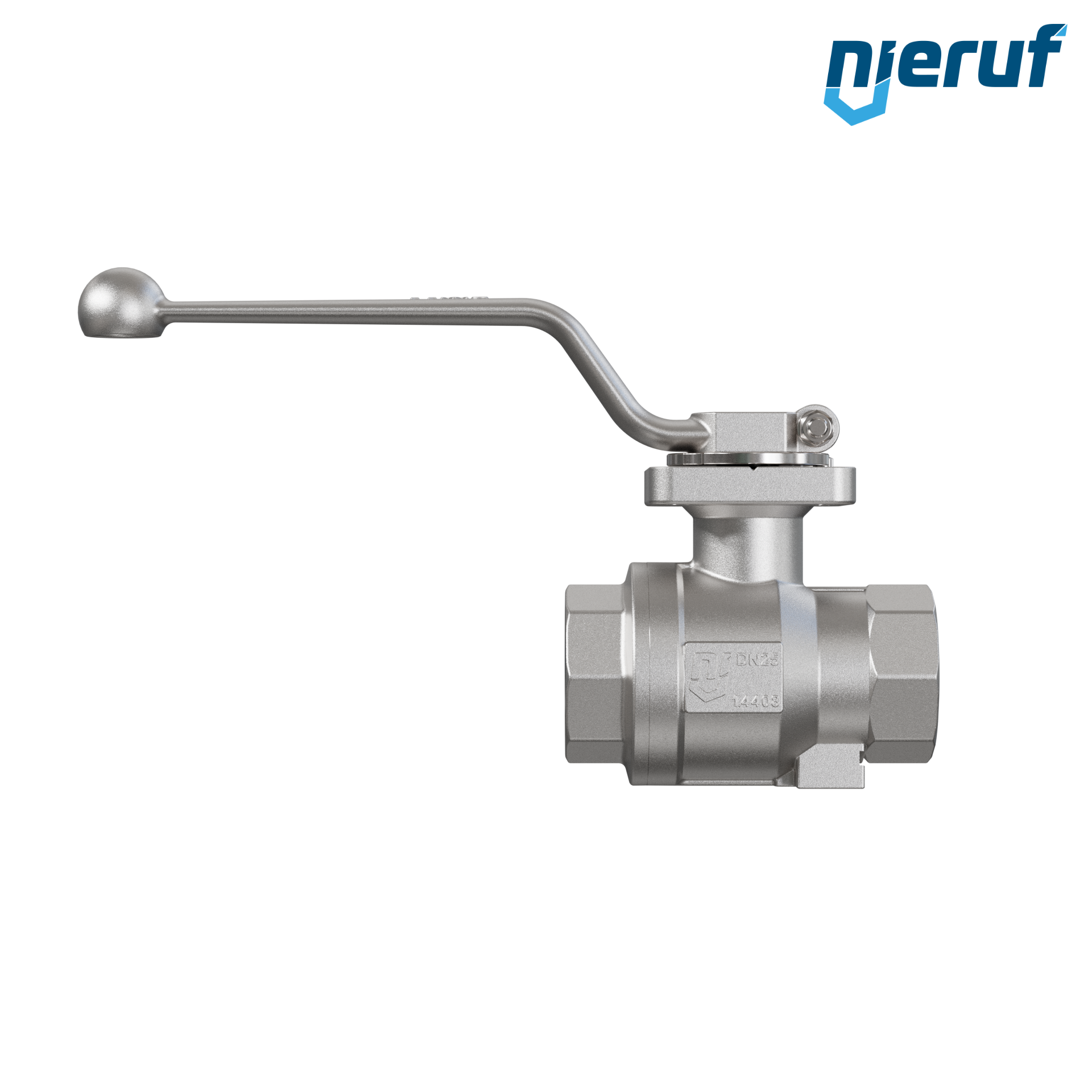

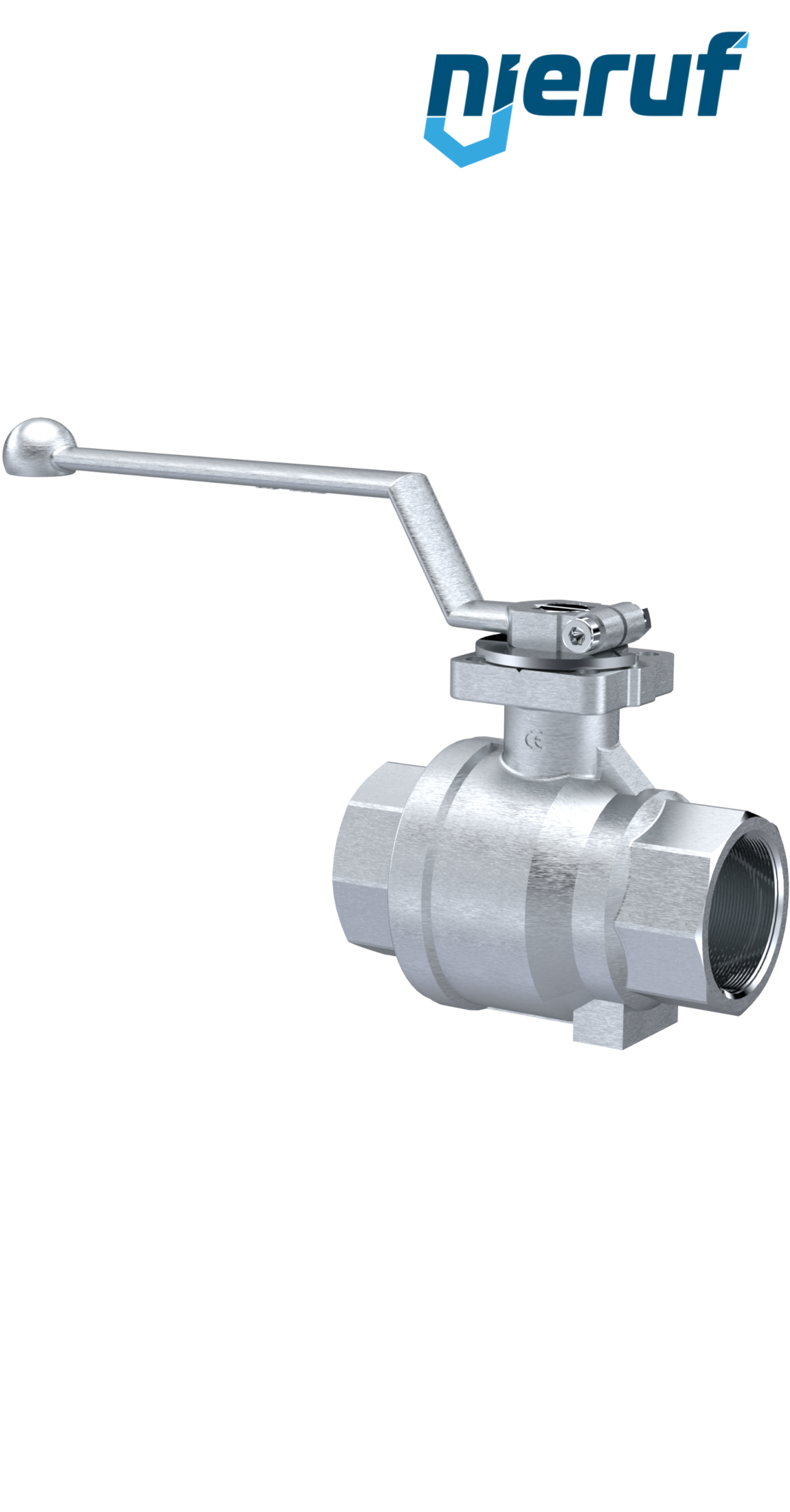

High pressure ball valve DN25 - 1" inch full port design seal made of PTFE / Viton for liquid and gaseous media
| product | High pressure ball valve |
|---|---|
| type | GK06 |
| manufacturer | NieRuf |
| diameter | DN25 - 1" inch |
| connection | female thread |
| Seal steam | PTFE / Viton |
| ball seal | PTFE |
| media | liquid media, gases media and steam |
| temperature | -20°C up to +215°C - depending on working pressure and media |
| max. pressure | PN100 |
| design | full port design |
| body material | stainless steel 1.4408 / CF8M |
| ball material | stainless steel 1.4408 / CF8M |
| length | 90mm |
| actuator | hand lever made of stainless steel 1.4301 |
| installation position | any position |
| product description | This high quality sleeve ball valve is made of stainless steel with floating ball and blow out proof stem design. This two - piece ball valve "screwed design" has a mounting flange acc. to DIN ISO 5211 and is suitable for direct actuator mounting |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
High pressure ball valve DN25 - 1" inch GK06
Article no.
: GK06000005
product:
High pressure ball valve
type:
GK06
manufacturer:
NieRuf
diameter:
DN25 - 1" inch
connection:
female thread
Seal steam:
PTFE / Viton
ball seal:
PTFE
media:
liquid media, gases media and steam
temperature:
-20°C up to +215°C - depending on working pressure and media
max. pressure:
PN100
design:
full port design
body material:
stainless steel 1.4408 / CF8M
ball material:
stainless steel 1.4408 / CF8M
length:
90mm
actuator:
hand lever made of stainless steel 1.4301
installation position:
any position
product description:
This high quality sleeve ball valve is made of stainless steel with floating ball and blow out proof stem design. This two - piece ball valve "screwed design" has a mounting flange acc. to DIN ISO 5211 and is suitable for direct actuator mounting
Equipment
stem extension hub length 100 mm square 11mm AD02 stainless steel
Lead time: 3 - 5 working days
lever with spring return F04-F05 11x11 shaft torque value max. 30Nm
Lead time: 2 - 3 weeks
