Gas ball valve stainless steel DN32 - 1 1/4" inch GK07 Biogas DVGW

GK07000006
quantity (pcs.):
47.10€ * 54.64€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: at stock

Express shipping:

Shipping on: Monday, 26. October
Guaranteed delivery until Tuesday, 27. October, 12 Uhr:
order within 2 Tage & 1 Stunde & 26 minutes via express shipping
datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

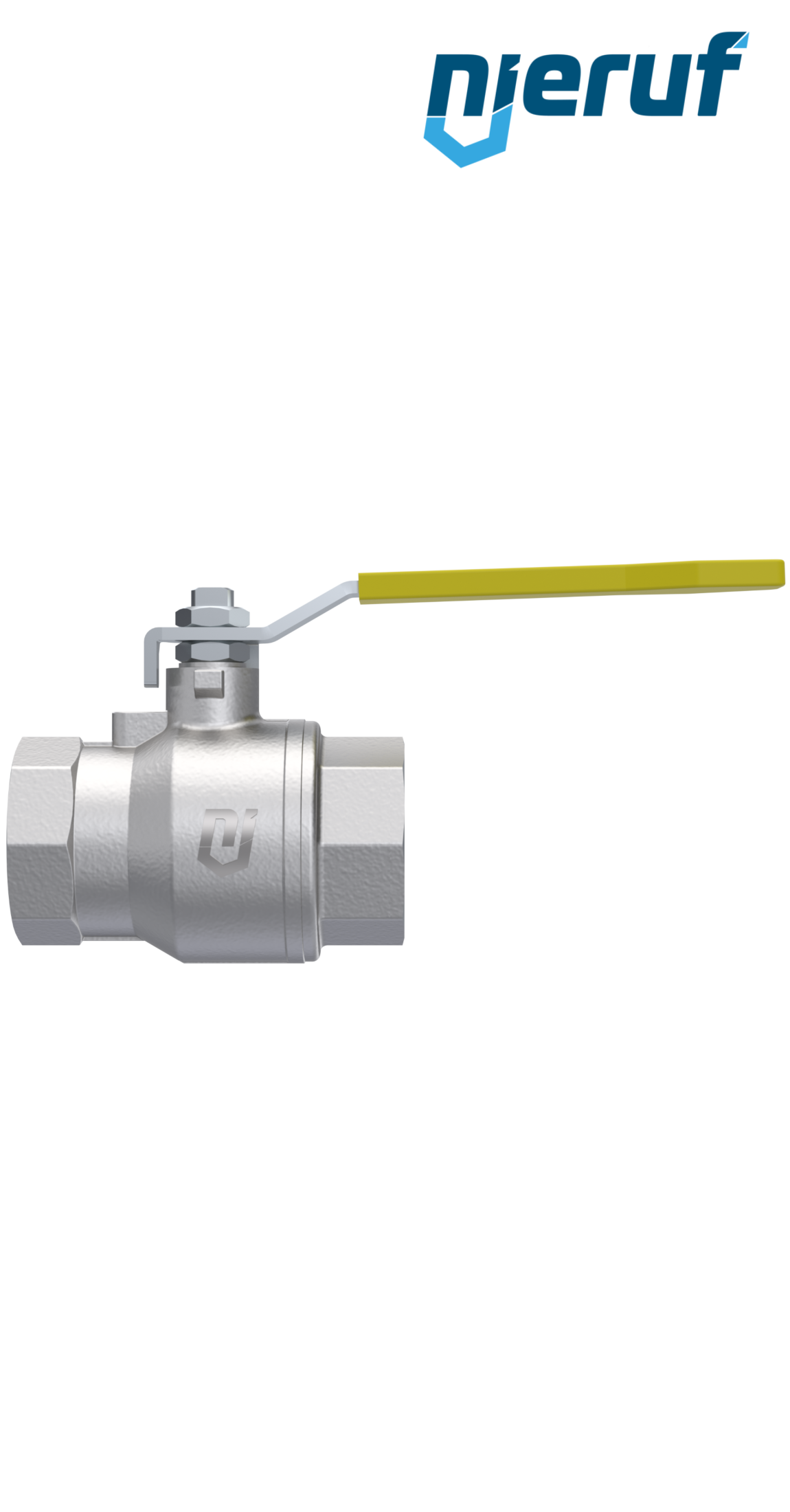

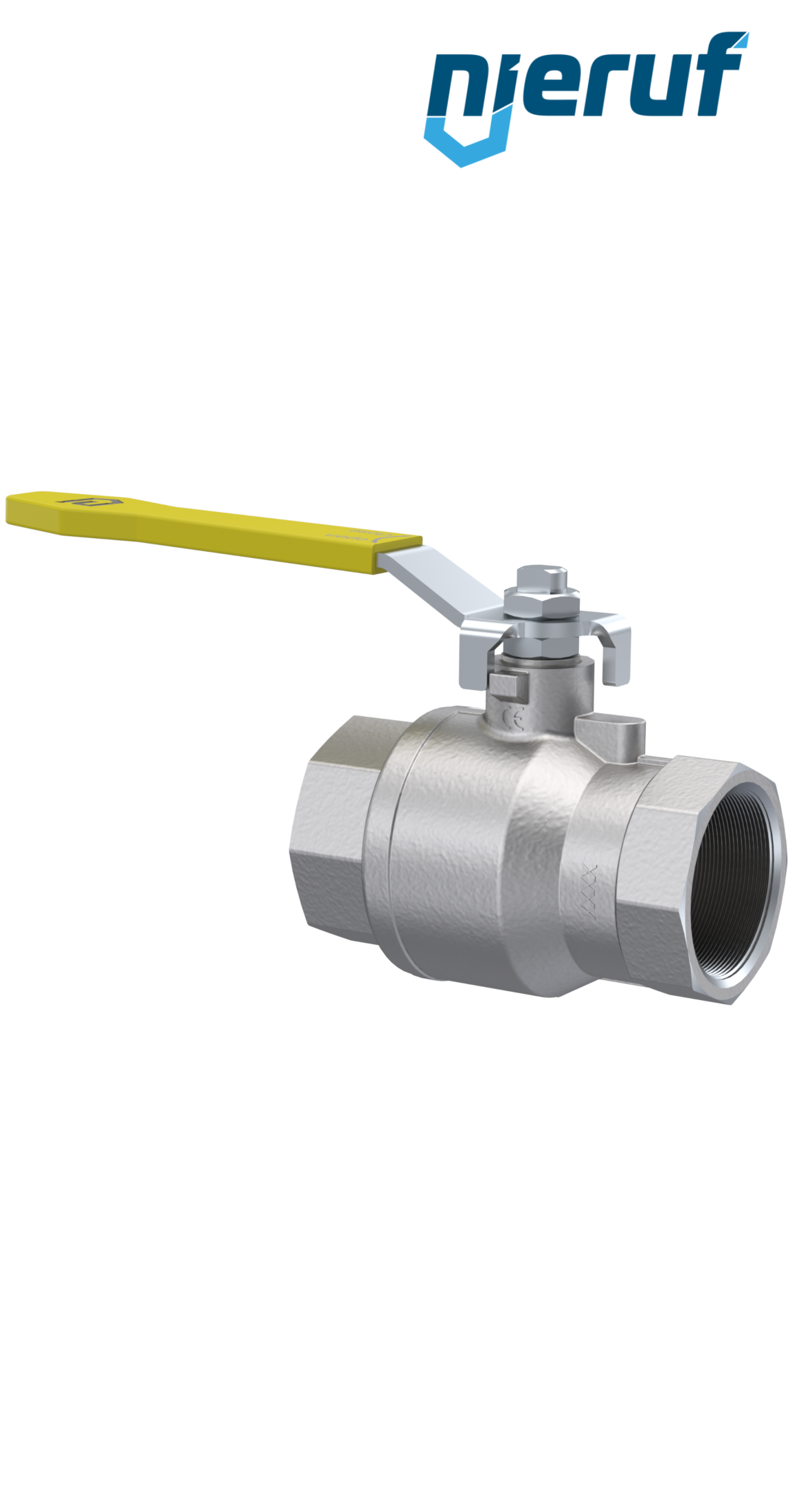

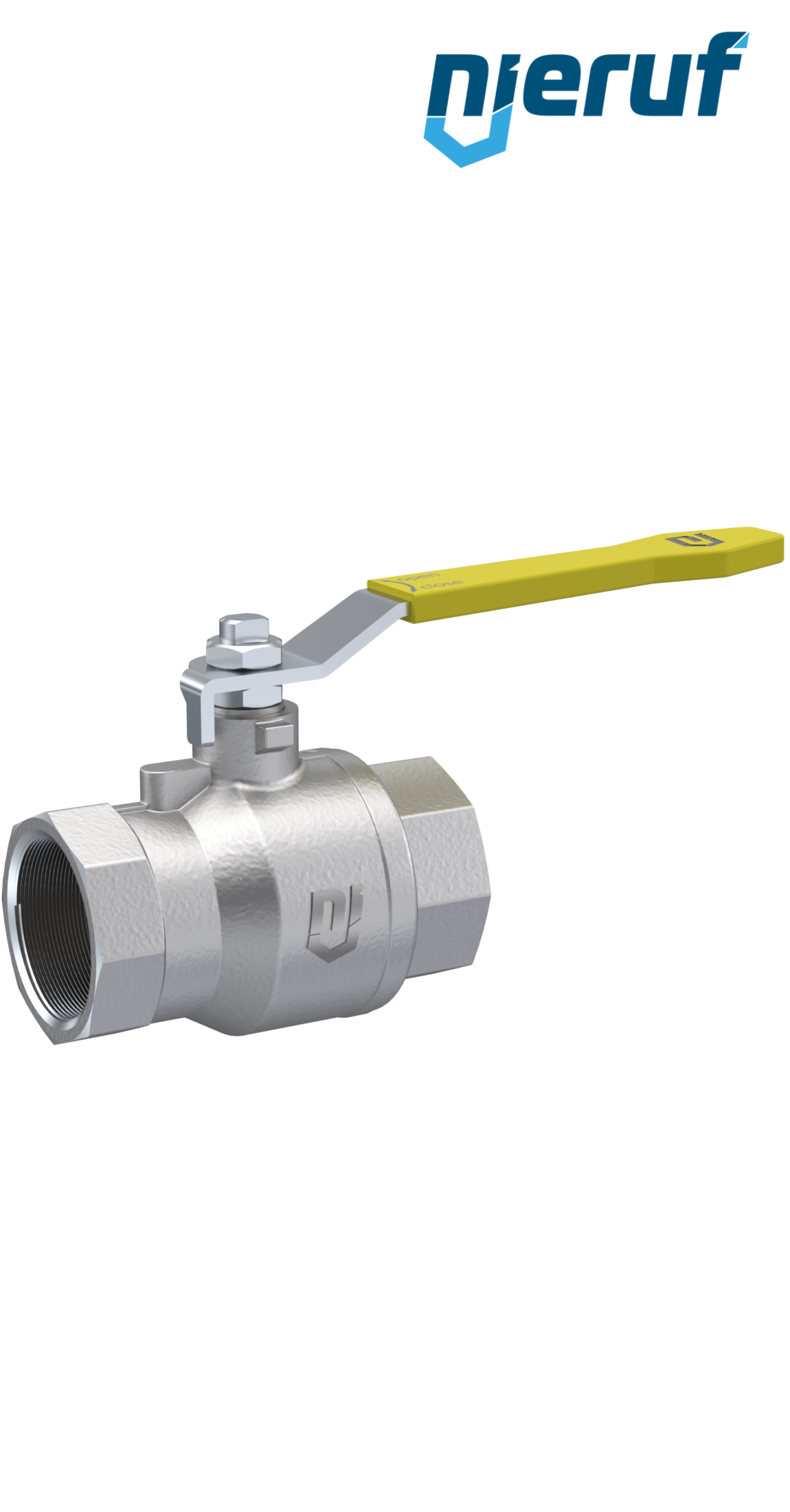

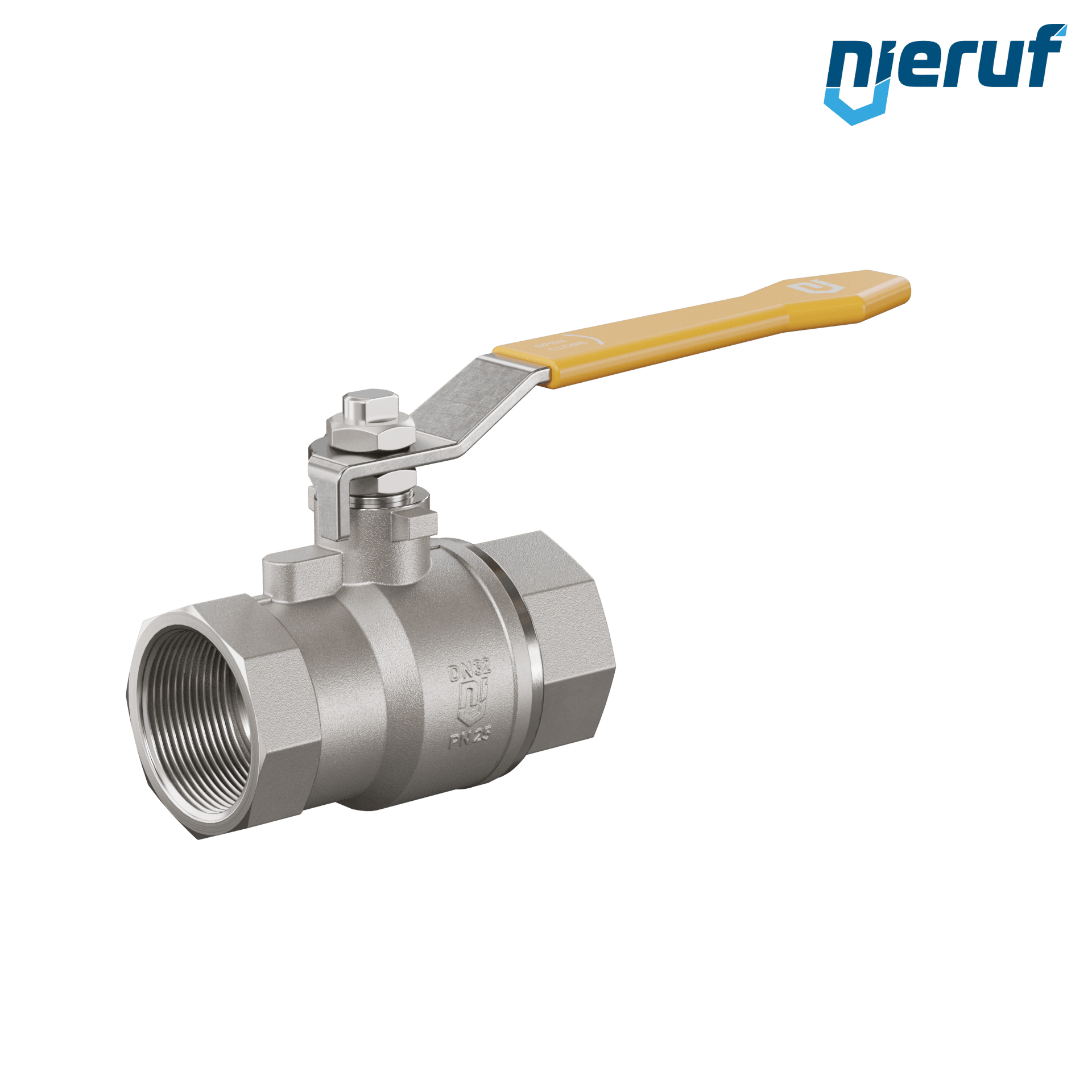

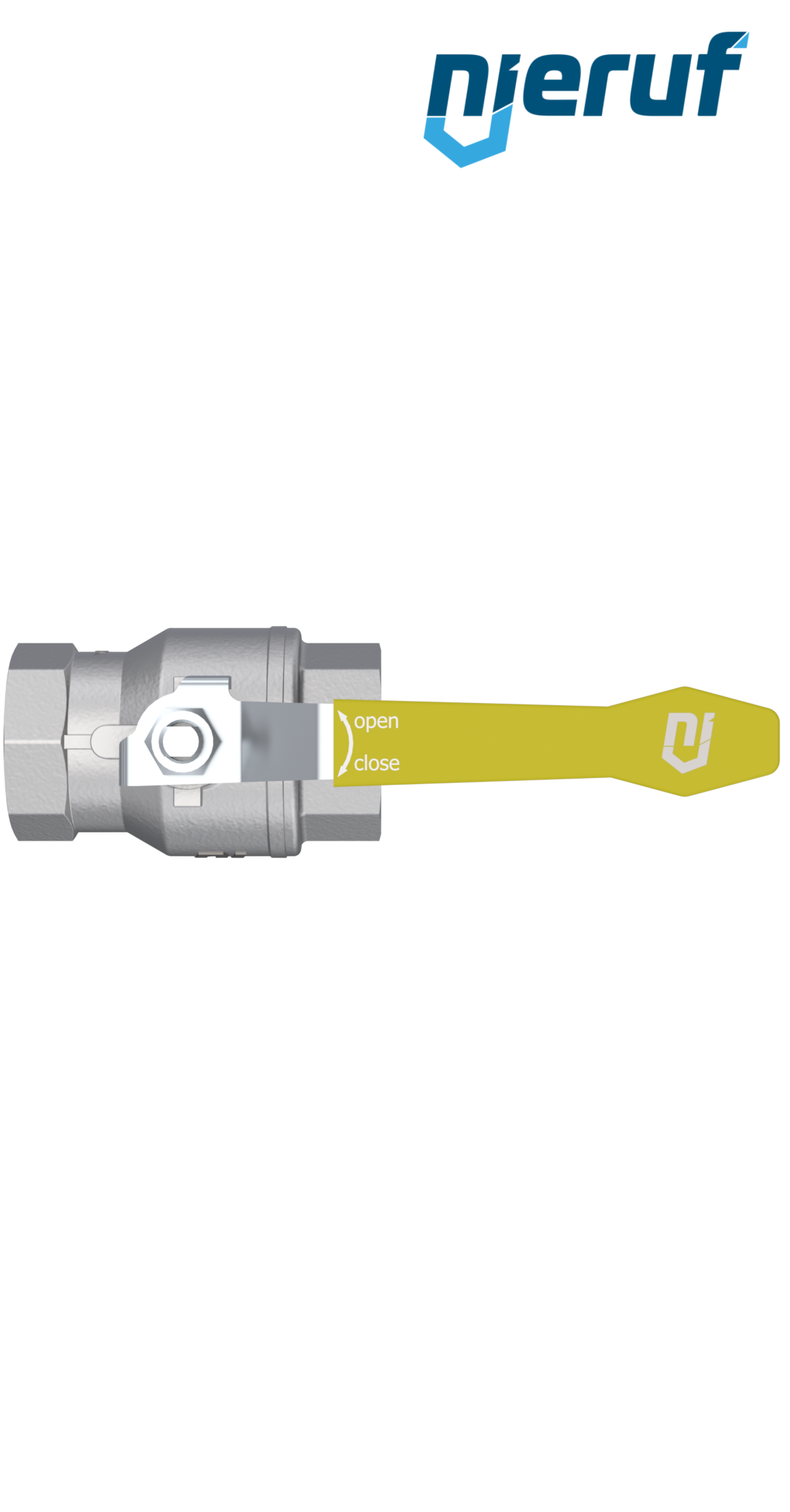

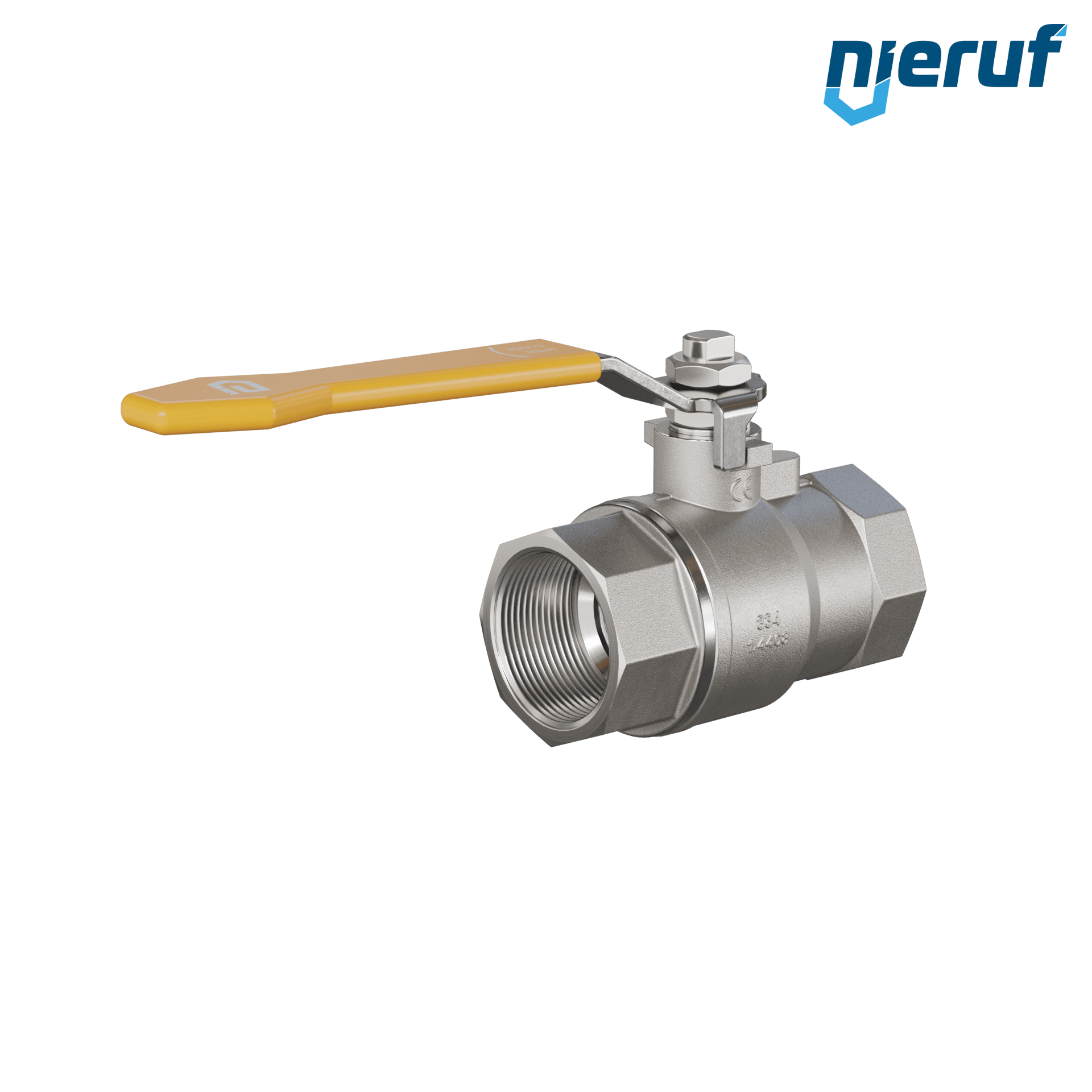

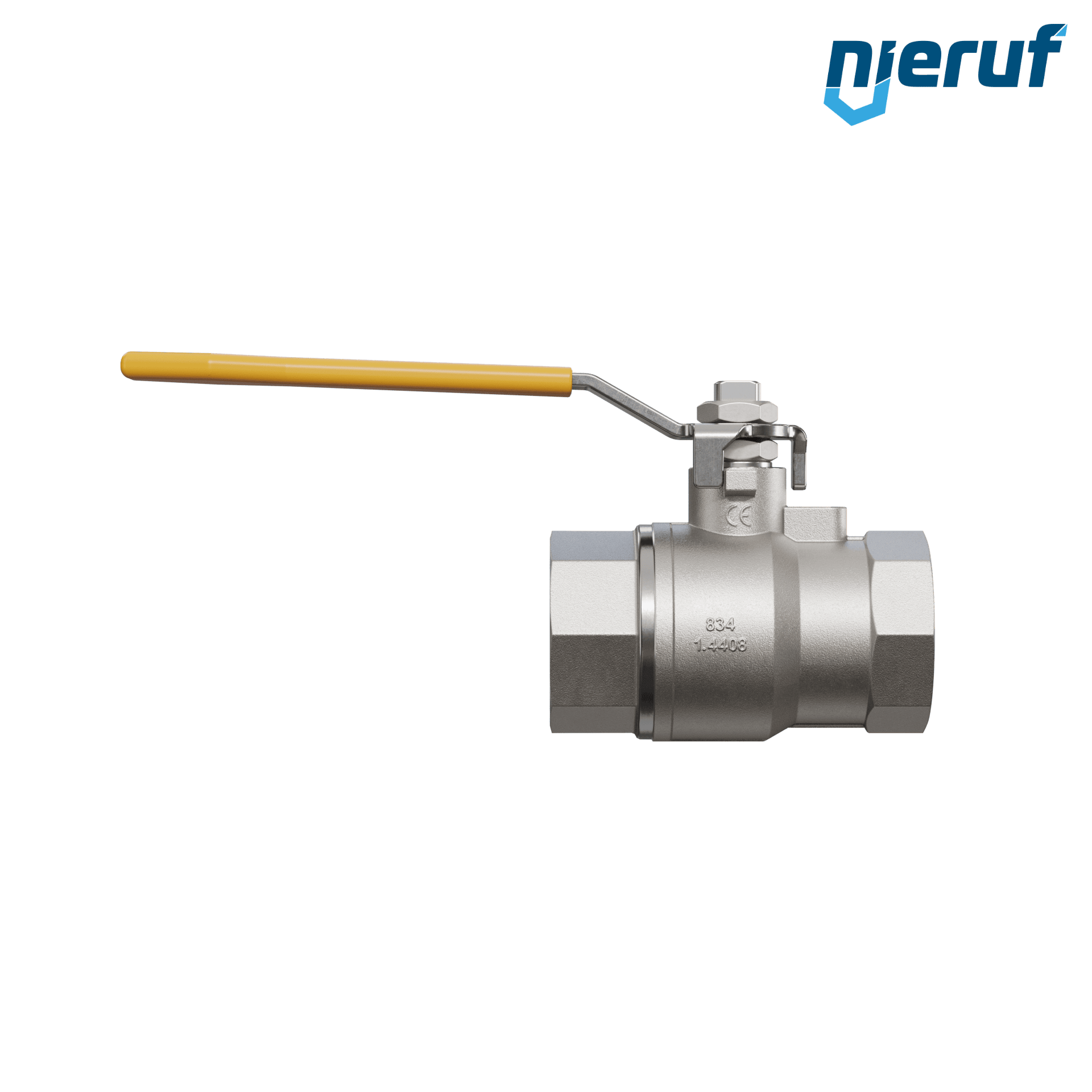

Gas ball valve stainless steel DN32 - 1 1/4" inch GK07 Biogas DVGW
Gas ball valve stainless steel DN32 - 1 1/4" inch full port design seal made of PTFE / Viton for gas DVGW-Gas
diameter: DN32 - 1 1/4" inch
connection: female thread
Seal steam: PTFE / Viton
media: gas DVGW-Gas
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN25
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE
length: 96mm
actuator: lever handle made of stainless steel with yellow plastic cover
installation position: any position
product description: This high quality ball valve is made of stainless steel. This two-piece ball valve "screwed design" with blow out proof stem design and adjustable stem packing
Gas ball valve stainless steel DN32 - 1 1/4" inch GK07 Biogas DVGW

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Gas ball valve stainless steel DN32 - 1 1/4" inch GK07 Biogas DVGW
