SK022001108

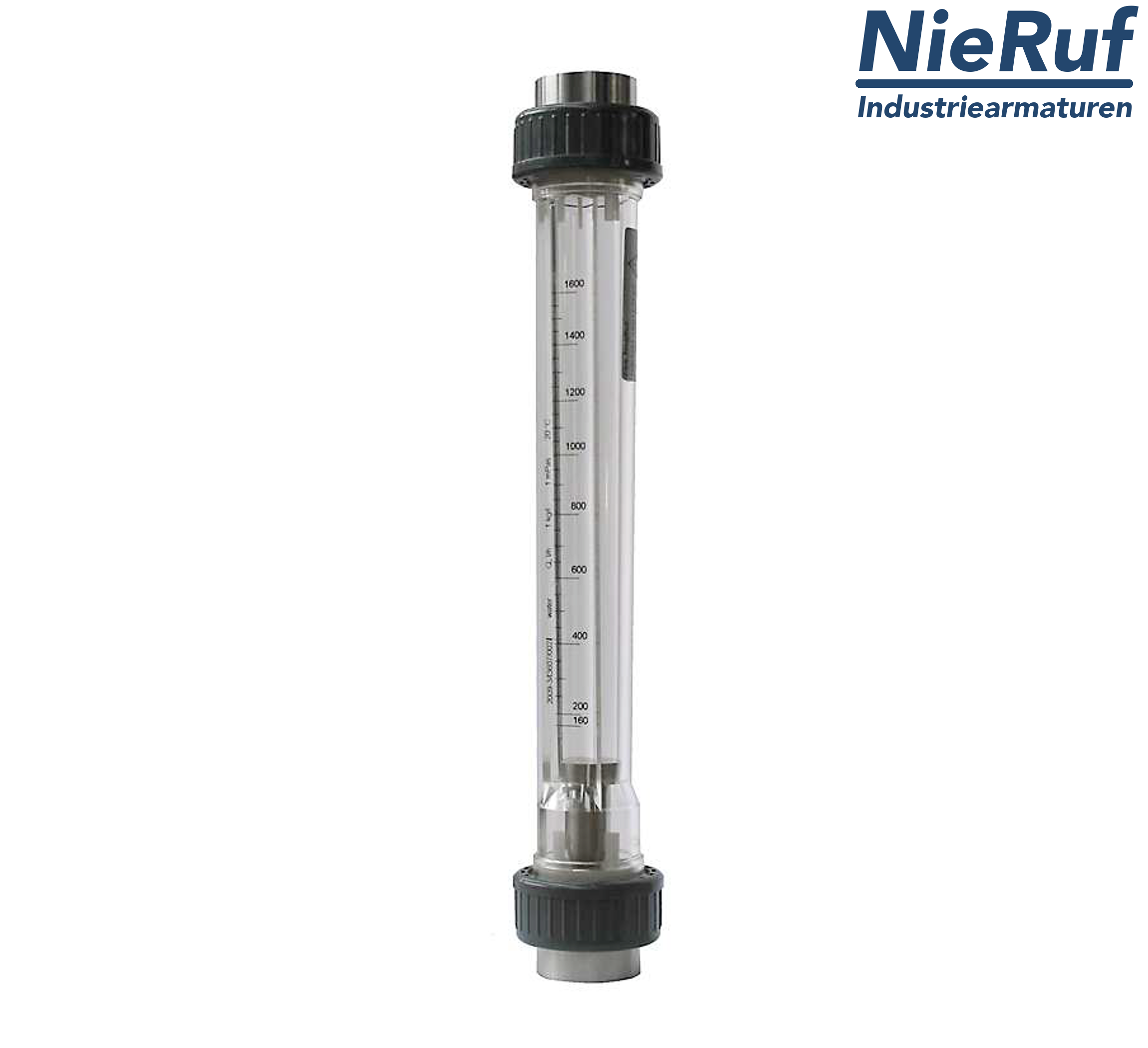

Variable area flowmeter 2" inch NPT 6700.0 - 20000 l/h water FKM
- Lead time
- 1 - 2 weeks
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE
Downloads
Variable area flowmeter 2" inch NPT 6700.0 - 20000 l/h water FKM
Variable area flowmeter Measuring range 6700.0 - 20000 l/h, connection 2" inch NPT FKM female thread ANSI B1.20.1 for water
| product | Variable area flowmeter |
|---|---|
| type | SK02 |
| manufacturer | NieRuf |
| diameter | 2" inch NPT |
| connection | female thread ANSI B1.20.1 |
| connection material | PVC |
| body material | Trogamid plastic |
| seal | FKM |
| float material | stainless steel 1.4571 |
| float version design | guided |
| media | water |
| mark | Different media are available upon request |
| mark 2 | standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s |
| pressure loss float | 65 mbar |
| temperature | max. +60 °C / water max. +50°C |
| Measuring range | 6700.0 - 20000 l/h |
| unit of scale | m³/h |
| working pressure | 10 bar |
| accuracy | G 2,5 qG 50% (acc. VDE/VDI 3513, sheet 2) |
| installation position | vertically upwards |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Variable area flowmeter 2" inch NPT 6700.0 - 20000 l/h water FKM
Article no.
: SK022001108
product:
Variable area flowmeter
type:
SK02
manufacturer:
NieRuf
diameter:
2" inch NPT
connection:
female thread ANSI B1.20.1
connection material:
PVC
body material:
Trogamid plastic
seal:
FKM
float material:
stainless steel 1.4571
float version design:
guided
media:
water
mark:
Different media are available upon request
mark 2:
standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s
pressure loss float:
65 mbar
temperature:
max. +60 °C / water max. +50°C
Measuring range:
6700.0 - 20000 l/h
unit of scale:
m³/h
working pressure:
10 bar
accuracy:
G 2,5 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position:
vertically upwards
