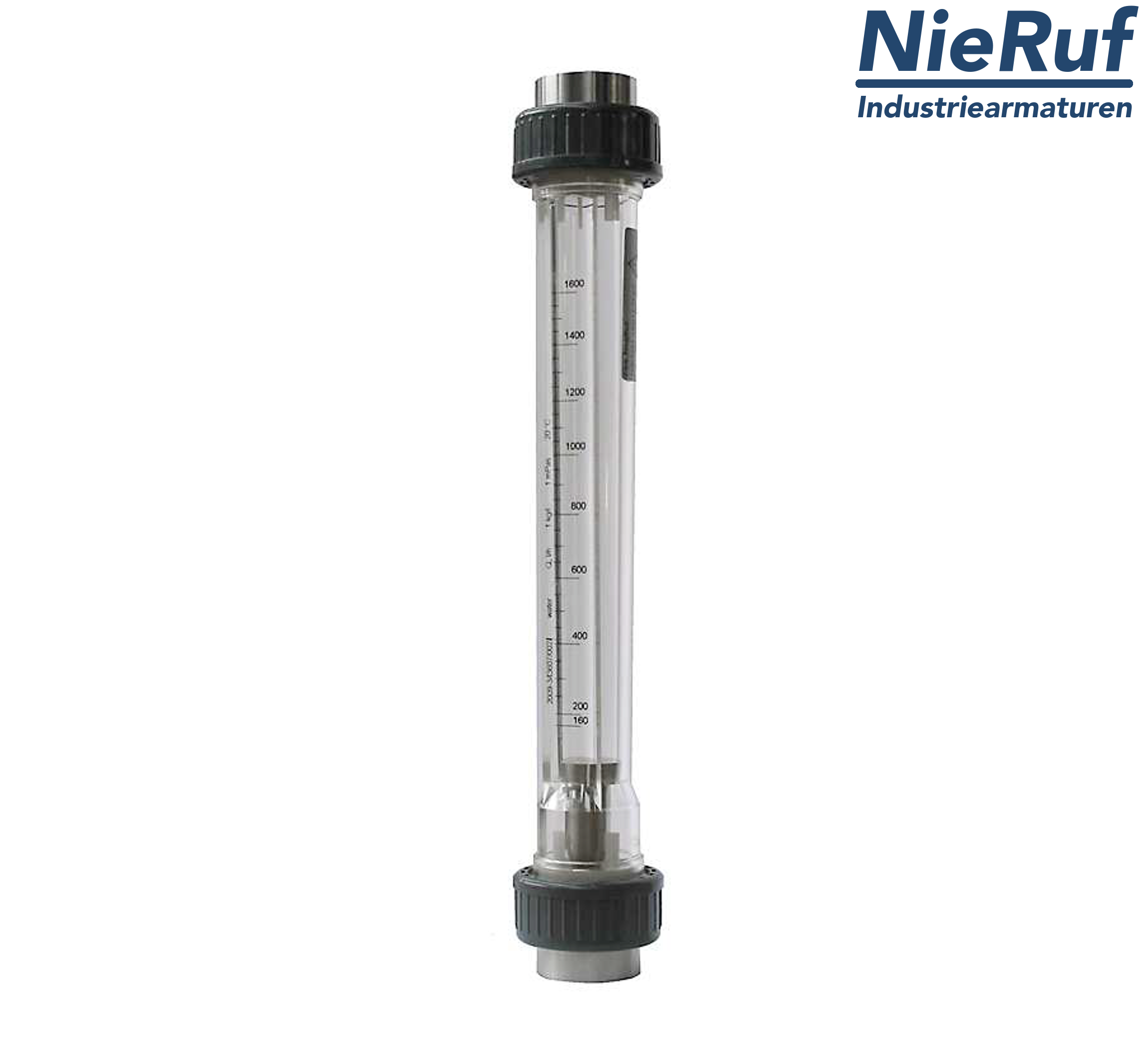

Variable area flowmeter 1/2" inch 500.0 - 5000 l/h air FKM

SK012100203
check valve DN 15 Duplex 1.4469 PTFE PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300) 3
quantity (pcs.):
98.80€ * 117.57€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1 - 2 Weeks

datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
Variable area flowmeter 1/2" inch 500.0 - 5000 l/h air FKM
Variable area flowmeter Measuring range 500.0 - 5000 l/h, connection 1/2" inch FKM female thread DIN ISO 228 for air
diameter: 1/2" inch
connection: female thread DIN ISO 228
connection material: PVC
body material: Trogamid plastic
seal: FKM
float material: aluminum
float version design: standard
media: air
mark: Different media are available upon request
mark 2: standard meassuring scale: pabs=1,013 bar, at T=0°C, ρ=1,293 kg/m3, v=0,0181 mPa⋅s
pressure loss float: 5 mbar
temperature: max. +60 °C
Measuring range: 500.0 - 5000 l/h
unit of scale: l/h
working pressure: 10 bar
accuracy: G 2,5 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position: vertically upwards
