SK022100906

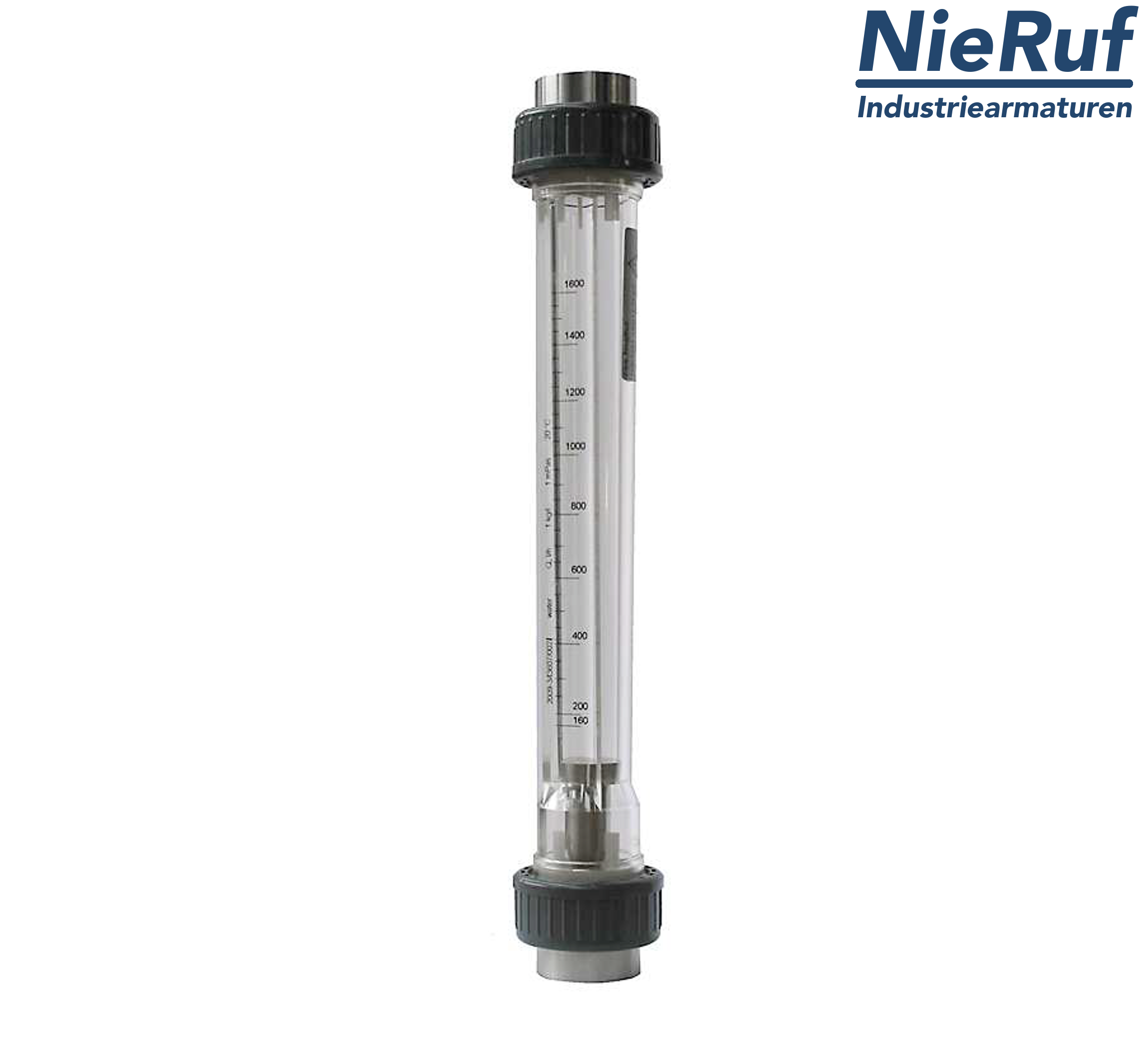

Variable area flowmeter 1 1/4" Inch NPT 16000.0 - 160000 l/h air FKM

€330.50*

€393.30 VAT included.


Operating data


Delivery time: 1 - 2 weeks

Delivery information

×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com


Product number: SK022100906
Variable area flowmeter 1 1/4" Inch NPT 16000.0 - 160000 l/h air FKM

Variable area flowmeter Measuring range 16000.0 - 160000 l/h, connection 1 1/4" Inch NPT FKM female thread ANSI B1.20.1 for air

product: Variable area flowmeter
type: SK02
manufacturer: NieRuf
diameter: 1 1/4" Inch NPT
connection: female thread ANSI B1.20.1
connection material: PVC
body material: Trogamid plastic
seal: FKM
float material: aluminum
float version design: guided
media: air
mark: Different media are available upon request
mark 2: standard meassuring scale: pabs=1,013 bar, at T=0°C, ρ=1,293 kg/m3, v=0,0181 mPa⋅s
pressure loss float: 13 mbar
temperature: max. +60 °C
Measuring range: 16000.0 - 160000 l/h
unit of scale: m³/h
working pressure: 10 bar
accuracy: G 2,5 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position: vertically upwards

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Variable area flowmeter 1 1/4" Inch NPT 16000.0 - 160000 l/h air FKM

Article no. : SK022100906
product: Variable area flowmeter
type: SK02
manufacturer: NieRuf
diameter: 1 1/4" Inch NPT
connection: female thread ANSI B1.20.1
connection material: PVC
body material: Trogamid plastic
seal: FKM
float material: aluminum
float version design: guided
media: air
mark: Different media are available upon request
mark 2: standard meassuring scale: pabs=1,013 bar, at T=0°C, ρ=1,293 kg/m3, v=0,0181 mPa⋅s
pressure loss float: 13 mbar
temperature: max. +60 °C
Measuring range: 16000.0 - 160000 l/h
unit of scale: m³/h
working pressure: 10 bar
accuracy: G 2,5 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position: vertically upwards
