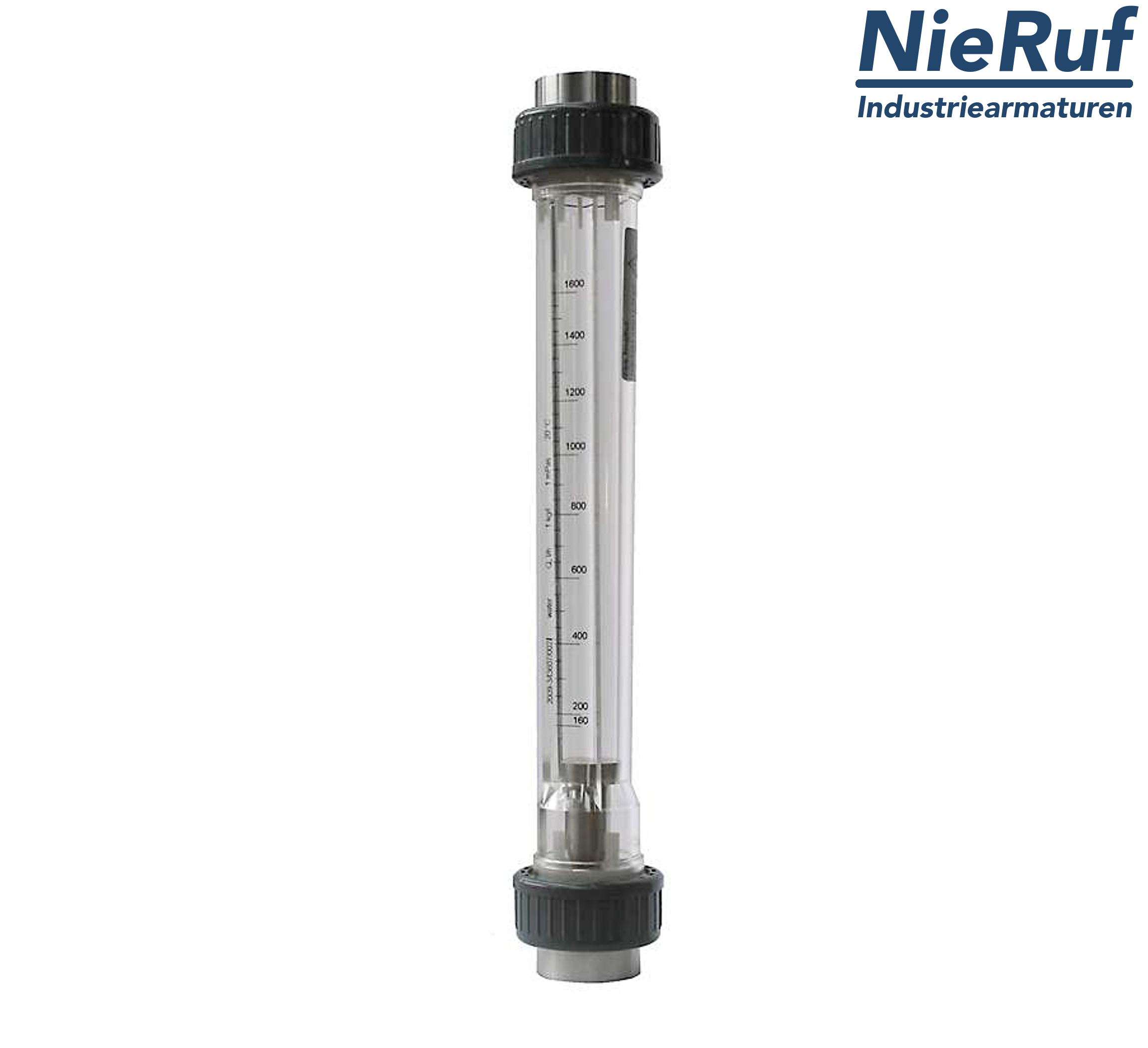

Variable area flowmeter 1 1/4" Inch NPT 117000.0 - 350000 l/h air EPDM

SK021101106
piston-operated angle seat valve G 2" inch welding end SC01 stainless steel 4
quantity (pcs.):
240.20€ * 285.84€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1 - 2 Weeks

datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
Variable area flowmeter 1 1/4" Inch NPT 117000.0 - 350000 l/h air EPDM
Variable area flowmeter Measuring range 117000.0 - 350000 l/h, connection 1 1/4" Inch NPT EPDM female thread ANSI B1.20.1 for air
diameter: 1 1/4" Inch NPT
connection: female thread ANSI B1.20.1
connection material: PVC
body material: Trogamid plastic
seal: EPDM
float material: aluminum
float version design: guided
media: air
mark: Different media are available upon request
mark 2: standard meassuring scale: pabs=1,013 bar, at T=0°C, ρ=1,293 kg/m3, v=0,0181 mPa⋅s
pressure loss float: 31 mbar
temperature: max. +60 °C
Measuring range: 117000.0 - 350000 l/h
unit of scale: m³/h
working pressure: 10 bar
accuracy: G 2,5 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position: vertically upwards
Variable area flowmeter 1 1/4" Inch NPT 117000.0 - 350000 l/h air EPDM

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Variable area flowmeter 1 1/4" Inch NPT 117000.0 - 350000 l/h air EPDM
