SK021101107

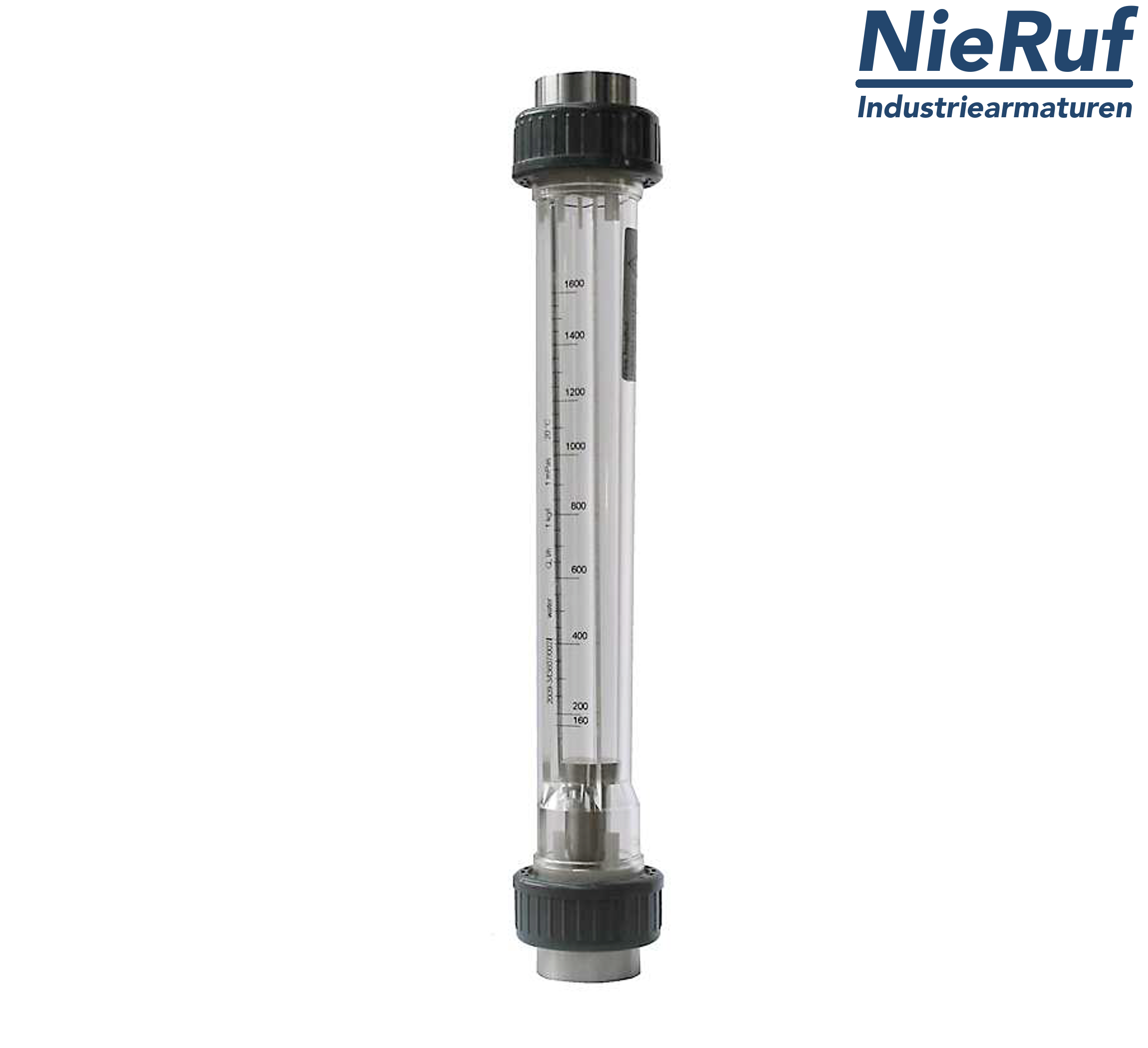

Variable area flowmeter 1 1/2" Inch NPT 117000.0 - 350000 l/h air EPDM
- Lead time
- 1 - 2 weeks
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE
Downloads
Variable area flowmeter 1 1/2" Inch NPT 117000.0 - 350000 l/h air EPDM
Variable area flowmeter Measuring range 117000.0 - 350000 l/h, connection 1 1/2" Inch NPT EPDM female thread ANSI B1.20.1 for air
| product | Variable area flowmeter |
|---|---|
| type | SK02 |
| manufacturer | NieRuf |
| diameter | 1 1/2" Inch NPT |
| connection | female thread ANSI B1.20.1 |
| connection material | PVC |
| body material | Trogamid plastic |
| seal | EPDM |
| float material | aluminum |
| float version design | guided |
| media | air |
| mark | Different media are available upon request |
| mark 2 | standard meassuring scale: pabs=1,013 bar, at T=0°C, ρ=1,293 kg/m3, v=0,0181 mPa⋅s |
| pressure loss float | 31 mbar |
| temperature | max. +60 °C |
| Measuring range | 117000.0 - 350000 l/h |
| unit of scale | m³/h |
| working pressure | 10 bar |
| accuracy | G 2,5 qG 50% (acc. VDE/VDI 3513, sheet 2) |
| installation position | vertically upwards |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Variable area flowmeter 1 1/2" Inch NPT 117000.0 - 350000 l/h air EPDM
Article no.
: SK021101107
product:
Variable area flowmeter
type:
SK02
manufacturer:
NieRuf
diameter:
1 1/2" Inch NPT
connection:
female thread ANSI B1.20.1
connection material:
PVC
body material:
Trogamid plastic
seal:
EPDM
float material:
aluminum
float version design:
guided
media:
air
mark:
Different media are available upon request
mark 2:
standard meassuring scale: pabs=1,013 bar, at T=0°C, ρ=1,293 kg/m3, v=0,0181 mPa⋅s
pressure loss float:
31 mbar
temperature:
max. +60 °C
Measuring range:
117000.0 - 350000 l/h
unit of scale:
m³/h
working pressure:
10 bar
accuracy:
G 2,5 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position:
vertically upwards
