SF07021004

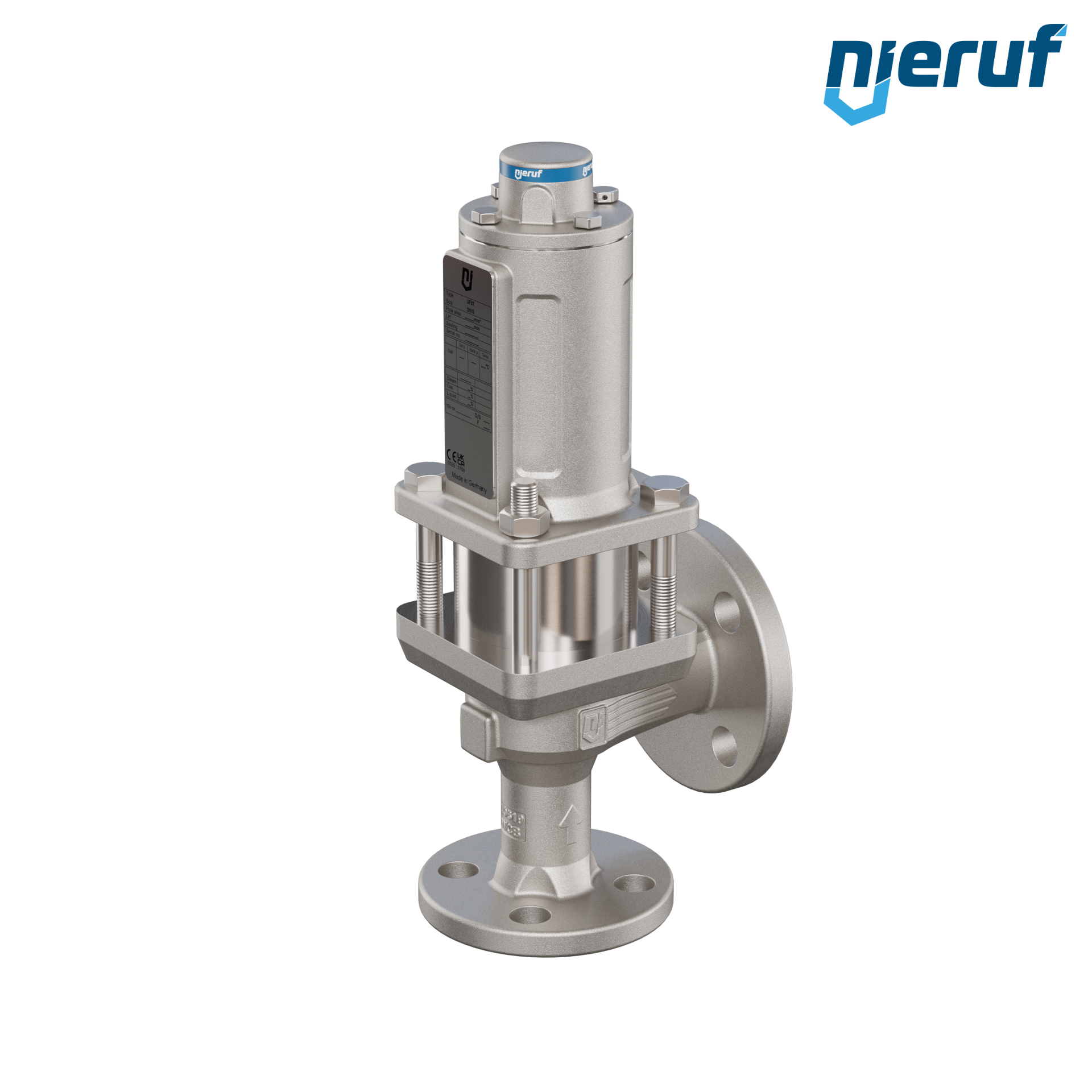

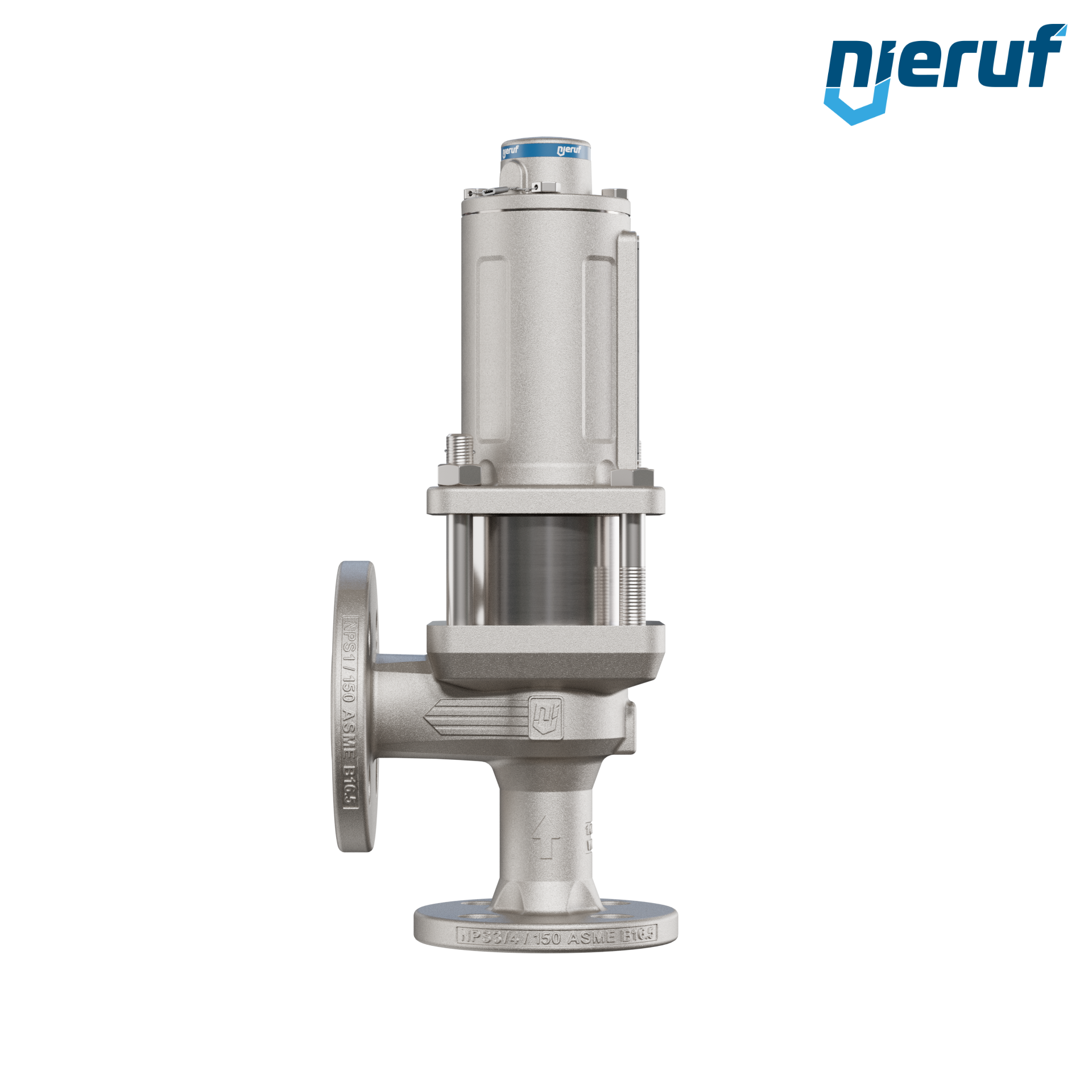

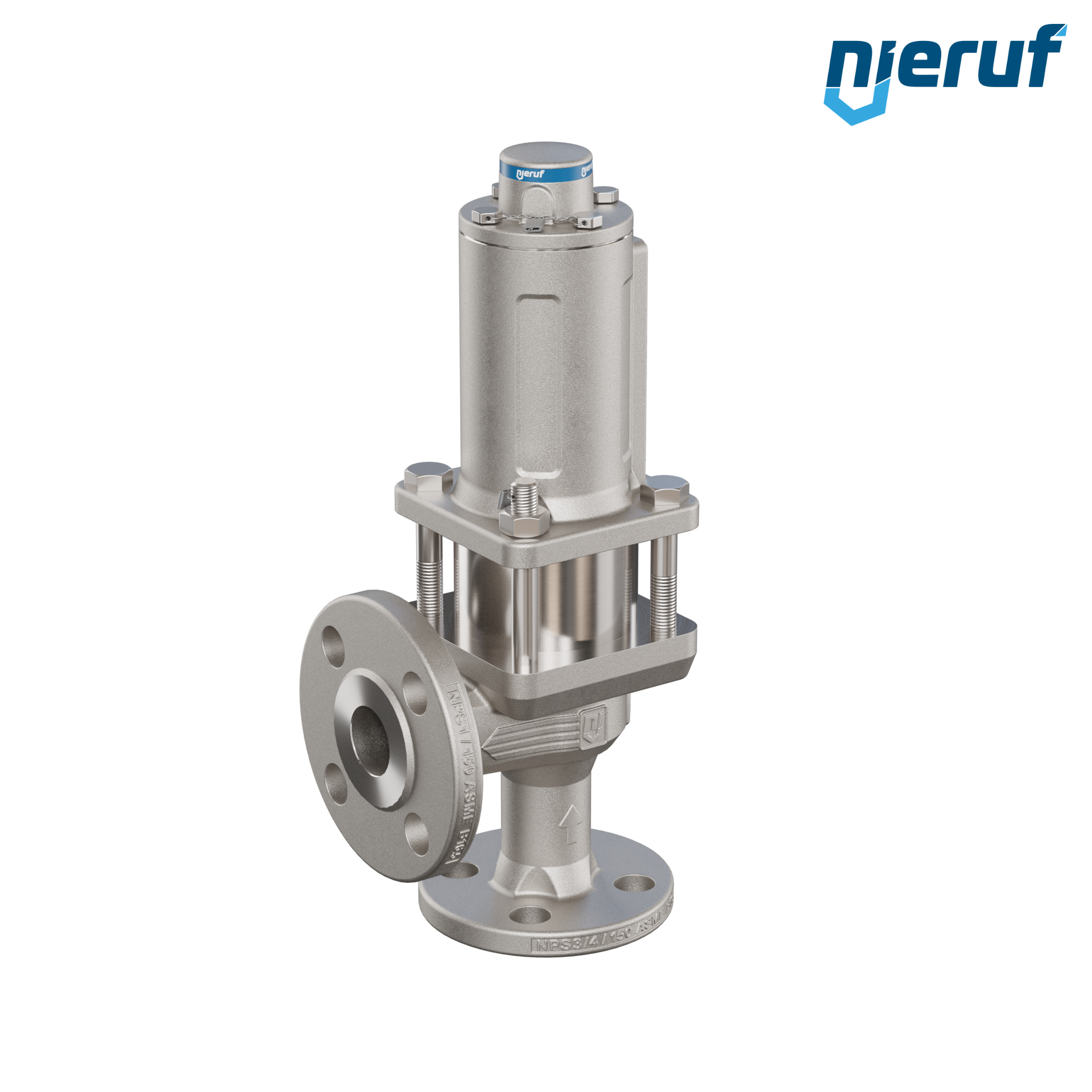

flange-safety valve ASME gaseous media gastight with bellow ANSI 150 DN15 3/4" x 1" SF07, cast steel, metal, without lifting device
- Delivery time
- 3 - 5 working days
Questions about the article?
Downloads
flange-safety valve ASME gastight DN15 3/4" x 1" SF07 for gaseous media made of cast steel, seal metal set pressure 1,0 - 20,0 bar flange ANSI 150 without lifting device with bellow
| product | flange-safety valve |
|---|---|
| type | SF07 |
| manufacturer | NieRuf |
| diameter | DN15 3/4" x 1" |
| d0 | 15,0 mm |
| connection | flange acc. to ASME B 16.5 inlet ANSI150 / outlet ANSI150 |
| seal | metal |
| media | gaseous media |
| temperature | -29°C up to +400°C |
| set pressure | 1,0 - 20,0 bar |
| design | angle-type with bellow & gastight cap |
| material | cast steel 1.0619 / WCB |
| lifting | without lifting device |
| requirements | ASME BPVC Sec. XIII |
| installation position | Vertical, spindle standing upwards. Horizontal installation is also permitted, taking condensate derivation into account. |
| product feature 1 | for neutral and non-neutral media and /or counter-pressure. Spring, moving parts and the environment are protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange-safety valve ASME gaseous media gastight with bellow ANSI 150 DN15 3/4" x 1" SF07, cast steel, metal, without lifting device
Article no.
: SF07021004
product:
flange-safety valve
type:
SF07
manufacturer:
NieRuf
diameter:
DN15 3/4" x 1"
d0:
15,0 mm
connection:
flange acc. to ASME B 16.5 inlet ANSI150 / outlet ANSI150
seal:
metal
media:
gaseous media
temperature:
-29°C up to +400°C
set pressure:
1,0 - 20,0 bar
design:
angle-type with bellow & gastight cap
material:
cast steel 1.0619 / WCB
lifting:
without lifting device
requirements:
ASME BPVC Sec. XIII
installation position:
Vertical, spindle standing upwards. Horizontal installation is also permitted, taking condensate derivation into account.
product feature 1:
for neutral and non-neutral media and /or counter-pressure. Spring, moving parts and the environment are protected from being affected by the medium.
