SF03010211
flange-safety valve DN100/DN100 SF0301, stainless steel FPM, without lever
- Lead time
- 2 - 3 weeks
Equipment
flange seal DN100 PN25/40 115x168x2 Klingersil C 4400
€10.71 VAT included.
joint set flange/flange DN100 - 4" Inch for flange PN40 stainless steel
€25.70 VAT included.
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

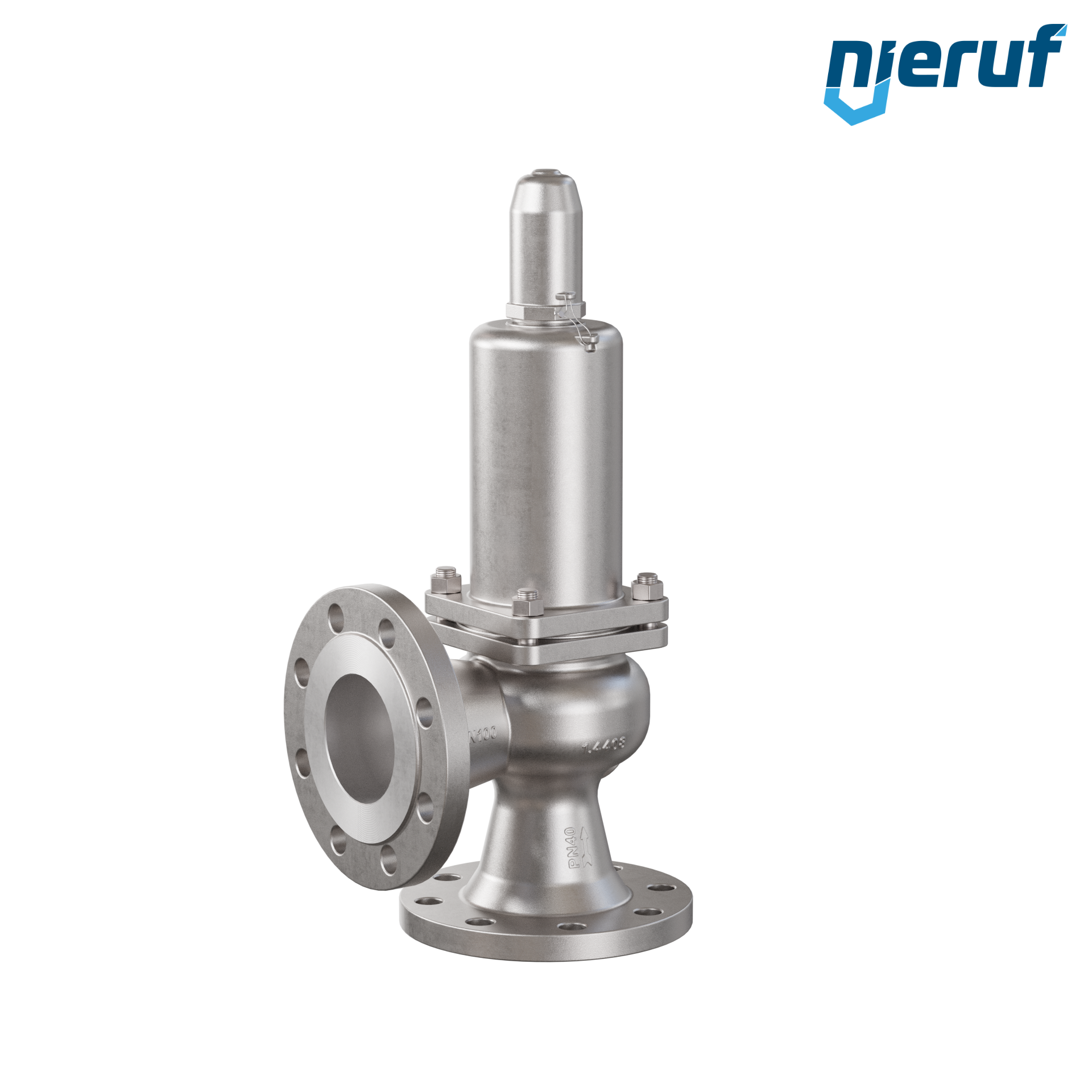

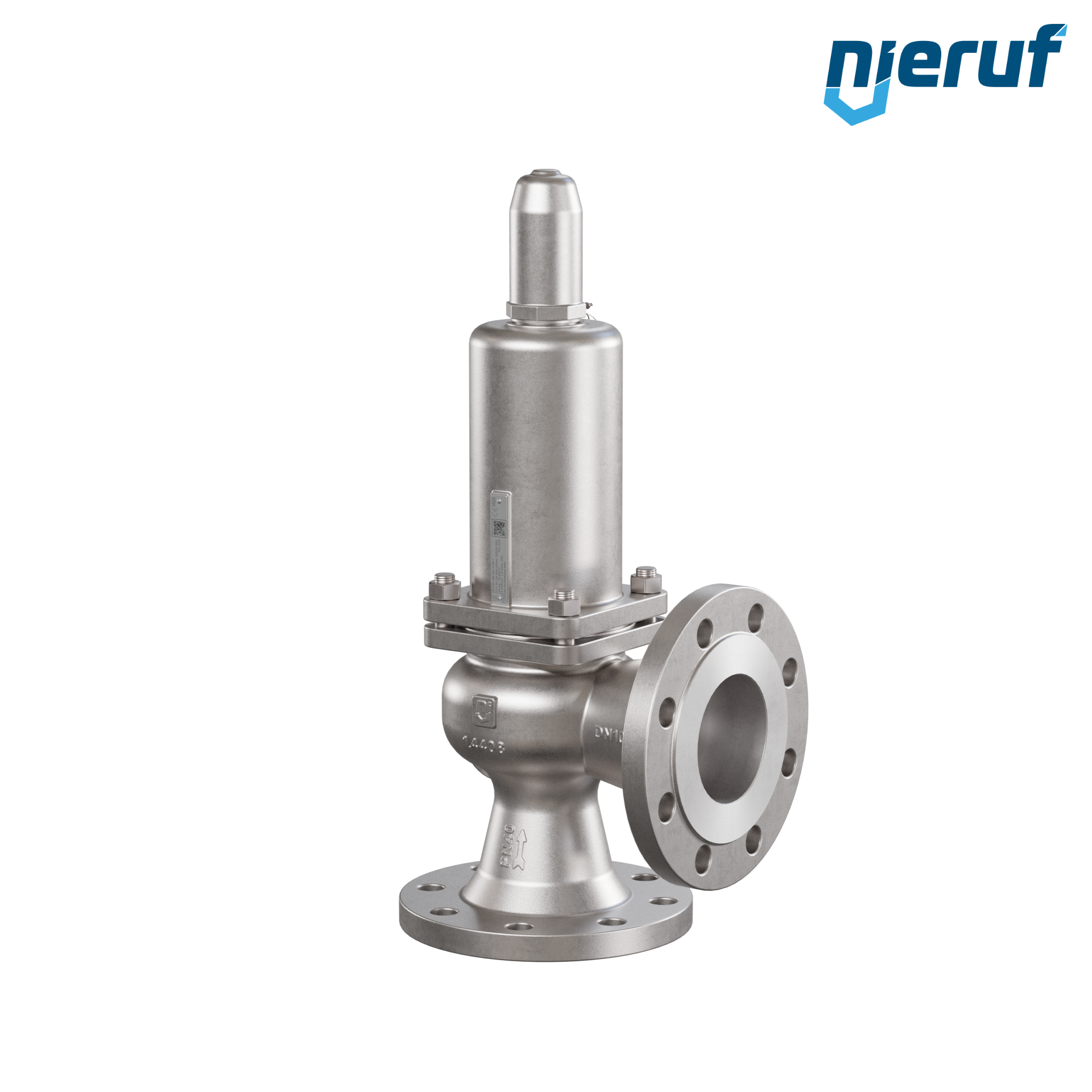

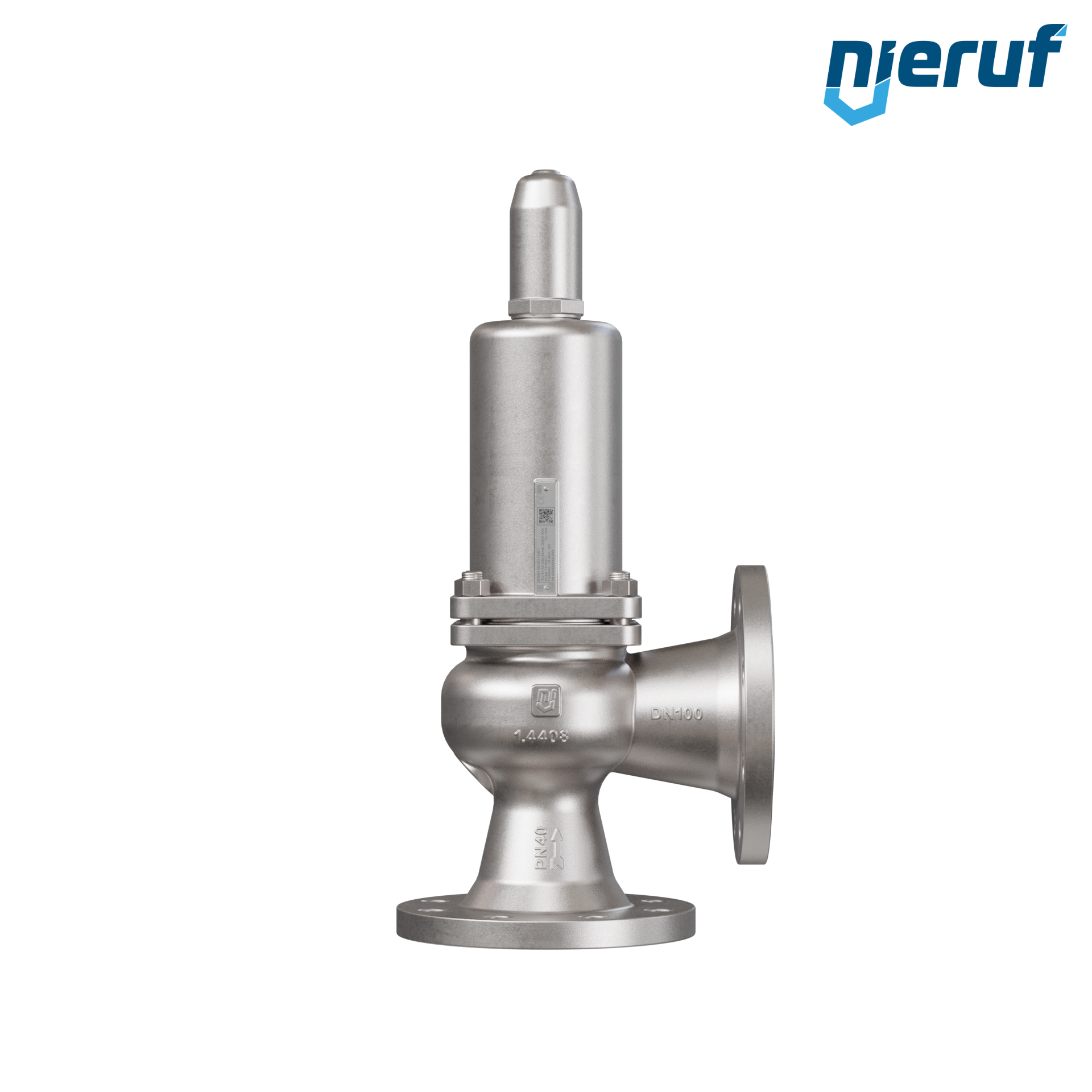

flange-safety valve DN100/DN100 SF0301, stainless steel FPM, without lever
flange-safety valve entry DN10 exit DN10 for liquid and gaseous media, made of stainless steel seal FPM pressure 0,2 up to max. 25 bar
| product | flange-safety valve |
|---|---|
| type | SF0301 |
| manufacturer | NieRuf |
| diameter | DN100/DN100 |
| d0 | 55,0 mm |
| connection | flange acc. to DIN EN 1092-1 |
| seal | FPM |
| media | liquid and gaseous media |
| temperature | 0°C up to + 180°C |
| set pressure | 0,2 up to max. 25 bar |
| design | gastight cap and closed bonnet |
| material | stainless steel 1.4408 / CF8M |
| lifting | without lever |
| type test approval | TÜV-SV-811 D/G/F |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | vertical, spindle standing upwards |
| product feature 1 | safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G and TÜV-SV-811 F |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange-safety valve DN100/DN100 SF0301, stainless steel FPM, without lever
Article no.
: SF03010211
product:
flange-safety valve
type:
SF0301
manufacturer:
NieRuf
diameter:
DN100/DN100
d0:
55,0 mm
connection:
flange acc. to DIN EN 1092-1
seal:
FPM
media:
liquid and gaseous media
temperature:
0°C up to + 180°C
set pressure:
0,2 up to max. 25 bar
design:
gastight cap and closed bonnet
material:
stainless steel 1.4408 / CF8M
lifting:
without lever
type test approval:
TÜV-SV-811 D/G/F
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
vertical, spindle standing upwards
product feature 1:
safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G and TÜV-SV-811 F
Equipment
flange seal DN100 PN25/40 115x168x2 Klingersil C 4400
Lead time: in stock
Welding neck flange DN100 PN25/40 EN1092-1 11 B1 1.4541
Lead time: in stock
joint set flange/flange DN100 - 4" Inch for flange PN40 stainless steel
Lead time: in stock
reducing bush (welded) 139,7 x 2,9 to 60,3 x 2,0 stainless steel 1.4571
Lead time: in stock
