SF02020009
flange-safety valve DN65/DN65 SF0202, cast steel metal, with lever
- Lead time
- 2 - 3 weeks
Equipment
flange seal DN65 PN10/16/25/40 77x127x2 Klingersil C 4400
€4.76 VAT included.
joint set flange/flange DN65 - 2 1/2" Inch for flange PN40 steel
€8.09 VAT included.
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

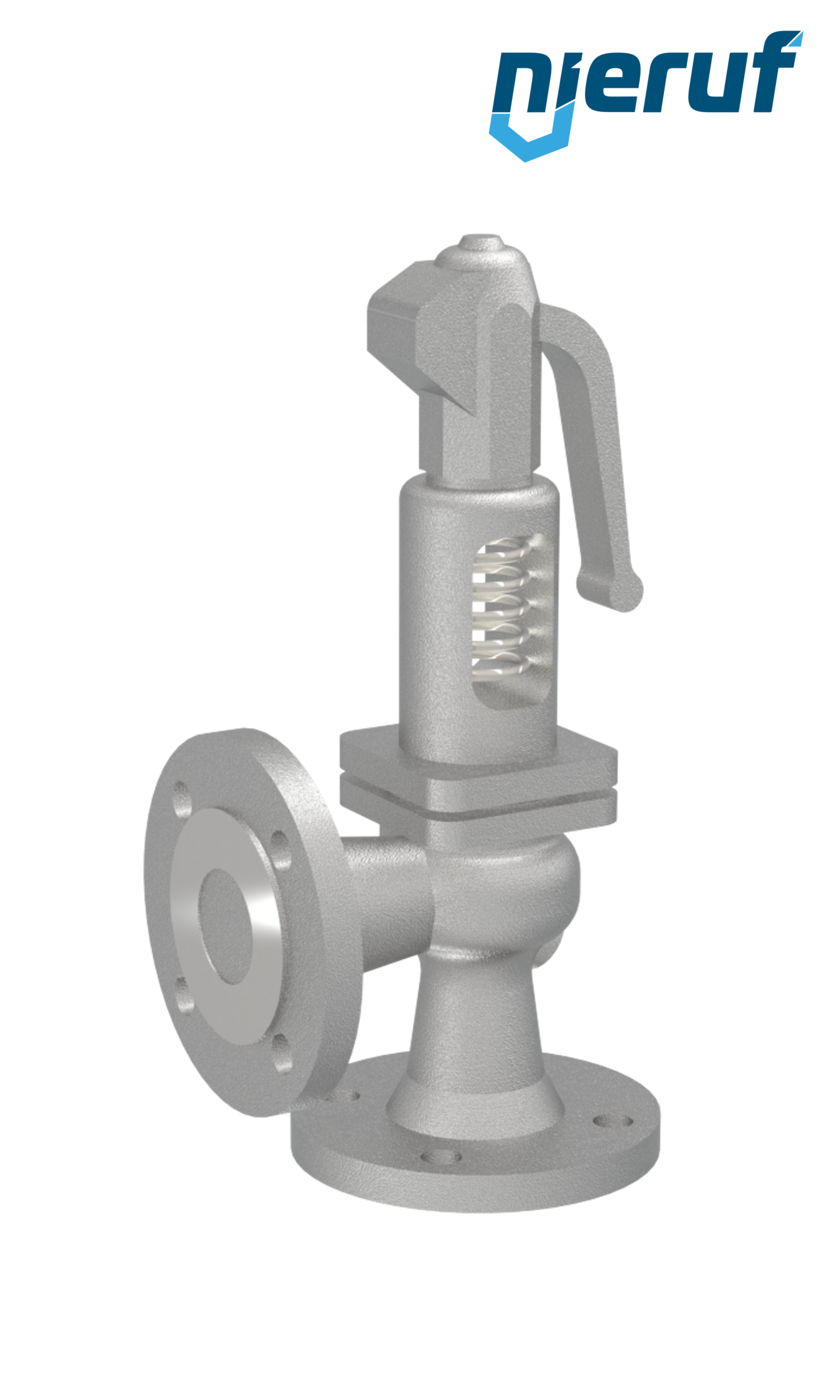

flange-safety valve DN65/DN65 SF0202, cast steel metal, with lever
flange-safety valve DN65/DN65 SF0202 for gaseous media made of cast steel seal metal pressure 0,2 up to max. 40 bar with lever
| product | flange-safety valve |
|---|---|
| type | SF0202 |
| manufacturer | NieRuf |
| diameter | DN65/DN65 |
| d0 | 36,0 mm |
| connection | flange acc. to DIN EN 1092-1 |
| seal | metal |
| media | gaseous media |
| temperature | - 10°C up to + 450°C |
| set pressure | 0,2 up to max. 40 bar |
| design | open lifting device and open bonnet |
| material | cast steel 1.0619+N / WCB |
| lifting | with lever |
| type test approval | TÜV-SV-811 D/G |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | vertical, spindle standing upwards |
| product feature 1 | safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange-safety valve DN65/DN65 SF0202, cast steel metal, with lever
Article no.
: SF02020009
product:
flange-safety valve
type:
SF0202
manufacturer:
NieRuf
diameter:
DN65/DN65
d0:
36,0 mm
connection:
flange acc. to DIN EN 1092-1
seal:
metal
media:
gaseous media
temperature:
- 10°C up to + 450°C
set pressure:
0,2 up to max. 40 bar
design:
open lifting device and open bonnet
material:
cast steel 1.0619+N / WCB
lifting:
with lever
type test approval:
TÜV-SV-811 D/G
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
vertical, spindle standing upwards
product feature 1:
safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G
Equipment
flange seal DN65 PN10/16/25/40 77x127x2 Klingersil C 4400
Lead time: in stock
joint set flange/flange DN65 - 2 1/2" Inch for flange PN40 steel
Lead time: in stock
pipe bend (welded) 90° 76,1 x 2,0 stainless steel 1.4571
Lead time: in stock
