SF02020207

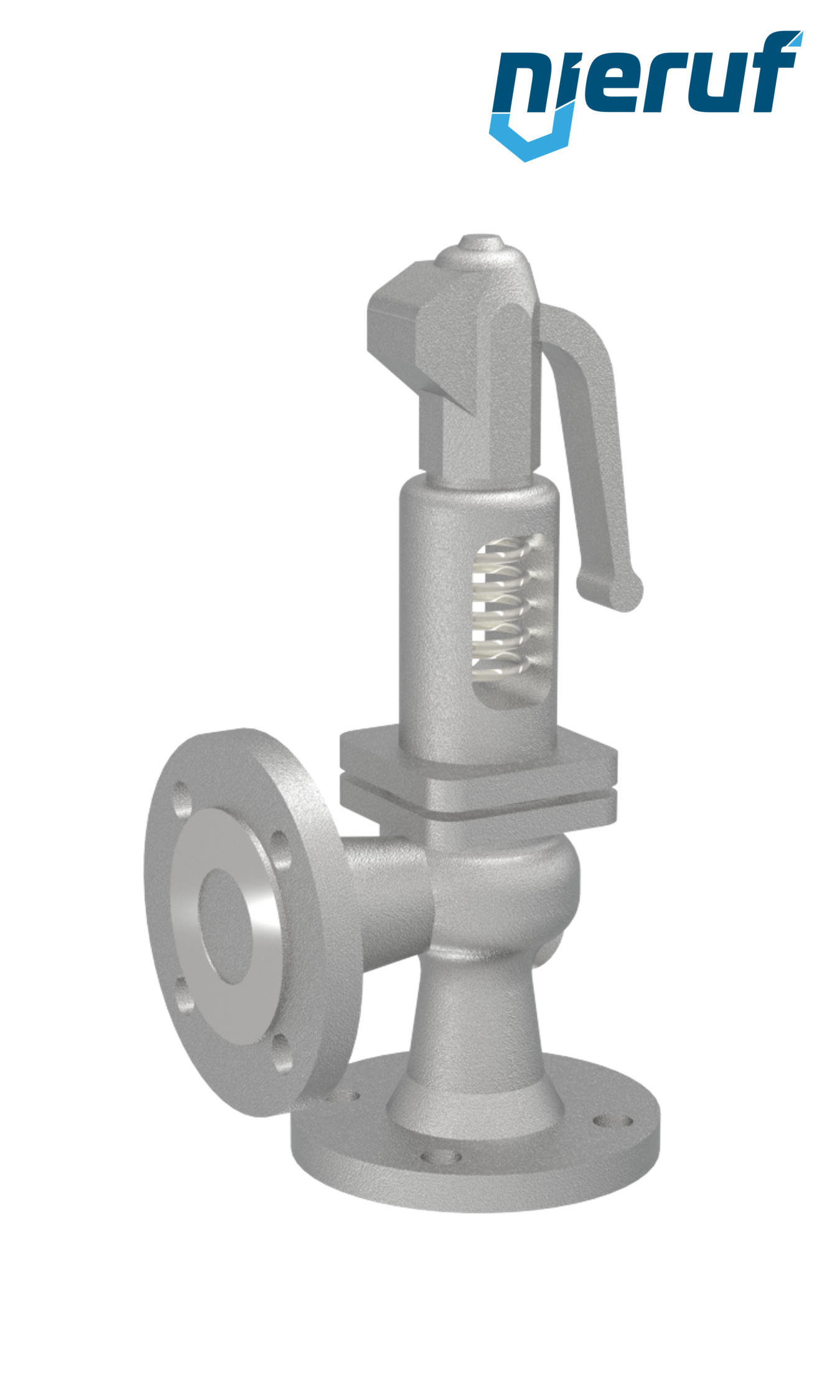

flange-safety valve DN40/DN40 SF0202, cast steel FPM, with lever
- Lead time
- 2 - 3 weeks
Equipment
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 steel
€7.62 VAT included.
flange seal DN40 PN10/16/25/40 49x92x2 Klingersil C 4400
€3.21 VAT included.
Flange DN40 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€22.02 VAT included.
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you
flange-safety valve DN40/DN40 SF0202, cast steel FPM, with lever
flange-safety valve DN40/DN40 SF0202 for gaseous media made of cast steel seal FPM pressure 0,5 up to max. 40 bar 0°C up to + 180°C
| product | flange-safety valve |
|---|---|
| type | SF0202 |
| manufacturer | NieRuf |
| diameter | DN40/DN40 |
| d0 | 20,0mm |
| connection | flange acc. to DIN EN 1092-1 |
| seal | FPM |
| media | gaseous media |
| temperature | 0°C up to + 180°C |
| set pressure | 0,5 up to max. 40 bar |
| design | open lifting device and open bonnet |
| material | cast steel 1.0619+N / WCB |
| lifting | with lever |
| type test approval | TÜV-SV-811 D/G |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | vertical, spindle standing upwards |
| product feature 1 | safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange-safety valve DN40/DN40 SF0202, cast steel FPM, with lever
Article no.
: SF02020207
product:
flange-safety valve
type:
SF0202
manufacturer:
NieRuf
diameter:
DN40/DN40
d0:
20,0mm
connection:
flange acc. to DIN EN 1092-1
seal:
FPM
media:
gaseous media
temperature:
0°C up to + 180°C
set pressure:
0,5 up to max. 40 bar
design:
open lifting device and open bonnet
material:
cast steel 1.0619+N / WCB
lifting:
with lever
type test approval:
TÜV-SV-811 D/G
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
vertical, spindle standing upwards
product feature 1:
safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G
Equipment
flange seal DN40 PN10/16/25/40 49x92x2 Klingersil C 4400
Lead time: in stock
Flange DN40 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 steel
Lead time: 3 - 5 working days
pipe bend (welded) 90° 48,3 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 48,3 x 2,0 to 33,7 x 2,0 stainless steel 1.4571
Lead time: in stock
