flange-safety valve DN80/DN80 SF01, cast iron EN-JL1040 metal, with lever

SF01000010
quantity (pcs.):
788.80€ * 938.67€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3 - 4 Weeks

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

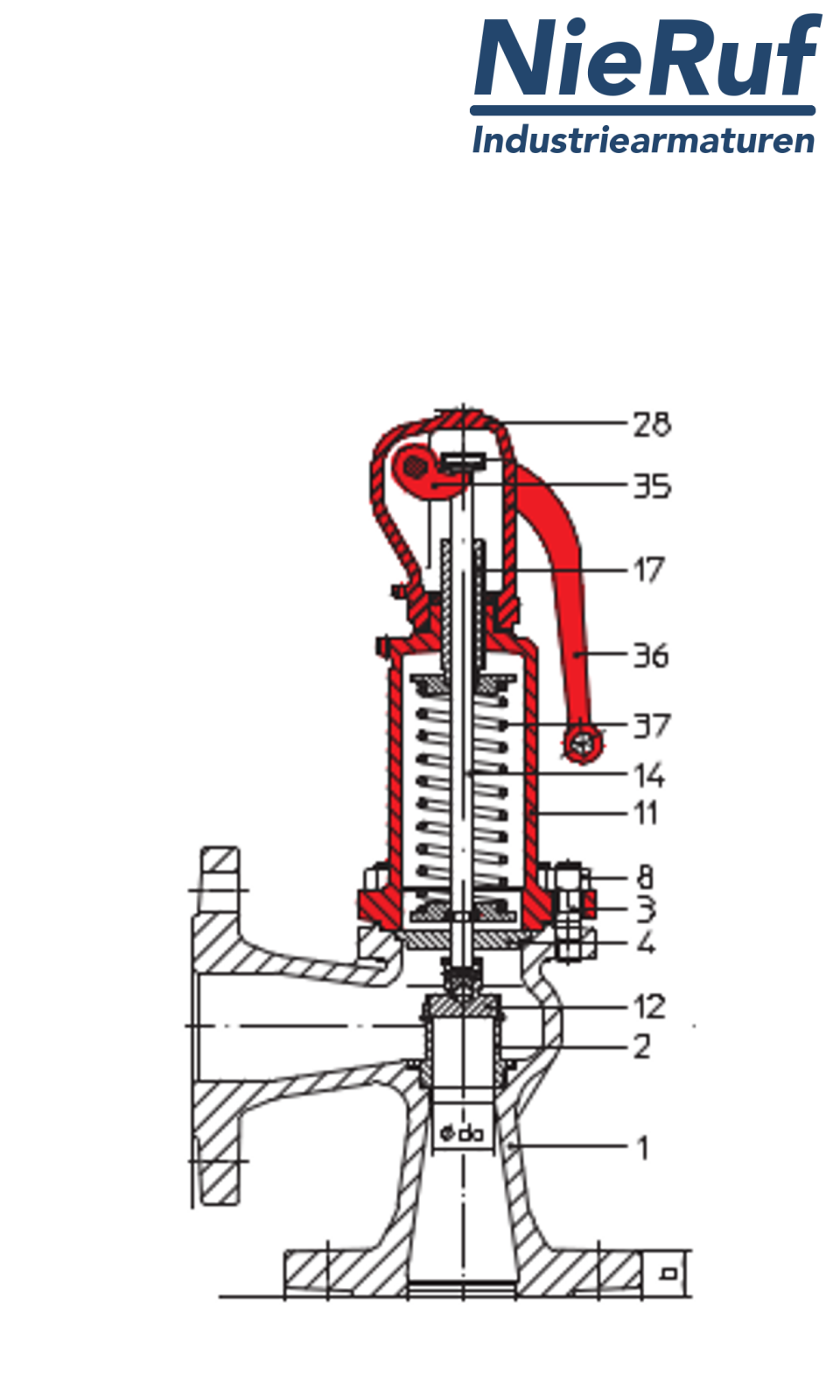

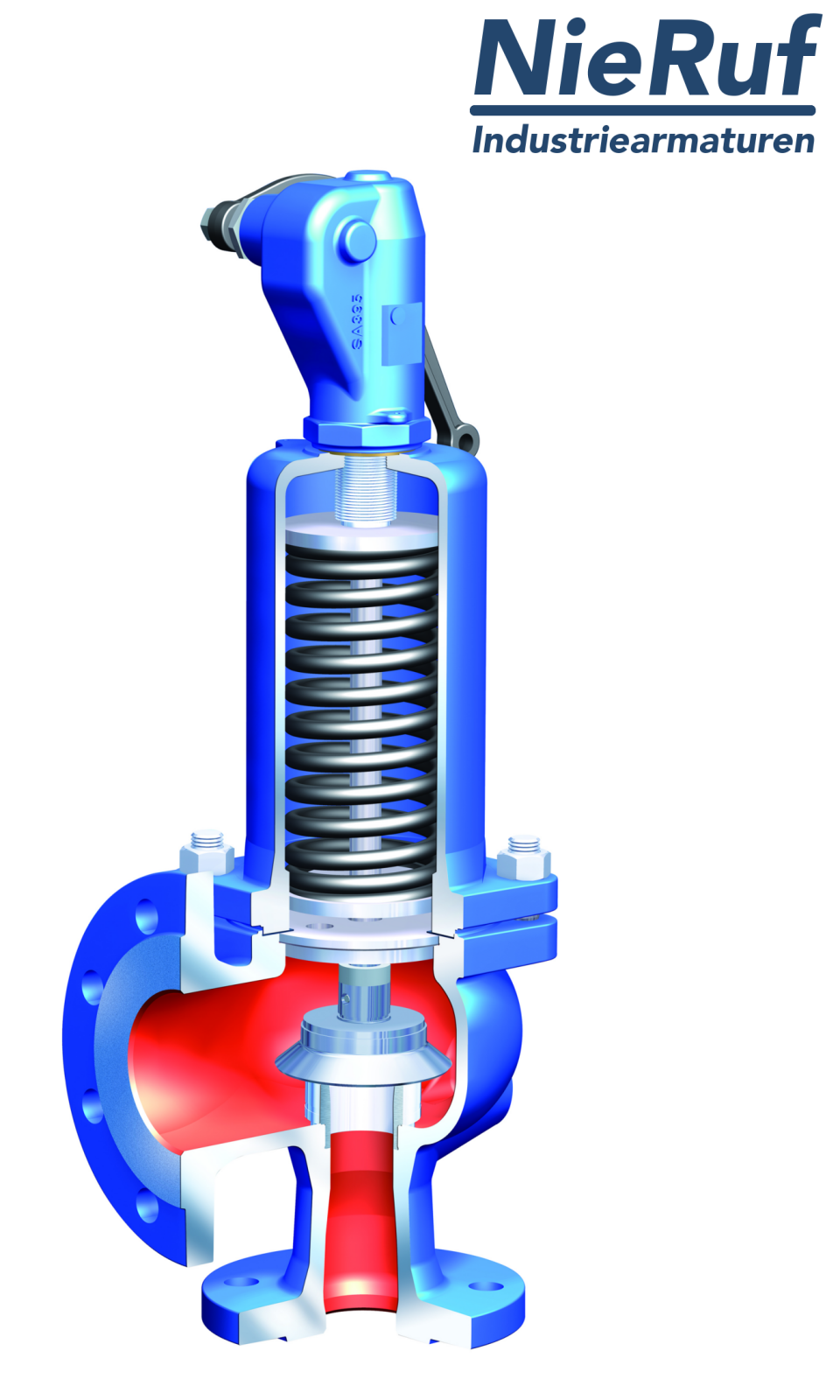

flange-safety valve DN80/DN80 SF01, cast iron EN-JL1040 metal, with lever
flange-safety valve DN80/DN80 closed lifting device and closed bonnet made of cast iron EN-JL1040 pressure 0,2 up to max. 16 bar with lever
diameter: DN80/DN80
d0: 44,0 mm
connection: flange acc. to DIN EN 1092-2
seal: metal
media: liquid and gaseous media
temperature: - 10°C up to + 300°C
set pressure: 0,2 up to max. 16 bar
design: closed lifting device and closed bonnet
material: cast iron EN-JL1040
lifting: with lever
type test approval: TÜV-SV-811 D/G/F
requirements: acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position: vertical, spindle standing upwards
product feature 1: safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G and TÜV-SV-811 F
flange-safety valve DN80/DN80 SF01, cast iron EN-JL1040 metal, with lever

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

flange-safety valve DN80/DN80 SF01, cast iron EN-JL1040 metal, with lever
