SF01010010
flange-safety valve DN80/DN80 SF0101, cast iron EN-JL1040 metal, without lever
- Lead time
- 2 - 3 weeks
Equipment
Flange DN80 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€34.51 VAT included.
joint set flange/flange DN80 - 3" Inch for flange PN10/16/25 steel
€15.23 VAT included.
flange seal DN80 PN10/16/25/40 89x142x2 Klingersil C 4400
€5.24 VAT included.
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

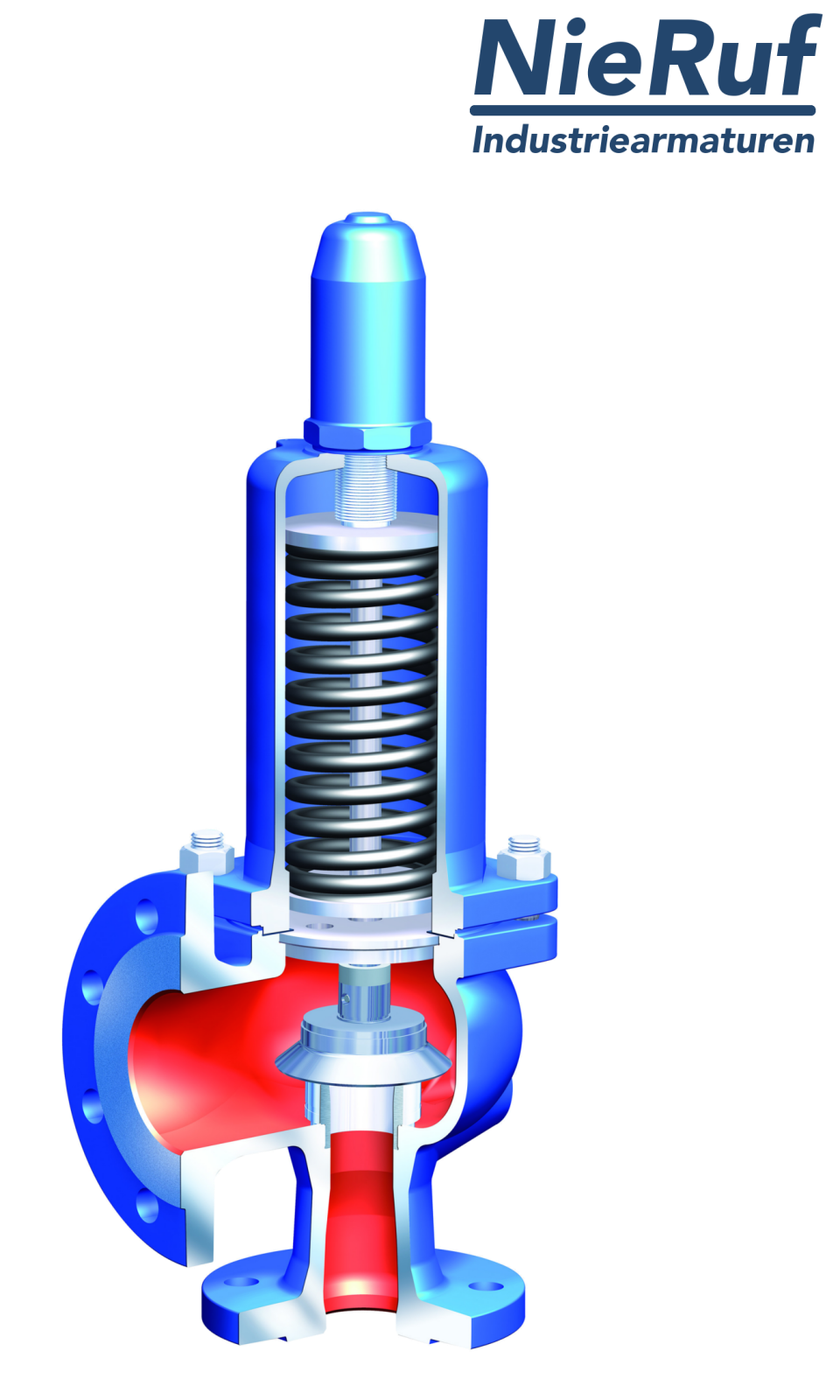

flange-safety valve DN80/DN80 SF0101, cast iron EN-JL1040 metal, without lever
flange-safety valve DN80/DN80 without lever gastight cap and closed bonnet for liquid and gaseous media made of cast iro seal metal
| product | flange-safety valve |
|---|---|
| type | SF0101 |
| manufacturer | NieRuf |
| diameter | DN80/DN80 |
| d0 | 44,0 mm |
| connection | flange acc. to DIN EN 1092-2 |
| seal | metal |
| media | liquid and gaseous media |
| temperature | - 10°C up to + 300°C |
| set pressure | 0,2 up to max. 16 bar |

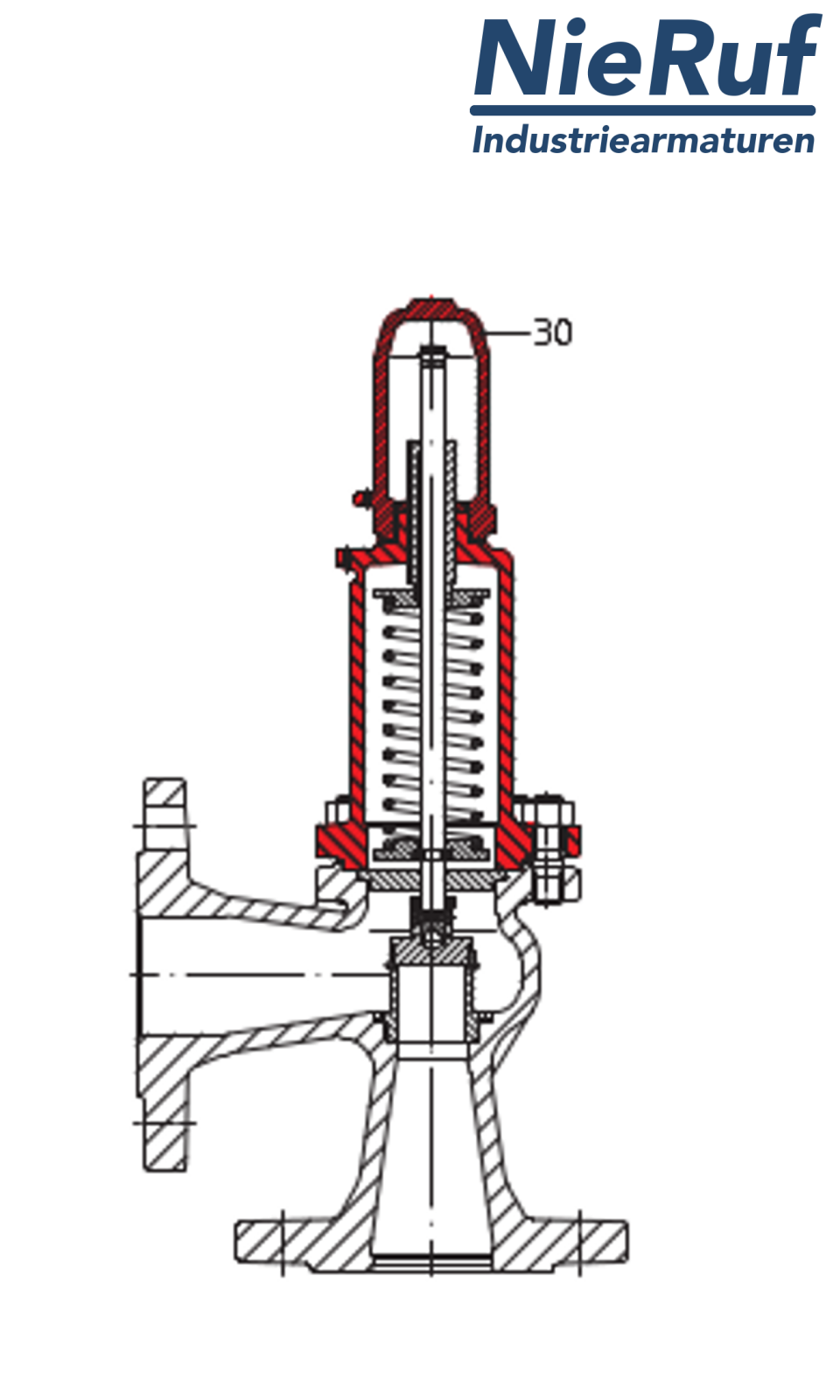

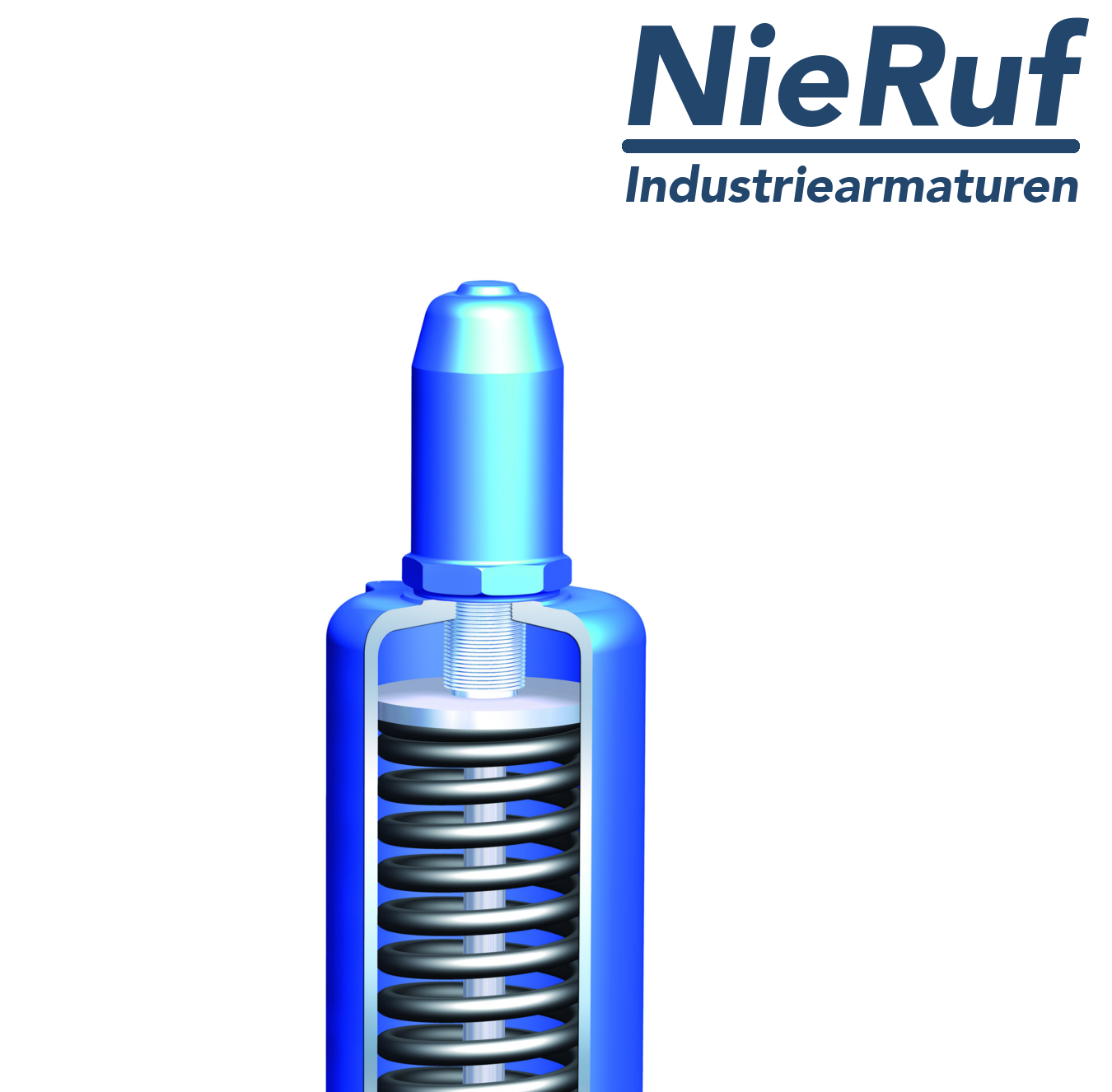

| design | gastight cap and closed bonnet |
| material | cast iron EN-JL1040 / 40B |
| lifting | without lever |
| type test approval | TÜV-SV-811 D/G/F |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | vertical, spindle standing upwards |
| product feature 1 | safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G and TÜV-SV-811 F |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange-safety valve DN80/DN80 SF0101, cast iron EN-JL1040 metal, without lever
Article no.
: SF01010010
product:
flange-safety valve
type:
SF0101
manufacturer:
NieRuf
diameter:
DN80/DN80
d0:
44,0 mm
connection:
flange acc. to DIN EN 1092-2
seal:
metal
media:
liquid and gaseous media
temperature:
- 10°C up to + 300°C
set pressure:
0,2 up to max. 16 bar
design:
gastight cap and closed bonnet
material:
cast iron EN-JL1040 / 40B
lifting:
without lever
type test approval:
TÜV-SV-811 D/G/F
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
vertical, spindle standing upwards
product feature 1:
safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G and TÜV-SV-811 F
