SF01010110

flange-safety valve DN80/DN80 SF0101, cast iron EN-JL1040 EPDM, without lever

€1,123.40*

€1,336.85 VAT included.


Operating data


Delivery time: 2 - 3 weeks

Delivery information

Equipment

FL01020110

Flange DN80 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare

€29.00*

€34.51 VAT included.


FD01000110

flange seal DN80 PN10/16/25/40 89x142x2 Klingersil C 4400

€4.20*

€5.00 VAT included.


VS01010110

joint set flange/flange DN80 - 3" Inch for flange PN10/16/25 steel

€13.60*

€16.18 VAT included.


Certificates

ZEU31APZ00

Certificate of conformity EN 10204-3.1

€54.00*

€64.26 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: SF01010110

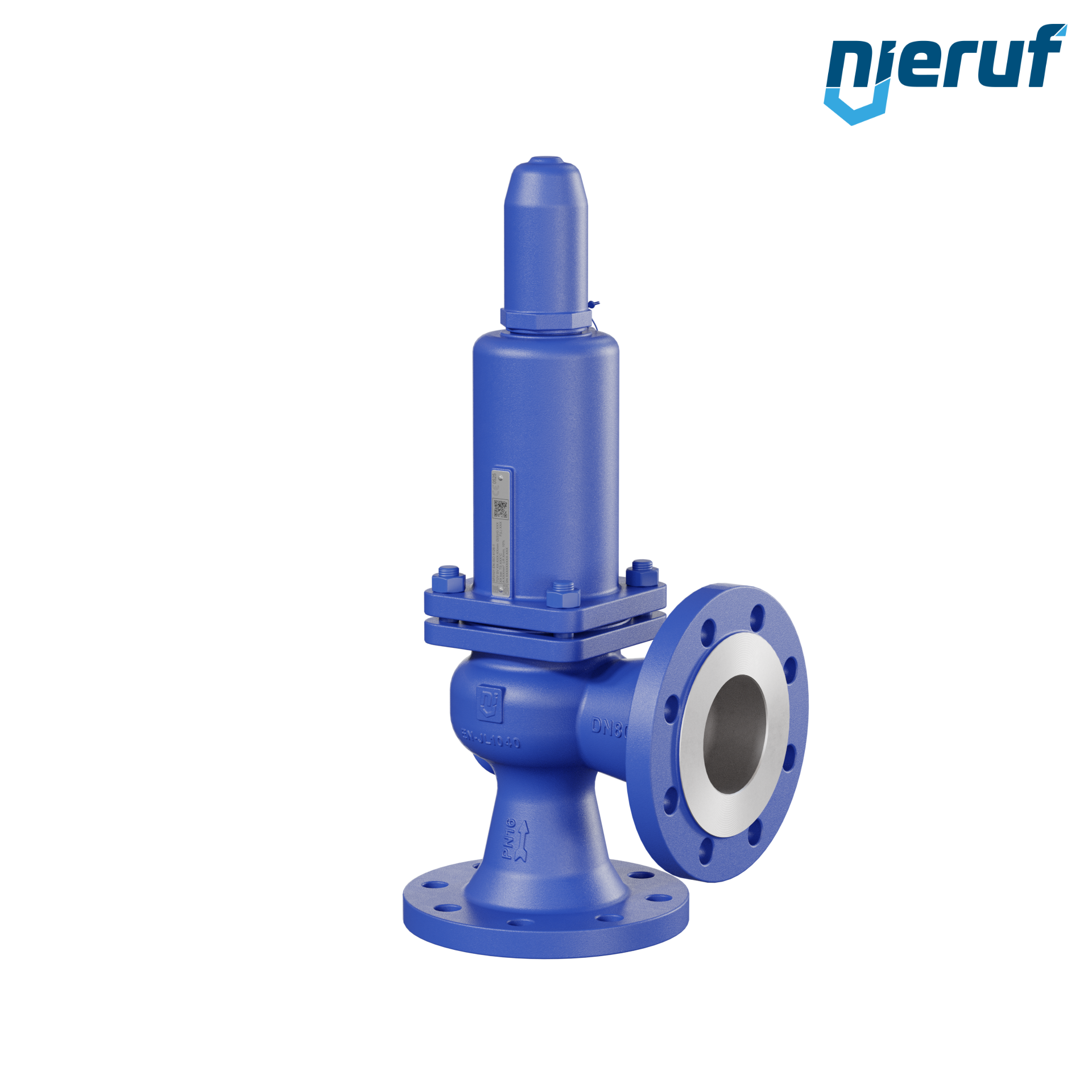

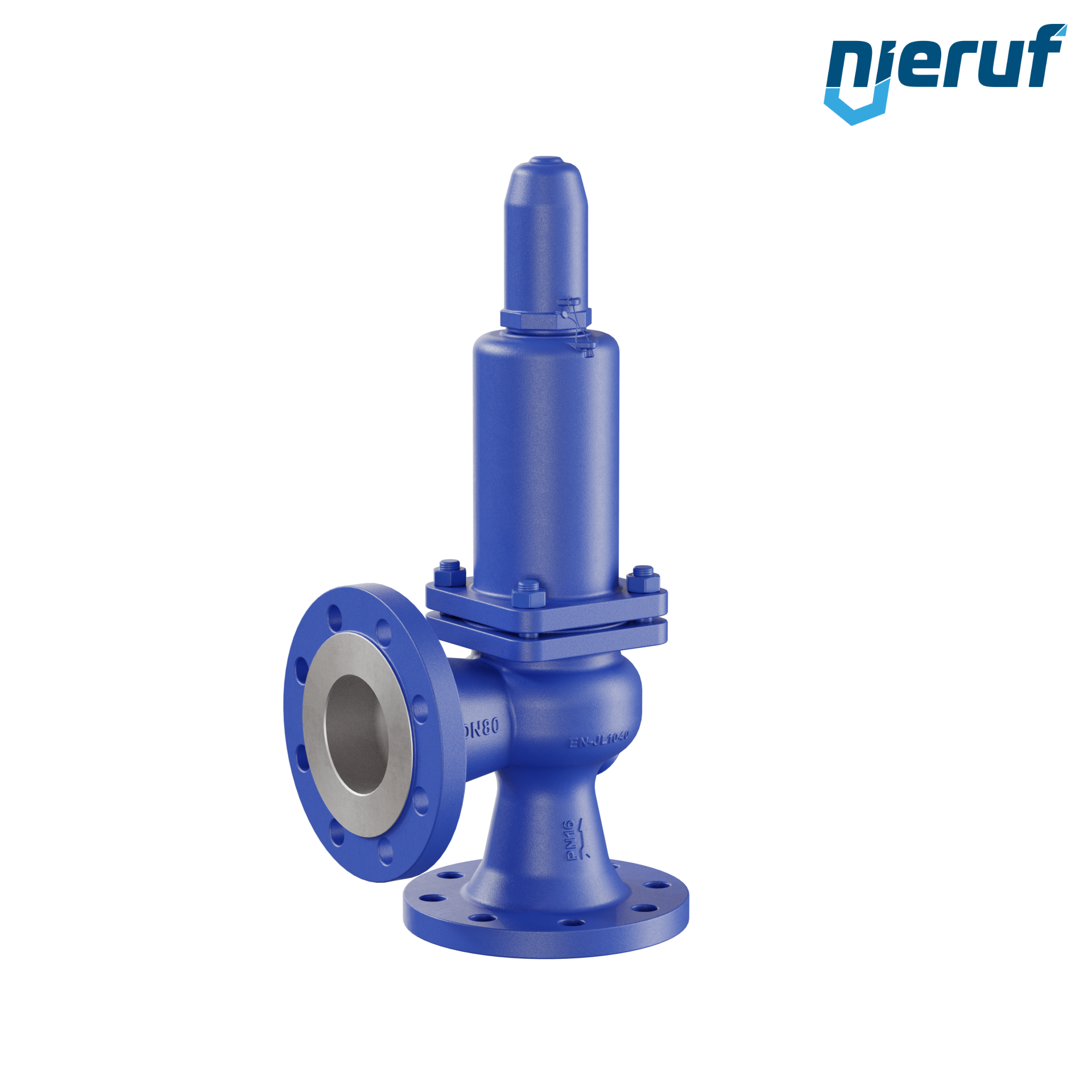

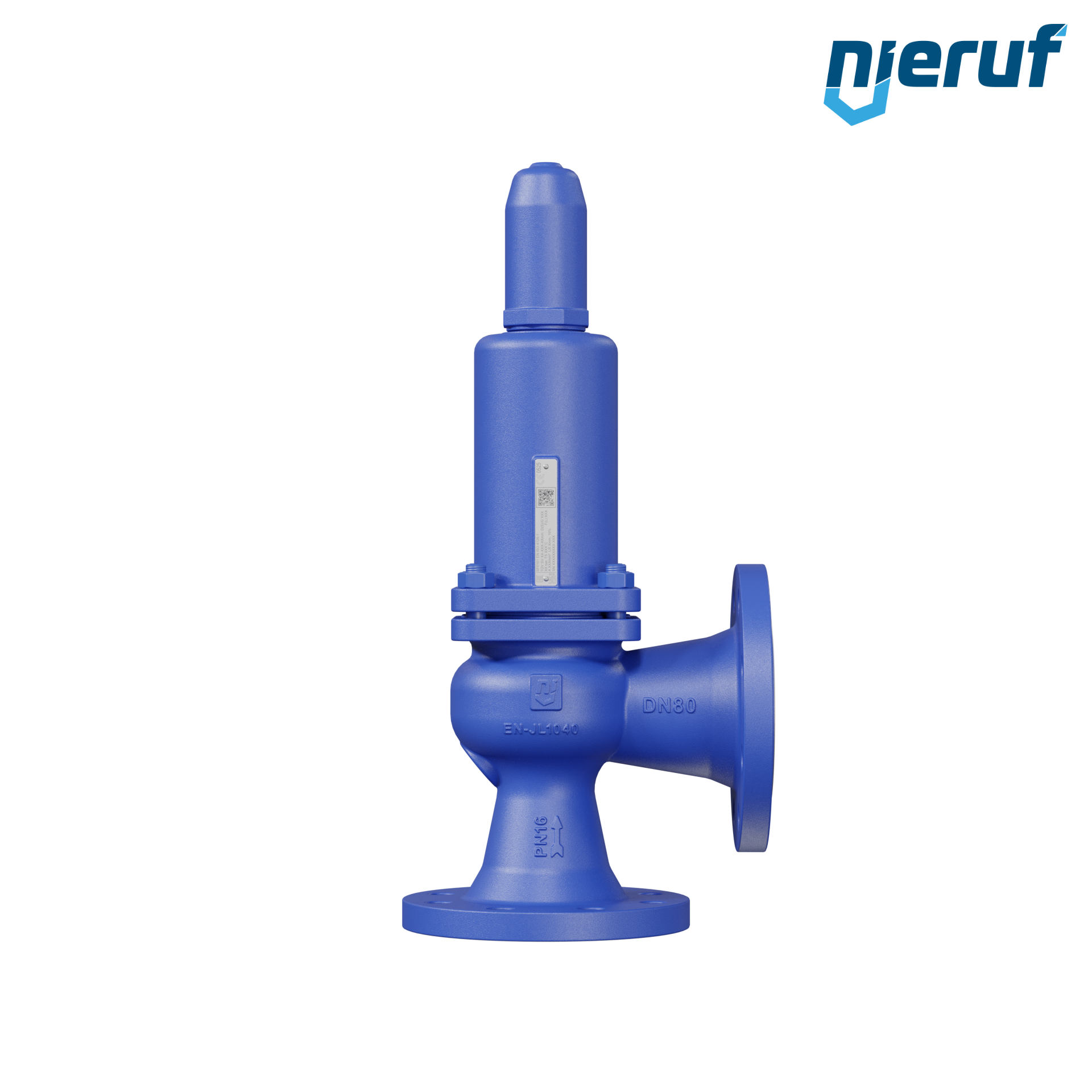

flange-safety valve DN80/DN80 SF0101, cast iron EN-JL1040 EPDM, without lever

safety valve DN80 gastight cap and closed bonnet made of cast iron EN-JL1040 seal EPDM pressure 0,5 up to max. 16 bar without lever

product: flange-safety valve
type: SF0101
manufacturer: NieRuf
diameter: DN80/DN80
d0: 44,0 mm
connection: flange acc. to DIN EN 1092-2
seal: EPDM
media: liquid and gaseous media
temperature: 0°C up to + 150°C
set pressure: 0,5 up to max. 16 bar
design: gastight cap and closed bonnet
material: cast iron EN-JL1040
lifting: without lever
type test approval: TÜV-SV-811 D/G/F
requirements: acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position: vertical, spindle standing upwards
product feature 1: safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G and TÜV-SV-811 F

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

flange-safety valve DN80/DN80 SF0101, cast iron EN-JL1040 EPDM, without lever

Article no. : SF01010110
product: flange-safety valve
type: SF0101
manufacturer: NieRuf
diameter: DN80/DN80
d0: 44,0 mm
connection: flange acc. to DIN EN 1092-2
seal: EPDM
media: liquid and gaseous media
temperature: 0°C up to + 150°C
set pressure: 0,5 up to max. 16 bar
design: gastight cap and closed bonnet
material: cast iron EN-JL1040
lifting: without lever
type test approval: TÜV-SV-811 D/G/F
requirements: acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position: vertical, spindle standing upwards
product feature 1: safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G and TÜV-SV-811 F
