SF01010209

flange-safety valve DN65/DN65 SF0101, cast iron EN-JL1040 FPM, without lever

€921.60*

€1,096.70 VAT included.


Operating data


Delivery time: 2 - 3 weeks

Delivery information

Equipment

FD01000109

flange seal DN65 PN10/16/25/40 77x127x2 Klingersil C 4400

€3.60*

€4.28 VAT included.


FL01020109

Flange DN65 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare

€26.40*

€31.42 VAT included.


VS01010109

joint set flange/flange DN65 - 2 1/2" Inch for flange PN10/16/25 steel

€6.80*

€8.09 VAT included.


Certificates

ZEU31APZ00

Certificate of conformity EN 10204-3.1

€54.00*

€64.26 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: SF01010209

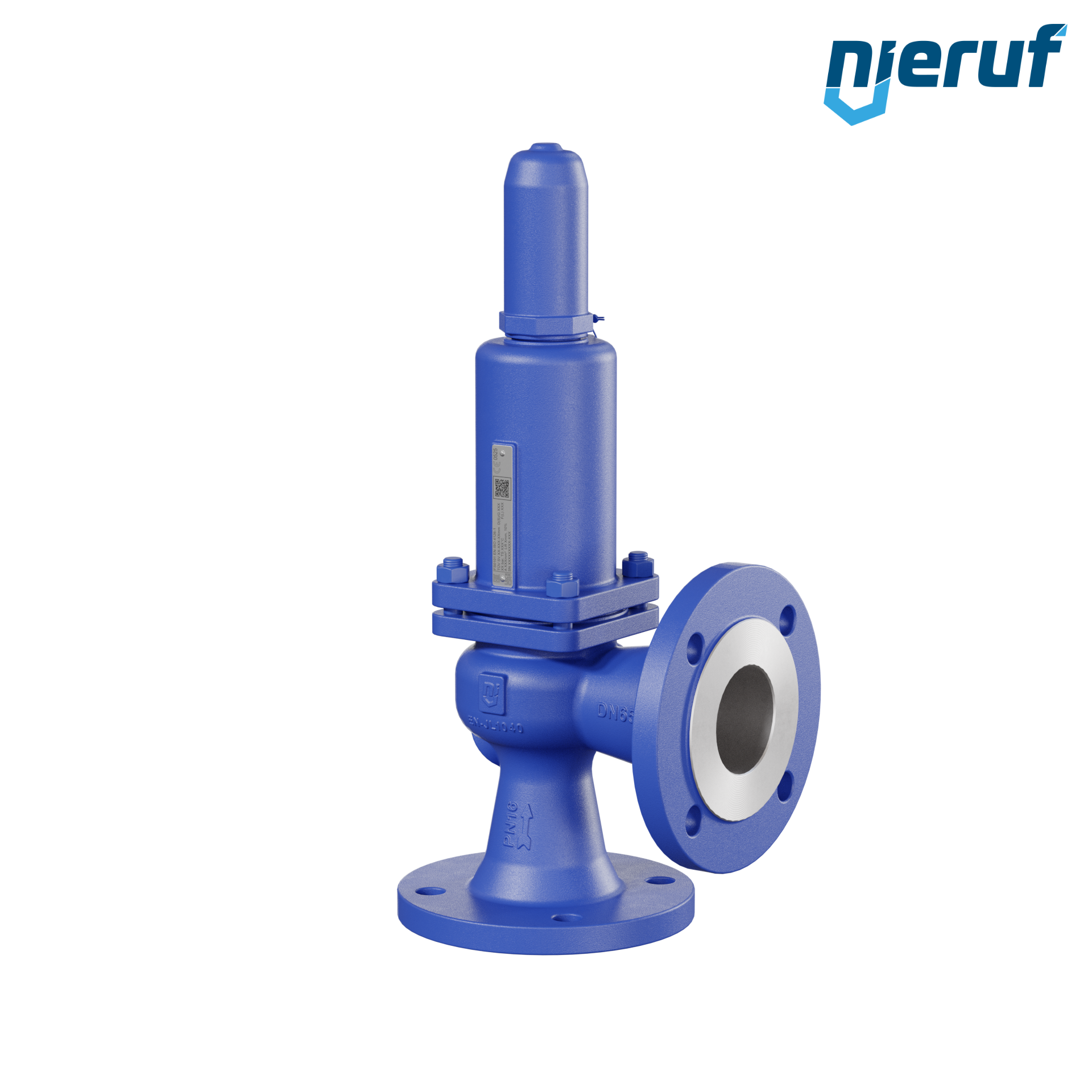

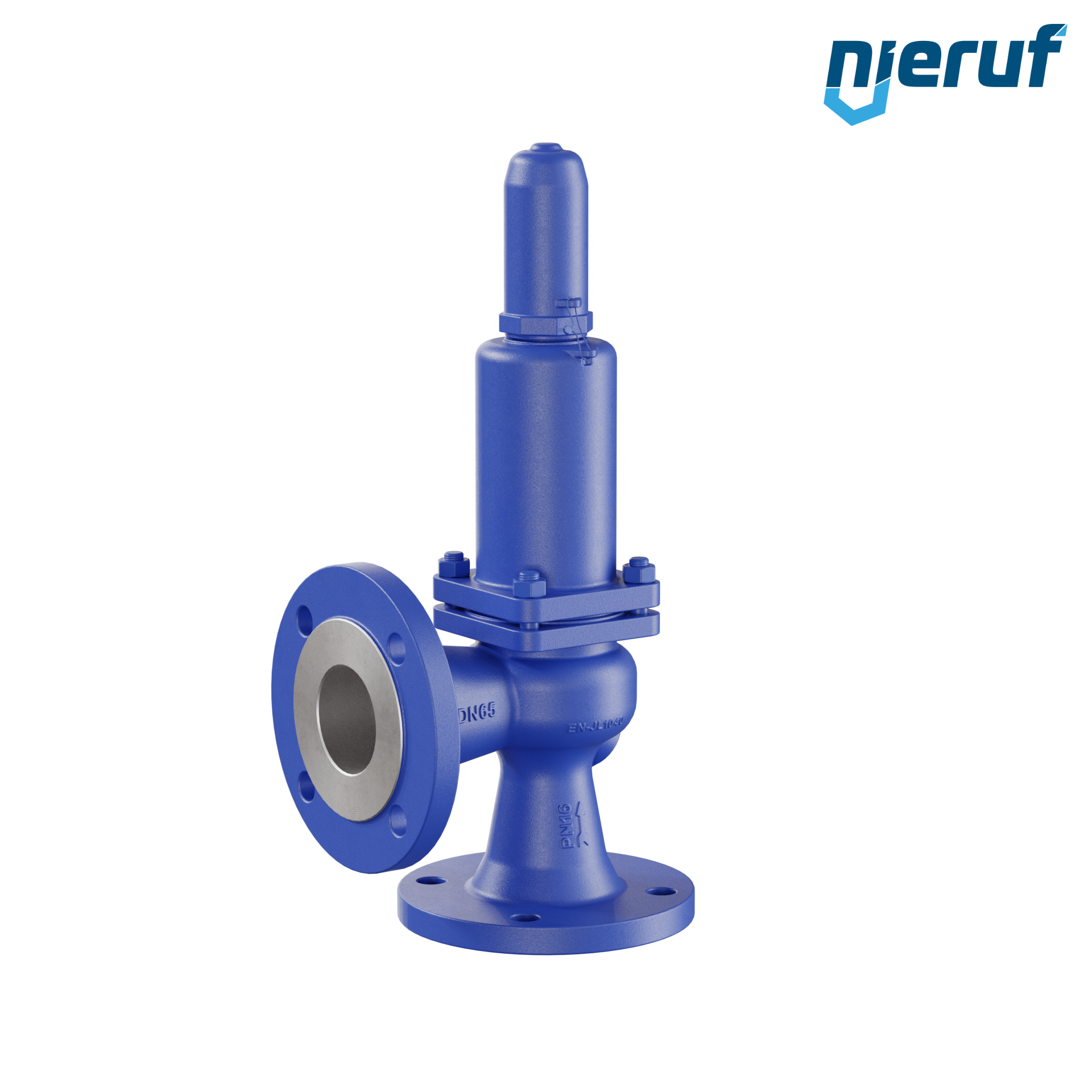

flange-safety valve DN65/DN65 SF0101, cast iron EN-JL1040 FPM, without lever

flange-safety valve DN65/DN65 pressure 0,5 up to max. 16 bar without lever for liquid and gaseous media made of cast iron EN-JL1040 seal FPM

product: flange-safety valve
type: SF0101
manufacturer: NieRuf
diameter: DN65/DN65
d0: 36,0 mm
connection: flange acc. to DIN EN 1092-2
seal: FPM
media: liquid and gaseous media
temperature: 0°C up to + 180°C
set pressure: 0,5 up to max. 16 bar
design: gastight cap and closed bonnet
material: cast iron EN-JL1040
lifting: without lever
type test approval: TÜV-SV-811 D/G/F
requirements: acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position: vertical, spindle standing upwards
product feature 1: safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G and TÜV-SV-811 F

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

flange-safety valve DN65/DN65 SF0101, cast iron EN-JL1040 FPM, without lever

Article no. : SF01010209
product: flange-safety valve
type: SF0101
manufacturer: NieRuf
diameter: DN65/DN65
d0: 36,0 mm
connection: flange acc. to DIN EN 1092-2
seal: FPM
media: liquid and gaseous media
temperature: 0°C up to + 180°C
set pressure: 0,5 up to max. 16 bar
design: gastight cap and closed bonnet
material: cast iron EN-JL1040
lifting: without lever
type test approval: TÜV-SV-811 D/G/F
requirements: acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position: vertical, spindle standing upwards
product feature 1: safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G and TÜV-SV-811 F
