SF07102107.1

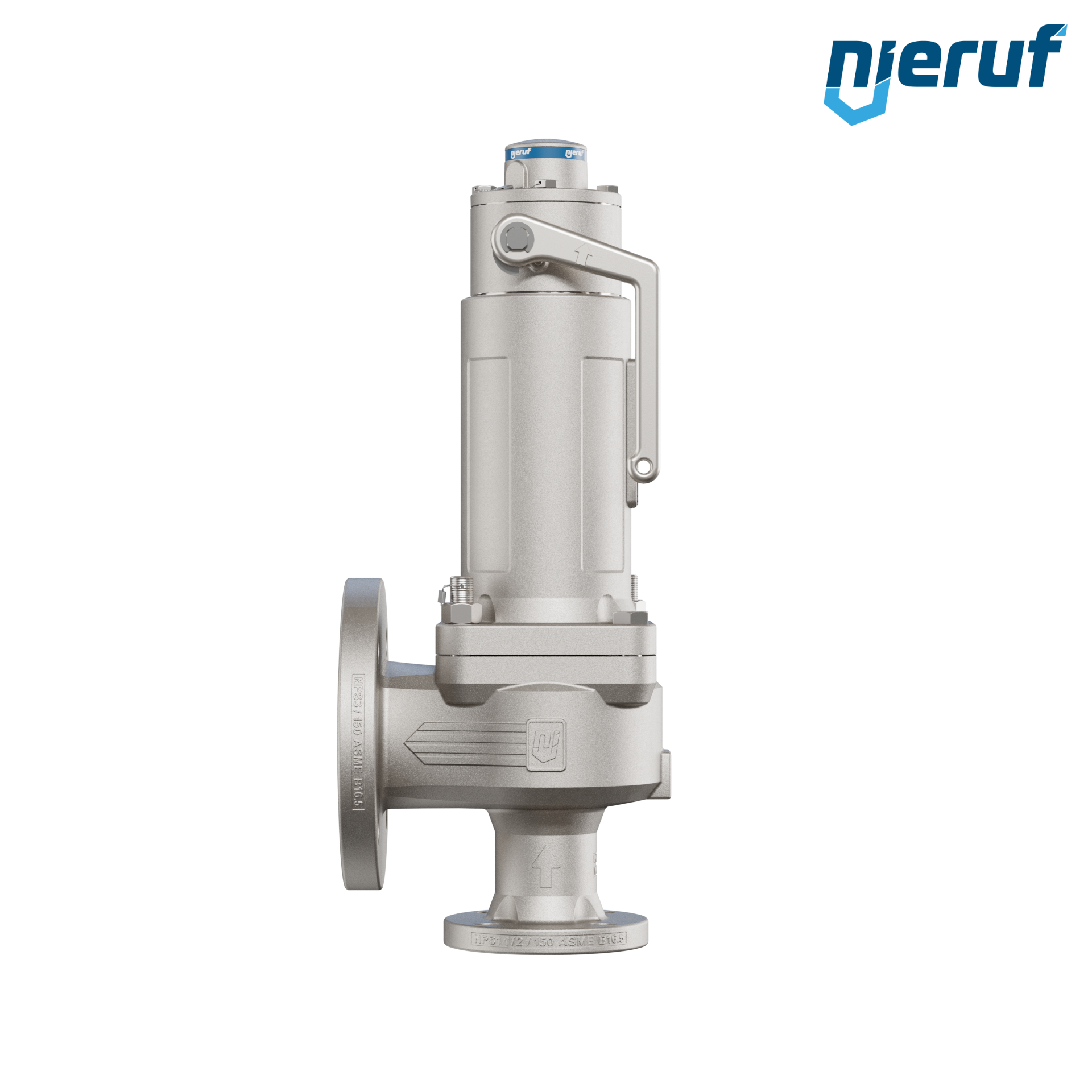

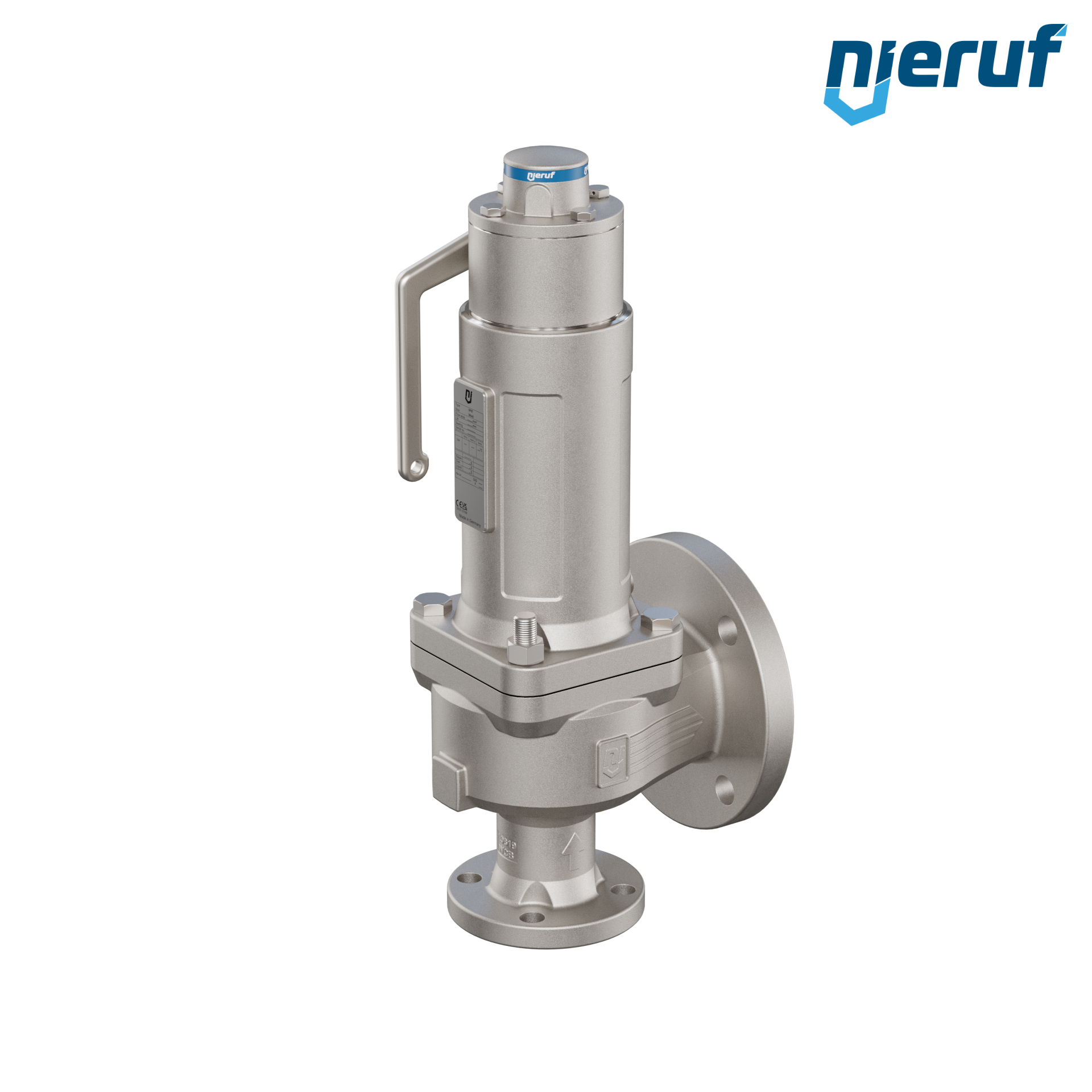

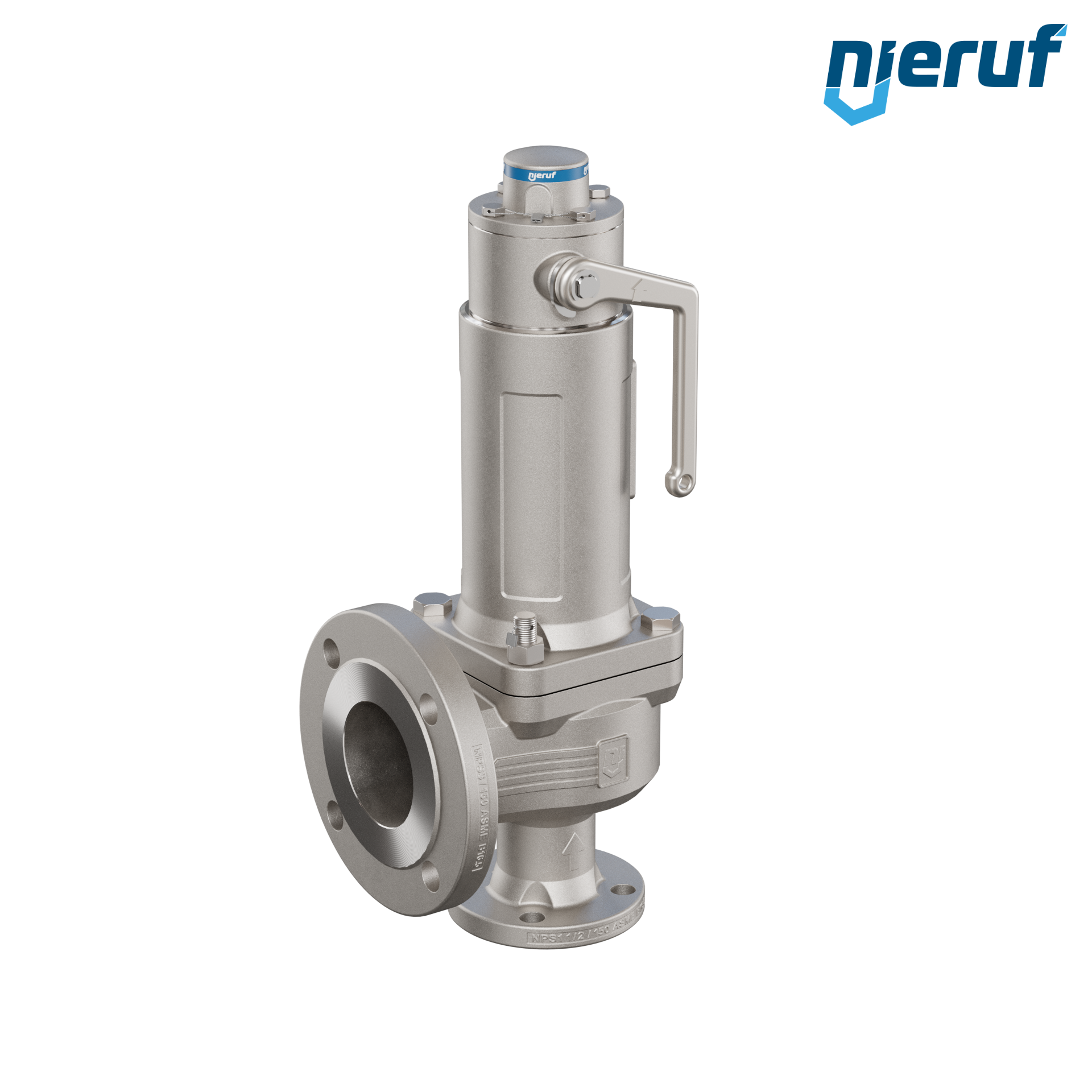

flange-safety valve ASME liquid media gastight ANSI 150 DN40 1 1/2" x 3" SF07, cast steel, EPDM, with lifting device lever
- Delivery time
- 3 - 5 working days
Questions about the article?
Downloads
flange-safety valve ASME gastight DN40 1 1/2" x 3" SF07 for liquid media made of cast steel, seal EPDM set pressure 0,2 - 20,0 bar flange ANSI 150 with lifting device lever
| product | flange-safety valve |
|---|---|
| type | SF07 |
| manufacturer | NieRuf |
| diameter | DN40 1 1/2" x 3" |
| d0 | 36,0 mm |
| connection | flange acc. to ASME B 16.5 inlet ANSI150 / outlet ANSI150 |
| seal | EPDM |
| media | liquid media |
| temperature | -29Β°C up to +170Β°C |
| set pressure | 0,2 - 20,0 bar |
| design | angle-type & gastight cap |
| material | cast steel 1.0619 / WCB |
| lifting | with lifting device lever |
| requirements | ASME BPVC Sec. XIII |
| installation position | Vertical, spindle standing upwards. Horizontal installation is also permitted, taking condensate derivation into account. |
| product feature 1 | gastight cap, the environment is protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange-safety valve ASME liquid media gastight ANSI 150 DN40 1 1/2" x 3" SF07, cast steel, EPDM, with lifting device lever
Article no.
: SF07102107.1
product:
flange-safety valve
type:
SF07
manufacturer:
NieRuf
diameter:
DN40 1 1/2" x 3"
d0:
36,0 mm
connection:
flange acc. to ASME B 16.5 inlet ANSI150 / outlet ANSI150
seal:
EPDM
media:
liquid media
temperature:
-29Β°C up to +170Β°C
set pressure:
0,2 - 20,0 bar
design:
angle-type & gastight cap
material:
cast steel 1.0619 / WCB
lifting:
with lifting device lever
requirements:
ASME BPVC Sec. XIII
installation position:
Vertical, spindle standing upwards. Horizontal installation is also permitted, taking condensate derivation into account.
product feature 1:
gastight cap, the environment is protected from being affected by the medium.
