EK04000010

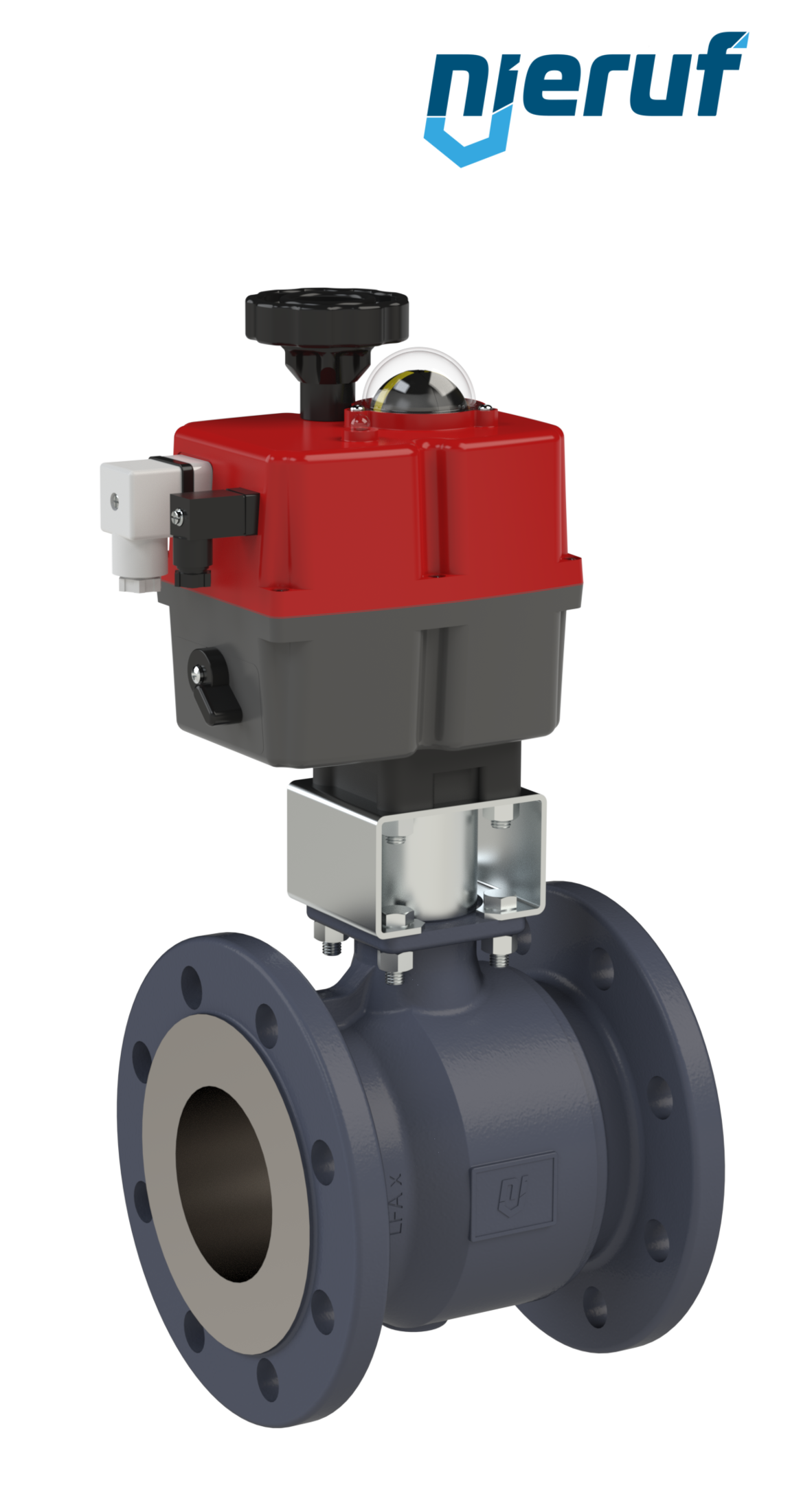

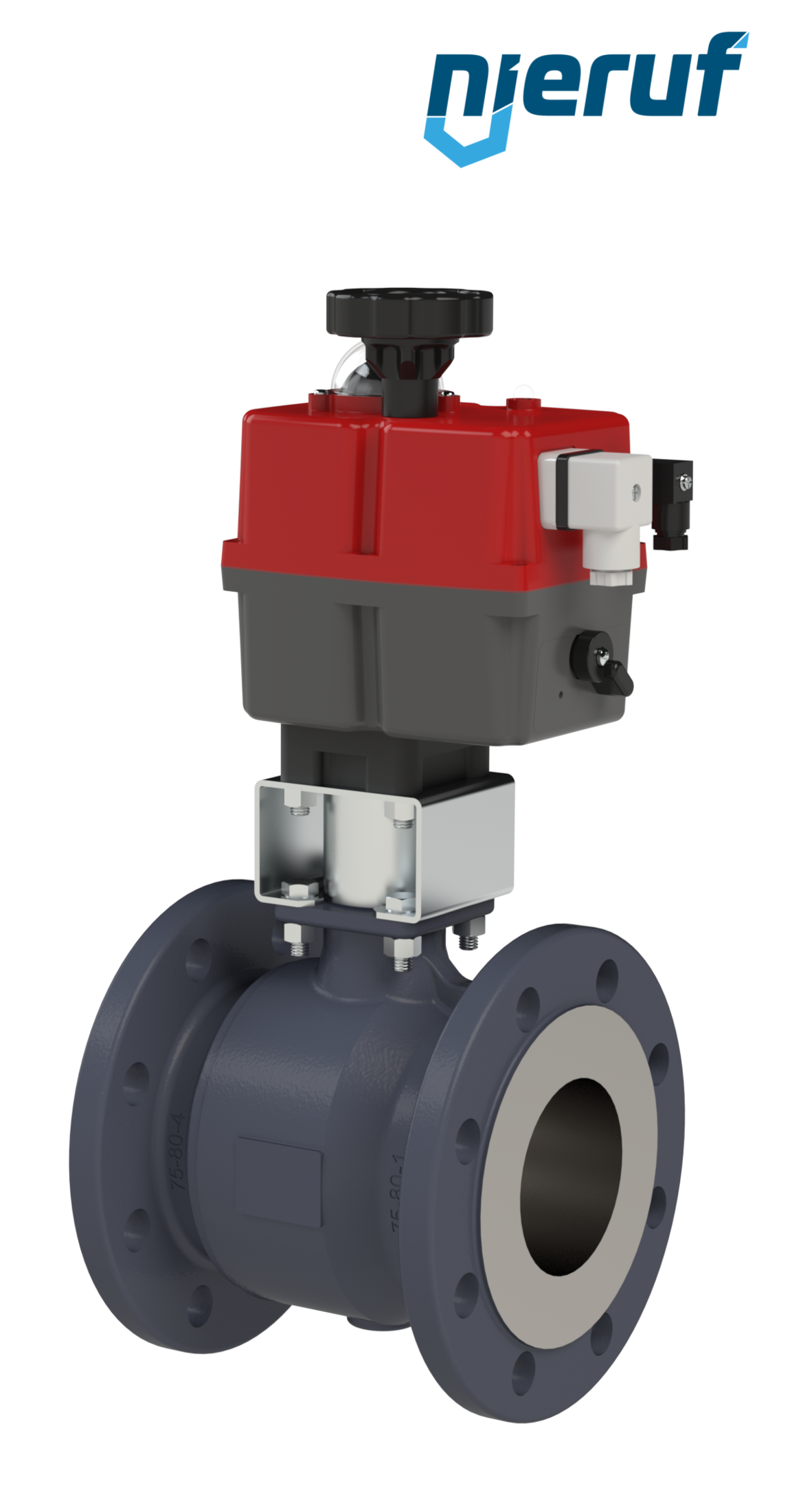

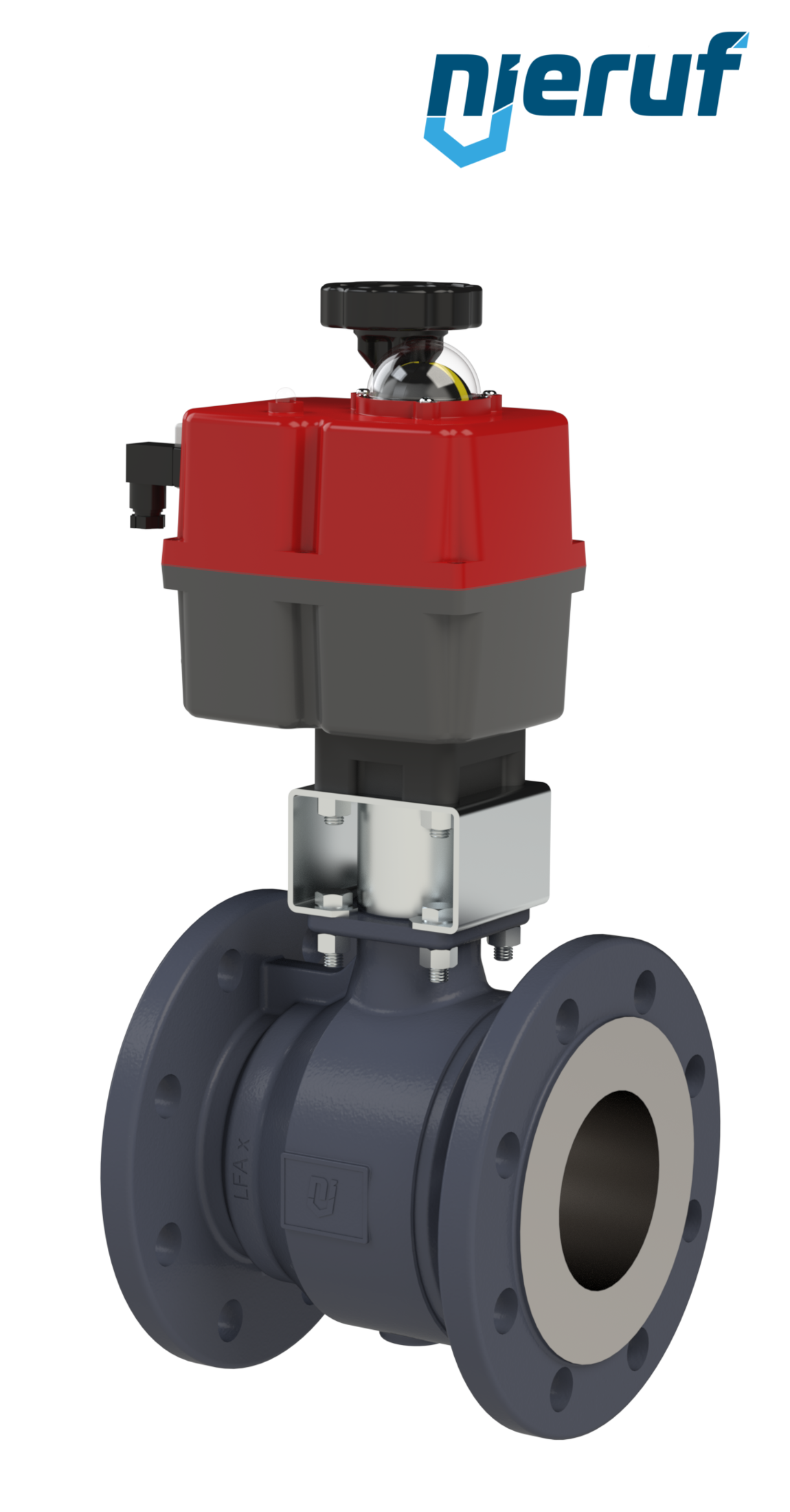

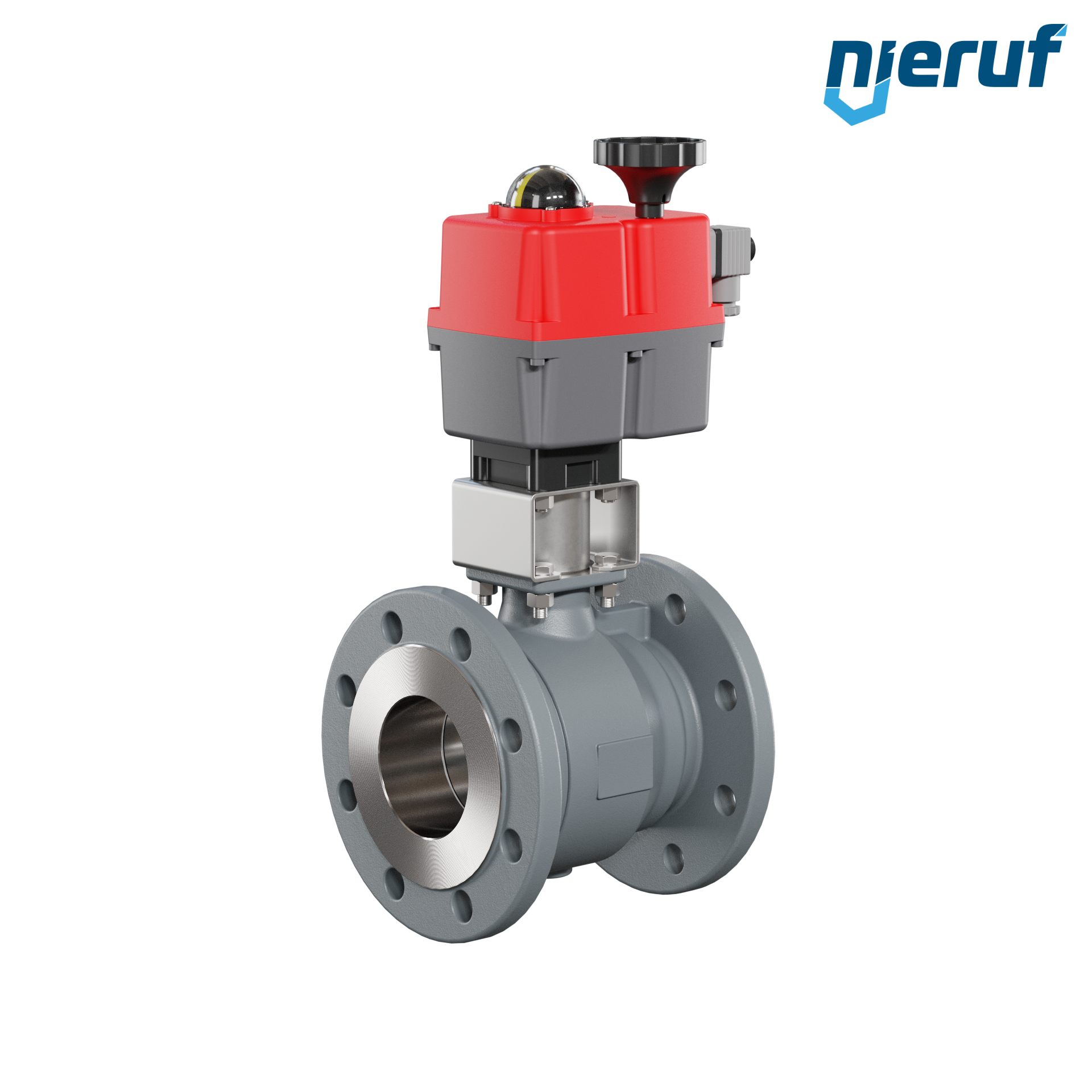

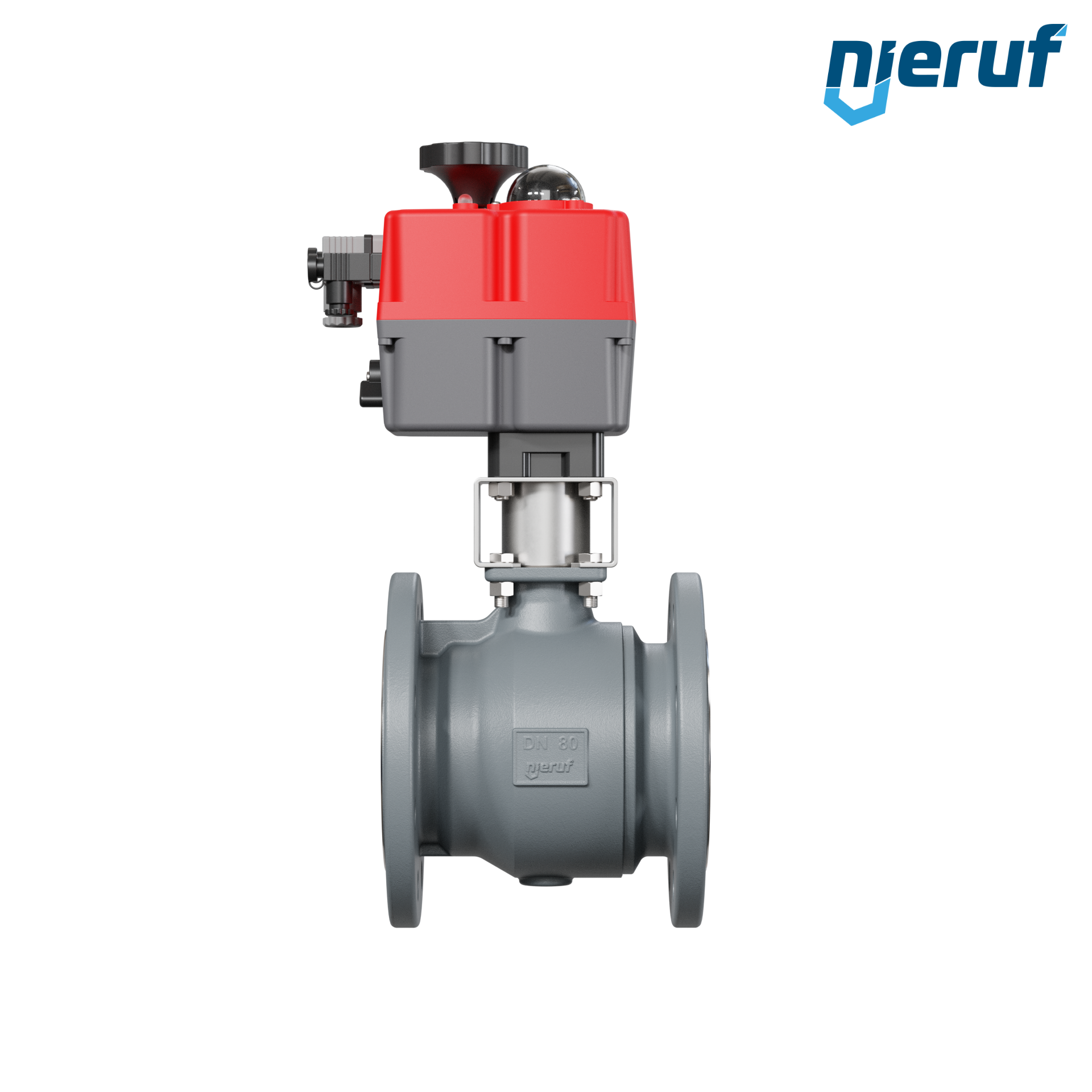

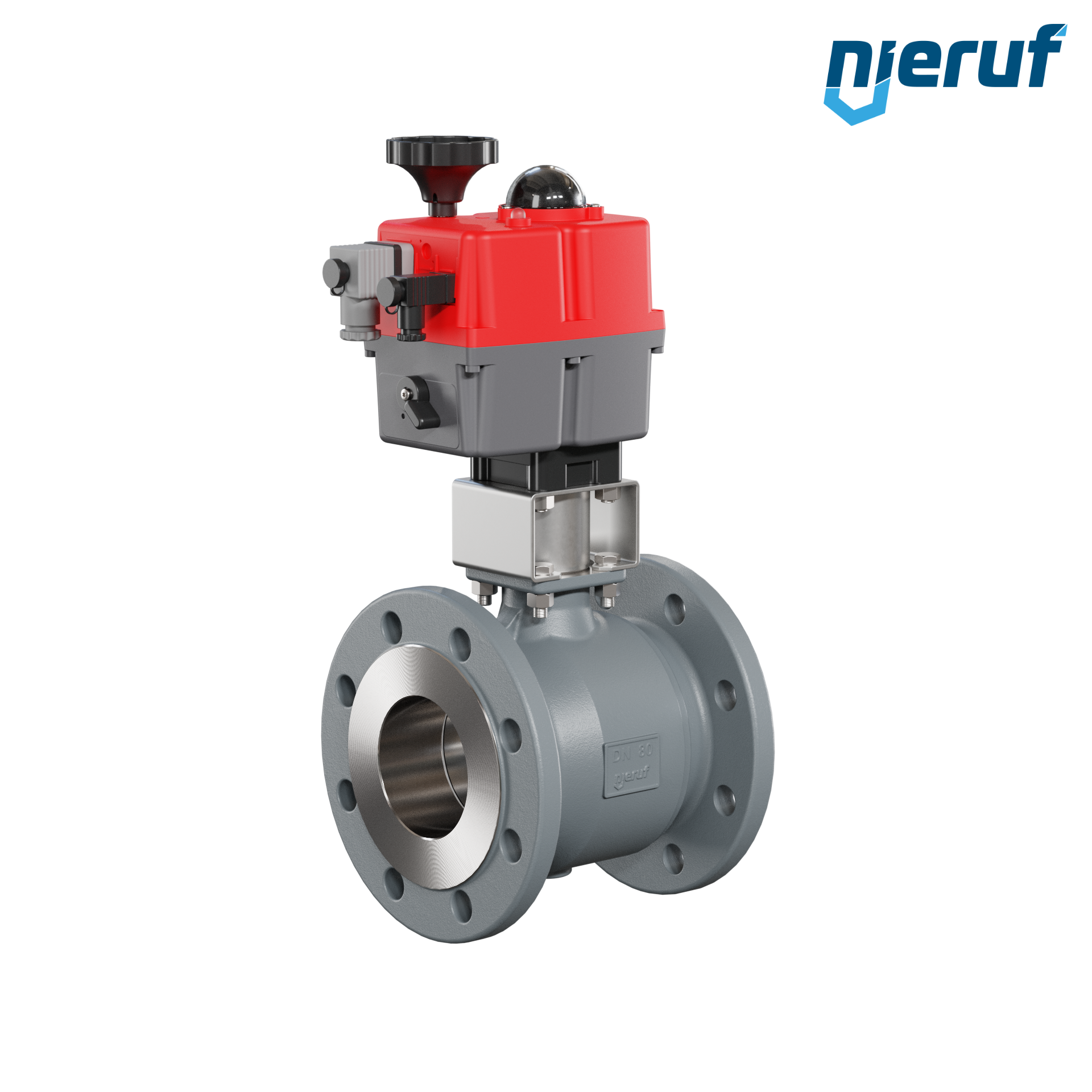

automatic-flange ball valve DN80 - 3" inch EK04 24V

€1,022.90*

€1,217.25 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: in stock

Delivery information

Express delivery:

Shipping on: Thursday, 25. April

Guaranteed delivery until Friday, 26. April, 12 o'clock

Order in within by express delivery


Equipment

AKKUPACK01

AkkuPack BSR for S20-S85

€282.70*

€336.41 VAT included.


FD01000110

flange seal DN80 PN10/16/25/40 89x142x2 Klingersil C 4400

€4.20*

€5.00 VAT included.


VS01010110

joint set flange/flange DN80 - 3" Inch for flange PN10/16/25 steel

€13.60*

€16.18 VAT included.


DPSKIT01

Digital Positioning System for S20-S85

€254.10*

€302.38 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

Certified

Certified

Product number: EK04000010
automatic-flange ball valve DN80 - 3" inch EK04 24V

automatic-flange ball valve DN80 - 3" inch spheroidal graphite cast iron GJS400-15 EK04 electronic actuator S140 - series S 24-240V AC/DC

product: automatic-flange ball valve
type: EK04
manufacturer: NieRuf
diameter: DN80 - 3" inch
connection: flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam: O-rings FKM
media: liquid and gaseous media
temperature: ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure: PN16
max. differentiel pressure: max. 7 bar
design: flange ball valve with actuator
body material: spheroidal graphite cast iron 5.3103
ball material: steel chrome plated 1.0503
ball seal: PTFE + GF
length: 180mm
actuator: electronic actuator S85 - series S 24-240V AC/DC
actuator informations: corrosion resistant synthetic body
installation position: any position, not upside down
product description: This high quality automatic-flange spheroidal graphite cast iron ball valve with electronic actuator (series S) with visual position indicator and emergency operating.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

automatic-flange ball valve DN80 - 3" inch EK04 24V

Article no. : EK04000010
product: automatic-flange ball valve
type: EK04
manufacturer: NieRuf
diameter: DN80 - 3" inch
connection: flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam: O-rings FKM
media: liquid and gaseous media
temperature: ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure: PN16
max. differentiel pressure: max. 7 bar
design: flange ball valve with actuator
body material: spheroidal graphite cast iron 5.3103
ball material: steel chrome plated 1.0503
ball seal: PTFE + GF
length: 180mm
actuator: electronic actuator S85 - series S 24-240V AC/DC
actuator informations: corrosion resistant synthetic body
installation position: any position, not upside down
product description: This high quality automatic-flange spheroidal graphite cast iron ball valve with electronic actuator (series S) with visual position indicator and emergency operating.
