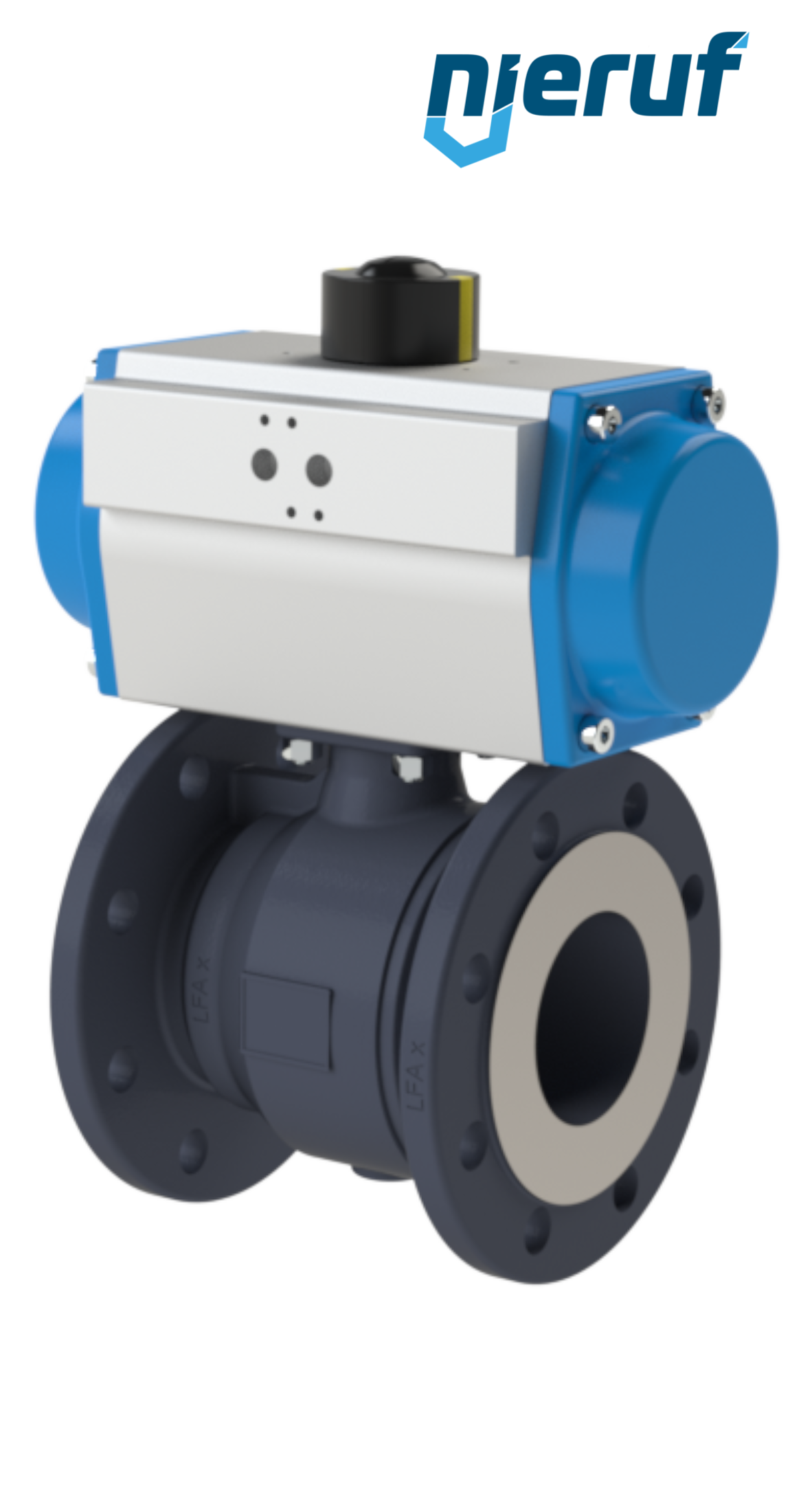

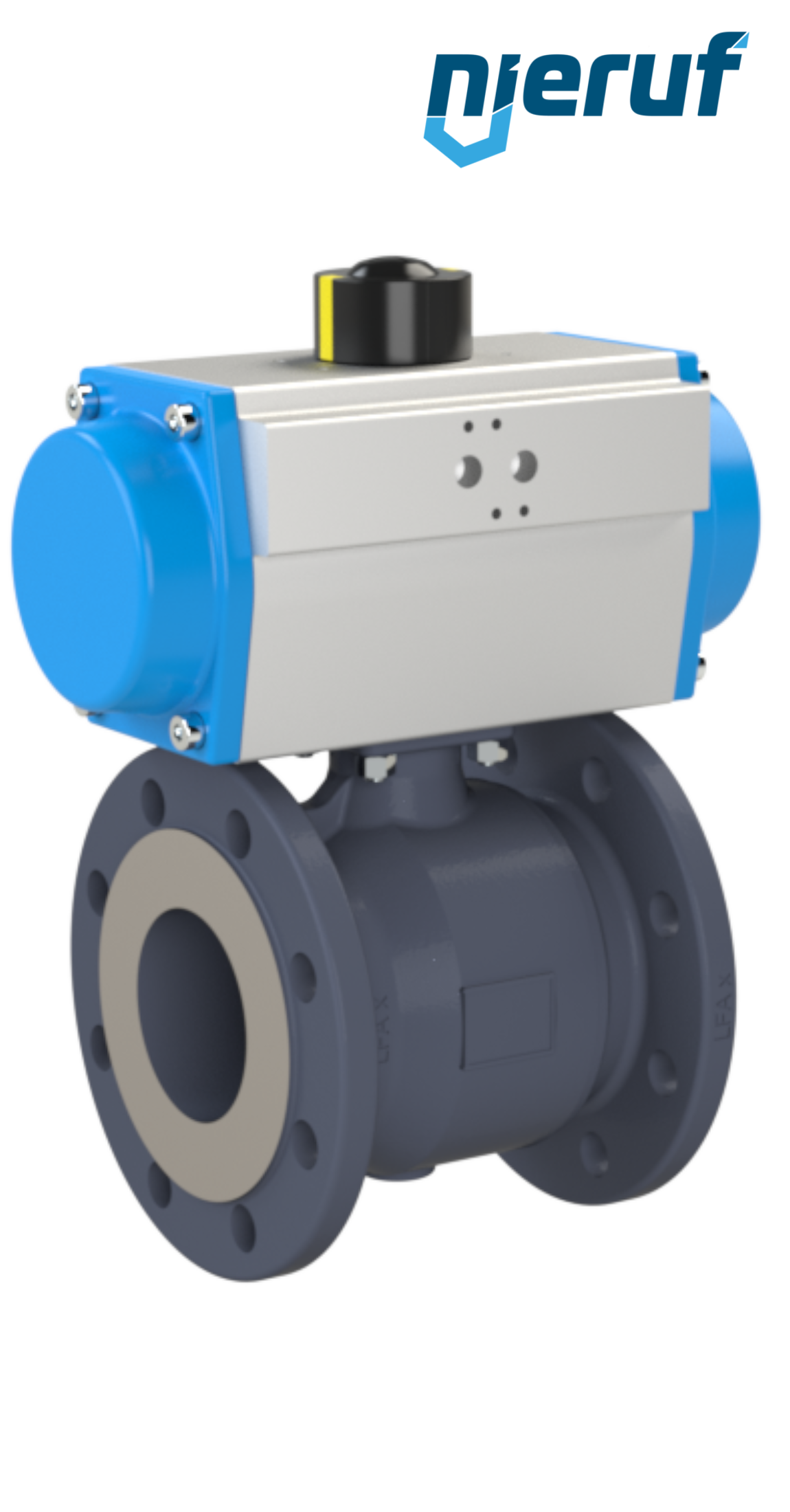

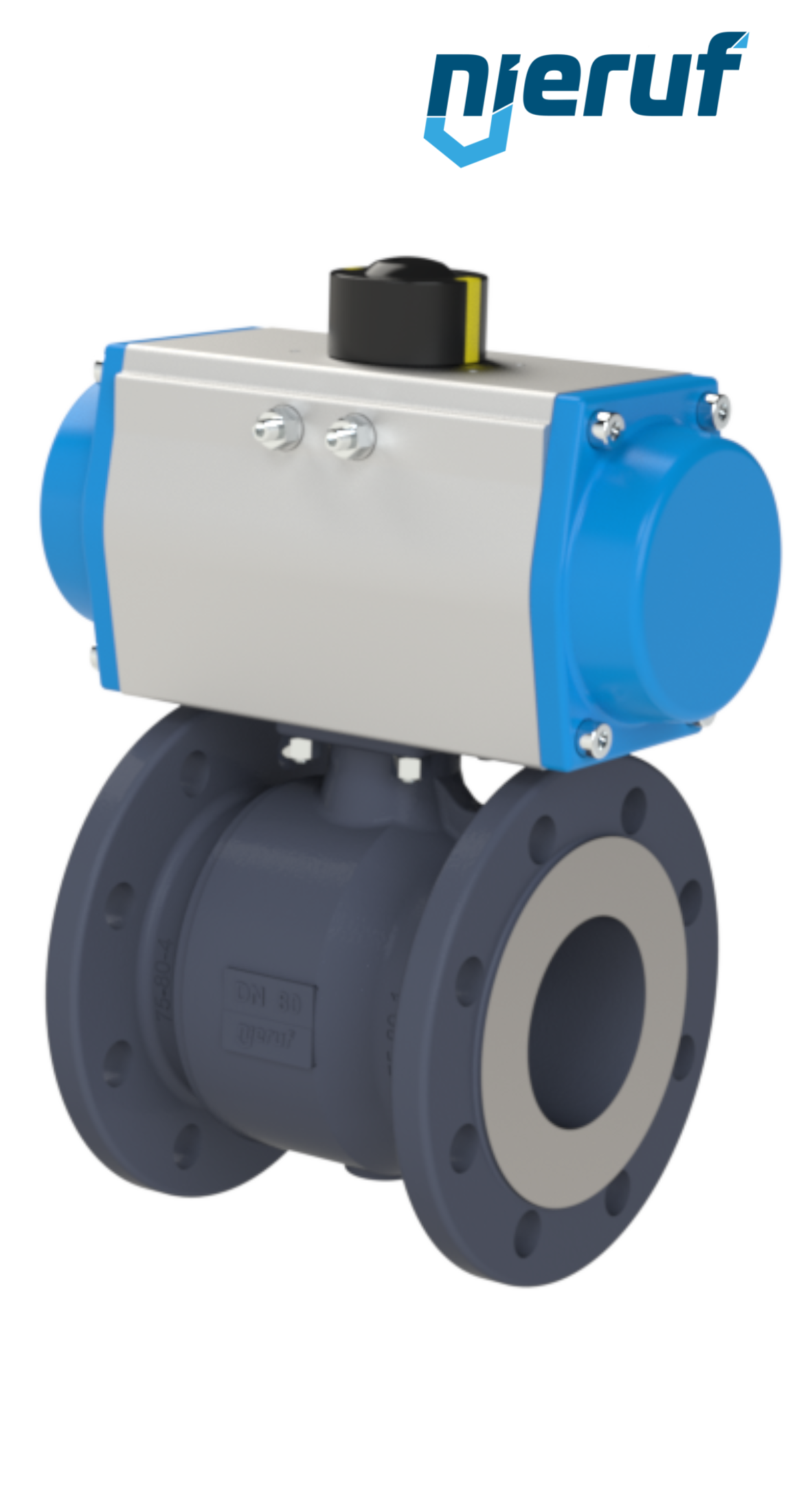

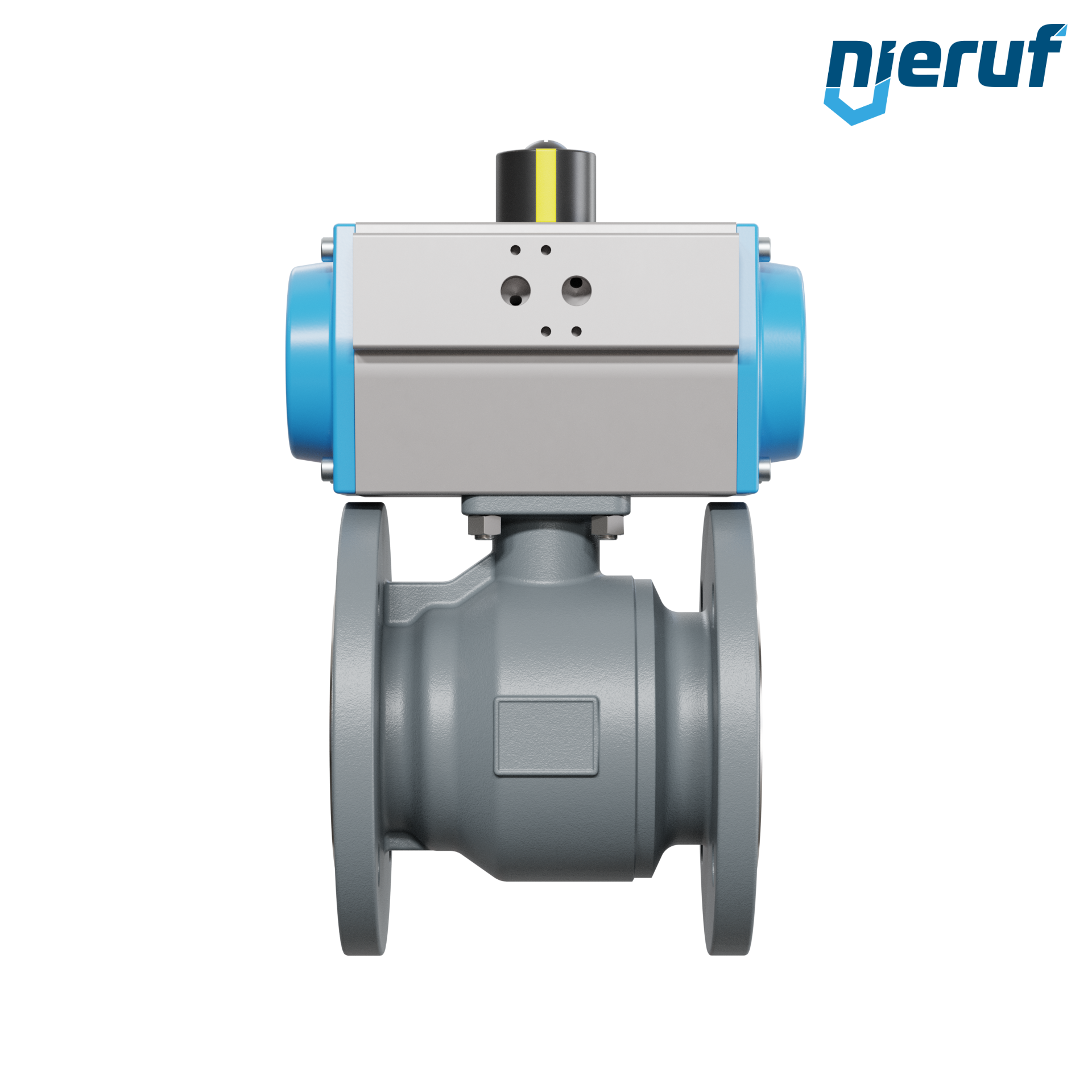

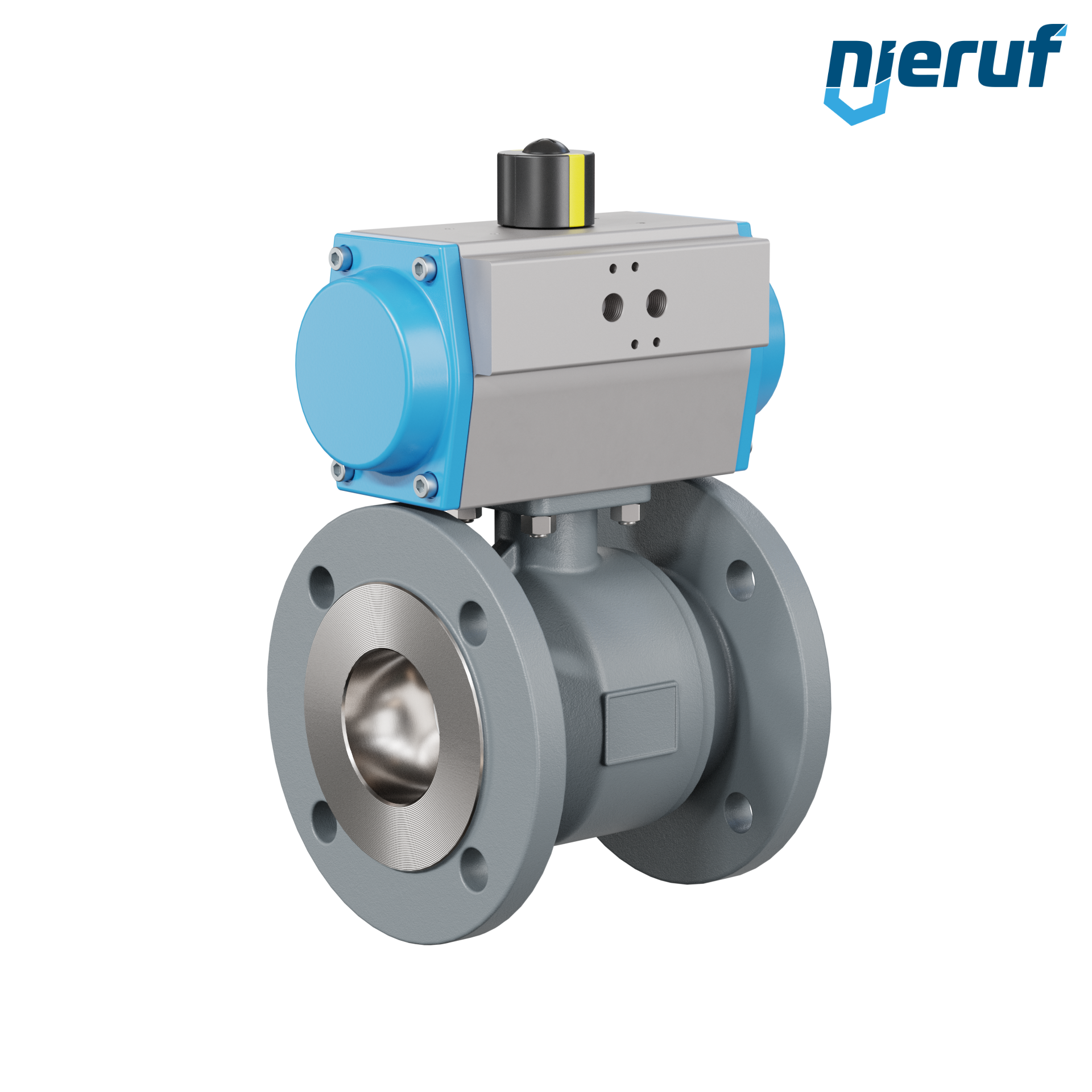

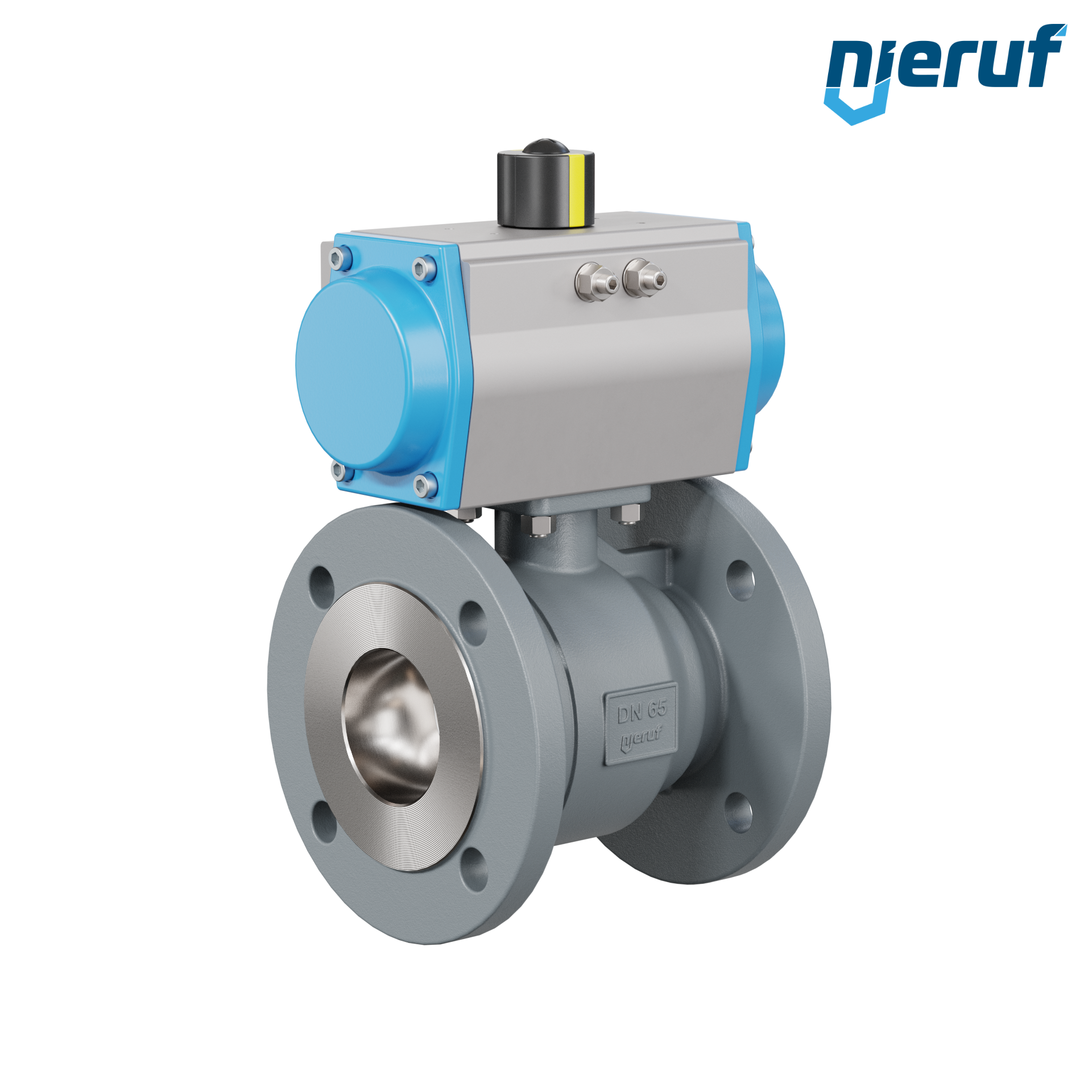

automatic-flange ball valve DN65 - 2 1/2" inch PK04 pneumatic actuator single acting

PK04010009
quantity (pcs.):
462.40€ * 536.38€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3-5 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
automatic-flange ball valve DN65 - 2 1/2" inch PK04 pneumatic actuator single acting
automatic-flange ball valve DN65 - 2 1/2" inch spheroidal cast iron GGG40 PK04 pneumatic actuator GTE98 made of aluminium (mode of function: GTE = single acting)
diameter: DN65 - 2 1/2" inch
connection: flange
Seal steam: Viton
media: liquid and gaseous media
temperature: ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 95°C
max. pressure: PN16
design: flange ball valve
body material: spheroidal cast iron GGG40
ball material: grey cast iron
ball seal: PTFE + GF
length: DIN EN 558-1 R14
actuator: pneumatic actuator GTE98 made of aluminium (mode of function: GTE = single acting)
actuator informations: Control pressure rate from 6 bar up to 10 bar / filtered air acc. to Pneurop / ISO class 4
product description: This high quality automatic-spheroidal graphite cast iron ball valves with pneumatic actuator (GTE = single acting) with direct mounting of magnetic valves per Namur is also possible. Operating media of the actuator is filtered and oiled air acc. to Pneurop - ISO class 4
automatic-flange ball valve DN65 - 2 1/2" inch PK04 pneumatic actuator single acting

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

automatic-flange ball valve DN65 - 2 1/2" inch PK04 pneumatic actuator single acting
