PK05010006

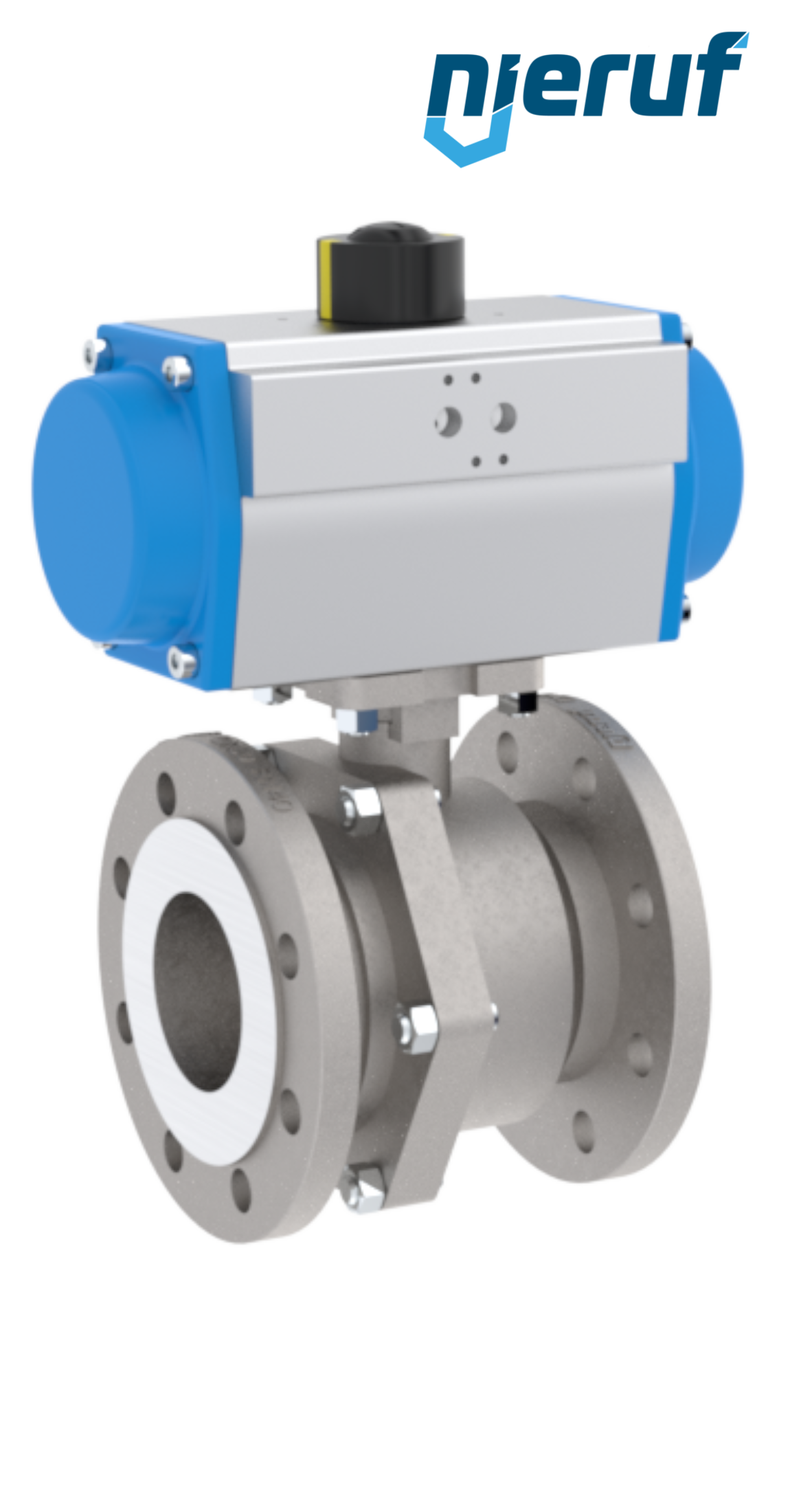

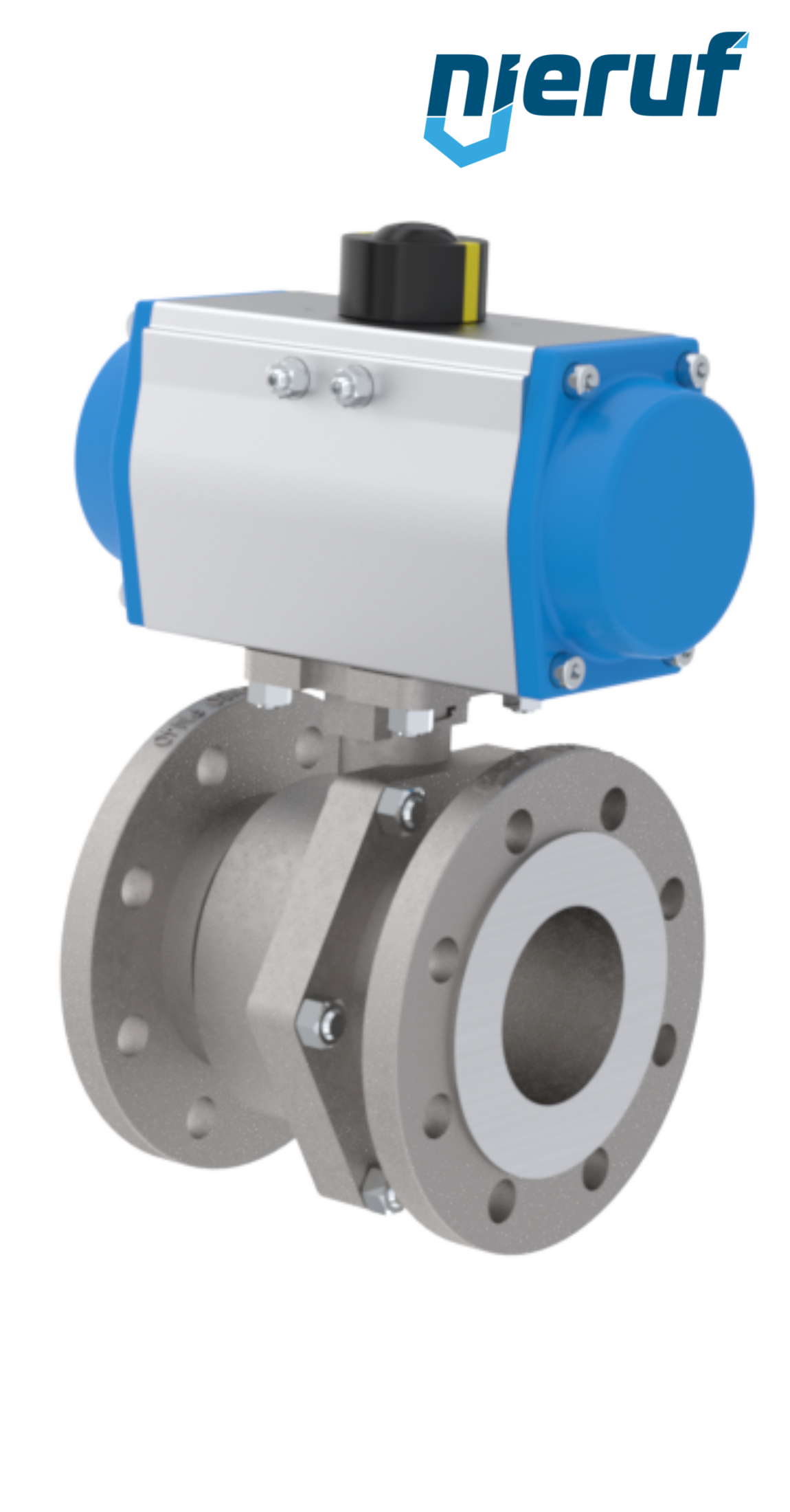

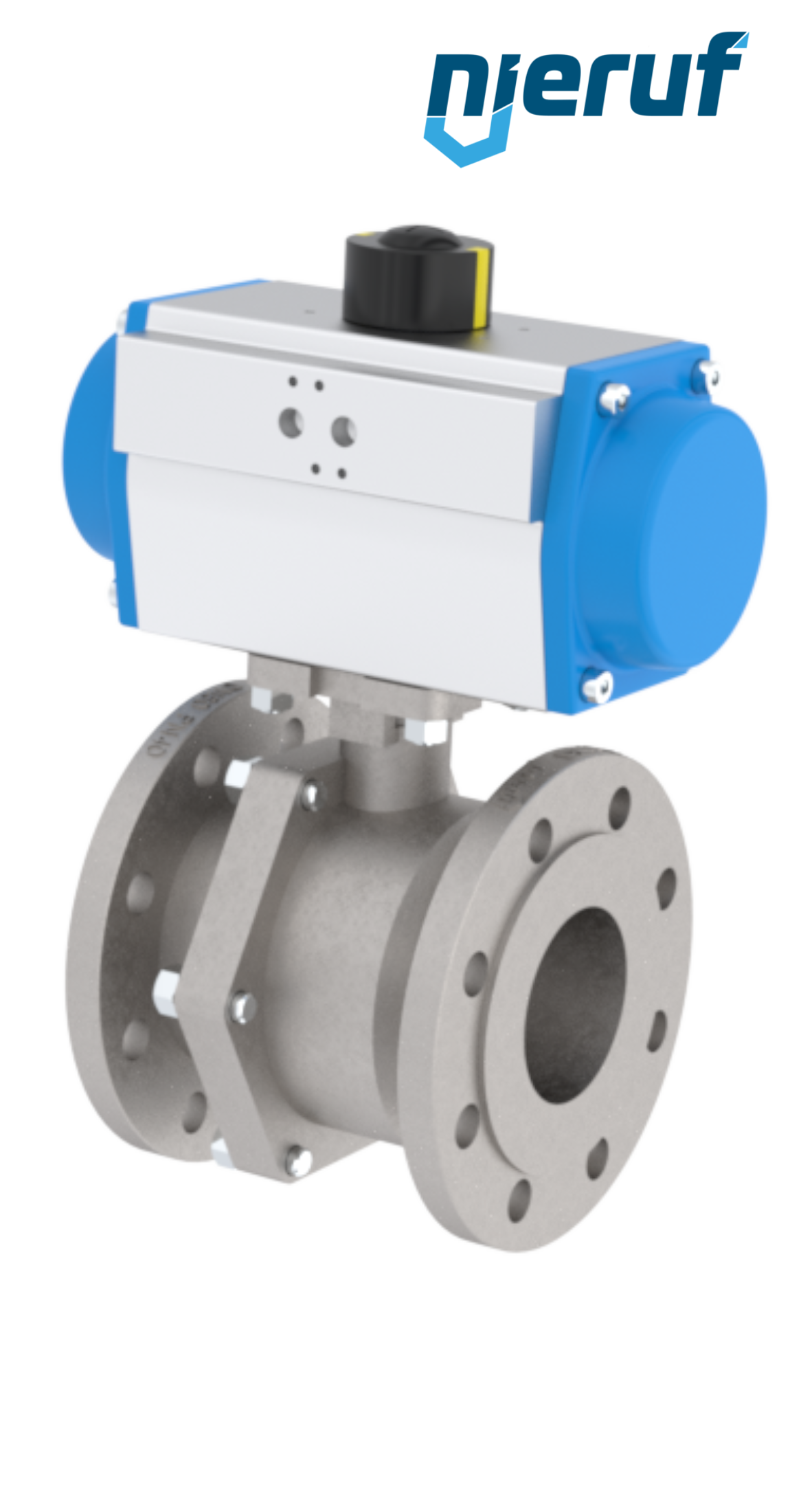

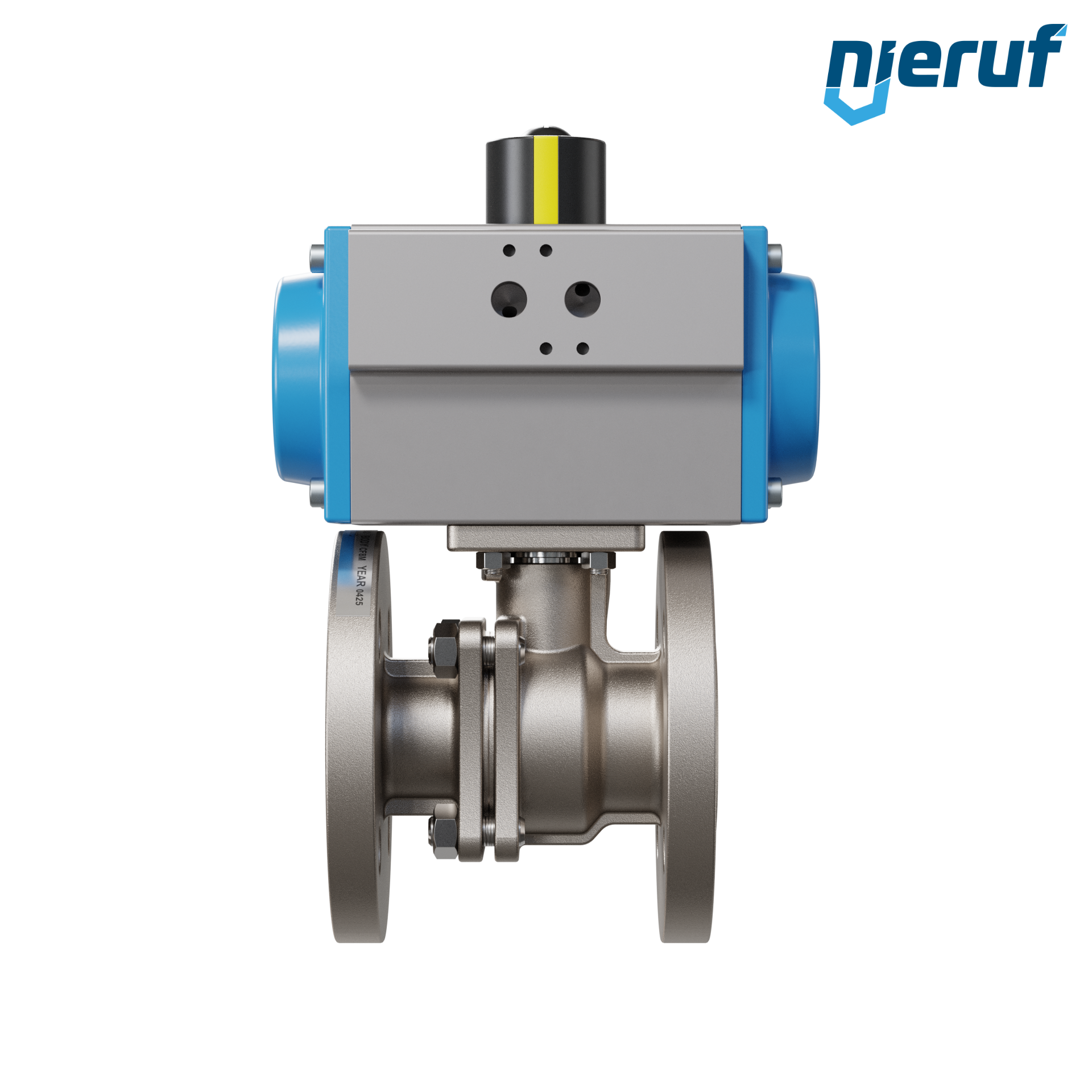

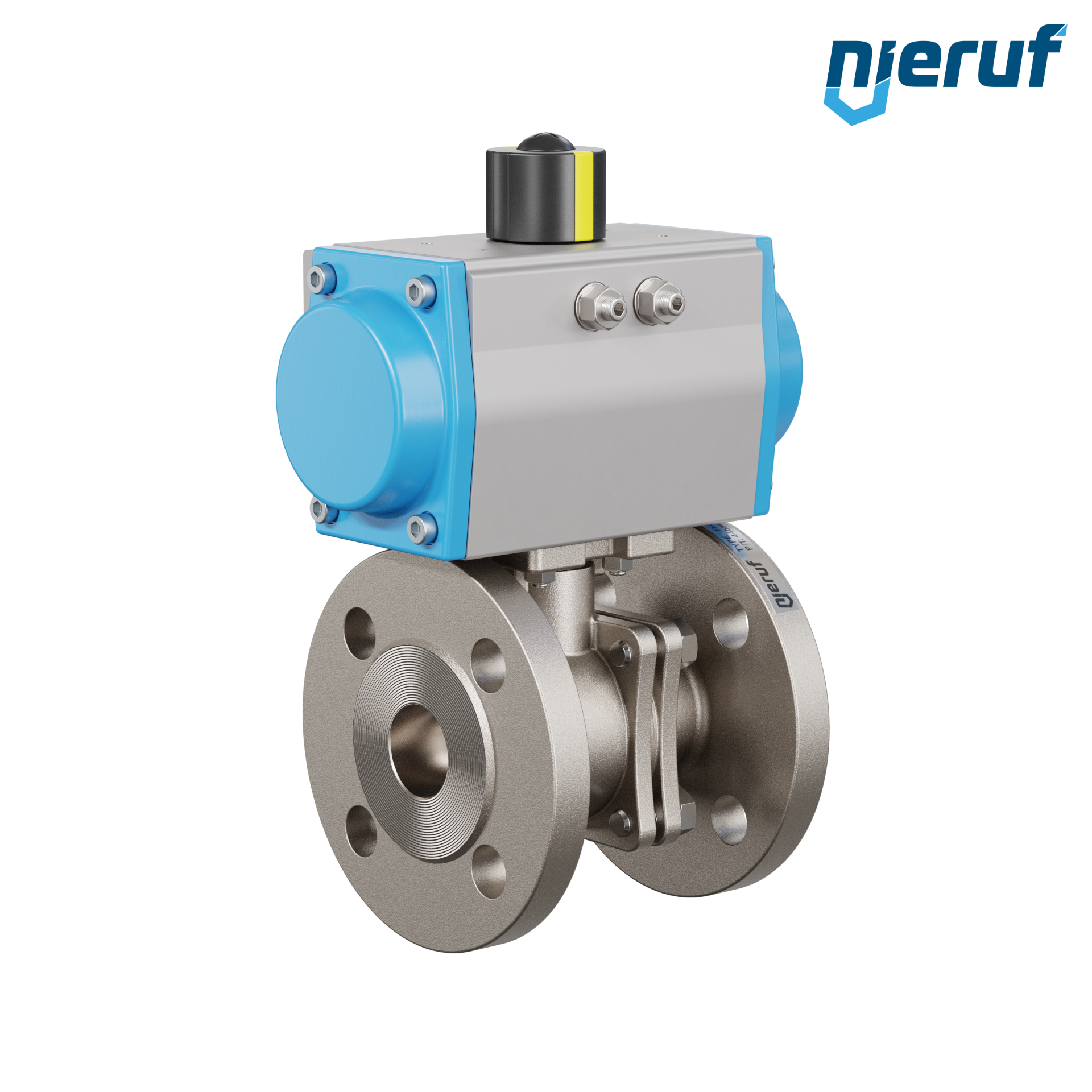

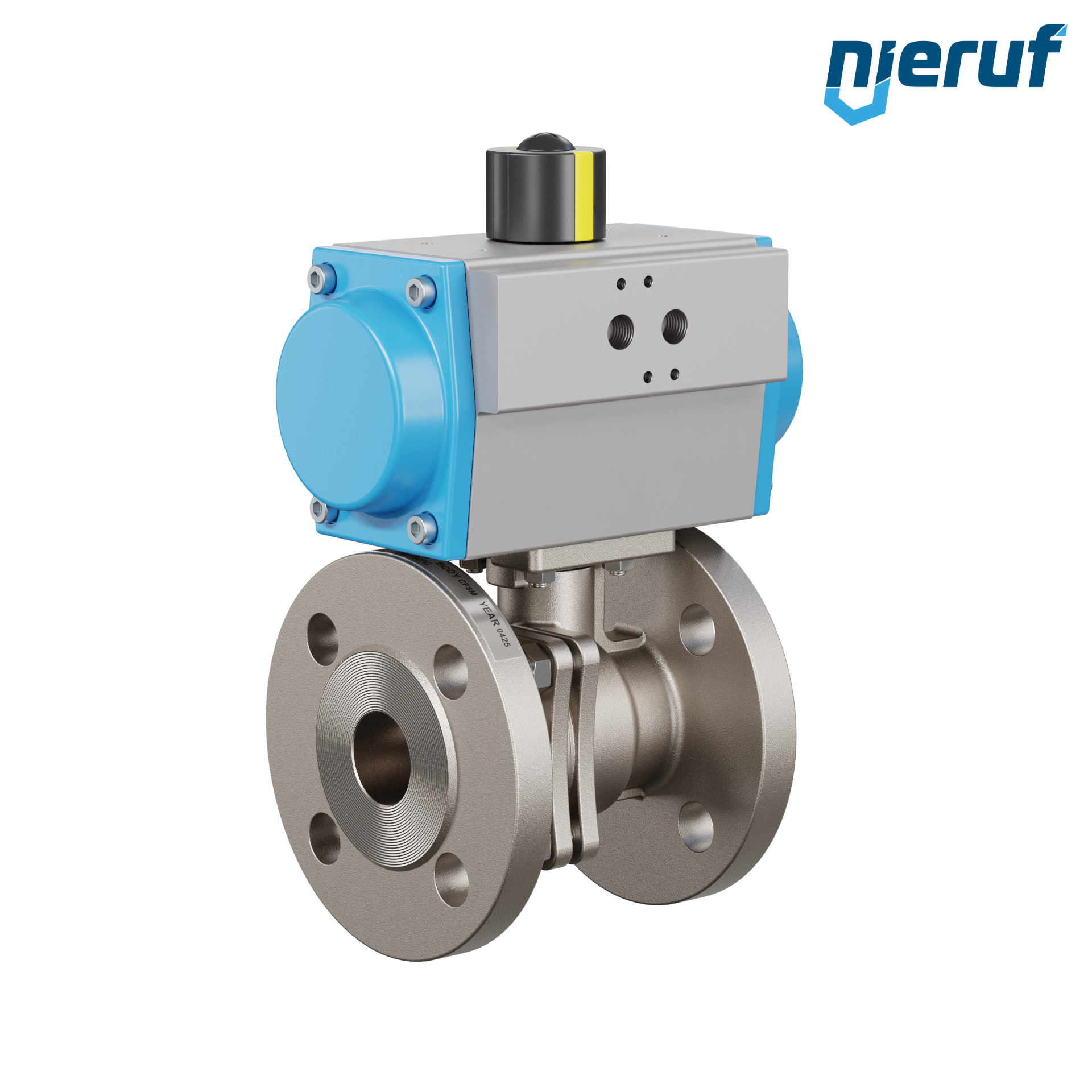

ball valve with actuator DN32 PK05 pneumatic actuator single acting

€436.10*

€518.96 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: in stock

Delivery information

Express delivery:

Shipping on: Monday, 01. April

Guaranteed delivery until Tuesday, 02. April, 12 o'clock

Order in within by express delivery


Equipment

FL01000106

Welding neck flange DN32 PN10/16/25/40 EN1092-1 11 B1 1.4541

€39.80*

€47.36 VAT included.


NA01010001

3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC

€40.00*

€47.60 VAT included.


PR02000000

Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black

€67.30*

€80.09 VAT included.


VS01000106

joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 stainless steel

€8.40*

€10.00 VAT included.


EF01000106

Straight male adaptor EF01 brass NBR G1/4" D6mm

€1.00*

€1.19 VAT included.


FD01000106

flange seal DN32 PN10/16/25/40 43x82x2 Klingersil C 4400

€2.10*

€2.50 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

Certified

Certified

Product number: PK05010006
ball valve with actuator DN32 PK05 pneumatic actuator single acting

ball valve with actuator DN32 stainless steel 1.4408 PK05 pneumatic actuator GS075 made of aluminium (mode of function: GS = single acting)

product: ball valve with actuator
type: PK05
manufacturer: NieRuf
diameter: DN32 - 1 1/4" inch
connection: flange dimensions acc. DIN EN 1092-1 PN 40
Seal steam: PTFE
media: liquid and gaseous media
temperature: ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure: PN40
design: flange ball valve with actuator
body material: stainless steel 1.4408
ball material: stainless steel 1.4401
ball seal: PTFE
length: DIN EN 558-1 L27
actuator: pneumatic actuator GS075 made of aluminium (mode of function: GS = single acting)
actuator informations: Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
product description: This high quality automatic-stainless steel flange ball valve with pneumatic actuator (GS = single acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball valve.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

ball valve with actuator DN32 PK05 pneumatic actuator single acting

Article no. : PK05010006
product: ball valve with actuator
type: PK05
manufacturer: NieRuf
diameter: DN32 - 1 1/4" inch
connection: flange dimensions acc. DIN EN 1092-1 PN 40
Seal steam: PTFE
media: liquid and gaseous media
temperature: ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure: PN40
design: flange ball valve with actuator
body material: stainless steel 1.4408
ball material: stainless steel 1.4401
ball seal: PTFE
length: DIN EN 558-1 L27
actuator: pneumatic actuator GS075 made of aluminium (mode of function: GS = single acting)
actuator informations: Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
product description: This high quality automatic-stainless steel flange ball valve with pneumatic actuator (GS = single acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball valve.
