PK04010006

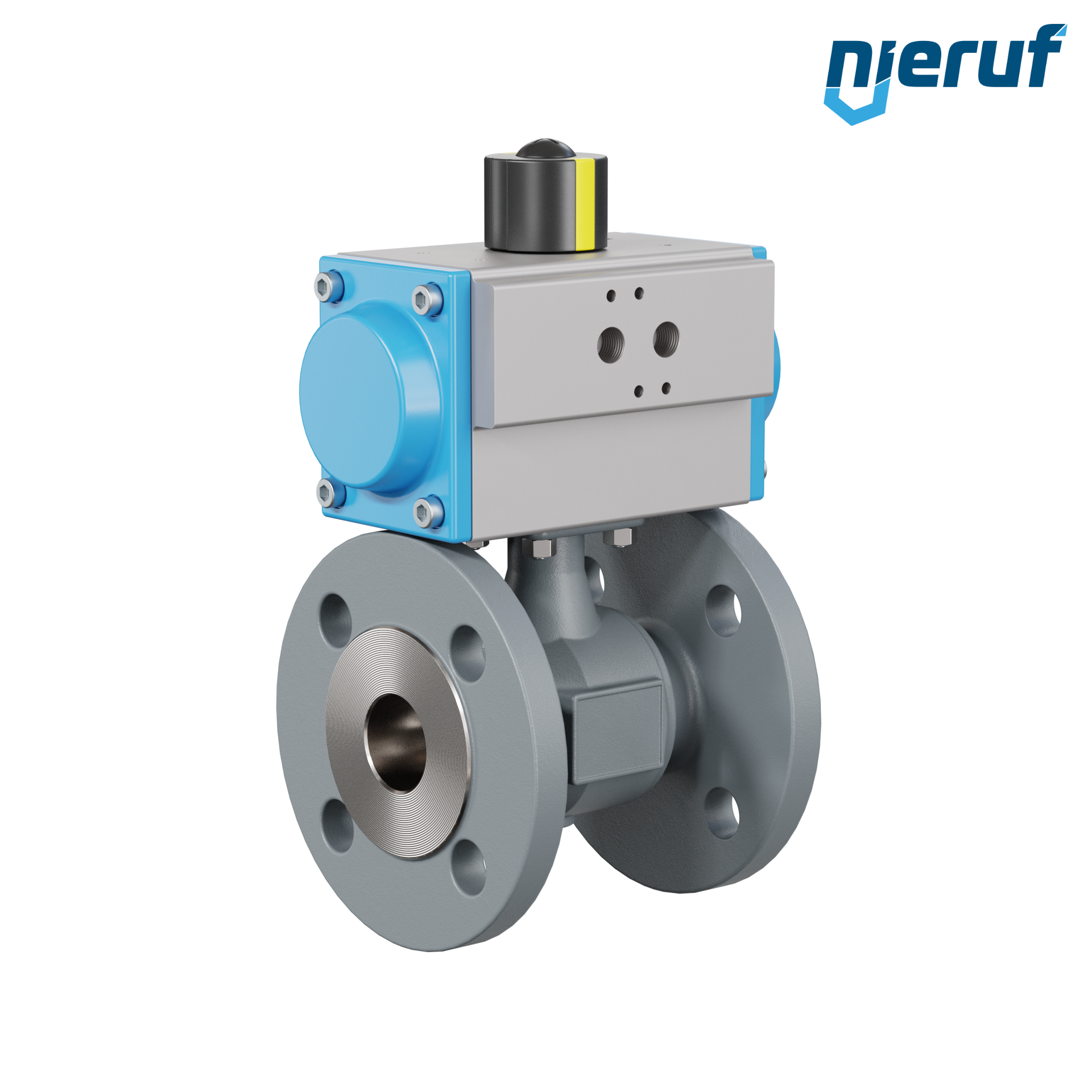

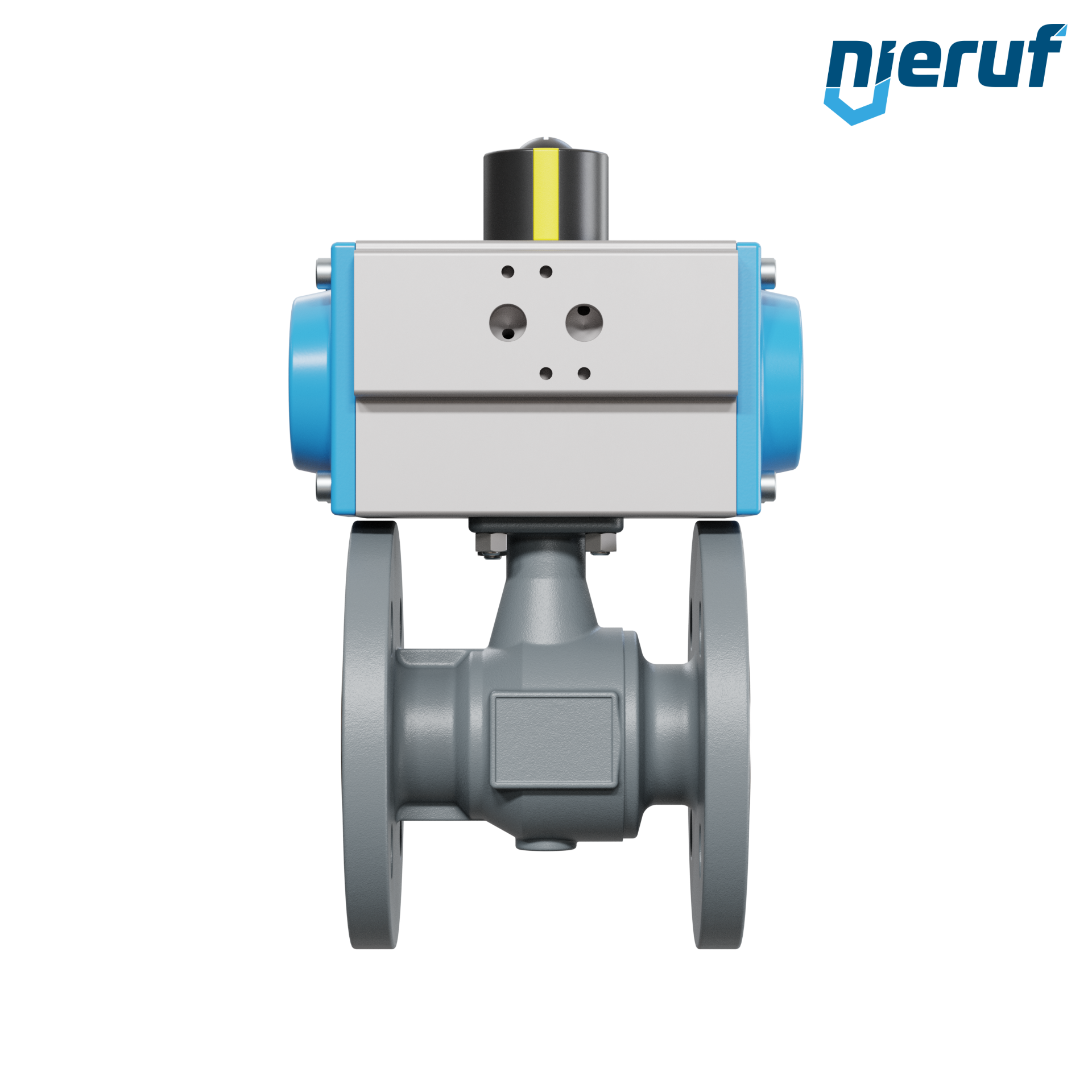

automatic-flange ball valve DN32 - 1 1/4" inch PK04 pneumatic actuator single acting

€326.00*

€387.94 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: 3 - 5 working days

Delivery information

Equipment

VS01010106

joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 steel

€6.80*

€8.09 VAT included.


NA01010001

3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC

€40.00*

€47.60 VAT included.


PR02000000

Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black

€67.30*

€80.09 VAT included.


FD01000106

flange seal DN32 PN10/16/25/40 43x82x2 Klingersil C 4400

€2.10*

€2.50 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

Certified

Certified

Product number: PK04010006
automatic-flange ball valve DN32 - 1 1/4" inch PK04 pneumatic actuator single acting

automatic-flange ball valve DN32 - 1 1/4" inch spheroidal cast iron GGG40 PK04 pneumatic actuator GS063 made of aluminium (mode of function: GS = single acting)

product: automatic-flange ball valve
type: PK04
manufacturer: NieRuf
diameter: DN32 - 1 1/4" inch
connection: flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam: Viton
media: liquid and gaseous media
temperature: ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure: PN16
max. differentiel pressure: 7 bar
design: flange ball valve with pneumatic actuator (single acting normally closed)
body material: spheroidal cast iron GGG40
ball material: chromed cast steel
ball seal: PTFE + GF
length: DIN EN 558-1 R14
actuator: pneumatic actuator GS063 made of aluminium (mode of function: GS = single acting - normally closed)
actuator informations: Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for: TA Luft
product description: This high quality automatic-spheroidal graphite cast iron ball valves with pneumatic actuator (GS = single acting) with direct mounting of magnetic valves per Namur is also possible. Operating media of the actuator is filtered and oiled air

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

automatic-flange ball valve DN32 - 1 1/4" inch PK04 pneumatic actuator single acting

Article no. : PK04010006
product: automatic-flange ball valve
type: PK04
manufacturer: NieRuf
diameter: DN32 - 1 1/4" inch
connection: flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam: Viton
media: liquid and gaseous media
temperature: ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure: PN16
max. differentiel pressure: 7 bar
design: flange ball valve with pneumatic actuator (single acting normally closed)
body material: spheroidal cast iron GGG40
ball material: chromed cast steel
ball seal: PTFE + GF
length: DIN EN 558-1 R14
actuator: pneumatic actuator GS063 made of aluminium (mode of function: GS = single acting - normally closed)
actuator informations: Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for: TA Luft
product description: This high quality automatic-spheroidal graphite cast iron ball valves with pneumatic actuator (GS = single acting) with direct mounting of magnetic valves per Namur is also possible. Operating media of the actuator is filtered and oiled air
