PK05000005
ball valve with actuator DN25 PK05 pneumatic actuator double acting
- Lead time
- 3 - 5 working days
Equipment
joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 stainless steel
€4.28 VAT included.
5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 24V DC
€54.98 VAT included.
flange seal DN25 PN10/16/25/40 34x71x2 Klingersil C 4400
€4.88 VAT included.
Positioner PS01 for pneumatic actuators double acting air volume less than 5 l
€929.51 VAT included.
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
€86.99 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

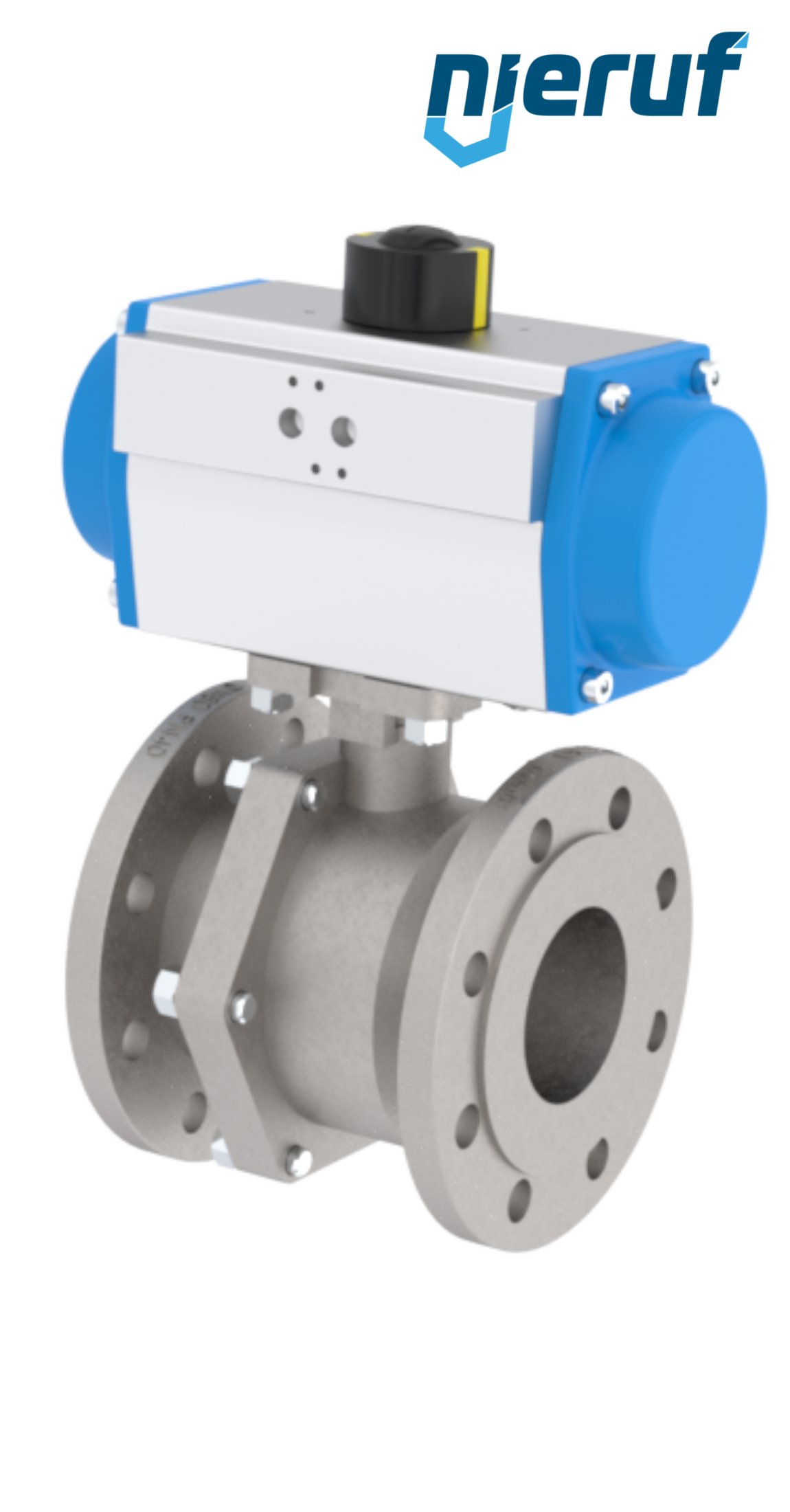

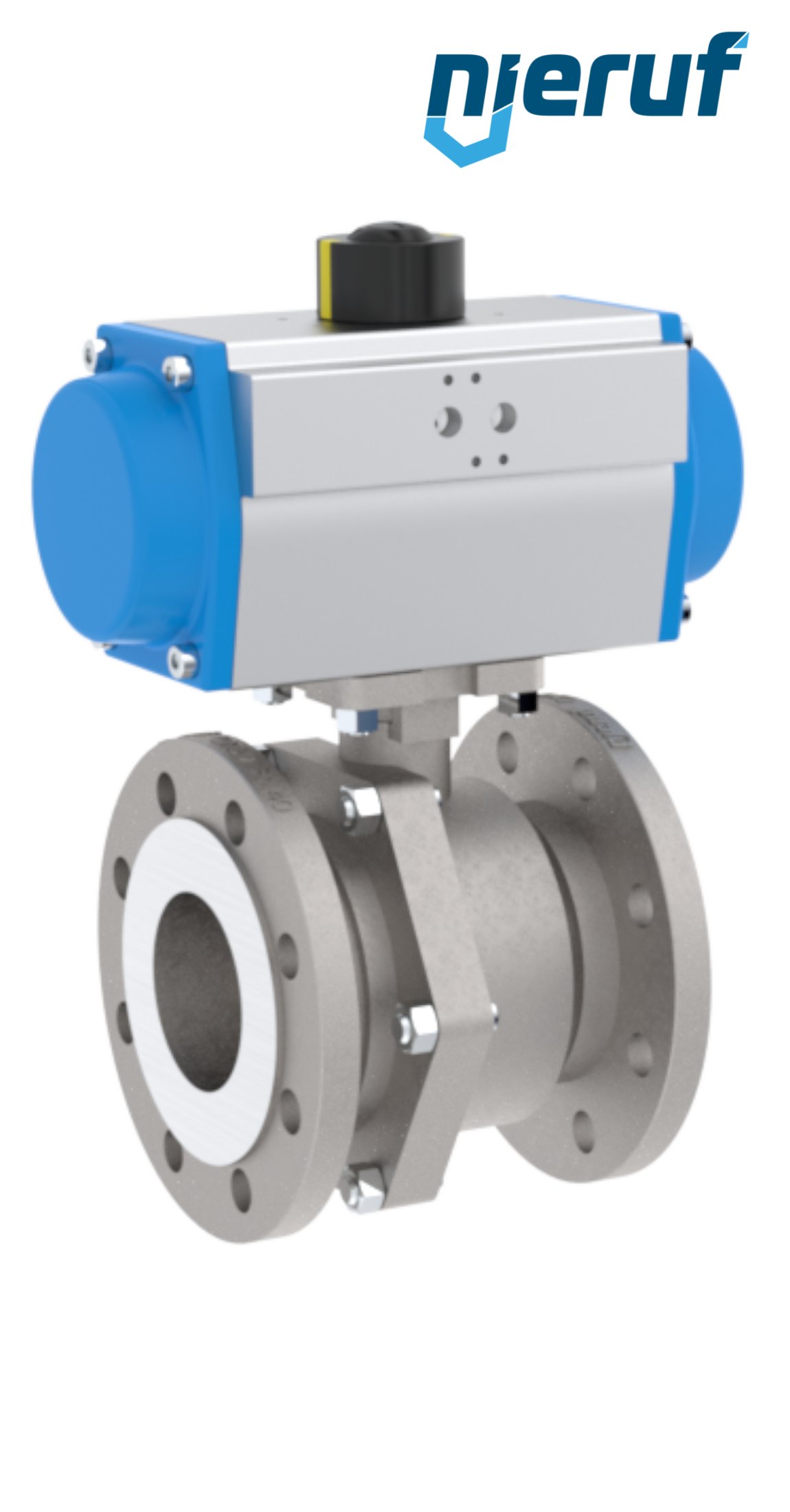

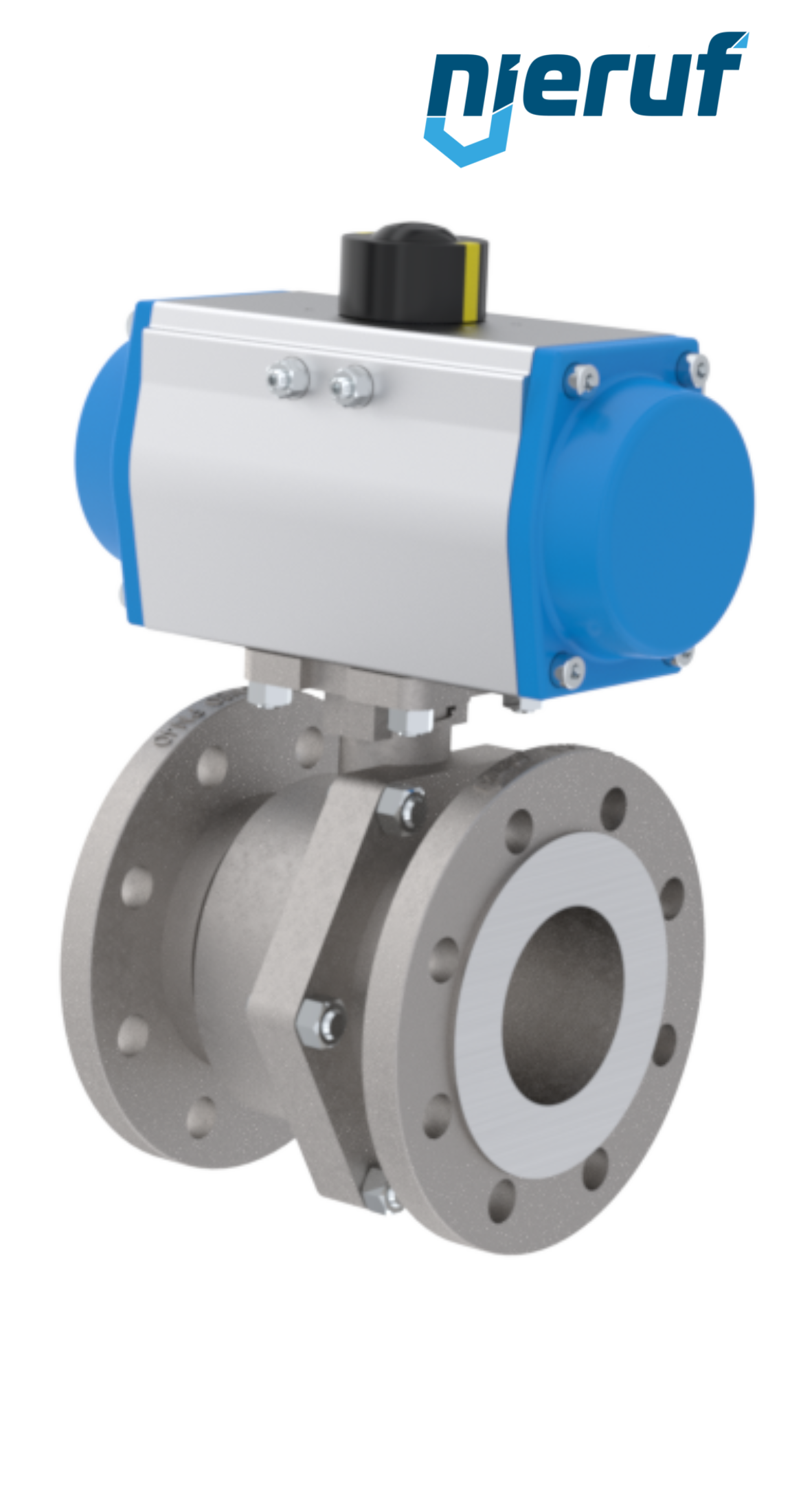

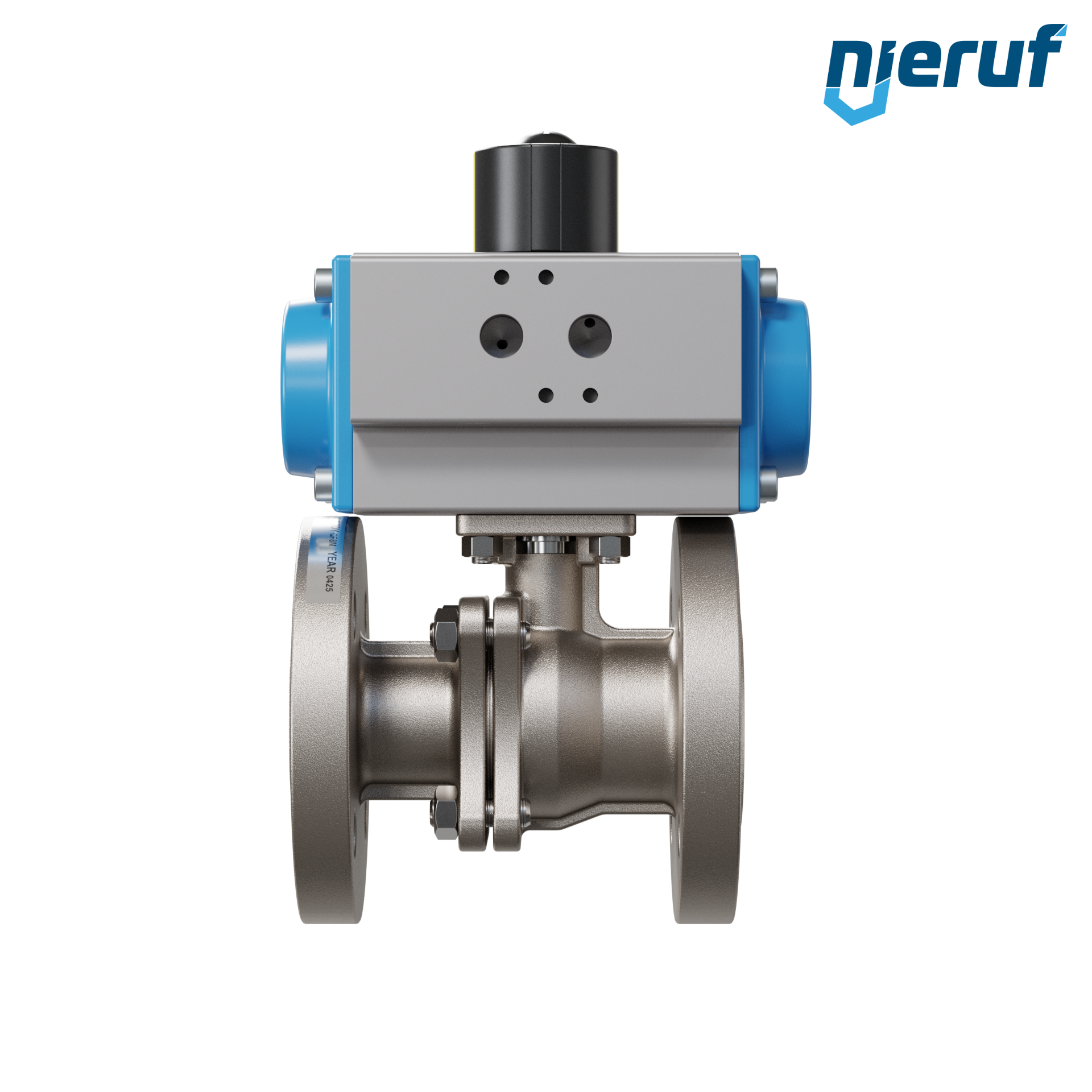

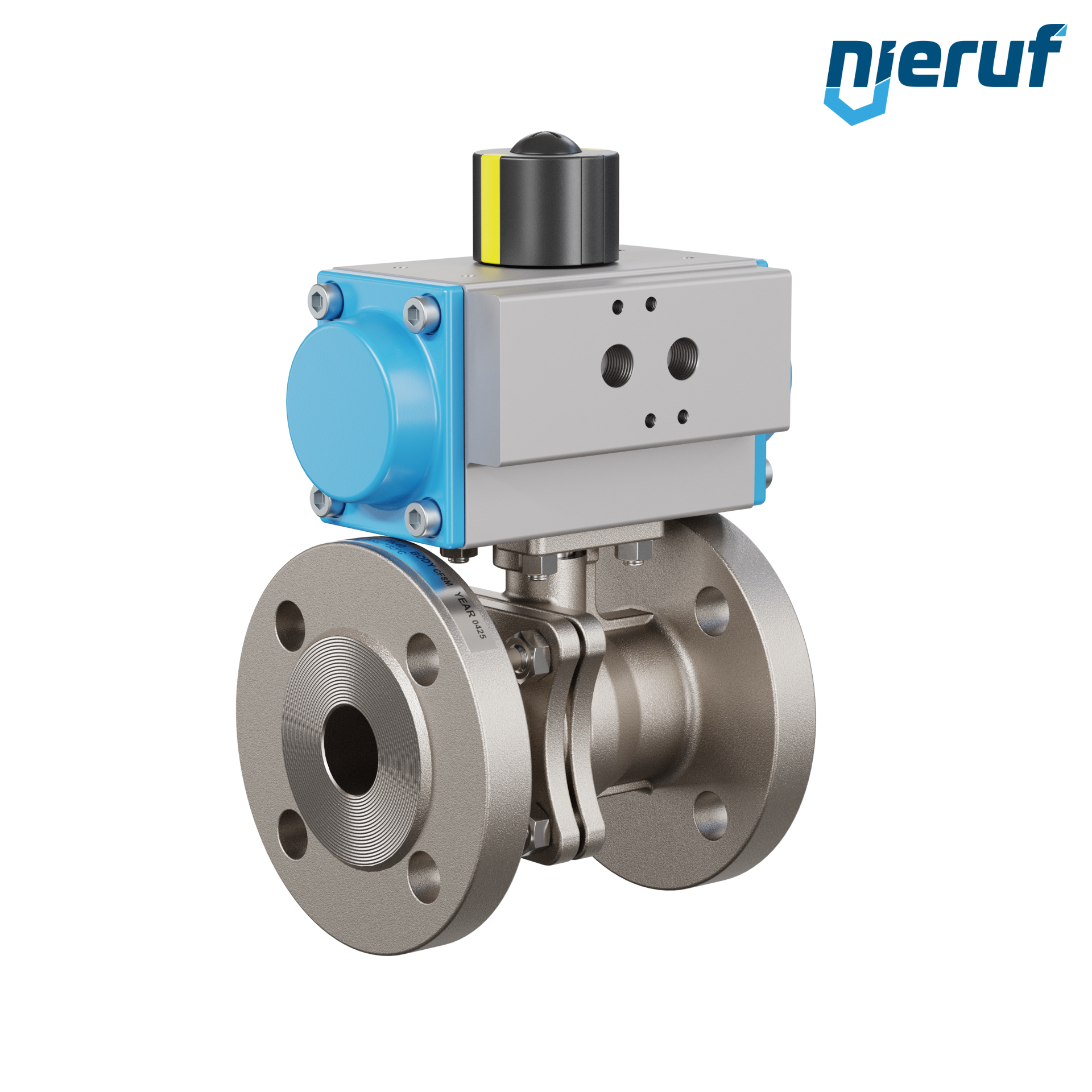

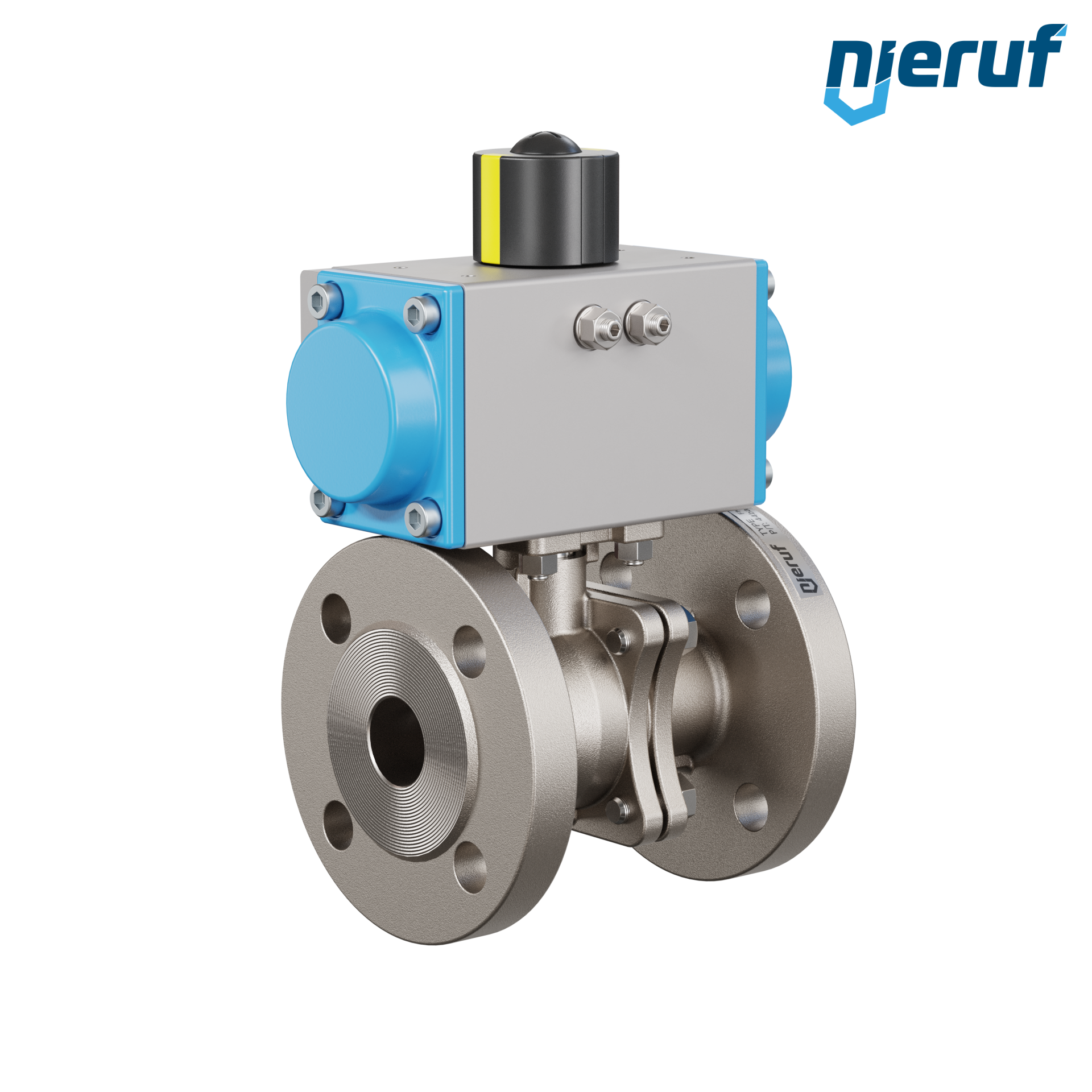

ball valve with actuator DN25 PK05 pneumatic actuator double acting
ball valve with actuator DN25 stainless steel 1.4408 PK05 pneumatic actuator GD052 made of aluminium (mode of function: GD = double acting)
| product | ball valve with actuator |
|---|---|
| type | PK05 |
| manufacturer | NieRuf |
| diameter | DN25 - 1" inch |
| connection | flange dimensions acc. DIN EN 1092-1 PN 40 |
| Seal steam | PTFE |
| media | liquid and gaseous media |
| temperature | ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C |
| max. pressure | PN40 |
| design | flange ball valve with pneumatic actuator (double acting) |
| body material | stainless steel 1.4408 |
| ball material | stainless steel 1.4401 |
| ball seal | PTFE |
| length | DIN EN 558-1 L27 |
| actuator | pneumatic actuator GD052 made of aluminium (mode of function: GD = double acting) |
| actuator informations | Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010 |
| product description | This high quality automatic-stainless steel flange ball valve with pneumatic actuator (GD = double acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball-valve. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
ball valve with actuator DN25 PK05 pneumatic actuator double acting
Article no.
: PK05000005
product:
ball valve with actuator
type:
PK05
manufacturer:
NieRuf
diameter:
DN25 - 1" inch
connection:
flange dimensions acc. DIN EN 1092-1 PN 40
Seal steam:
PTFE
media:
liquid and gaseous media
temperature:
ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure:
PN40
design:
flange ball valve with pneumatic actuator (double acting)
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4401
ball seal:
PTFE
length:
DIN EN 558-1 L27
actuator:
pneumatic actuator GD052 made of aluminium (mode of function: GD = double acting)
actuator informations:
Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
product description:
This high quality automatic-stainless steel flange ball valve with pneumatic actuator (GD = double acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball-valve.
Equipment
Welding neck flange DN25 PN10/16/25/40 EN1092-1 11 B1 1.4541
Lead time: 3 - 5 working days
5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 24V DC
Lead time: in stock
flange seal DN25 PN10/16/25/40 34x71x2 Klingersil C 4400
Lead time: in stock
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
Lead time: in stock
rotary elbow male adaptor parallel EF07 brass NBR G1/4" D6mm
Lead time: in stock
joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 stainless steel
Lead time: in stock
Positioner PS01 for pneumatic actuators double acting with safety function air volume less than 5 l
Lead time: 2 - 3 weeks
