PK05000011

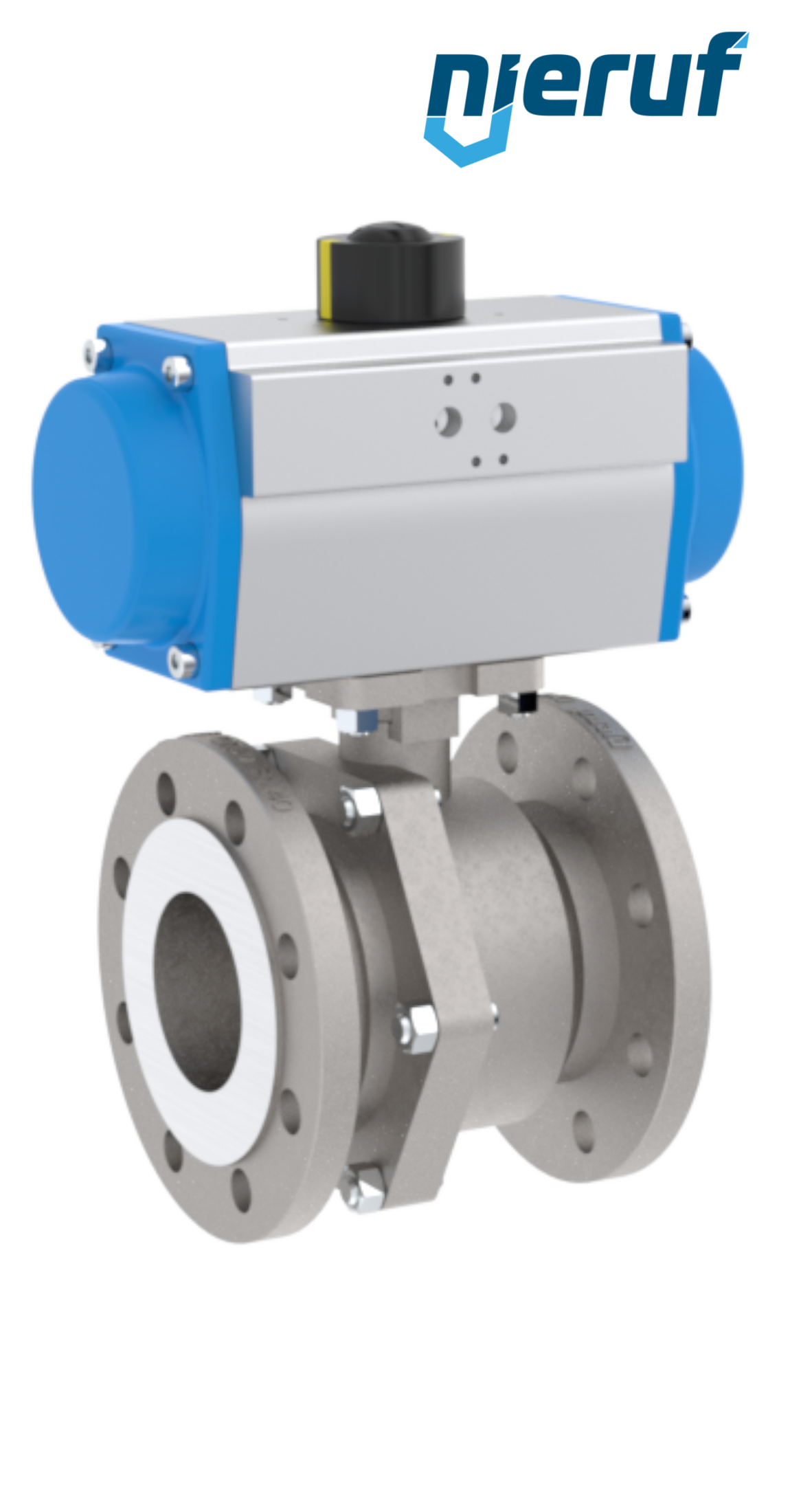

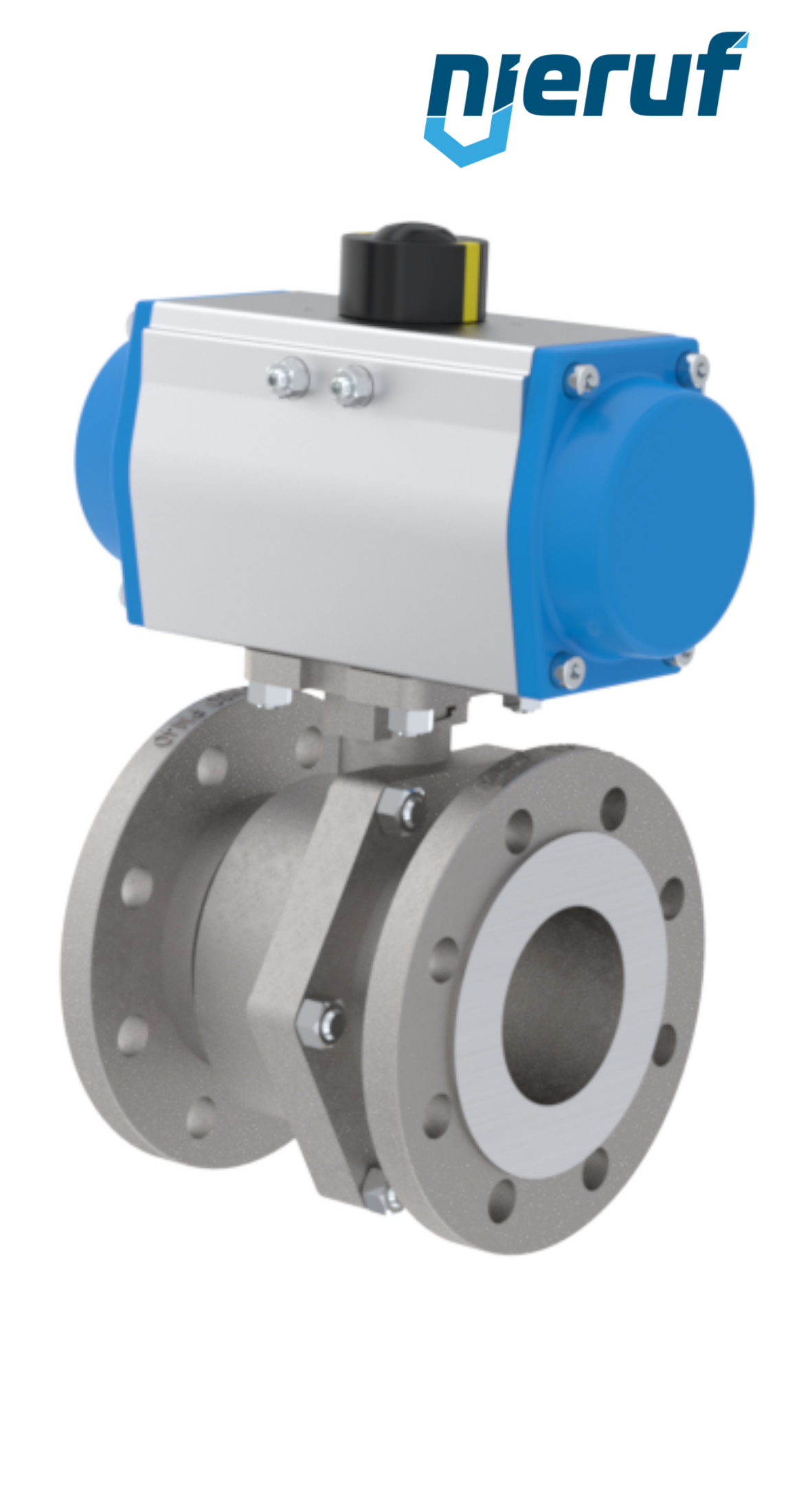

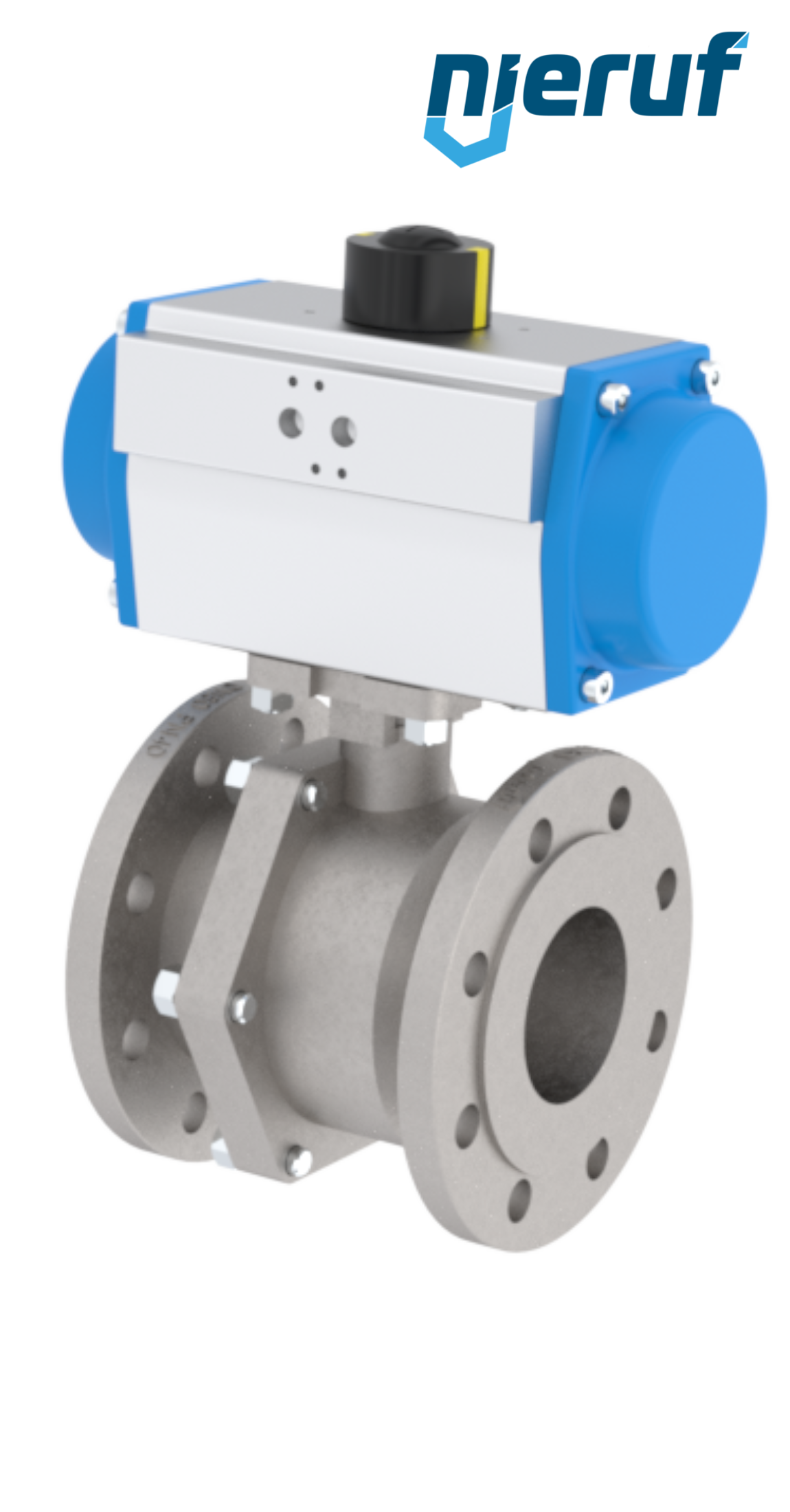

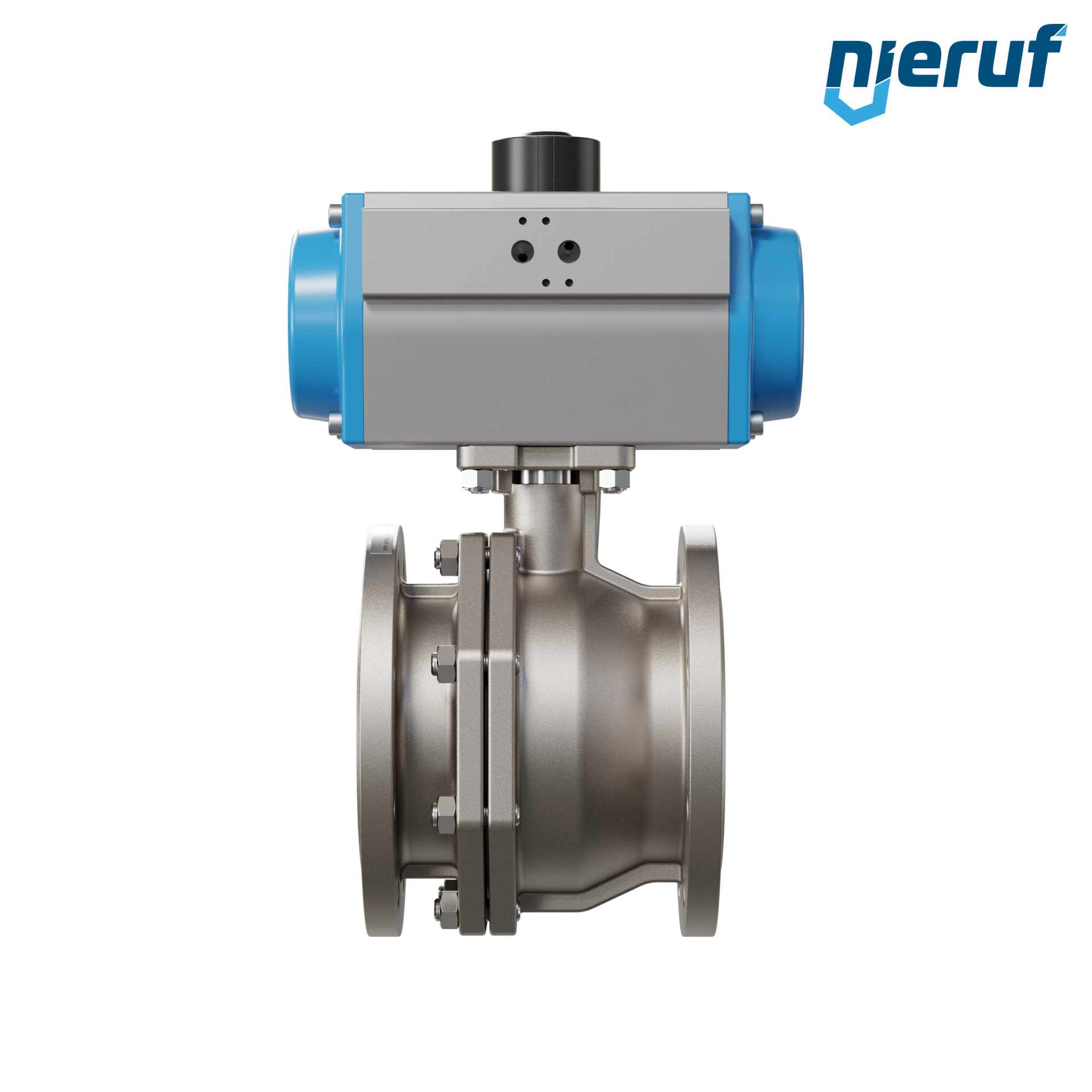

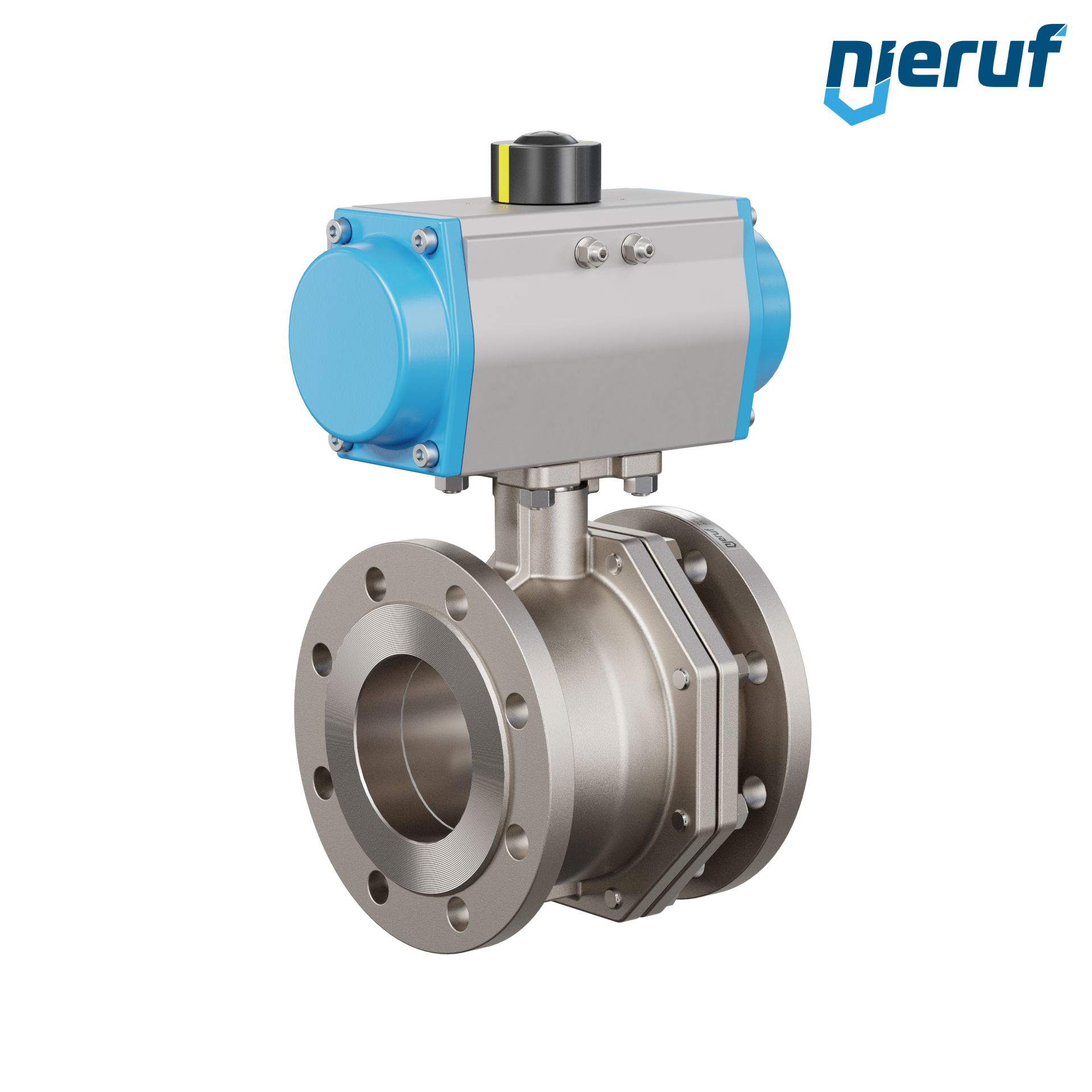

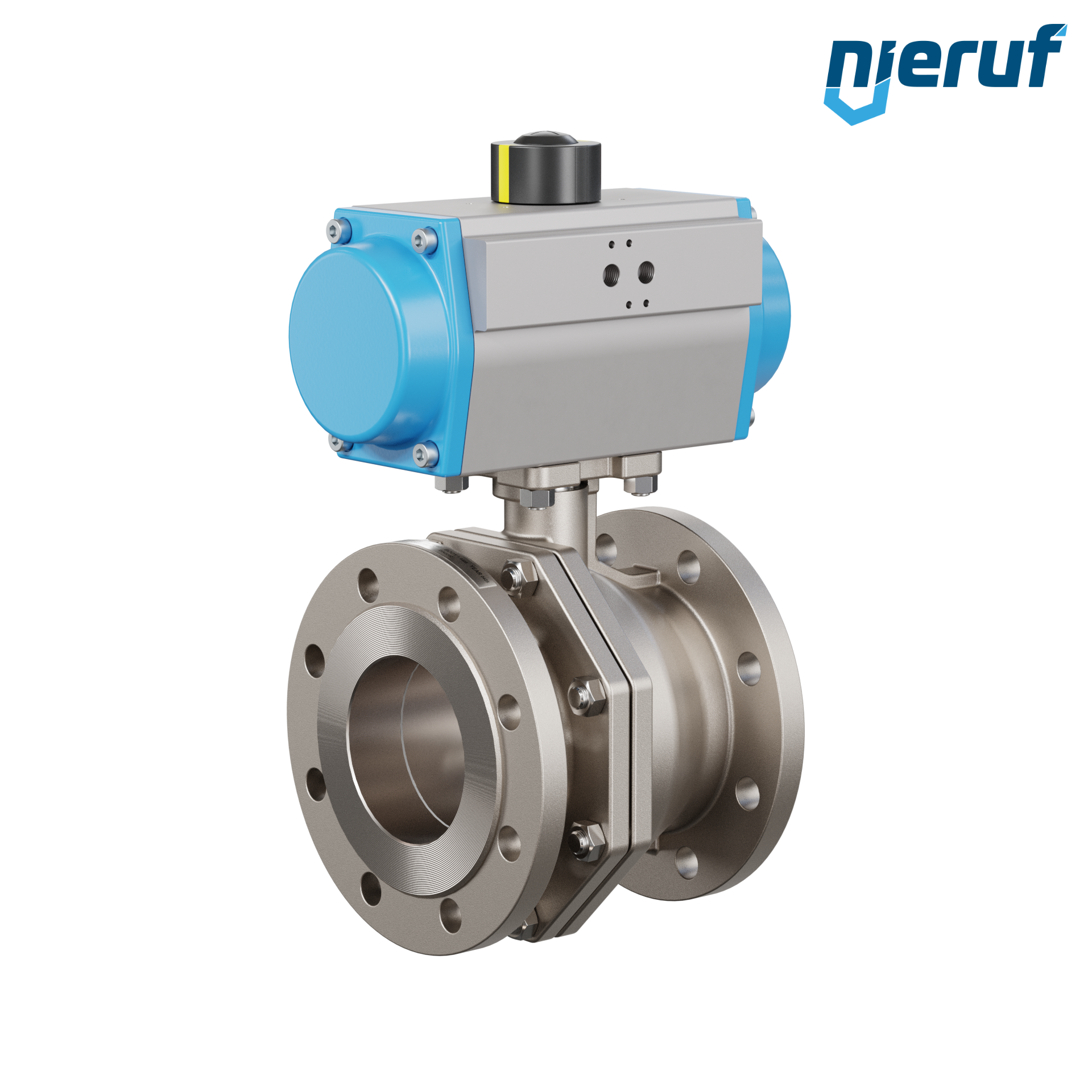

ball valve with actuator DN100 PK05 pneumatic actuator double acting

€1,308.00*

€1,556.52 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: 3 - 5 working days

Delivery information

Equipment

NA02010001

5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 24V DC

€40.00*

€47.60 VAT included.


PR02000000

Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black

€67.30*

€80.09 VAT included.


VS01000111

joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 stainless steel

€16.80*

€19.99 VAT included.


FD01000111

flange seal DN100 PN10/16 115x162x2 Klingersil C 4400

€4.50*

€5.36 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: PK05000011
ball valve with actuator DN100 PK05 pneumatic actuator double acting

ball valve with actuator DN100 stainless steel 1.4408 PK05 pneumatic actuator GD105 made of aluminium (mode of function: GD = double acting)

product: ball valve with actuator
type: PK05
manufacturer: NieRuf
diameter: DN100 - 4" inch
connection: flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam: PTFE
media: liquid and gaseous media
temperature: ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure: PN16
design: flange ball valve with pneumatic actuator (double acting)
body material: stainless steel 1.4408
ball material: stainless steel 1.4401
ball seal: PTFE
length: DIN EN 558-1 L27
actuator: pneumatic actuator GD105 made of aluminium (mode of function: GD = double acting)
actuator informations: Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
product description: This high quality automatic-stainless steel flange ball valve with pneumatic actuator (GD = double acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball-valve.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

ball valve with actuator DN100 PK05 pneumatic actuator double acting

Article no. : PK05000011
product: ball valve with actuator
type: PK05
manufacturer: NieRuf
diameter: DN100 - 4" inch
connection: flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam: PTFE
media: liquid and gaseous media
temperature: ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure: PN16
design: flange ball valve with pneumatic actuator (double acting)
body material: stainless steel 1.4408
ball material: stainless steel 1.4401
ball seal: PTFE
length: DIN EN 558-1 L27
actuator: pneumatic actuator GD105 made of aluminium (mode of function: GD = double acting)
actuator informations: Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
product description: This high quality automatic-stainless steel flange ball valve with pneumatic actuator (GD = double acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball-valve.

No spare parts were found for the item number .
