EK05000011

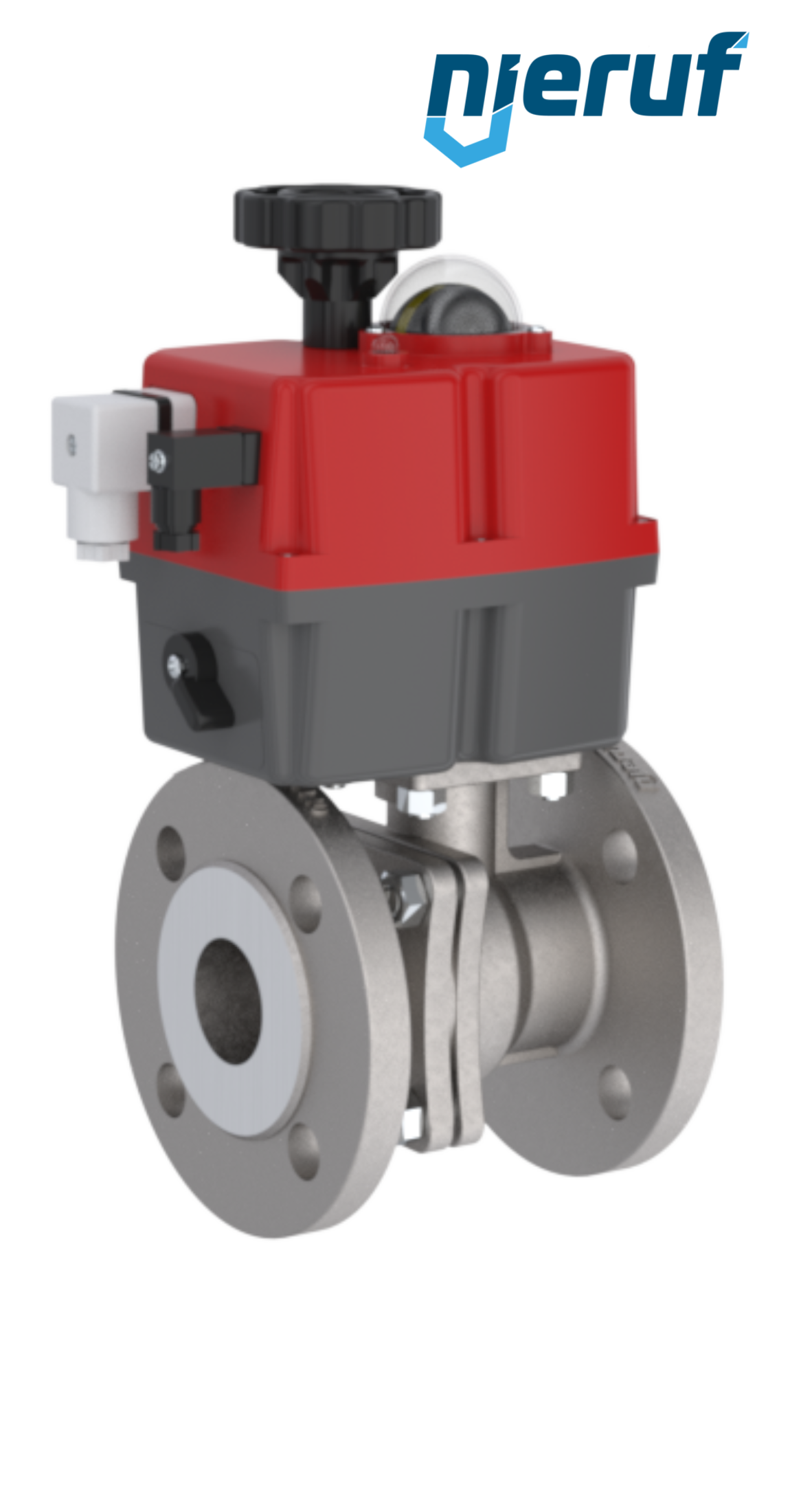

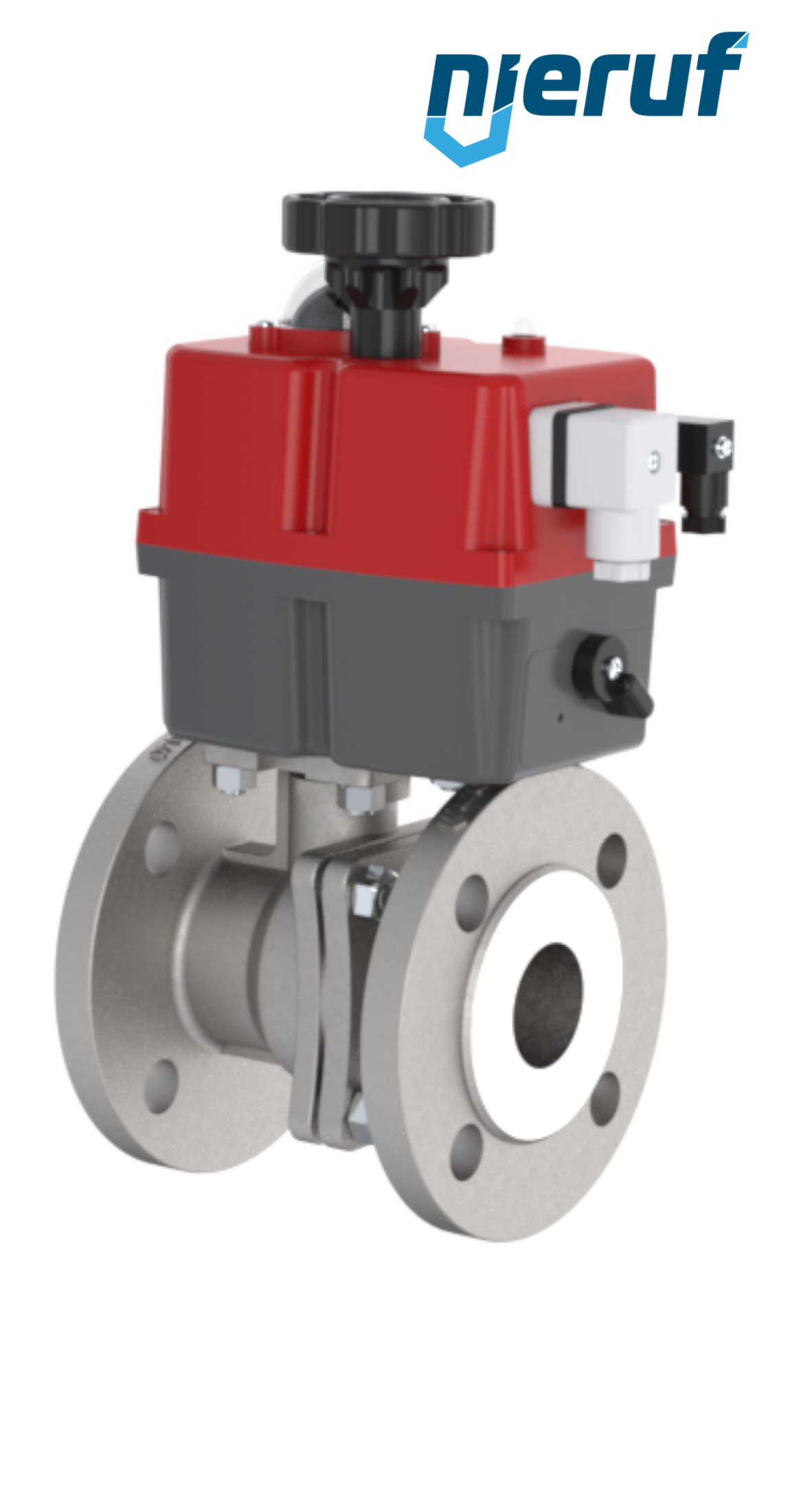

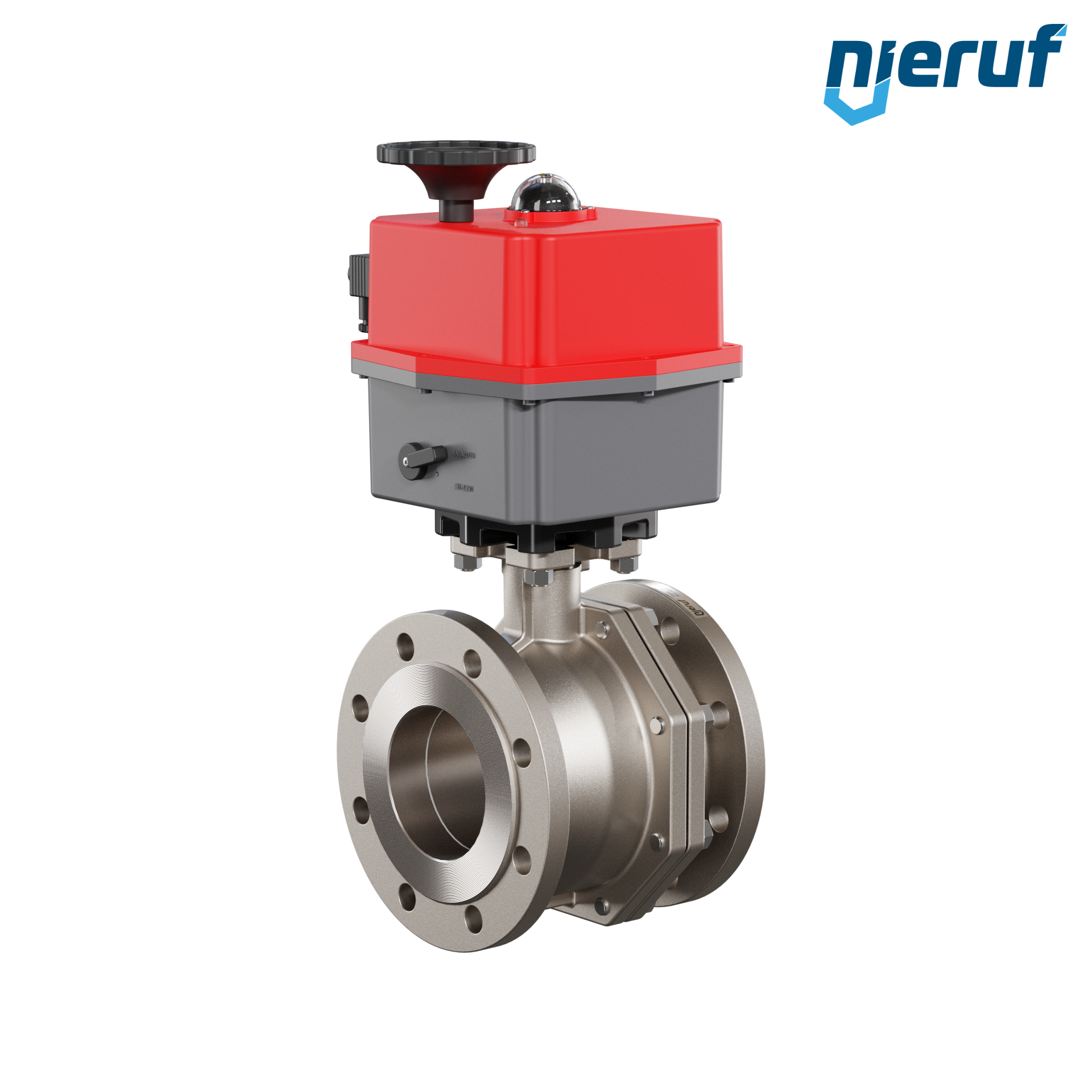

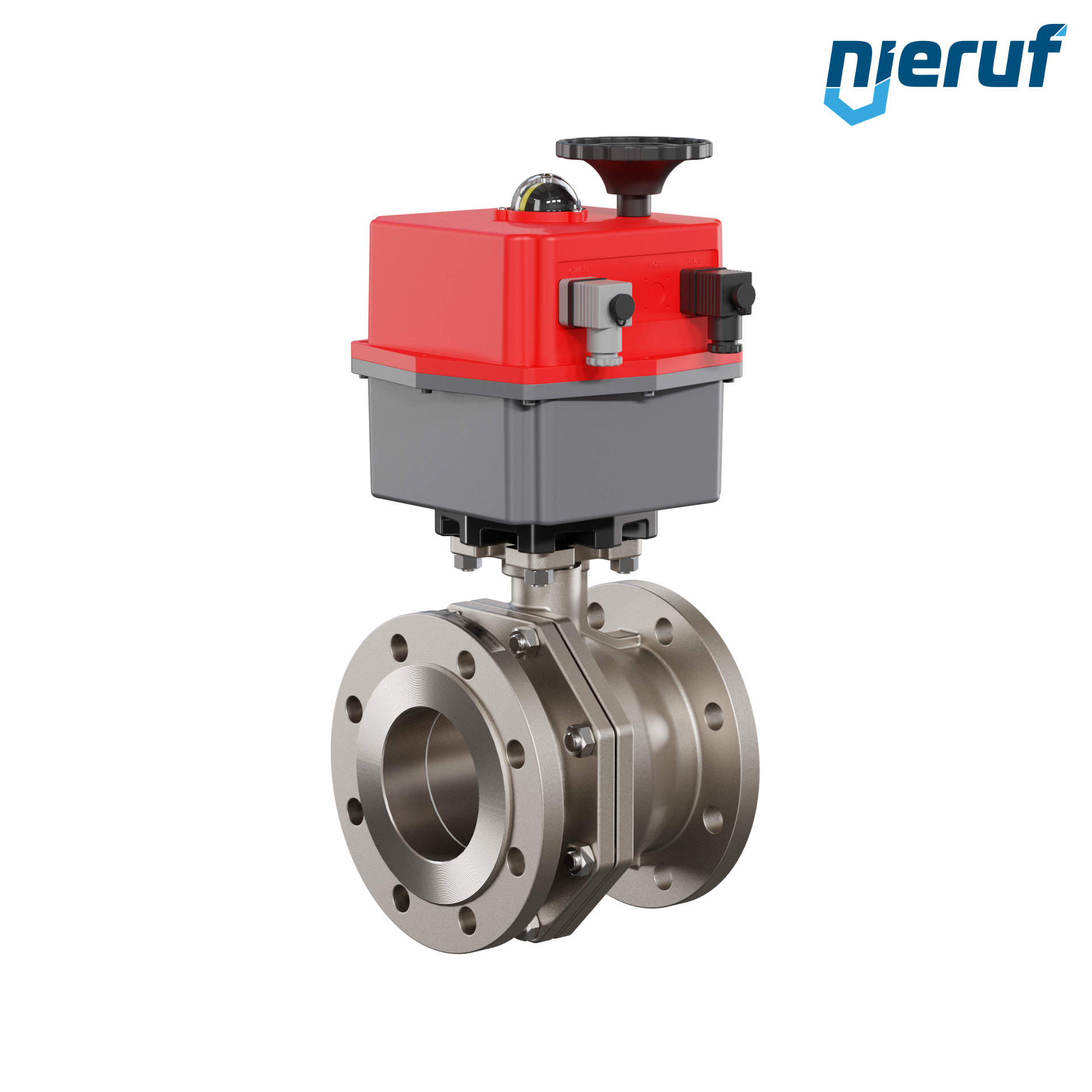

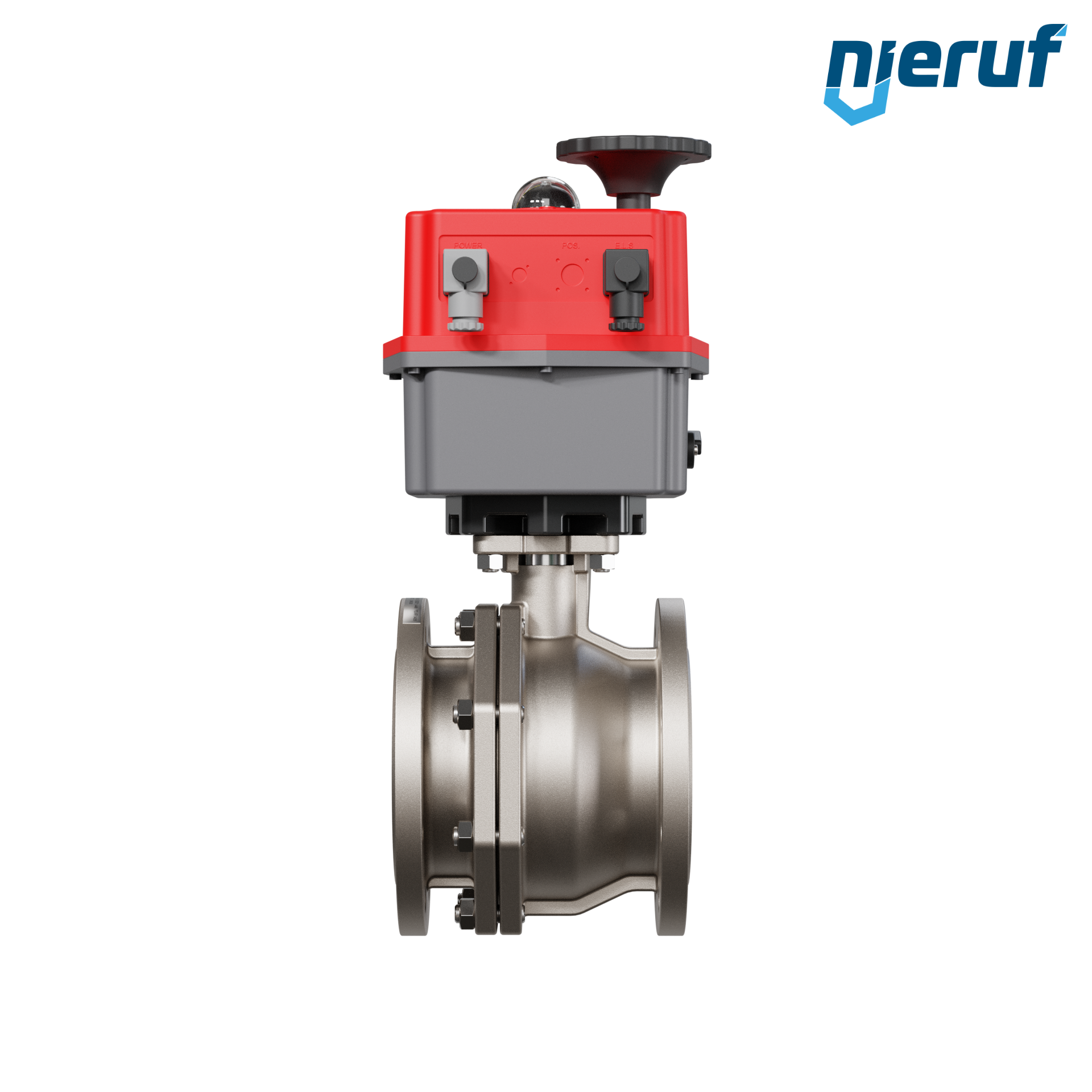

automatic-flange ball valve DN100 - 4" inch EK05 stainless steel 24V

€1,721.10*

€2,048.11 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 3 - 5 working days

Equipment

AKKUPACK02

AkkuPack BSR for S140-S300

€460.80*

€548.35 VAT included.

DPSKIT02

Digital Positioning System for S140-S300

€404.30*

€481.12 VAT included.

FD01000111

flange seal DN100 PN10/16 115x162x2 Klingersil C 4400

€4.10*

€4.88 VAT included.

VS01000111

joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 stainless steel

€13.60*

€16.18 VAT included.

Resistance check

×

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

24 months warranty

Certified

Downloads

3D model

Datasheet

automatic-flange ball valve DN100 - 4" inch EK05 stainless steel 24V

automatic-flange ball valve DN100 - 4" inch stainless steel 1.4408 EK05 electronic actuator S300 - series S for 24V AC/DC

product	automatic-flange ball valve
type	EK05
manufacturer	NieRuf
diameter	DN100 - 4" inch
connection	flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam	PTFE + 15% GF
media	liquid and gaseous media
temperature	ball valve -10°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure	PN16
design	flange ball valve with actuator
body material	stainless steel 1.4408
ball material	stainless steel 1.4401
ball seal	PTFE + GF
length	DIN EN 558-1
actuator	electronic actuator S300 - series S for 24-240V AC/DC
actuator informations	corrosion resistant synthetic body
installation position	any position, not upside down
product description	This high quality automatic-flange stainless-steel cast iron ball valve with electronic actuator (series S = multivoltage 24-240V AC/DC) with visual position indicator and emergency operating.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

automatic-flange ball valve DN100 - 4" inch EK05 stainless steel 24V

Article no. : EK05000011
product: automatic-flange ball valve
type: EK05
manufacturer: NieRuf
diameter: DN100 - 4" inch
connection: flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam: PTFE + 15% GF
media: liquid and gaseous media
temperature: ball valve -10°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure: PN16
design: flange ball valve with actuator
body material: stainless steel 1.4408
ball material: stainless steel 1.4401
ball seal: PTFE + GF
length: DIN EN 558-1
actuator: electronic actuator S300 - series S for 24-240V AC/DC
actuator informations: corrosion resistant synthetic body
installation position: any position, not upside down
product description: This high quality automatic-flange stainless-steel cast iron ball valve with electronic actuator (series S = multivoltage 24-240V AC/DC) with visual position indicator and emergency operating.
