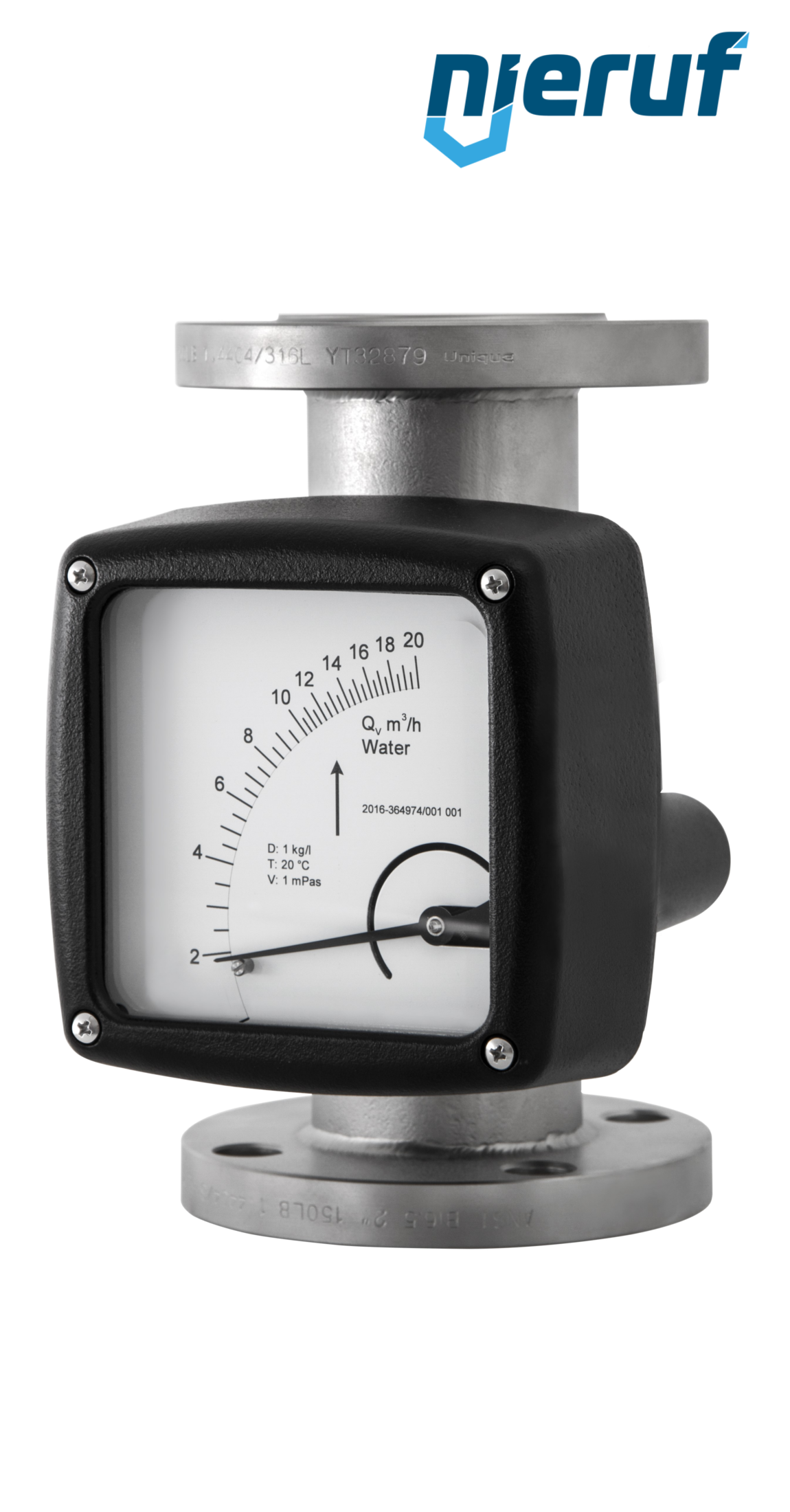

SK07101008
completely-metall flowmeter DN50 connection 25,0 - 250,0 l/h pipe DN15 water
- Lead time
- 1 - 2 weeks
Equipment
Welding neck flange DN50 PN25/40 EN1092-1 11 B1 1.4541
€50.22 VAT included.
joint set flange/flange DN50 - 2" Inch for flange PN10/16/25/40 stainless steel
€8.09 VAT included.
flange seal DN50 PN10/16/25/40 61x107x2 Klingersil C 4400
€3.69 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE
Downloads
completely-metall flowmeter DN50 connection 25,0 - 250,0 l/h pipe DN15 water
completely-metall flowmeter meassuring range 25,0 - 250,0 l/h pipe DN15PN40, flange-connection DN50 flange EN1092-1 for water
| product | completely-metall flowmeter |
|---|---|
| type | SK07 |
| manufacturer | NieRuf |
| connection-diameter | DN50 |
| diameter | DN15 |
| connection | flange EN1092-1 |
| connection material | Edelstahl |
| body material | Edelstahl |
| protection class | IP65 |
| float material | Stainless steel |
| float absorption | without absorption |
| pressure | PN40 |
| media | water |
| mark | Different media are available upon request |
| mark 2 | standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s |
| mark 3 | Type SK07 flowmeter are completely metall and can be used under rough conditions as well as high temperature or high pressures. |
| pressure loss float | 60 mbar |
| temperature | max. +200°C |
| Measuring range | 25,0 - 250,0 l/h |
| unit of scale | l/h |
| working pressure | max. 40 bar |
| accuracy | G 1,6 qG 50% (acc. VDE/VDI, sheet 2) |
| installation position | vertically upwards |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
completely-metall flowmeter DN50 connection 25,0 - 250,0 l/h pipe DN15 water
Article no.
: SK07101008
product:
completely-metall flowmeter
type:
SK07
manufacturer:
NieRuf
connection-diameter:
DN50
diameter:
DN15
connection:
flange EN1092-1
connection material:
Edelstahl
body material:
Edelstahl
protection class:
IP65
float material:
Stainless steel
float absorption:
without absorption
pressure:
PN40
media:
water
mark:
Different media are available upon request
mark 2:
standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s
mark 3:
Type SK07 flowmeter are completely metall and can be used under rough conditions as well as high temperature or high pressures.
pressure loss float:
60 mbar
temperature:
max. +200°C
Measuring range:
25,0 - 250,0 l/h
unit of scale:
l/h
working pressure:
max. 40 bar
accuracy:
G 1,6 qG 50% (acc. VDE/VDI, sheet 2)
installation position:
vertically upwards
Equipment
flange seal DN50 PN10/16/25/40 61x107x2 Klingersil C 4400
Lead time: in stock
Welding neck flange DN50 PN25/40 EN1092-1 11 B1 1.4541
Lead time: in stock
joint set flange/flange DN50 - 2" Inch for flange PN10/16/25/40 stainless steel
Lead time: in stock
