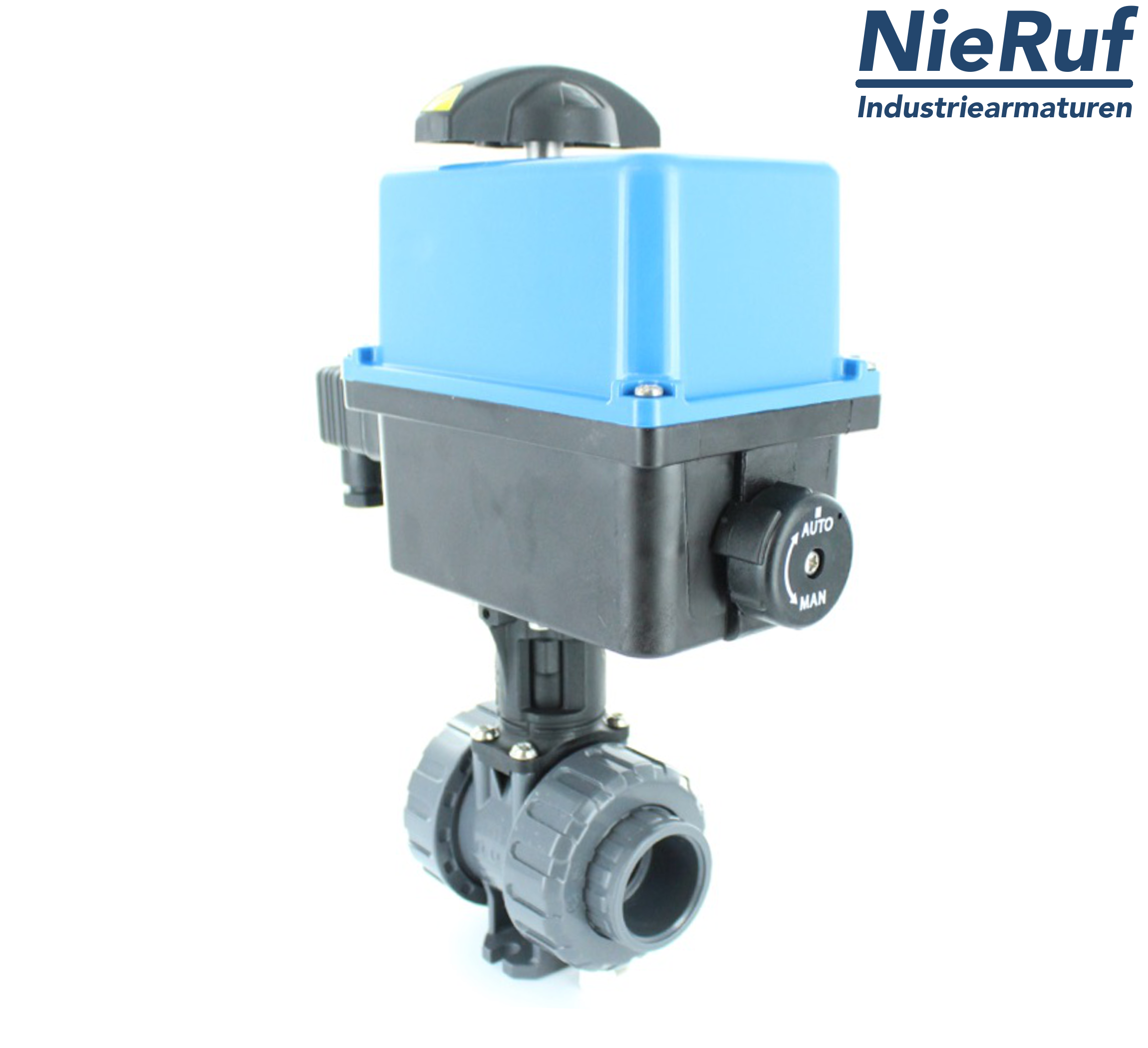

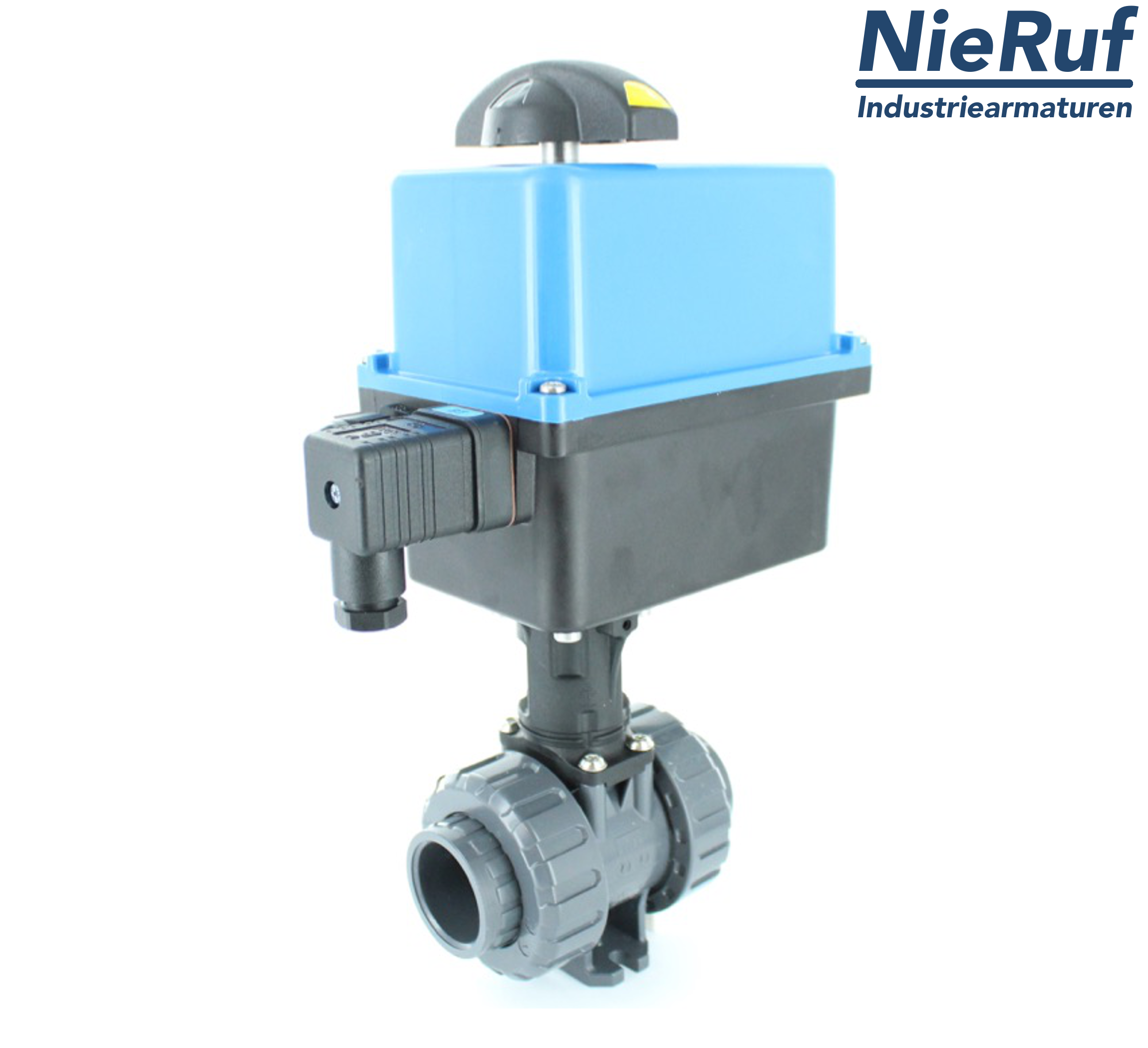

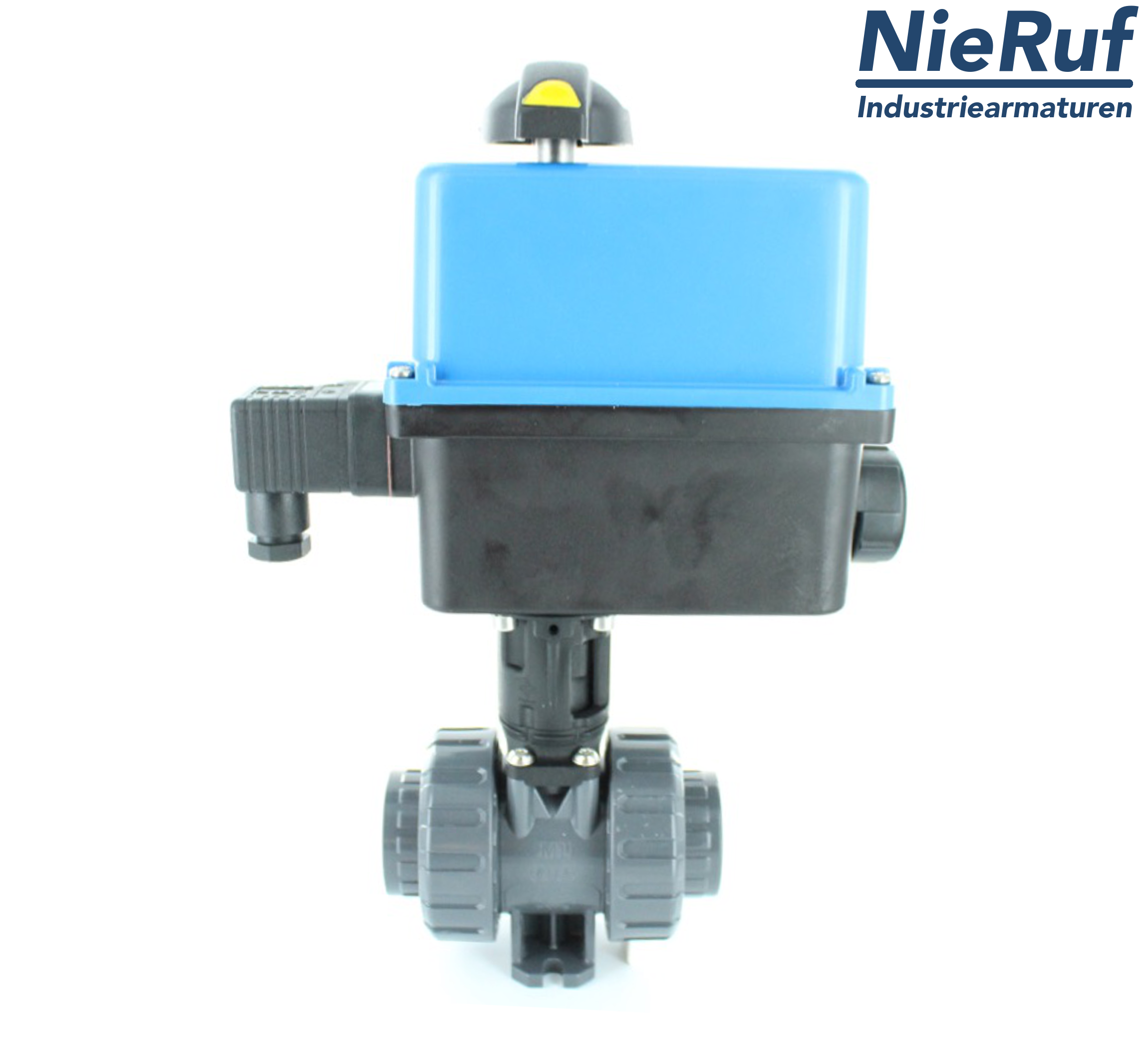

electrical-PVC-ball-valve DN40 - d50 KK04 electrical actuator 90-240 Volt

KK04000007
quantity (pcs.):
473.20€ * 548.91€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1-2 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
electrical-PVC-ball-valve DN40 - d50 KK04 electrical actuator 90-240 Volt
electrical-PVC-ball-valve DN40 - d50 PVC-U KK04 seal: EPDM adhesive connection electrical actuator 90-240 Volt automatic PVC-ball valve for liquid and gaseous media
diameter: DN40 - d50
connection: adhesive connection
Seal steam: EPDM
media: liquid and gaseous media
temperature: up to 60°C - depending on working pressure and media
max. pressure: PN16
design: automatic PVC-ball valve
body material: PVC-U
ball material: PVC-U
ball seal: EPDM+PTFE
actuator: electrical actuator 90-240 Volt
product description: electrical ball valve with adhesive connection in compact design. To shut off pipeline systems. 90-240 Volt construction
fields of application: swimming pool construction, chlorinated water
electrical-PVC-ball-valve DN40 - d50 KK04 electrical actuator 90-240 Volt

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

electrical-PVC-ball-valve DN40 - d50 KK04 electrical actuator 90-240 Volt
