DR04000120

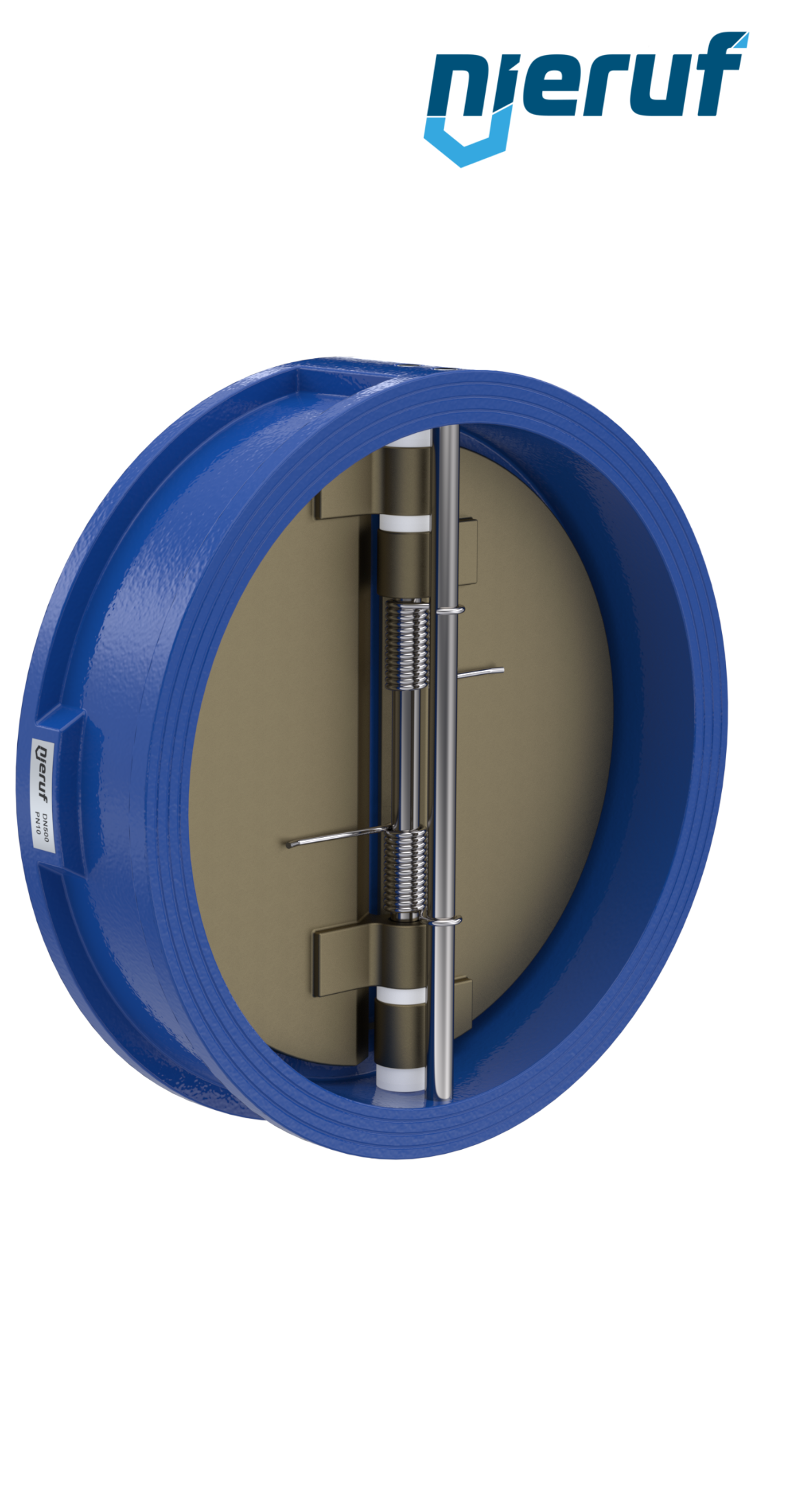

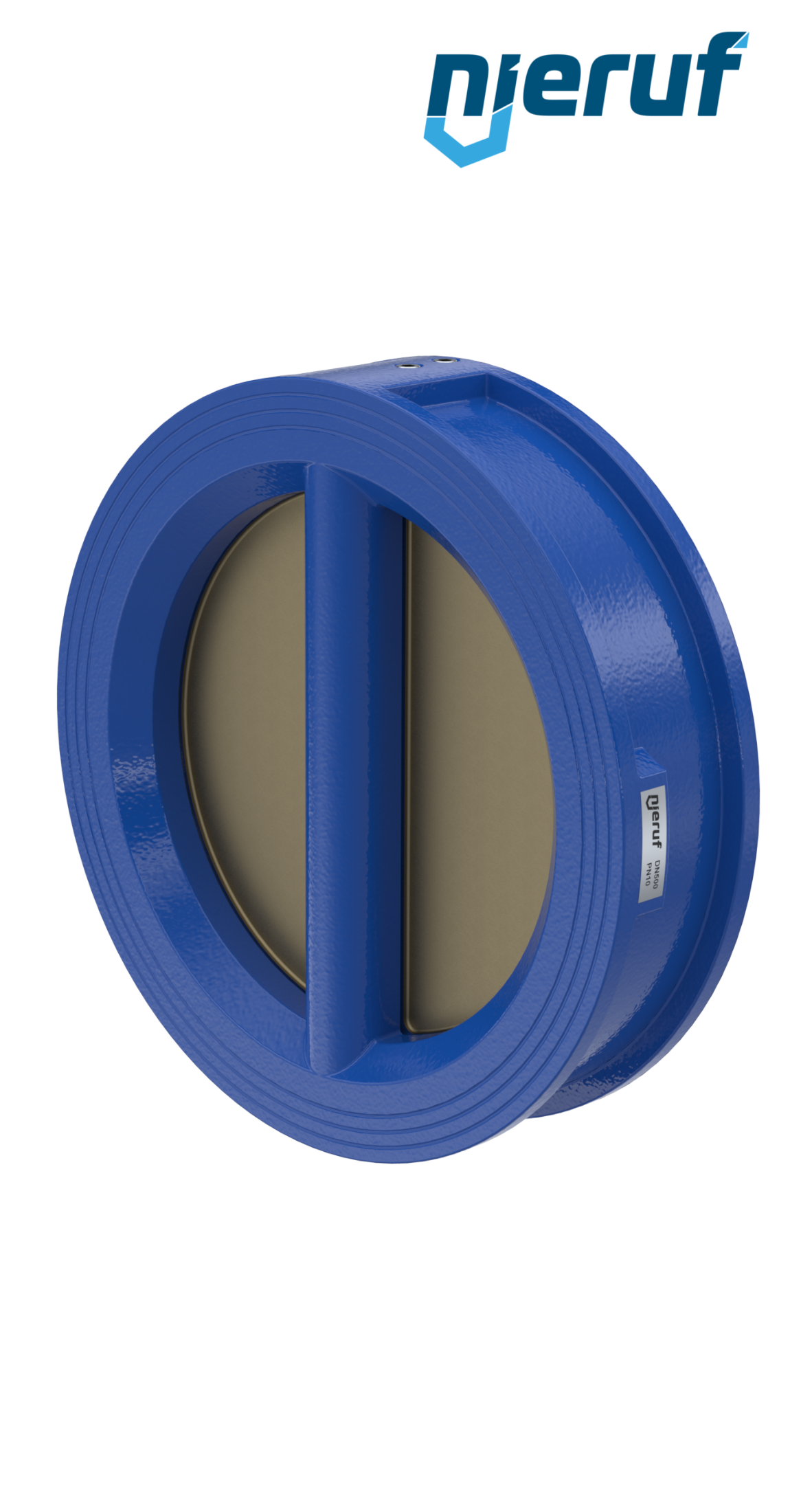

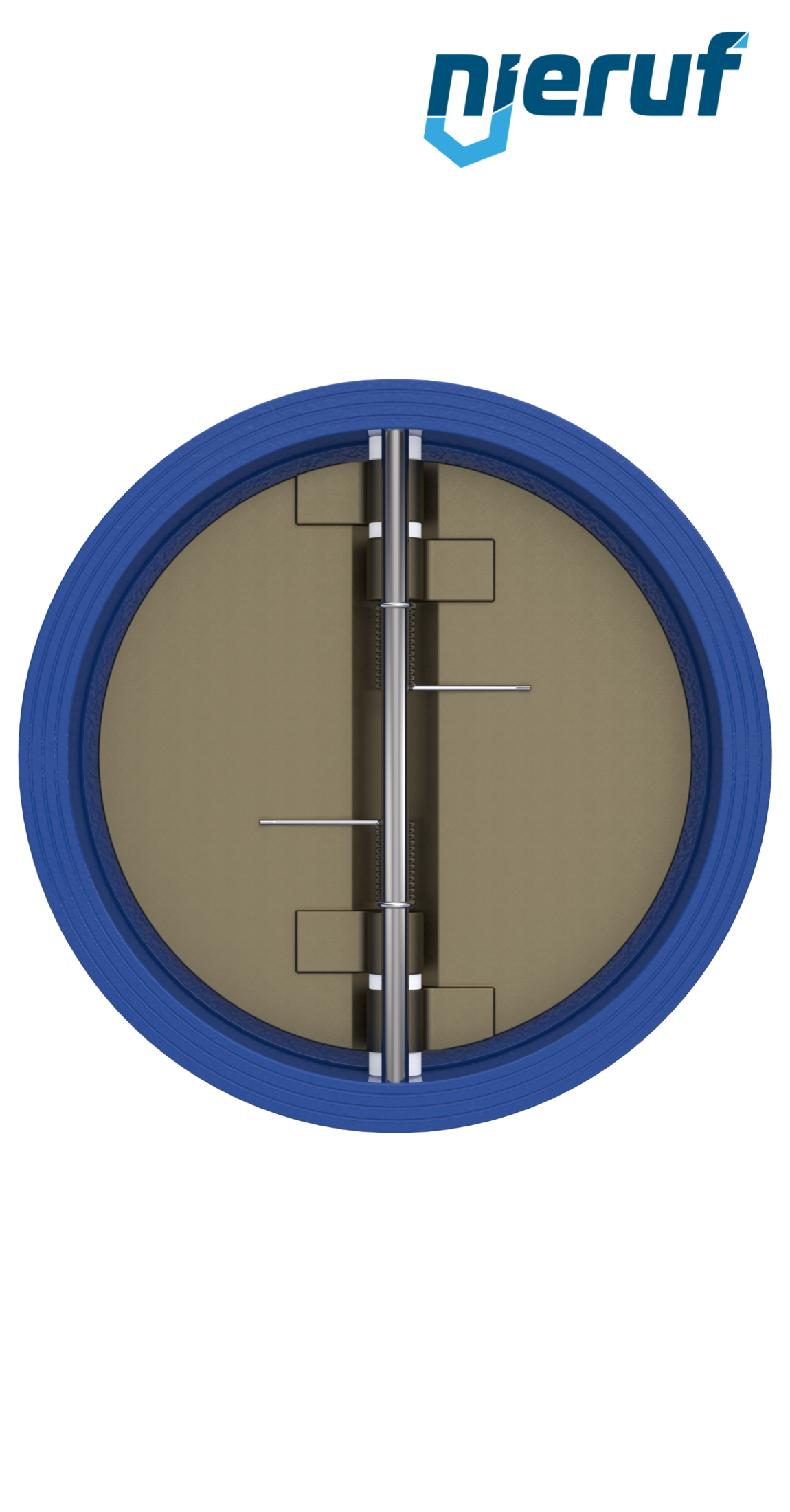

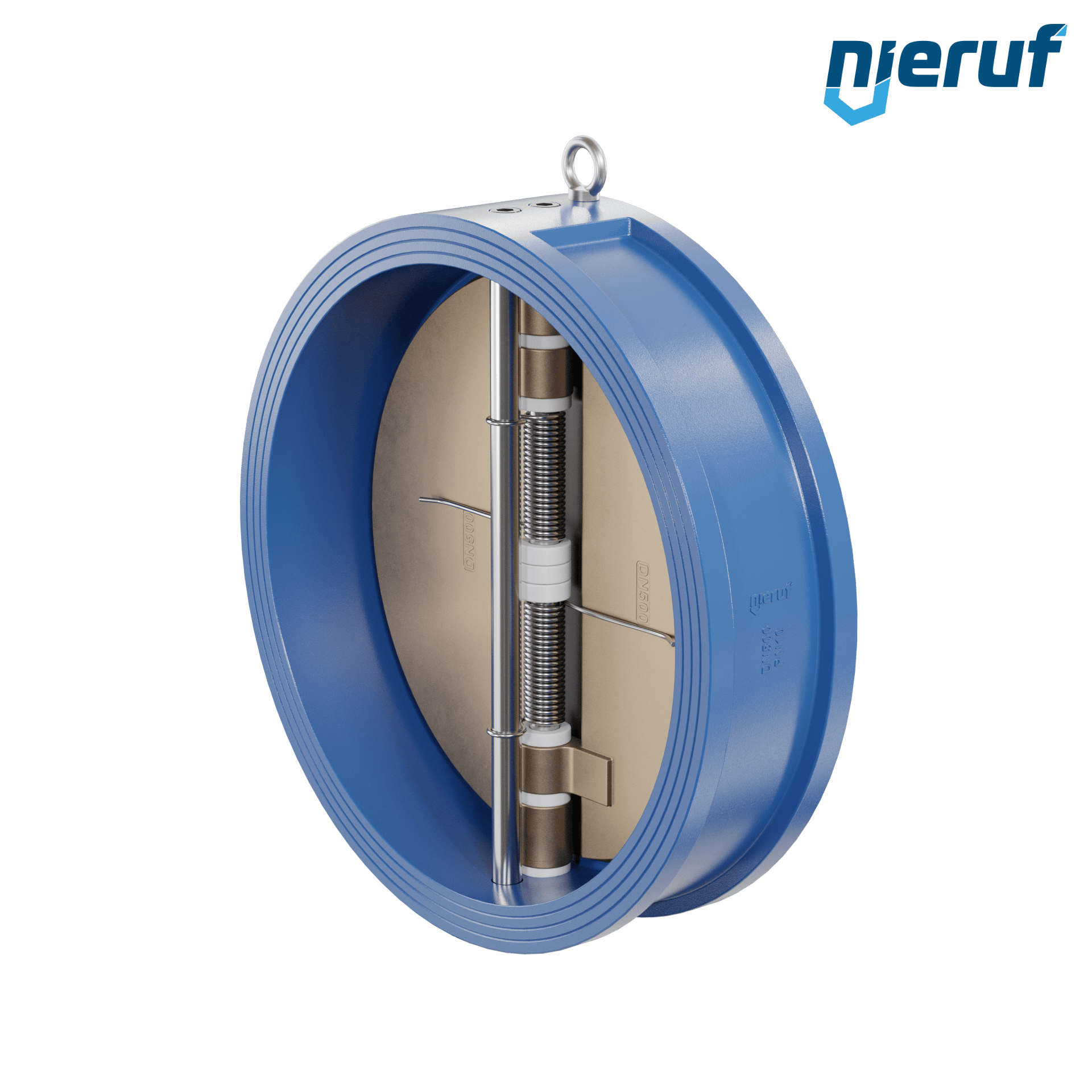

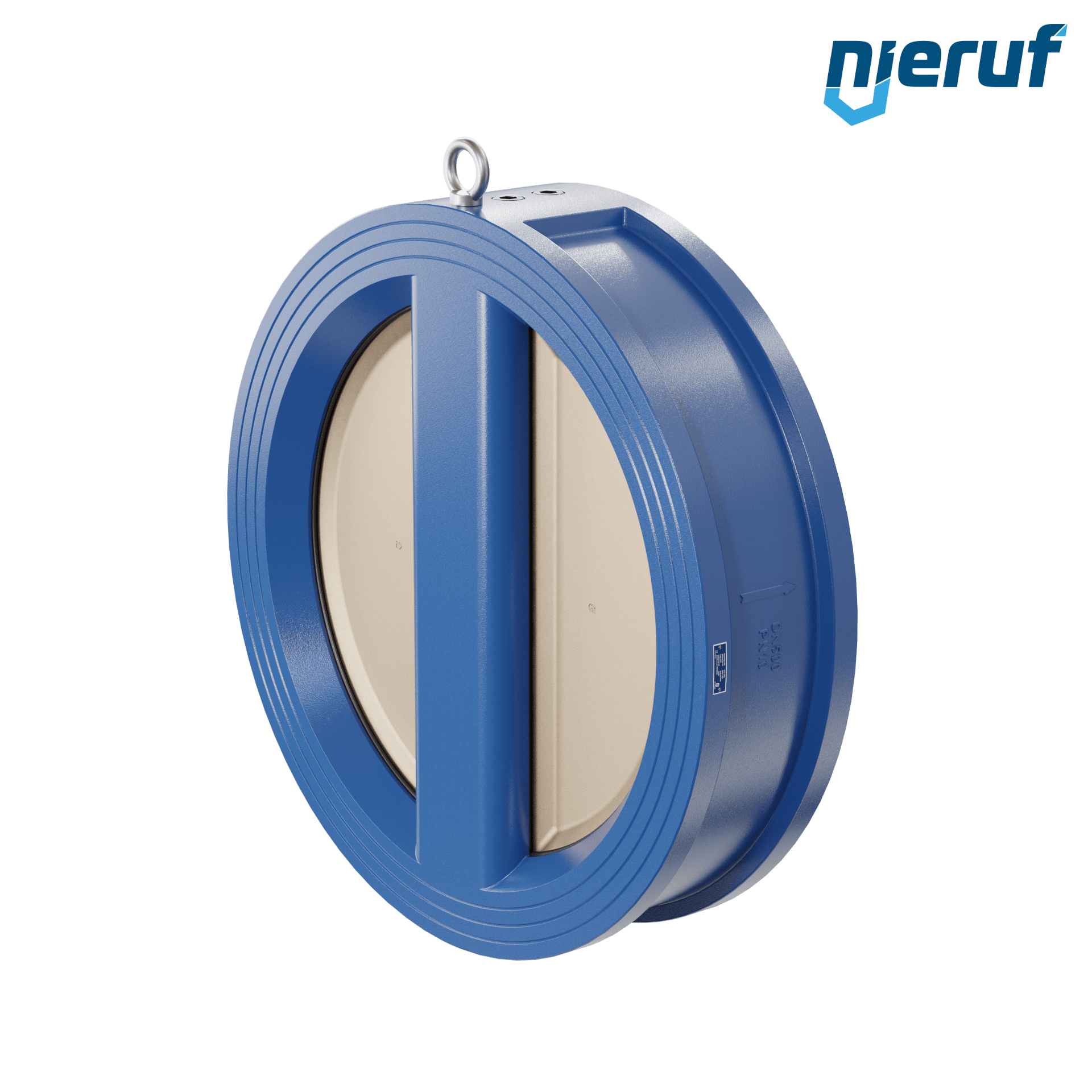

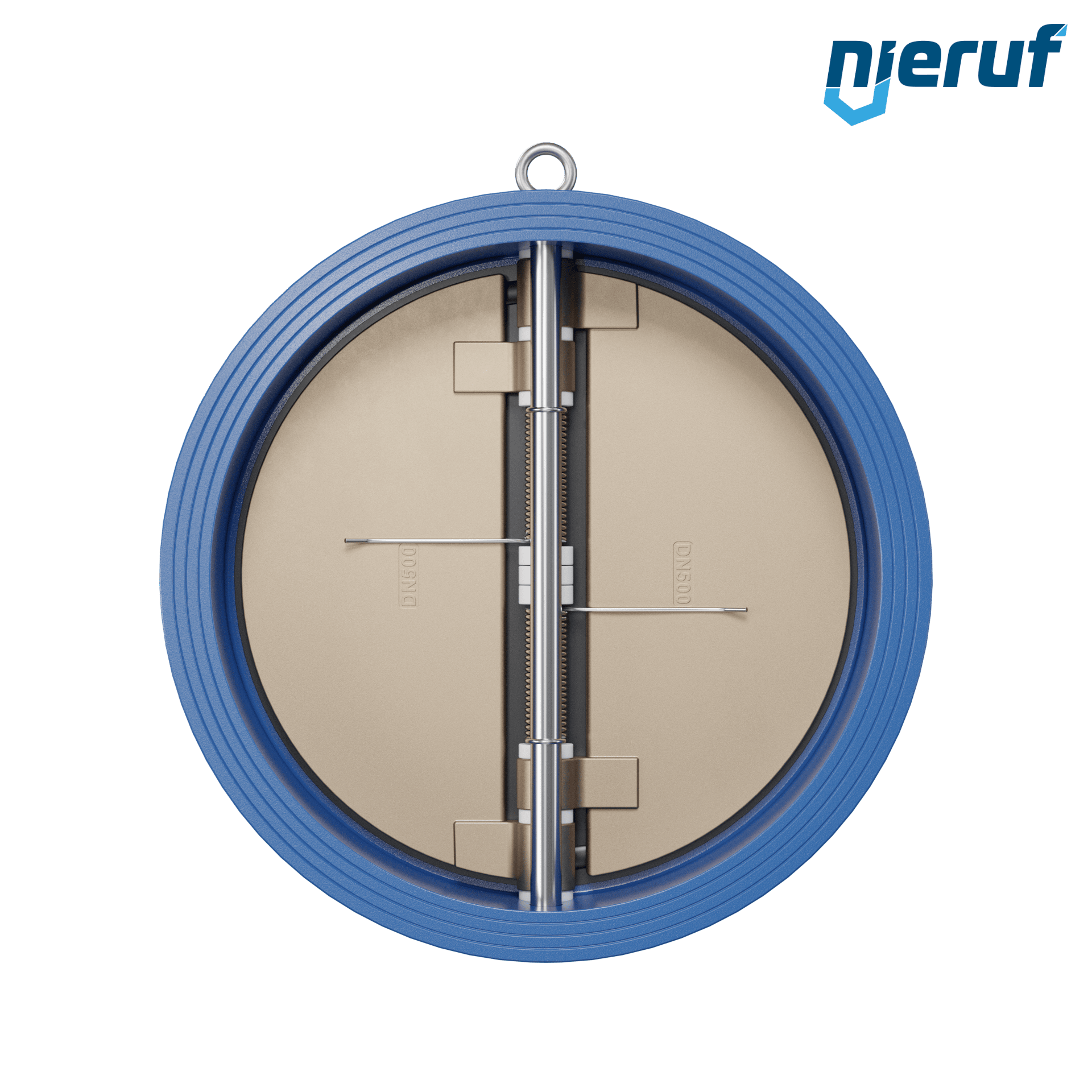

dual plate check valve DN500 DR04 GGG40 epoxyd plated blue 180µm EPDM
- Lead time
- On request
Questions about the article?
Our employee Richie Rost
will be happy to help you
dual plate check valve DN500 DR04 GGG40 epoxyd plated blue 180µm EPDM
dual plate check valve DN500 seal EPDM PN 10 DIN EN 1092-1 Form B, body made of GGG40 epoxyd plated blue 180µm, wings made of Alu-Bronze
| product | dual plate check valve |
|---|---|
| type | DR04 |
| manufacturer | NieRuf |
| design | dual plate check valve |
| diameter | DN500 |
| body material | GGG40 epoxyd plated blue 180µm |
| disc material | Alu-Bronze C954 |
| seal | EPDM |
| temperature | -10°C to +120°C |
| connection | flange |
| flange | PN 10 DIN EN 1092-1 Form B |
| pressure range | 0 - 10 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate A |
| option | with spring made of stainless steel |
| installation position | direction of flow horizontal, vertical from below - up to DN200 also from above |
| product feature | face to face according DIN EN 558-1 row 16 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
dual plate check valve DN500 DR04 GGG40 epoxyd plated blue 180µm EPDM
Article no.
: DR04000120
product:
dual plate check valve
type:
DR04
manufacturer:
NieRuf
design:
dual plate check valve
diameter:
DN500
body material:
GGG40 epoxyd plated blue 180µm
disc material:
Alu-Bronze C954
seal:
EPDM
temperature:
-10°C to +120°C
connection:
flange
flange:
PN 10 DIN EN 1092-1 Form B
pressure range:
0 - 10 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
with spring made of stainless steel
installation position:
direction of flow horizontal, vertical from below - up to DN200 also from above
product feature:
face to face according DIN EN 558-1 row 16
