DR04100218

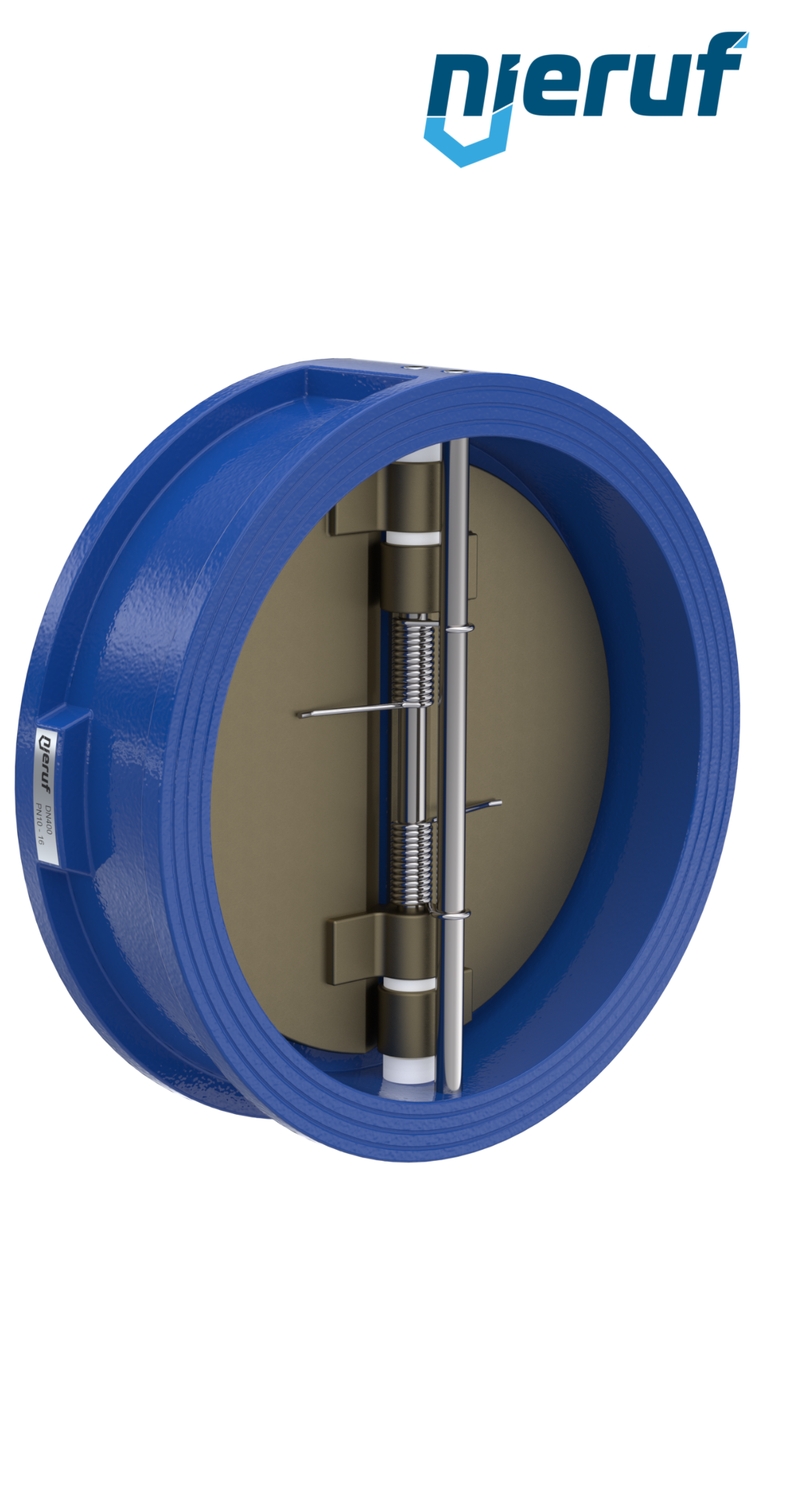

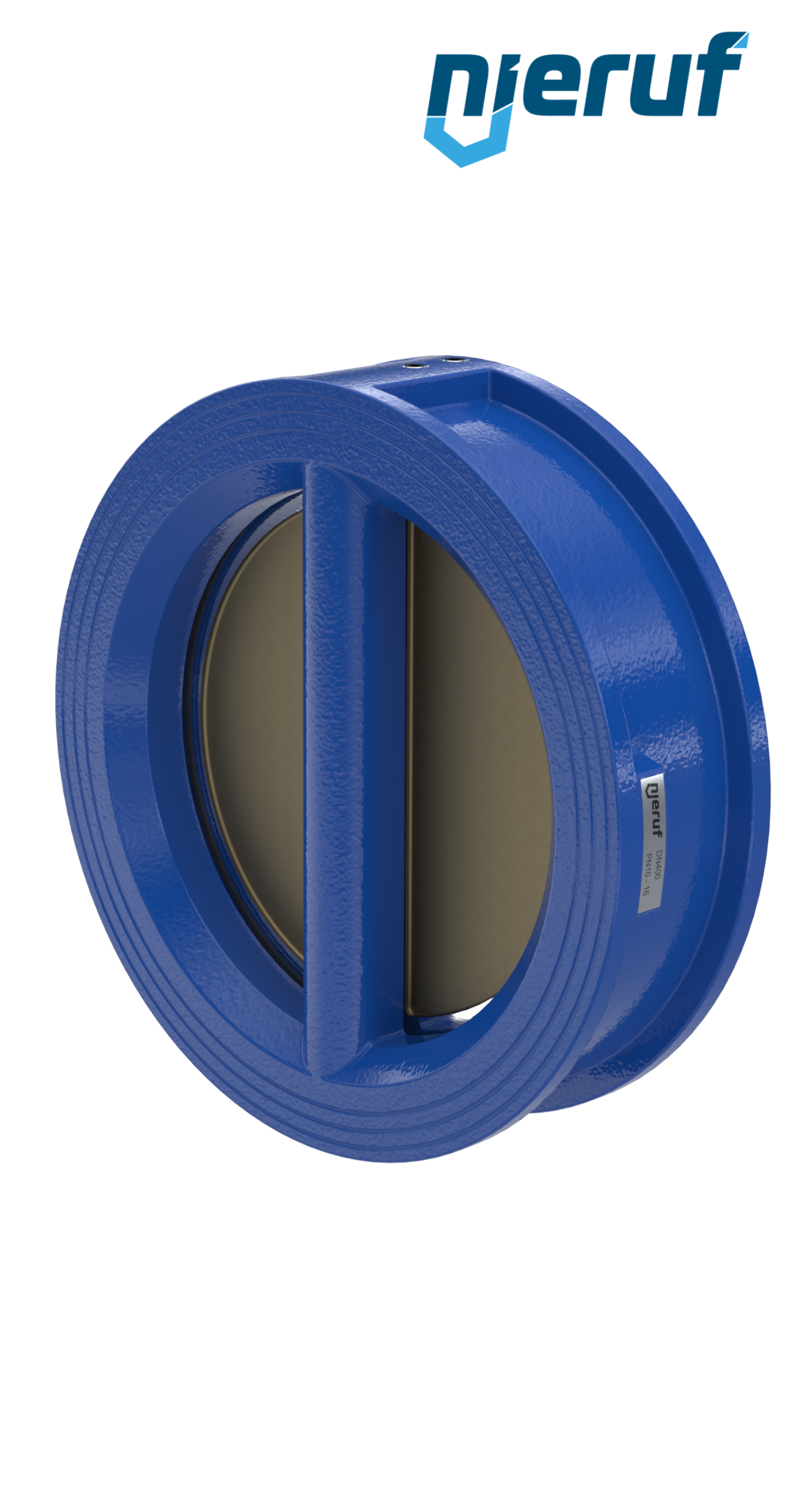

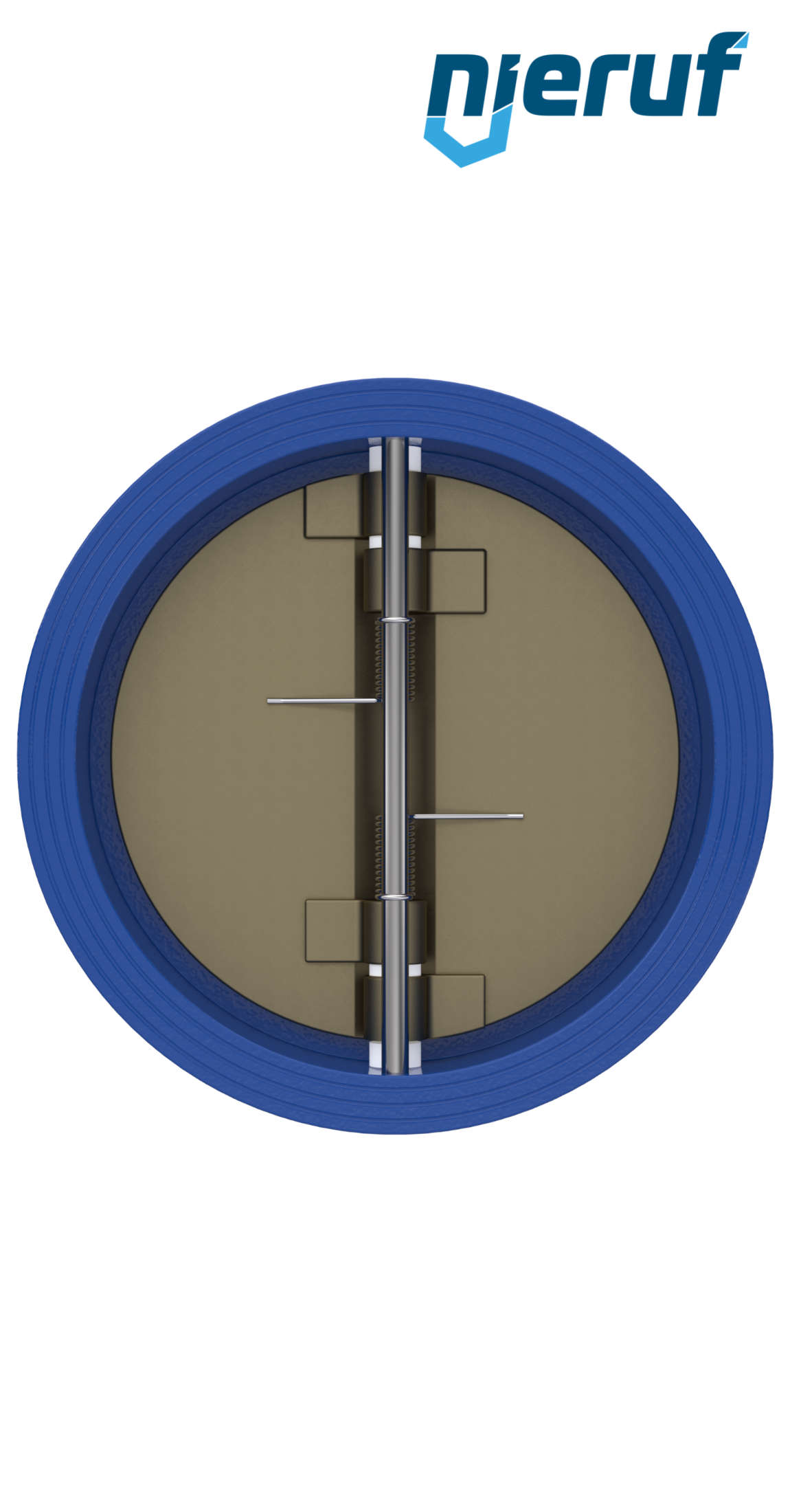

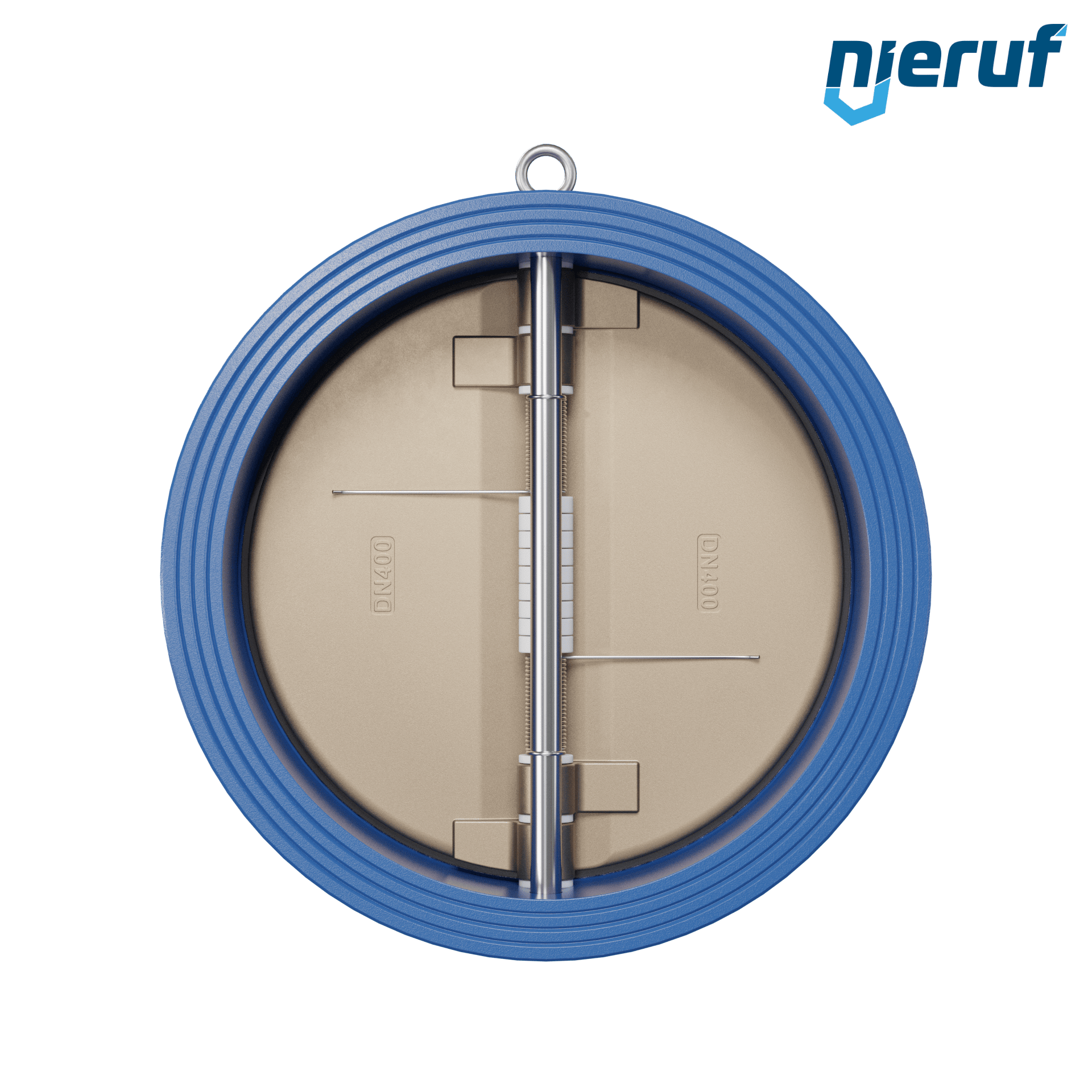

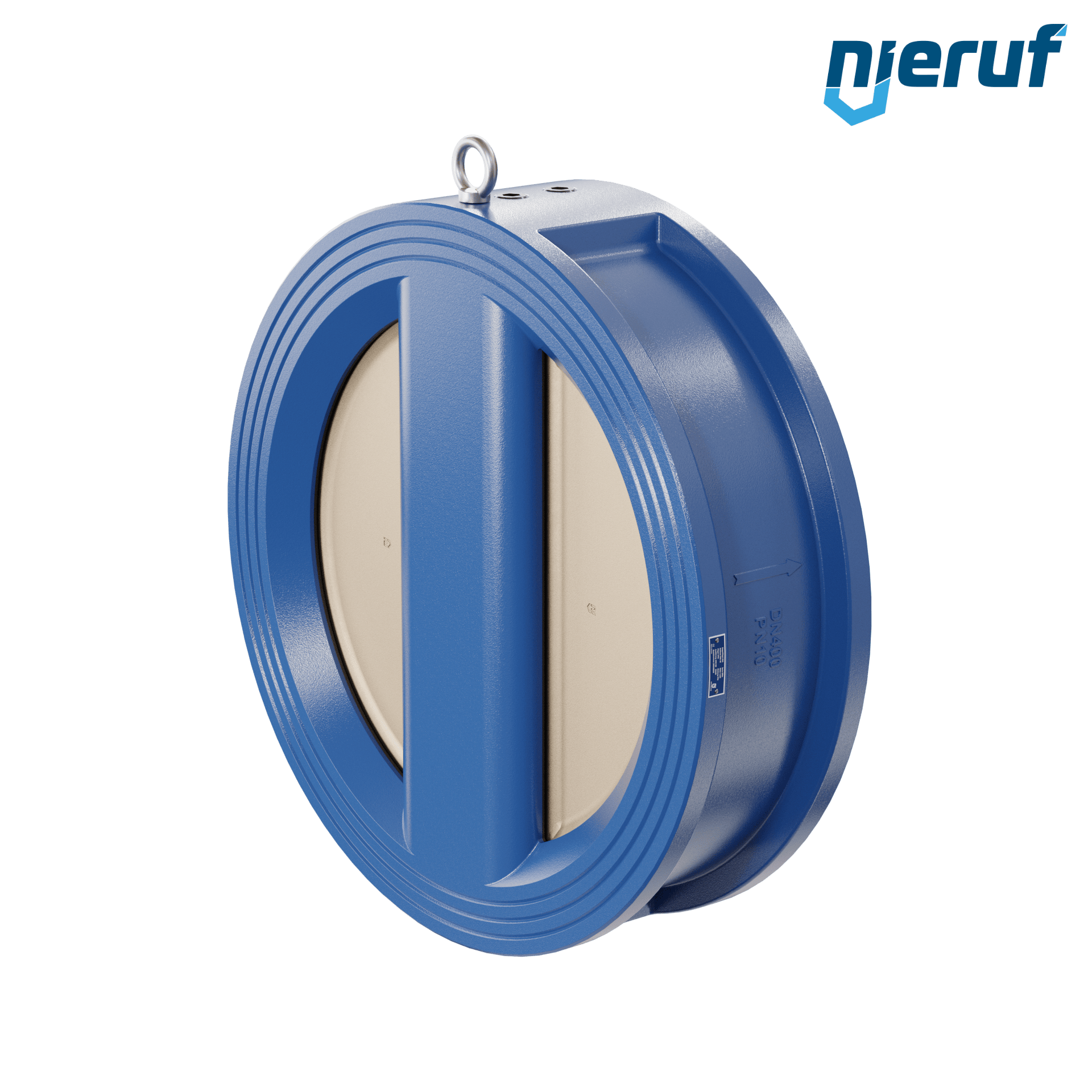

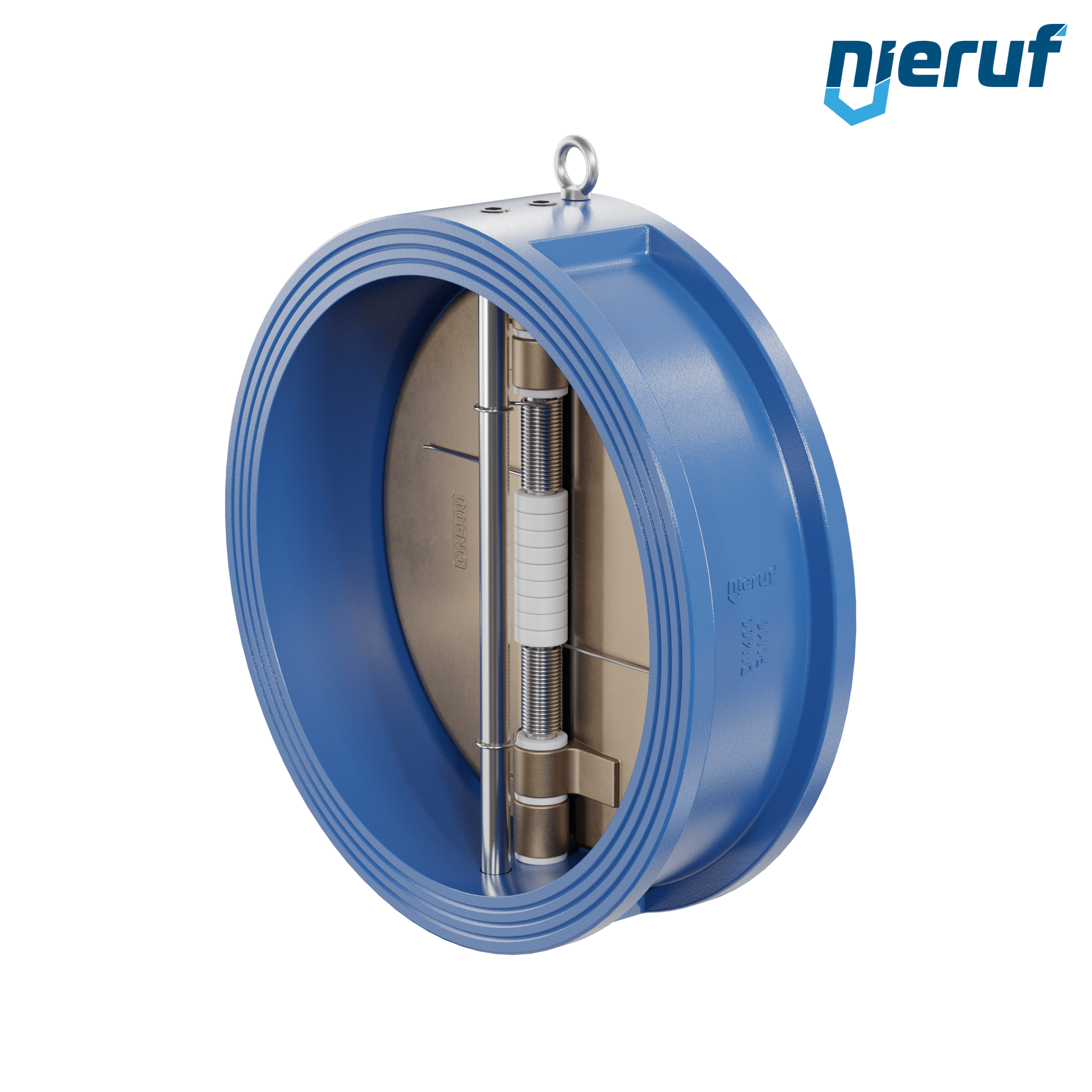

dual plate check valve DN400 DR04 ANSI 150 GGG40 epoxyd plated blue 180µm FKM
- Lead time
- On request
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
dual plate check valve DN400 DR04 ANSI 150 GGG40 epoxyd plated blue 180µm FKM
dual plate check valve DN400 seal FKM ASME B16.5 / ANSI 150, body made of GGG40 epoxyd plated blue 180µm, wings made of Alu-Bronze
| product | dual plate check valve |
|---|---|
| type | DR04 ANSI 150 |
| manufacturer | NieRuf |
| design | dual plate check valve |
| diameter | DN400 |
| body material | GGG40 epoxyd plated blue 180µm |
| disc material | Alu-Bronze C954 |
| seal | FKM |
| temperature | -10°C to +150°C |
| connection | flange |
| flange | ASME B16.5 / ANSI 150 |
| pressure range | 0 - 20 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate A |
| option | with spring made of stainless steel |
| installation position | direction of flow horizontal, vertical from below - up to DN200 also from above |
| product feature | API 594 / ASME B16. 10 / Class 150 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
dual plate check valve DN400 DR04 ANSI 150 GGG40 epoxyd plated blue 180µm FKM
Article no.
: DR04100218
product:
dual plate check valve
type:
DR04 ANSI 150
manufacturer:
NieRuf
design:
dual plate check valve
diameter:
DN400
body material:
GGG40 epoxyd plated blue 180µm
disc material:
Alu-Bronze C954
seal:
FKM
temperature:
-10°C to +150°C
connection:
flange
flange:
ASME B16.5 / ANSI 150
pressure range:
0 - 20 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
with spring made of stainless steel
installation position:
direction of flow horizontal, vertical from below - up to DN200 also from above
product feature:
API 594 / ASME B16. 10 / Class 150
